- Siemens
- 6AG1531-7PF00-4AB0
- Analog Input Module
- Germany
- 35 × 147 × 129 mm
- 0.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

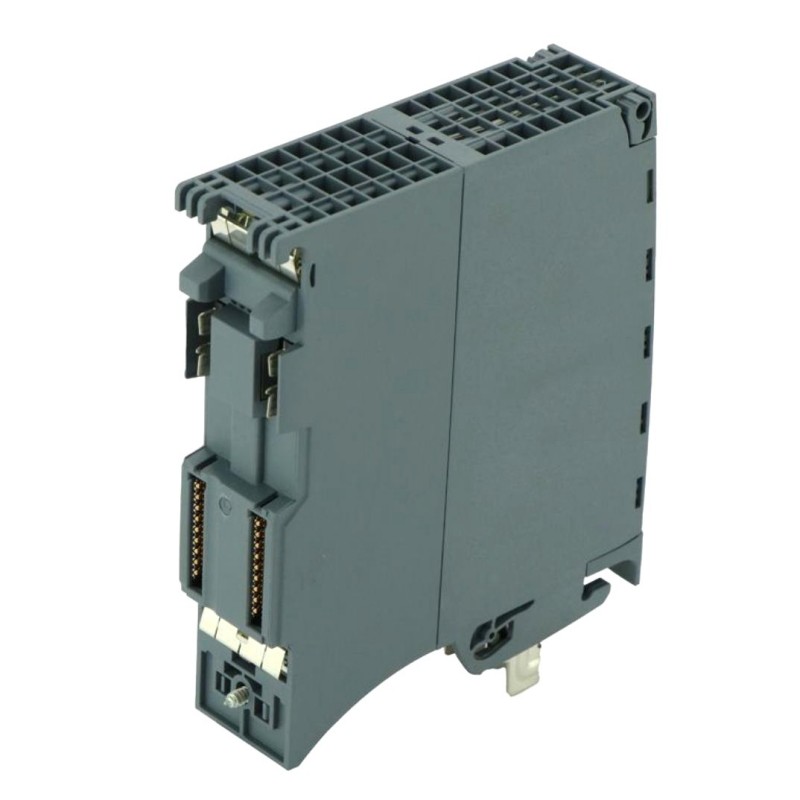

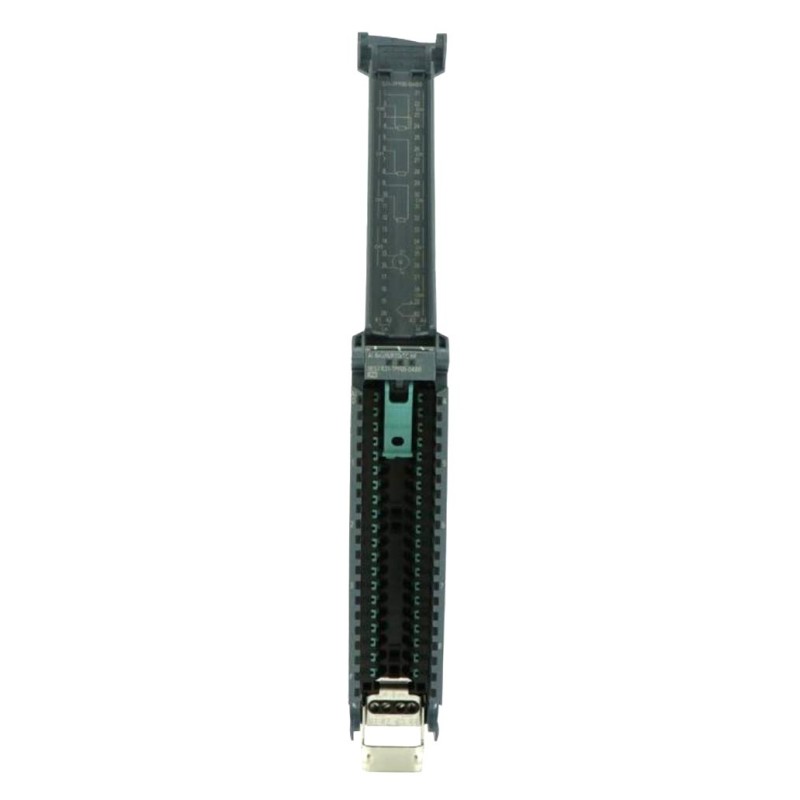

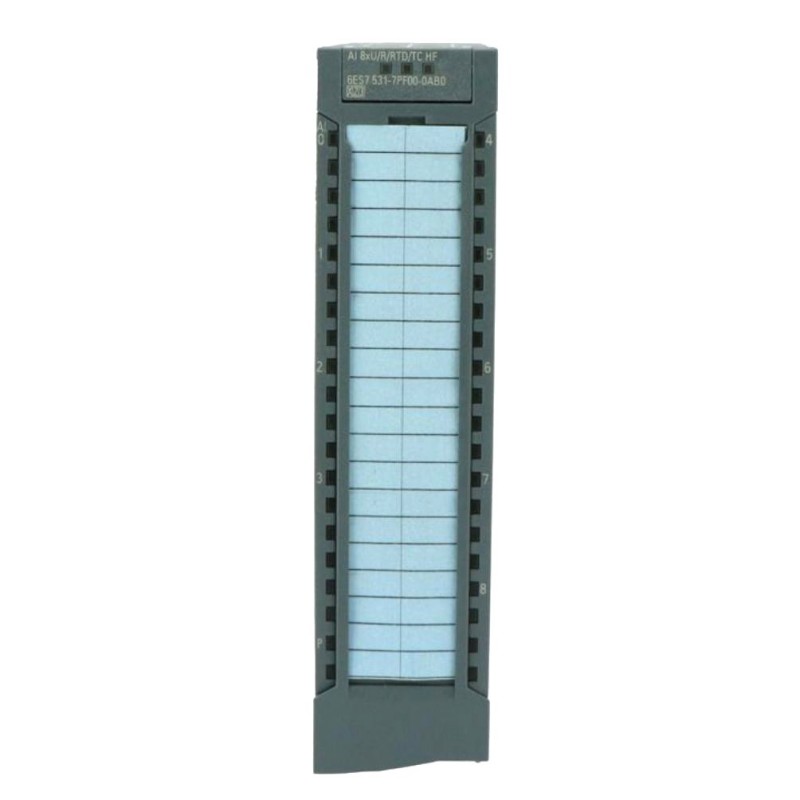

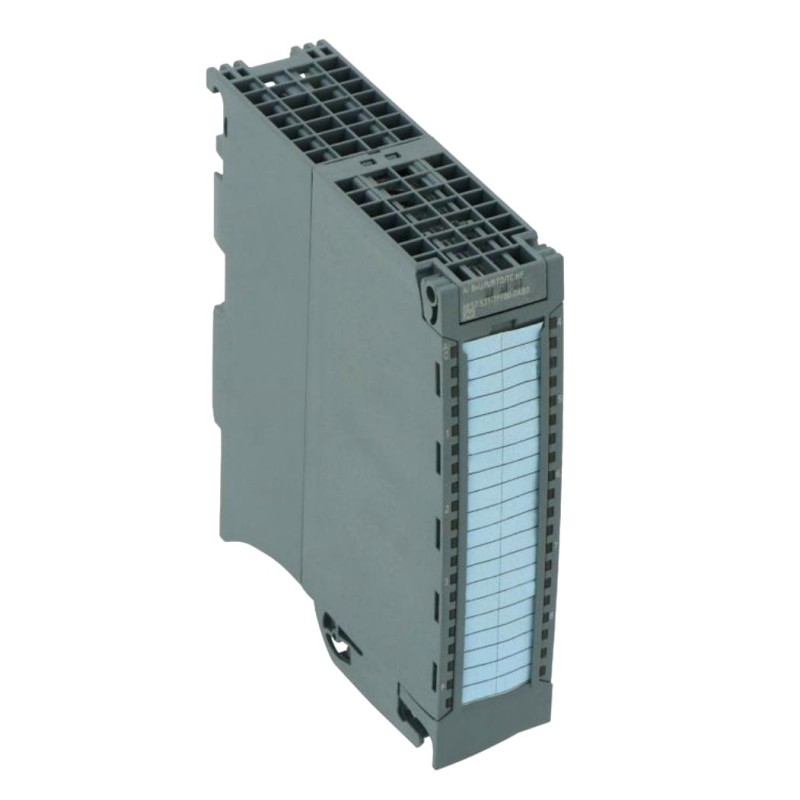

The Siemens 6AG1531-7PF00-4AB0 is a SIPLUS S7-1500 analog input module used to bring continuous process signals into an S7-1500 automation system. It sits at the field-to-controller interface, where signals from transmitters and other analog instruments are acquired for use by the PLC program.
In a typical installation, field instrumentation measures variables such as temperature, pressure, flow, level, or other process conditions. The associated signal is wired to the analog input module, converted into usable digital process data, and transferred through the S7-1500 backplane to the CPU. The control program can then use that value for monitoring, regulation, alarms, sequencing, or data collection.
As part of the SIPLUS product family, the module is intended for applications where the S7-1500 platform is used in enhanced-environment industrial installations. It can be considered when replacing or expanding analog acquisition hardware while maintaining the existing Siemens PLC architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1531-7PF00-4AB0 |
| Product Type | Analog Input Module |
| Product Family | SIPLUS S7-1500 |
| Automation Platform | Siemens S7-1500 |
| Module Function | Analog Signal Acquisition |
| Signal Type | Analog Process Signals |
| Application | Industrial Measurement and Process Monitoring |
| System Integration | S7-1500 Backplane |
| Signal Path | Field Instrument → Analog Input Module → S7-1500 CPU |
| Control Role | Process Measurement Input |
| Installation | S7-1500 Modular Automation System |
| Environmental Application | Enhanced-Environment Industrial Applications |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.3 kg |
Product Features
- Siemens SIPLUS S7-1500 analog input module for continuous process measurements.
- Connects field-level analog instrumentation with the S7-1500 control system.
- Converts acquired analog process information into data usable by the PLC application.
- Suitable for measurement, monitoring, control-loop feedback, and process diagnostics.
- Integrates with the modular S7-1500 automation architecture.
- Supports replacement and expansion work on existing S7-1500 installations.
- Suitable for industrial applications requiring SIPLUS hardware for enhanced environmental conditions.
- Keeps analog signal acquisition at the I/O level while leaving control logic to the S7-1500 CPU.
Working Principle
The 6AG1531-7PF00-4AB0 operates as the analog acquisition point between field instrumentation and the S7-1500 controller.
1. Field measurement
A transmitter or other analog instrument measures a physical process variable. The resulting electrical signal represents the measured condition and is connected to the PLC’s field wiring.
2. Analog signal acquisition
The signal enters the 6AG1531-7PF00-4AB0 through the configured input circuit. The module acquires the incoming analog information and converts it into digital process data for the automation system.
3. Transfer to the CPU
The acquired value is transferred through the S7-1500 system architecture to the CPU. The PLC program can then compare the measurement against configured process conditions or use it as an input to control functions.
4. Process response
Depending on the application, the CPU may use the measurement for closed-loop control, alarm handling, sequencing, operator visualization, or historical process data. The module therefore forms the measurement link between the physical process and the PLC application.
Role in a SIPLUS S7-1500 Process Control Architecture
The module occupies the analog input layer of the S7-1500 architecture. It receives information from field instruments and makes the acquired measurement available to the CPU without taking over the controller’s application logic.
| System Layer | Typical Component | Function |
|---|---|---|
| Process | Industrial Equipment | Generates the physical process variable |
| Field Instrumentation | Transmitter / Analog Sensor | Measures the process condition |
| Analog I/O | 6AG1531-7PF00-4AB0 | Acquires analog field signals |
| System Bus | S7-1500 Backplane | Transfers I/O data within the station |
| Control | S7-1500 CPU | Executes application and control logic |
| Visualization | HMI / SCADA | Displays process values and operator information |
| Supervisory Layer | Plant Control / Monitoring System | Uses process data for monitoring and higher-level functions |
Industrial Applications
| Application | Module Role |
|---|---|
| Process Automation | Acquires continuous measurements for PLC control strategies |
| Machine Automation | Brings analog feedback from sensors and transmitters into the controller |
| Chemical Processing | Supports acquisition of process variables used for monitoring and regulation |
| Water and Wastewater | Collects analog instrumentation data for treatment and utility processes |
| Energy Systems | Interfaces measurement signals with S7-1500 control hardware |
| Manufacturing Equipment | Provides analog feedback for machine operation and process supervision |
| Industrial Monitoring | Supplies measured values for alarms, diagnostics, and operator displays |
Installation and Maintenance
- Verify that the 6AG1531-7PF00-4AB0 is appropriate for the existing SIPLUS S7-1500 station and application.
- Confirm the module position and associated hardware configuration before installation.
- Isolate the relevant control cabinet and field circuits according to the plant safety procedure.
- Check the module and terminal area for visible mechanical damage before installation.
- Verify field wiring against the approved electrical drawings and channel assignment.
- Ensure analog signal wiring is properly separated from sources of electrical interference where required by the installation design.
- Install the module securely in the S7-1500 station and confirm its connection with the system backplane.
- Check all field terminals for correct seating and secure connections.
- Verify the hardware configuration and module assignment in the PLC engineering project.
- After energization, check the acquired process values for abnormal readings, signal loss, or channel-related diagnostics.
- If a channel behaves unexpectedly, inspect the field instrument, wiring, terminal connection, module configuration, and associated CPU diagnostics systematically.
- Record the installed module model and channel assignment to simplify future troubleshooting and replacement.
Related Components
| Component | Function in the System |
|---|---|
| Siemens S7-1500 CPU | Executes PLC application and process control logic |
| SIPLUS S7-1500 Digital I/O Modules | Provides discrete field signal interfaces within the same automation platform |
| SIPLUS S7-1500 Analog Output Modules | Sends analog control values from the PLC toward field devices |
| S7-1500 System Backplane | Provides the internal module communication path |
| Analog Transmitter | Converts a measured process variable into an analog electrical signal |
| Analog Sensor | Provides continuous measurement information from the field |
| HMI | Displays acquired process values and diagnostic information |
| Industrial Field Wiring | Connects field instrumentation with the analog I/O interface |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1531-7KF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related SIPLUS analog input configuration |
| Siemens 6AG1531-7NF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related analog input module in the same platform |
| Siemens 6AG1531-7NF10-7AB0 | SIPLUS S7-1500 Analog Input Module | Related SIPLUS analog acquisition module |
| Siemens 6AG1526-1BH00-2AB0 | SIPLUS S7-1500 Digital Input Module | Related S7-1500 SIPLUS input module |
| Siemens 6AG1526-2BF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Complementary S7-1500 SIPLUS output module |
Key Advantages
- Provides an analog measurement interface for SIPLUS S7-1500 systems.
- Connects field transmitters and sensors directly into the PLC I/O architecture.
- Supports process monitoring and analog feedback for control applications.
- Fits within the modular S7-1500 automation platform.
- Suitable for maintenance, replacement, and system expansion projects.
- Keeps field signal acquisition separate from higher-level PLC control logic.
Technical FAQs
What type of field signals can be connected to the 6AG1531-7PF00-4AB0?
The module is intended for analog input acquisition. The exact supported signal types and ranges should be confirmed against the applicable Siemens module documentation and the configuration used in the S7-1500 project.
How is the module integrated into an S7-1500 station?
The module is installed as part of the S7-1500 modular I/O system. Field instrumentation connects to the module’s input side, while acquired process data is transferred through the station architecture to the S7-1500 CPU.
What should be checked if an analog value is incorrect?
Start with the field instrument and wiring, then check terminal connections, channel configuration, module diagnostics, and the PLC engineering configuration. A mismatch between the actual field signal and the configured input parameters can also produce unexpected process values.
Can this module be used in an existing S7-1500 system?
It should be evaluated against the specific S7-1500 station configuration, firmware and hardware requirements, field signal requirements, and engineering project before replacement or expansion. Matching the module family alone does not establish compatibility with every existing configuration.
