- Siemens
- 6AG1531-7NF10-7AB0
- Analog Input Module
- Germany
- 35 × 147 × 129 mm
- 0.425 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

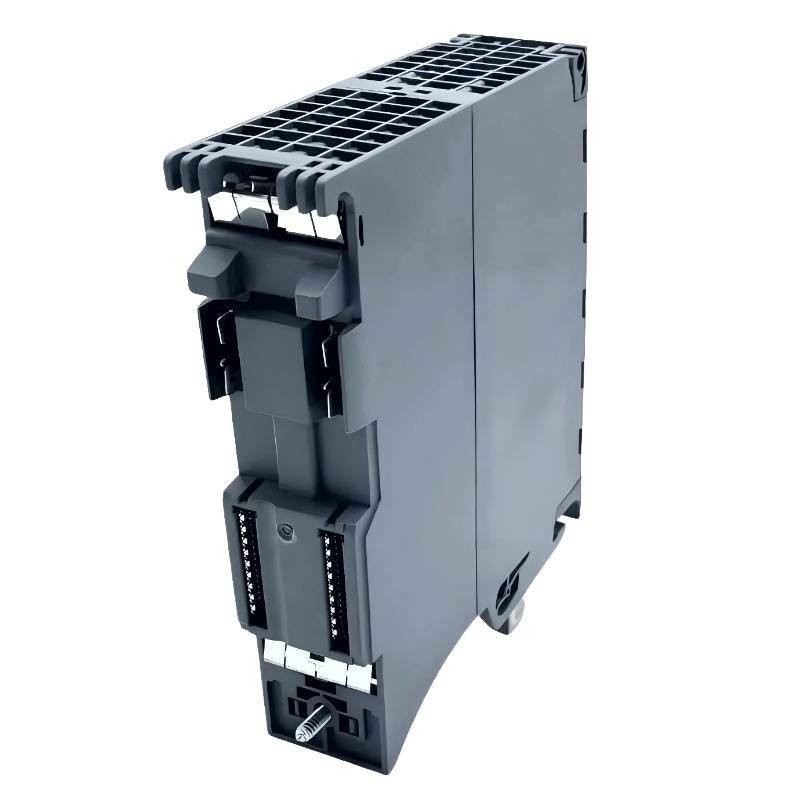

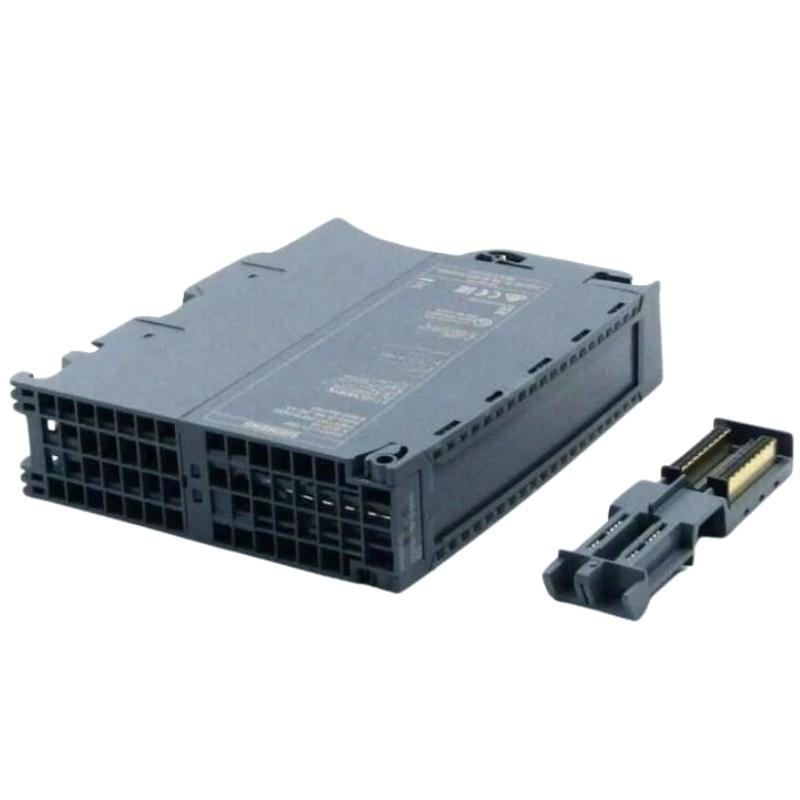

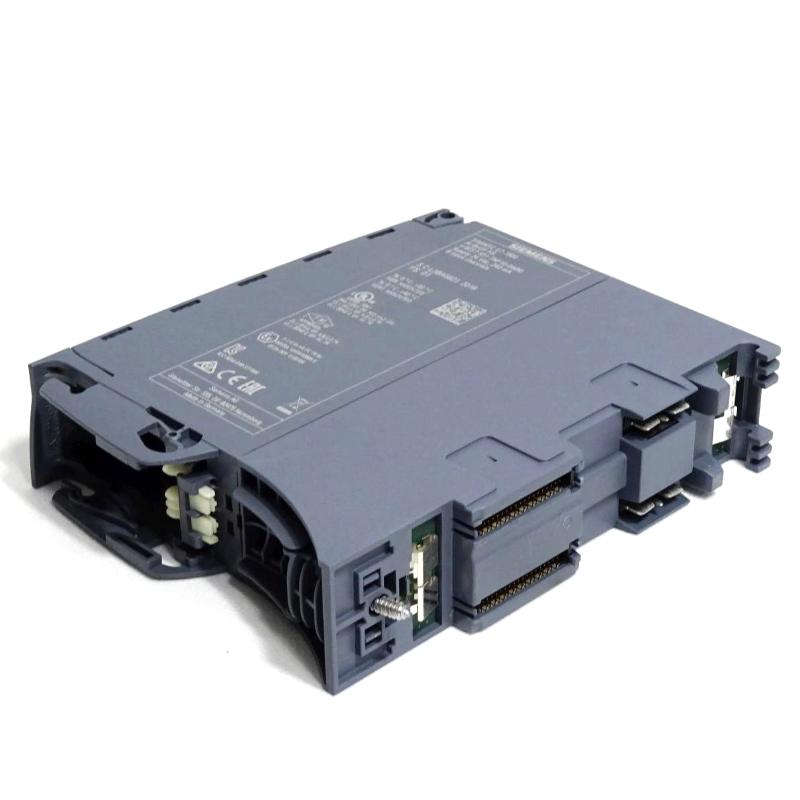

The Siemens 6AG1531-7NF10-7AB0 is a SIPLUS S7-1500 Analog Input Module used to acquire analog signals from field instruments and transfer measured process information into an S7-1500 automation system. It forms the input-side interface between process instrumentation and the PLC, allowing continuously varying measurements to become part of the control program.
In practical automation systems, analog input data can be used for monitoring pressure, temperature, flow, level, position, and other process conditions. The module receives the field signal, acquires the measurement, and makes the resulting process data available to the S7-1500 CPU through the station architecture.
The module is part of the SIPLUS S7-1500 family and is intended for industrial applications where environmental requirements need to be considered as part of the equipment selection. During replacement or expansion, the exact ordering number, system configuration, connected instrumentation, and project requirements should be checked together.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1531-7NF10-7AB0 |
| Product Type | Analog Input Module |
| Product Family | SIPLUS S7-1500 |
| Module Type | Analog Input |
| System Platform | SIMATIC S7-1500 |
| Signal Type | Analog |
| Primary Function | Process signal acquisition |
| Measurement Role | Continuous field-value acquisition |
| System Integration | S7-1500 backplane |
| Application | Industrial automation and process control |
| Installation | S7-1500 system configuration |
| Environmental Class | SIPLUS enhanced-environment application |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.425 kg |
Product Features
- SIPLUS S7-1500 analog input module for continuous field measurements.
- Acquires analog information from compatible sensors and transmitters.
- Transfers measured process information into the S7-1500 control system.
- Suitable for monitoring continuously varying process conditions.
- Integrates with the modular S7-1500 I/O architecture through the system backplane.
- Supports the use of analog process data in PLC calculations and control logic.
- Suitable for process monitoring, alarm handling, regulation, and sequencing applications.
- Provides a dedicated interface between field instrumentation and controller-level logic.
- Suitable for industrial installations requiring SIPLUS equipment.
- Practical for compatible S7-1500 system expansion, maintenance, and replacement.
Working Principle
1. The field device detects a process condition
A connected sensor or transmitter measures a physical variable such as pressure, temperature, flow, or level. Its output changes according to the measured condition.
2. The field signal reaches the input channel
The analog signal travels through the field wiring to the assigned input channel. Correct terminal connections and appropriate signal wiring are important for maintaining measurement integrity.
3. The module acquires the signal
The input circuitry receives the field signal and converts the measurement into digital information that can be handled by the S7-1500 automation system.
4. Measurement data enters the controller architecture
The acquired information is transferred through the S7-1500 station backplane and becomes available to the CPU for use by the configured PLC application.
5. The CPU interprets the process value
The PLC program can use the acquired value for calculations, limit monitoring, alarm logic, closed-loop control, sequence conditions, or comparison with other process measurements.
For example, a transmitter monitoring a process line can continuously provide its measurement to the analog input module. The CPU can then evaluate the value against programmed limits and initiate an appropriate control response through the relevant output devices.
Role in a SIPLUS S7-1500 Control Architecture
The 6AG1531-7NF10-7AB0 operates at the analog field-input layer of the S7-1500 system. It connects compatible measurement instruments to the PLC and allows continuous process information to participate in higher-level control functions.
| Control Layer | Typical Function | Relationship with Analog Input Module |
|---|---|---|
| Field Sensors / Transmitters | Measure physical process conditions | Generates analog measurement signals |
| Analog Input Layer | Acquires process measurements | 6AG1531-7NF10-7AB0 receives field signals |
| S7-1500 Backplane | Internal station communication | Transfers acquired data toward the CPU |
| S7-1500 CPU | Executes application logic | Processes analog input values |
| Engineering System | Configures hardware and PLC application | Defines module and channel configuration |
| Output Layer | Controls process equipment | Acts on decisions based on measured values |
| HMI / Supervisory Layer | Visualization and monitoring | Displays process values and operating status |
Industrial Applications
| Application | Typical Analog Input Use |
|---|---|
| Process Automation | Acquisition of continuous process measurements |
| Pump Systems | Pressure, flow, and equipment-condition monitoring |
| Industrial Machinery | Monitoring of continuously varying operating parameters |
| Production Lines | Process measurements used in machine control |
| Process Skids | Integration of field transmitters with PLC logic |
| HVAC and Utility Systems | Temperature, pressure, and related measurements |
| Energy Equipment | Monitoring of operating conditions |
| Plant Automation | Centralized acquisition of analog instrumentation |
Installation and Maintenance
- Verify the ordering number — Confirm that the installed module or replacement is Siemens 6AG1531-7NF10-7AB0.
- Check system compatibility — Verify that the module matches the intended S7-1500 station and engineering configuration.
- Isolate the system — Follow the plant’s approved electrical isolation procedure before accessing the module or connected field circuits.
- Confirm channel configuration — Check that configured input channels correspond to the connected sensors or transmitters.
- Inspect field wiring — Examine terminals, conductors, shielding, and signal references for loose or incorrect connections.
- Check connected instruments — Confirm that the field sensor or transmitter is operating correctly before diagnosing the I/O module itself.
- Install the module correctly — Seat the module according to the S7-1500 installation procedure and verify its system interface.
- Verify hardware configuration — Confirm that the engineering project correctly identifies the installed module and station position.
- Compare representative readings — During commissioning, compare PLC measurement values with the expected process condition and an independent reference where appropriate.
- Investigate abnormal readings systematically — Check the field instrument, wiring, shielding, channel configuration, and module diagnostics if the value is unstable or incorrect.
- Monitor system diagnostics — Review available station and module diagnostic information during startup and troubleshooting.
- Document maintenance activity — Record the module identification, channel settings, field-device checks, replacement work, and commissioning results.
Related Components
| Component | Function |
|---|---|
| Siemens S7-1500 CPU | Processes analog values and executes control logic |
| S7-1500 Digital Input Module | Acquires discrete field signals |
| S7-1500 Digital Output Module | Sends discrete commands to field devices |
| S7-1500 Analog Output Module | Sends analog control signals to compatible equipment |
| Process Transmitter | Converts a physical process condition into an electrical signal |
| Pressure Transmitter | Provides pressure measurement information |
| Temperature Sensor | Provides temperature measurement information |
| SIMATIC HMI | Displays process values, alarms, and equipment status |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1531-7KF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related SIPLUS analog input module |
| Siemens 6AG1531-7NF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related SIPLUS analog input component |
| Siemens 6AG1526-1BH00-2AB0 | SIPLUS S7-1500 Digital Input Module | Complementary digital input component |
| Siemens 6AG1526-2BF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Complementary digital output component |
| Siemens 6AG1522-5EH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS output module |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU | Controller-side component |
| Siemens 6AG1510-1SJ01-2AB0 | SIPLUS S7-1500 CPU | Related S7-1500 controller |
Key Advantages
- Acquires continuous analog process information for S7-1500 applications.
- Integrates compatible field instrumentation into the SIPLUS I/O architecture.
- Supports process monitoring, calculation, regulation, and sequencing.
- Provides a dedicated measurement path between field devices and the PLC.
- Suitable for industrial installations requiring SIPLUS equipment.
- Practical for S7-1500 expansion, maintenance, and replacement projects.
Technical FAQs
What is the role of the 6AG1531-7NF10-7AB0 in an S7-1500 station?
It serves as an analog measurement interface between compatible field instruments and the S7-1500 controller. The module acquires field measurements and makes the resulting process information available to the CPU.
How should an incorrect analog reading be investigated?
Begin with the field instrument and work toward the PLC. Check the sensor or transmitter, field wiring, signal reference, shielding, channel configuration, and available module diagnostics. Comparing the PLC value with an independent measurement can also help isolate the problem.
What is the difference between analog and digital input modules?
An analog input module handles continuously varying measurement information, while a digital input module handles discrete states. A pressure or temperature measurement is typically treated as analog information, whereas a limit-switch state is a typical digital input.
What should be verified before replacing this module?
Confirm the complete ordering number, S7-1500 hardware configuration, engineering project, channel configuration, connected field instrumentation, and environmental requirements. A module should not be selected solely because it has the same general analog-input function.
