Product Overview

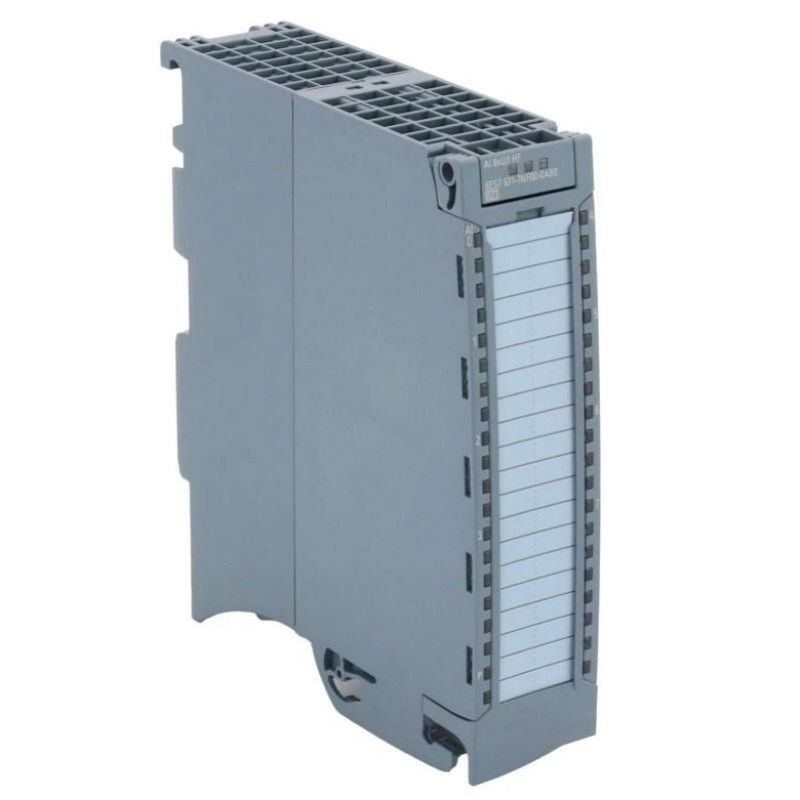

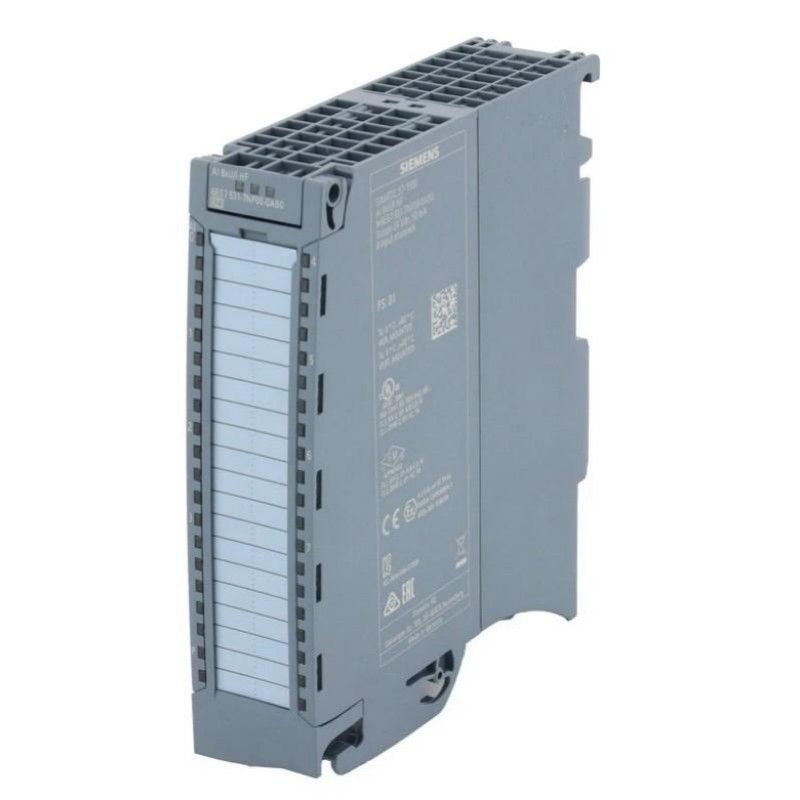

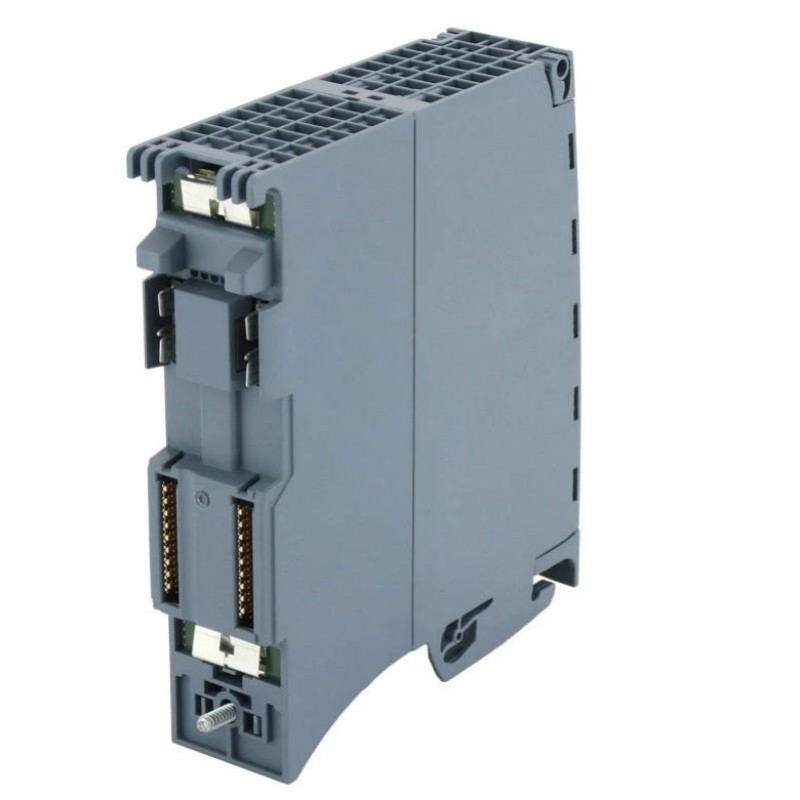

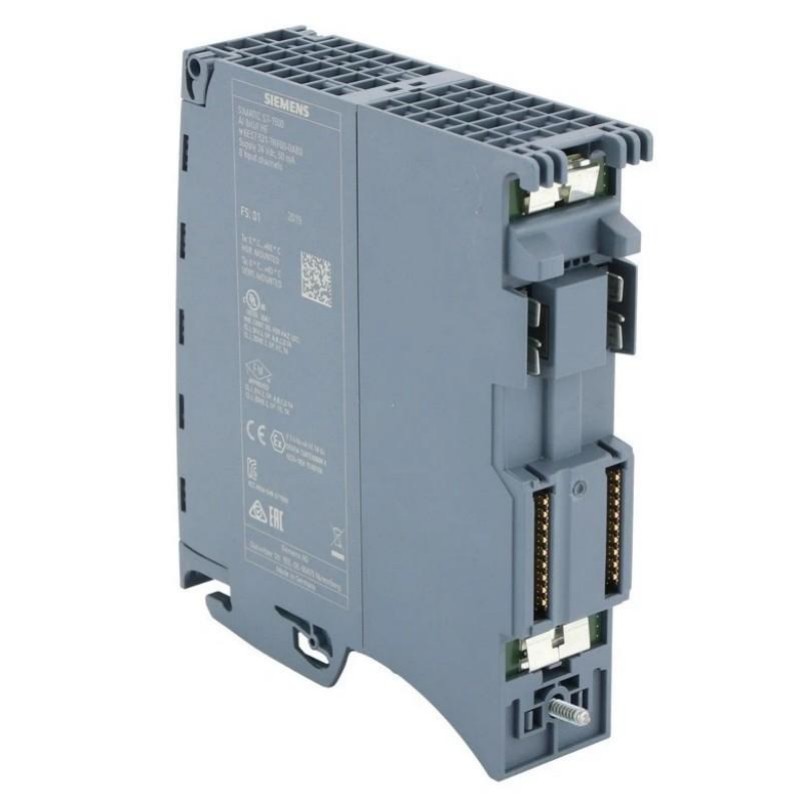

The Siemens 6AG1531-7NF00-7AB0 is a SIPLUS S7-1500 Analog Input Module for bringing continuous field measurements into an S7-1500 automation system. It forms the measurement interface between compatible process instruments and the PLC, allowing changing process conditions to be used by the controller for monitoring, regulation, calculation, alarms, and sequence decisions.
Unlike a digital input, which represents a discrete field state, an analog input module handles continuously varying measurement information. In practical installations, this makes the module suitable for acquiring signals associated with process variables such as temperature, pressure, flow, level, position, and other continuously monitored conditions when the connected instrumentation matches the module’s configured signal requirements.
The module works as part of the S7-1500 modular I/O architecture. Field instruments connect to the input side, while the module exchanges acquired measurement data with the CPU through the station backplane. For maintenance or system expansion, the exact SIPLUS ordering number and project configuration should be verified before replacement, particularly when the application has specific environmental requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1531-7NF00-7AB0 |
| Product Type | Analog Input Module |
| Product Family | SIPLUS S7-1500 |
| Module Type | Analog Input |
| System Platform | SIMATIC S7-1500 |
| Signal Type | Analog |
| Primary Function | Process signal acquisition |
| Measurement Role | Continuous field-value acquisition |
| System Integration | S7-1500 backplane |
| Application | Industrial automation and process control |
| Installation | S7-1500 system configuration |
| Environmental Class | SIPLUS enhanced-environment application |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.401 kg |
Product Features
- SIPLUS S7-1500 analog input module for continuous field measurements.
- Brings analog process information into the S7-1500 control system.
- Suitable for compatible transmitters and sensors used in industrial automation.
- Supports process monitoring, control calculations, alarm handling, and sequence logic.
- Integrates with the modular S7-1500 I/O architecture through the system backplane.
- Provides a dedicated acquisition path between field instrumentation and PLC logic.
- Suitable for installations requiring SIPLUS equipment for demanding industrial environments.
- Useful for machine, process-skid, production-line, and plant automation applications.
- Suitable for compatible S7-1500 system expansion and replacement projects.
Working Principle
1. The field instrument measures a process condition
A connected sensor or transmitter detects a physical variable and produces a corresponding analog electrical signal. The signal changes as the measured process condition changes.
2. The analog signal reaches the input channel
The field circuit carries the measurement signal to the assigned input channel. Correct terminal assignment, signal reference, shielding, and wiring practices are important because analog measurements can be affected by field installation conditions.
3. The module acquires the measurement
The analog input circuitry receives the field signal and converts the measured information into digital data that can be processed within the S7-1500 system.
4. Measurement data is transferred to the CPU
The acquired value is exchanged through the S7-1500 station architecture. The CPU can then access the input data as part of the PLC application.
5. The PLC applies the measurement to the process
The control program can compare the measured value with limits or setpoints, combine it with other process information, generate alarms, or use it as part of a regulation or sequencing function.
For example, a pressure transmitter may provide a continuously changing measurement to the module. The CPU can use that value to monitor operating conditions and determine whether a programmed control action is required.
Role in a SIPLUS S7-1500 Control Architecture
The 6AG1531-7NF00-7AB0 occupies the analog measurement layer of the S7-1500 architecture. It connects field instrumentation with the controller while leaving the CPU responsible for application logic, calculations, and control decisions.
| Control Layer | Typical Function | Relationship with Analog Input Module |
|---|---|---|
| Field Sensors / Transmitters | Measure physical process conditions | Generates analog measurement signals |
| Analog Input Layer | Acquires continuous field information | 6AG1531-7NF00-7AB0 receives the measurement signals |
| S7-1500 Backplane | Provides internal module communication | Transfers acquired data within the station |
| S7-1500 CPU | Executes PLC application logic | Processes the acquired measurement values |
| Engineering System | Configures hardware and application | Defines the module and channel configuration |
| Output Layer | Controls field equipment | Responds to decisions based on process data |
| HMI / Supervisory Layer | Displays process information | Presents measured values and equipment status |
Industrial Applications
| Application | Typical Analog Input Use |
|---|---|
| Process Automation | Continuous acquisition of process measurements |
| Pump Stations | Pressure, flow, and related operating measurements |
| Industrial Machinery | Monitoring of continuously varying machine parameters |
| Production Lines | Process measurement for machine control and monitoring |
| Process Skids | Integration of field transmitters with PLC logic |
| HVAC and Utility Systems | Temperature, pressure, and other analog measurements |
| Energy Equipment | Monitoring of operating parameters |
| Plant Control Systems | Centralized acquisition of analog field instrumentation |
Installation and Maintenance
- Verify the ordering number — Confirm that the installed or replacement module is Siemens 6AG1531-7NF00-7AB0.
- Check the project configuration — Verify that the module matches the intended S7-1500 hardware and engineering configuration.
- Isolate the system — Follow the plant’s approved electrical isolation procedure before working on the module or associated field circuits.
- Confirm channel assignments — Check the engineering configuration against the actual sensor or transmitter connected to each channel.
- Inspect field wiring — Examine terminals, conductors, shielding, and signal references for loose or incorrect connections.
- Check connected instruments — Verify that the field transmitter or sensor is operating correctly before treating an abnormal PLC reading as an I/O-module fault.
- Install the module correctly — Seat the module according to the S7-1500 installation procedure and verify that its system interface is properly engaged.
- Verify hardware configuration — Confirm that the engineering project recognizes the physical module in the correct station position.
- Compare measured values — During commissioning, compare the PLC value with the expected process condition and an independent measurement where appropriate.
- Investigate unstable readings systematically — Check the field instrument, wiring, shielding, signal reference, channel configuration, and module diagnostics.
- Monitor system diagnostics — Review available module and station diagnostic information during startup and troubleshooting.
- Document maintenance work — Record the module identification, channel configuration, field-device checks, replacement activity, and commissioning results.
Related Components
| Component | Function |
|---|---|
| Siemens S7-1500 CPU | Processes measurement data and executes control logic |
| S7-1500 Digital Input Module | Acquires discrete field signals |
| S7-1500 Digital Output Module | Sends discrete commands to field equipment |
| S7-1500 Analog Output Module | Provides analog control signals to compatible field devices |
| Process Transmitter | Converts a physical process variable into an electrical signal |
| Temperature Sensor | Provides temperature measurement information |
| Pressure Transmitter | Provides pressure measurement information |
| SIMATIC HMI | Displays process values, alarms, and equipment status |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1531-7KF00-7AB0 | SIPLUS S7-1500 Analog Input Module | Related SIPLUS analog input module |
| Siemens 6AG1526-1BH00-2AB0 | SIPLUS S7-1500 Digital Input Module | Complementary digital input component |
| Siemens 6AG1526-2BF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Complementary digital output component |
| Siemens 6AG1522-5EH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS output module |
| Siemens 6AG1522-5FF00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related discrete output component |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU | Controller-side component |
| Siemens 6AG1510-1SJ01-2AB0 | SIPLUS S7-1500 CPU | Related S7-1500 controller |
Key Advantages
- Acquires continuous analog process information for S7-1500 applications.
- Integrates compatible field instrumentation into the SIPLUS I/O architecture.
- Supports process monitoring, calculation, regulation, and sequencing.
- Provides a clear measurement path between field instruments and the PLC.
- Suitable for industrial environments requiring SIPLUS equipment.
- Practical for S7-1500 expansion, maintenance, and replacement projects.
Technical FAQs
What is the difference between this module and an S7-1500 digital input module?
An analog input module acquires continuously varying measurement information, while a digital input module is intended for discrete states such as ON/OFF, open/closed, or active/inactive. The appropriate module depends on the field signal and the required measurement method.
What can cause an analog process value to be incorrect even when the module is operating normally?
The cause may be on the field side rather than inside the module. Sensor or transmitter problems, incorrect wiring, signal-reference issues, shielding problems, configuration errors, or an abnormal process condition can all result in an unexpected value.
How should a replacement module be commissioned?
First verify the exact ordering number and S7-1500 project configuration. After installation, check channel assignments and field wiring, confirm the module is correctly recognized, and compare representative measured values with the actual process condition before returning the system to normal operation.
Why is the SIPLUS version relevant in an industrial installation?
SIPLUS products are intended for applications with environmental requirements beyond the standard product environment. The complete system should still be evaluated against the actual installation conditions and the applicable project requirements rather than selecting a SIPLUS module solely by its general I/O function.
