Product Overview

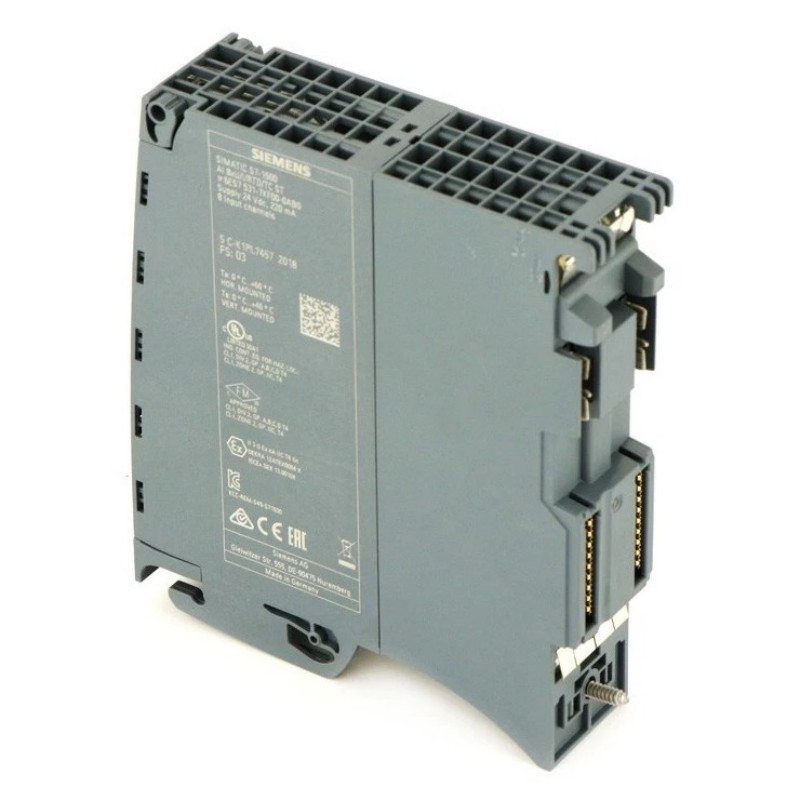

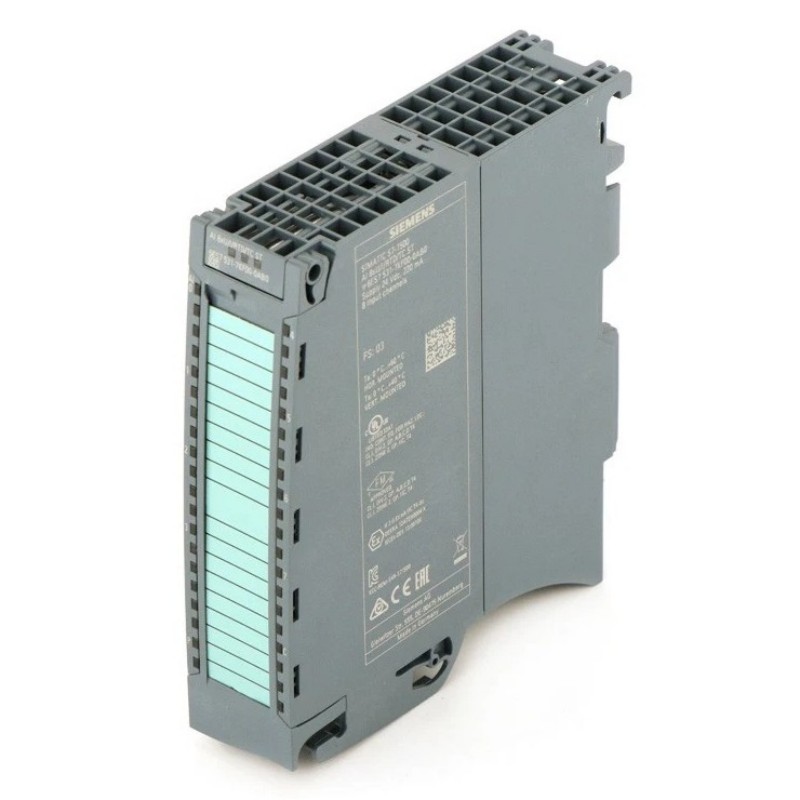

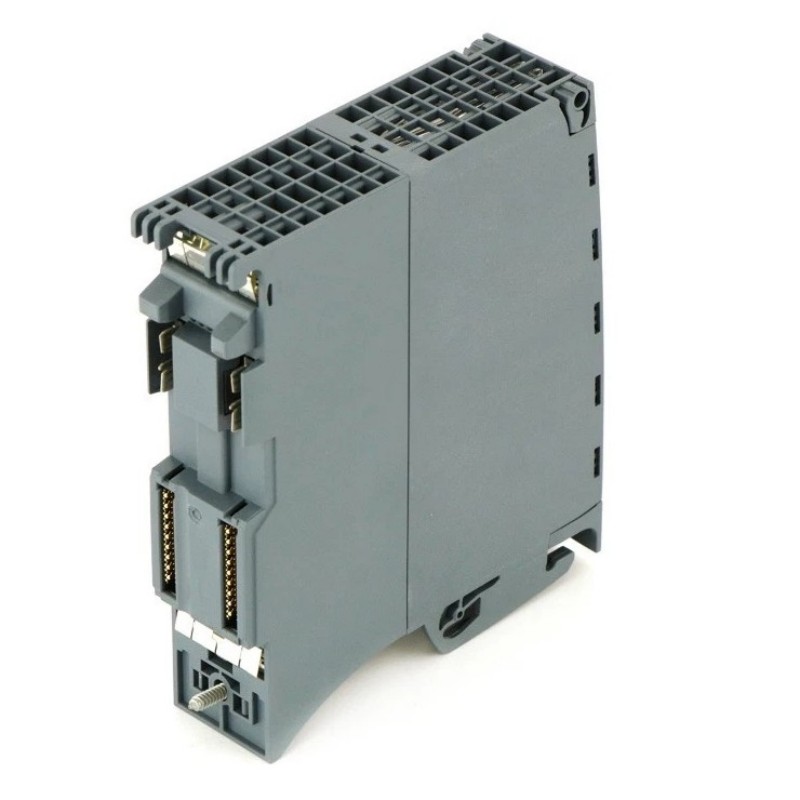

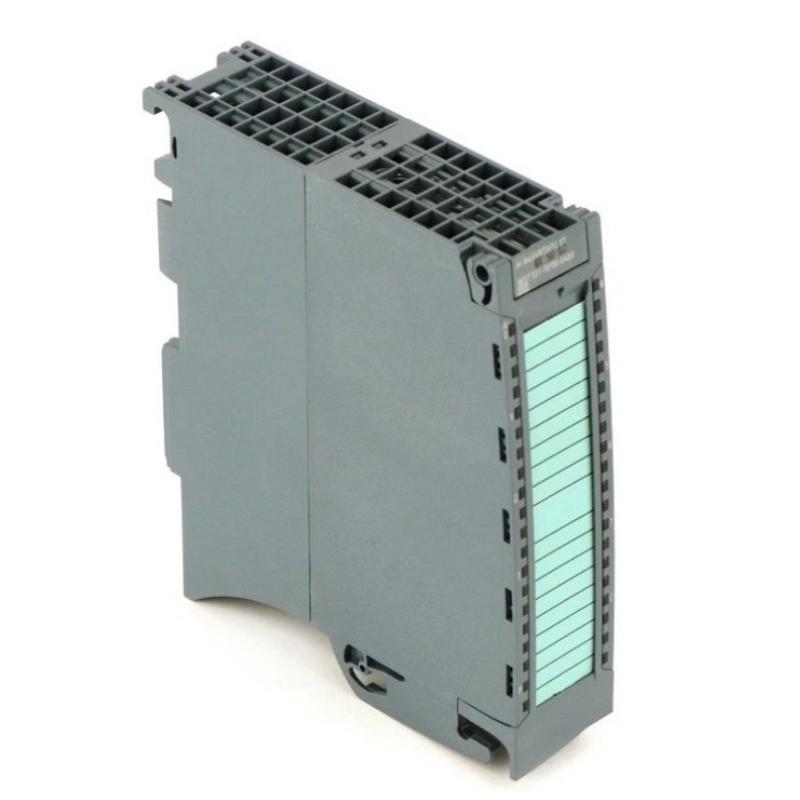

The Siemens 6AG1531-7KF00-7AB0 is a SIPLUS S7-1500 Analog Input Module for acquiring continuous process signals and making measured values available to the S7-1500 controller. It is used on the input side of the automation system, where signals from field instruments are brought into the PLC for monitoring, calculation, regulation, and sequence-related decisions.
Typical applications include pressure, temperature, flow, level, position, and other process measurements. Instead of treating the field signal simply as an ON/OFF state, the analog input module captures a continuously varying electrical signal and converts it into usable process data for the controller.
In an S7-1500 installation, the module works together with field transmitters, sensors, the system backplane, the CPU, and the engineering configuration. This makes correct channel configuration and field wiring particularly important during commissioning. For replacement work, the exact SIPLUS ordering number and project configuration should be checked rather than selecting a module only by its general analog-input function.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1531-7KF00-7AB0 |
| Product Type | Analog Input Module |
| Product Family | SIPLUS S7-1500 |
| Module Type | Analog Input |
| System Platform | SIMATIC S7-1500 |
| Signal Type | Analog |
| Primary Function | Process signal acquisition |
| Measurement Role | Continuous field-value acquisition |
| System Integration | S7-1500 backplane |
| Application | Industrial automation and process control |
| Installation | S7-1500 system configuration |
| Environmental Class | SIPLUS enhanced-environment application |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.418 kg |
Product Features
- SIPLUS S7-1500 analog input module for continuous process measurements.
- Brings analog field information into the S7-1500 control system.
- Suitable for process variables such as pressure, temperature, flow, and level where compatible signal interfaces are used.
- Integrates measured values into the S7-1500 modular I/O architecture.
- Transfers acquired process data to the CPU through the system backplane.
- Supports monitoring, calculation, regulation, and sequence logic based on analog process values.
- Suitable for industrial installations requiring SIPLUS equipment.
- Useful in process skids, machinery, production lines, and plant automation systems.
- Supports replacement and expansion of compatible S7-1500 analog input configurations.
Working Principle
1. A field instrument produces an analog signal
A transmitter or sensor responds to a physical process condition and generates a corresponding analog electrical signal. The signal represents a changing process value rather than a simple discrete state.
2. The signal enters the analog input channel
The field wiring carries the signal to an input channel of the module. Correct terminal assignment, signal reference, shielding, and wiring practice are important because analog measurements can be affected by installation conditions.
3. The module acquires the measured signal
The analog input circuitry receives the incoming signal and converts the electrical measurement into digital process information that can be handled by the S7-1500 automation system.
4. Process data is transferred to the controller
The acquired value is transferred through the S7-1500 station architecture to the CPU. The PLC program can then use the measurement for monitoring, calculations, alarm handling, control loops, or process sequencing.
5. The control program interprets the measurement
The CPU applies the configured engineering and application logic to the acquired value. For example, a process value may be compared with a setpoint, used to determine whether an operating condition is within an expected range, or combined with other measurements before an actuator command is generated.
Role in a SIPLUS S7-1500 Control Architecture
The 6AG1531-7KF00-7AB0 occupies the measurement-input layer of the S7-1500 architecture. It provides the path from analog field instrumentation to the PLC application, allowing continuous process information to participate in control and monitoring functions.
| Control Layer | Typical Function | Relationship with Analog Input Module |
|---|---|---|
| Field Sensors / Transmitters | Measure physical process conditions | Generates analog measurement signals |
| Analog Input Layer | Acquires continuous field signals | 6AG1531-7KF00-7AB0 receives measurement signals |
| S7-1500 Backplane | Internal module communication | Transfers acquired data within the station |
| S7-1500 CPU | Executes application logic | Processes analog measurement values |
| Engineering System | Hardware and software configuration | Defines module and channel behavior |
| Digital / Analog Output Layer | Controls field equipment | Acts on decisions made from process data |
| HMI / Supervisory Layer | Visualization and monitoring | Displays process values and status information |
Industrial Applications
| Application | Typical Analog Input Use |
|---|---|
| Process Automation | Acquisition of continuously varying process variables |
| Machine Monitoring | Measurement of operating conditions |
| Pump Systems | Pressure, flow, or level measurement |
| HVAC and Utility Systems | Temperature, pressure, and related process monitoring |
| Production Lines | Continuous measurement used for machine control |
| Process Skids | Integration of transmitter signals into PLC logic |
| Energy and Utility Equipment | Monitoring of operating parameters |
| Industrial Control Cabinets | Centralized acquisition of analog field instrumentation |
Installation and Maintenance
- Verify the module identification — Confirm the 6AG1531-7KF00-7AB0 ordering number before installation or replacement.
- Check system compatibility — Verify that the module matches the intended S7-1500 hardware configuration and engineering project.
- Isolate the system — Follow the plant’s electrical isolation procedure before accessing the module or field wiring.
- Confirm channel configuration — Check the configured input-channel settings against the actual field instrumentation before commissioning.
- Inspect field wiring — Examine conductors, terminals, shielding, and signal references for loose connections or wiring errors.
- Check sensor and transmitter connections — Verify that each field instrument is connected to the intended channel and is operating as expected.
- Install the module correctly — Seat the module according to the S7-1500 installation procedure and verify the system interface.
- Verify the hardware configuration — Confirm that the engineering configuration corresponds to the physical module installed in the station.
- Check measured values during commissioning — Compare the PLC input values with the expected field conditions and, where appropriate, an independent measurement.
- Investigate abnormal readings systematically — If a value is fixed, unstable, or inconsistent, check the field instrument, wiring, shielding, channel configuration, and module diagnostics.
- Monitor diagnostics — Review available system and module diagnostic information during commissioning and troubleshooting.
- Record calibration and maintenance information — Document relevant channel configuration, field-device checks, replacement details, and commissioning results.
Related Components
| Component | Function |
|---|---|
| Siemens S7-1500 CPU | Processes acquired analog values and executes control logic |
| S7-1500 Digital Input Module | Acquires discrete field signals |
| S7-1500 Digital Output Module | Sends discrete commands to field devices |
| S7-1500 Analog Output Module | Sends analog control signals to compatible equipment |
| Process Transmitter | Converts a physical process variable into an electrical measurement signal |
| Temperature Sensor | Provides temperature-related measurement information |
| Pressure Transmitter | Provides pressure measurement information |
| SIMATIC HMI | Displays process values, alarms, and equipment status |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1526-1BH00-2AB0 | SIPLUS S7-1500 Digital Input Module | Complementary input-side I/O |
| Siemens 6AG1526-2BF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Complementary output-side I/O |
| Siemens 6AG1522-5EH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS output module |
| Siemens 6AG1522-5FF00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related discrete output component |
| Siemens 6AG1522-5FH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Complementary output-side module |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU | Controller-side component |
| Siemens 6AG1510-1SJ01-2AB0 | SIPLUS S7-1500 CPU | Related controller component |
Key Advantages
- Acquires continuous analog process information for S7-1500 control logic.
- Integrates field instrumentation into the modular SIPLUS architecture.
- Supports process monitoring, calculation, regulation, and sequencing.
- Provides a dedicated interface between analog field signals and the PLC.
- Suitable for industrial environments requiring SIPLUS equipment.
- Practical for S7-1500 expansion, maintenance, and replacement applications.
Technical FAQs
What types of process information can an analog input module acquire?
It can acquire compatible analog signals representing continuously varying process conditions. Common applications include pressure, temperature, flow, level, and other measured variables, provided the field signal and module channel configuration are compatible.
Why is analog input configuration important during commissioning?
The PLC must interpret the incoming electrical signal according to the configured channel parameters. An incorrect configuration can result in values that do not correspond correctly to the actual process condition even when the field wiring is physically correct.
What should be checked when an analog value is unstable?
Start with the field instrument and wiring, then inspect signal references, shielding, grounding practices, channel configuration, and module diagnostics. Comparing the PLC reading with the actual process condition can help determine whether the problem originates in the instrument, wiring, configuration, or I/O layer.
Can this SIPLUS analog input module be used with any S7-1500 analog sensor?
Compatibility should be checked at the channel and system level. The sensor or transmitter’s signal interface, wiring arrangement, configured input type, engineering configuration, and the complete S7-1500 hardware setup should all match before commissioning.
