Product Overview

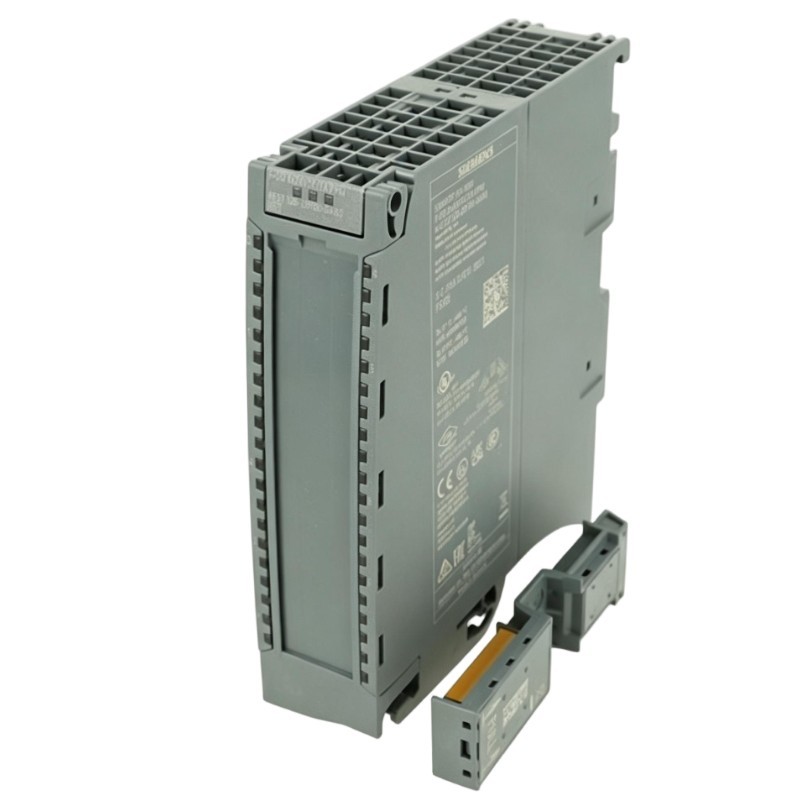

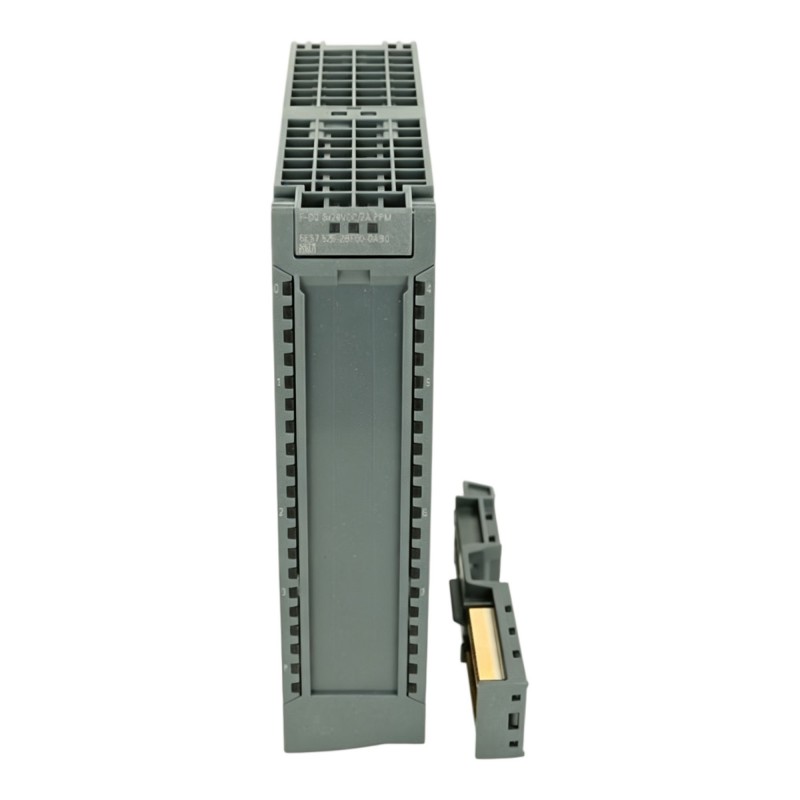

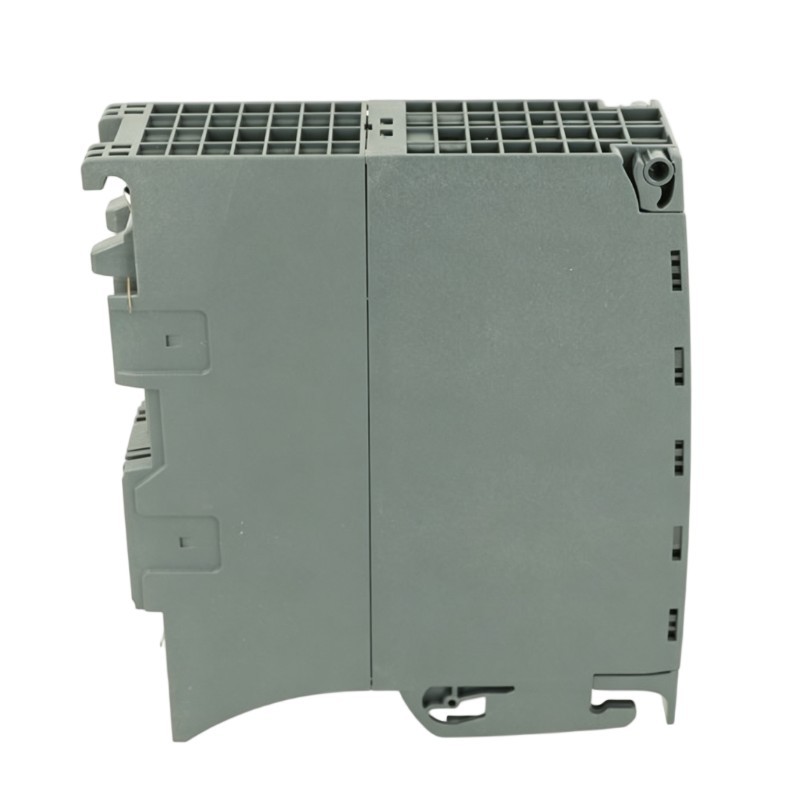

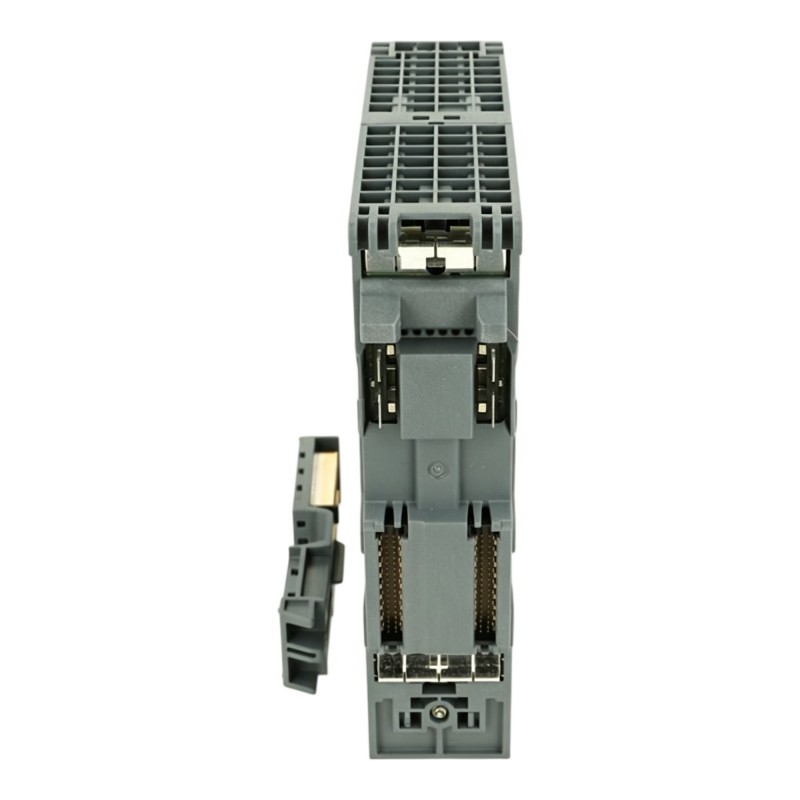

The Siemens 6AG1526-2BF00-2AB0 is a SIPLUS S7-1500 Digital Output Module used to transfer discrete control commands from an S7-1500 automation system to connected field devices. It forms the output-side interface between PLC logic and equipment such as contactors, relays, solenoid-operated devices, actuators, and machine control circuits.
Within an S7-1500 station, the CPU determines the required output state according to the configured control program. The digital output module receives this information through the system backplane and switches the corresponding field-side output circuits. This makes the module useful for applications where equipment must be controlled according to discrete ON/OFF commands.
The module belongs to the SIPLUS S7-1500 family, making it relevant to industrial control installations where the environmental requirements call for SIPLUS equipment. It can be used in machine automation, process equipment, production lines, and other modular PLC systems where discrete outputs need to be integrated into the overall control architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1526-2BF00-2AB0 |
| Based on Standard Model | 6ES7526-2BF00-0AB0 |
| Product Type | Digital Output Module |
| Product Family | SIPLUS S7-1500 |
| Module Type | Digital Output |
| System Platform | SIMATIC S7-1500 |
| Signal Type | Digital / Discrete |
| Primary Function | Field device control |
| System Integration | S7-1500 backplane |
| Application | Industrial automation and control |
| Installation | S7-1500 system configuration |
| Environmental Class | SIPLUS enhanced-environment application |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.386 kg |
Product Features
- SIPLUS S7-1500 digital output module for discrete field control.
- Transfers PLC output commands to connected field circuits.
- Suitable for controlling relays, contactors, solenoid devices, and other compatible actuators.
- Integrates into the modular S7-1500 I/O architecture.
- Receives output data from the CPU through the system backplane.
- Supports structured separation between control logic and field-side switching.
- Suitable for industrial applications requiring the SIPLUS product family.
- Can be used for machine sequencing, equipment control, and process-related switching.
- Practical for S7-1500 system expansion, maintenance, and replacement projects.
Working Principle
1. The PLC determines the required output state
The S7-1500 CPU executes the user program and evaluates process conditions, operator commands, interlocks, and feedback signals. Based on the programmed logic, it determines whether a particular output should be activated or deactivated.
2. Output data is transferred to the module
The resulting output information is transferred from the CPU through the S7-1500 station architecture and reaches the digital output module through the system backplane.
3. The module controls the field-side output
The digital output circuitry responds to the commanded state and controls the associated field circuit. The connected device therefore receives the discrete control signal corresponding to the PLC command.
4. The field device performs the physical action
Depending on the application, the output may operate a relay or contactor, energize a solenoid-operated device, control an indicator, or command another compatible discrete actuator.
5. Feedback completes the control loop
Where feedback devices are installed, their status can be returned through digital input modules. The CPU can then compare the commanded output state with actual equipment feedback and execute the next programmed sequence or diagnostic action.
Role in a SIPLUS S7-1500 Control Architecture
The 6AG1526-2BF00-2AB0 occupies the output interface layer of an S7-1500 control system. It converts controller-side output information into discrete field-side control signals, while the CPU remains responsible for executing the application logic.
| Control Layer | Typical Function | Relationship with Digital Output Module |
|---|---|---|
| Engineering System | Hardware and PLC configuration | Defines the module and output behavior |
| S7-1500 CPU | Executes control logic | Determines required output states |
| S7-1500 Backplane | Internal module communication | Transfers output data to the module |
| Digital Output Layer | Converts PLC commands into field signals | 6AG1526-2BF00-2AB0 performs the output function |
| Interface Components | Provides electrical connection or isolation where required | Connects module outputs to field circuits |
| Actuators | Perform physical equipment actions | Respond to output commands |
| Digital Input Layer | Acquires equipment feedback | Returns status information to the CPU |
Industrial Applications
| Application | Typical Digital Output Use |
|---|---|
| Machine Automation | Discrete commands for machine actuators |
| Conveyor Systems | Motor contactor, solenoid, and equipment-control signals |
| Packaging Machinery | Sequence-related actuator control |
| Material Handling | Equipment start, stop, and position-related commands |
| Process Skids | Discrete control of valves and auxiliary equipment |
| Production Lines | Machine enable, status indication, and switching functions |
| Utility Systems | Discrete commands for pumps, fans, and auxiliary devices |
| Control Cabinet Systems | Centralized PLC output control |
Installation and Maintenance
- Verify the module identification — Confirm the 6AG1526-2BF00-2AB0 ordering number before installation or replacement.
- Check system compatibility — Verify that the module is appropriate for the planned S7-1500 station and engineering configuration.
- Isolate the control system — Follow the plant’s electrical isolation procedure before accessing the module or connected field circuits.
- Inspect the installation position — Check the module location and adjacent components for mechanical damage, contamination, or obstruction.
- Verify field wiring — Confirm terminal assignments and inspect conductors for loose connections, damaged insulation, or incorrect routing.
- Check the connected load — Confirm that each connected field device is suitable for the applicable output circuit and system design.
- Install the module correctly — Seat the module according to the S7-1500 installation procedure and verify that the module interfaces are fully engaged.
- Confirm the hardware configuration — Make sure the configured module corresponds to the physical hardware installed in the station.
- Test individual outputs — During commissioning, activate representative output channels under controlled conditions and verify the expected field response.
- Check unexpected output states — If an output remains active or inactive unexpectedly, inspect the PLC logic, configuration, wiring, connected load, and available diagnostics.
- Inspect related field components — Check relays, contactors, solenoids, and other connected devices when an output command is present but the equipment does not respond correctly.
- Record maintenance results — Document the module identification, installation position, configuration changes, output testing, and any abnormalities found during service.
Related Components
| Component | Function |
|---|---|
| Siemens S7-1500 CPU | Executes the PLC application and output-control logic |
| S7-1500 Digital Input Module | Acquires discrete feedback from field devices |
| S7-1500 Analog Input Module | Acquires analog process information |
| S7-1500 Analog Output Module | Sends analog control signals to compatible field devices |
| S7-1500 System Power Supply | Supports the power architecture of the automation station |
| Relay / Contactor | Provides an interface between PLC output signals and applicable loads |
| Solenoid-Operated Device | Performs a discrete physical action based on the output command |
| SIMATIC HMI | Provides operator control and visualization |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1526-1BH00-2AB0 | SIPLUS S7-1500 Digital Input Module | Complementary input-side module |
| Siemens 6AG1522-5EH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS digital output option |
| Siemens 6AG1522-5FF00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related output-side I/O component |
| Siemens 6AG1522-5FH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Complementary discrete output module |
| Siemens 6AG1522-5HF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS output module |
| Siemens 6AG1522-5HH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related digital output component |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU | Controller-side component for the S7-1500 architecture |
Key Advantages
- Transfers discrete PLC commands to field equipment.
- Fits the modular SIPLUS S7-1500 I/O architecture.
- Supports machine sequencing and discrete actuator control.
- Provides a clear interface between CPU logic and field circuits.
- Suitable for industrial environments requiring SIPLUS equipment.
- Practical for system expansion and replacement applications.
Technical FAQs
What is the role of the 6AG1526-2BF00-2AB0 in an S7-1500 system?
It serves as a digital output interface between the S7-1500 controller and connected field devices. The CPU determines the required output state, while the module transfers the corresponding discrete command to the field circuit.
What should be checked when an output command does not operate the field device?
Check the PLC logic and output status first, then inspect the hardware configuration, module seating, field wiring, connected relay or contactor, and the field device itself. The problem may exist outside the output module.
Can this module directly control any type of actuator?
Not automatically. The connected load must be compatible with the output circuit and the overall electrical design. Where a load requires an intermediate interface, a suitable relay, contactor, or other interface component should be used according to the system design.
Why is feedback from a digital input module useful with digital outputs?
Output status represents the command issued by the PLC, while an input signal can represent the actual state of the controlled equipment. Combining both allows the control program to verify sequence conditions and detect situations where commanded and observed states do not correspond.
