Product Overview

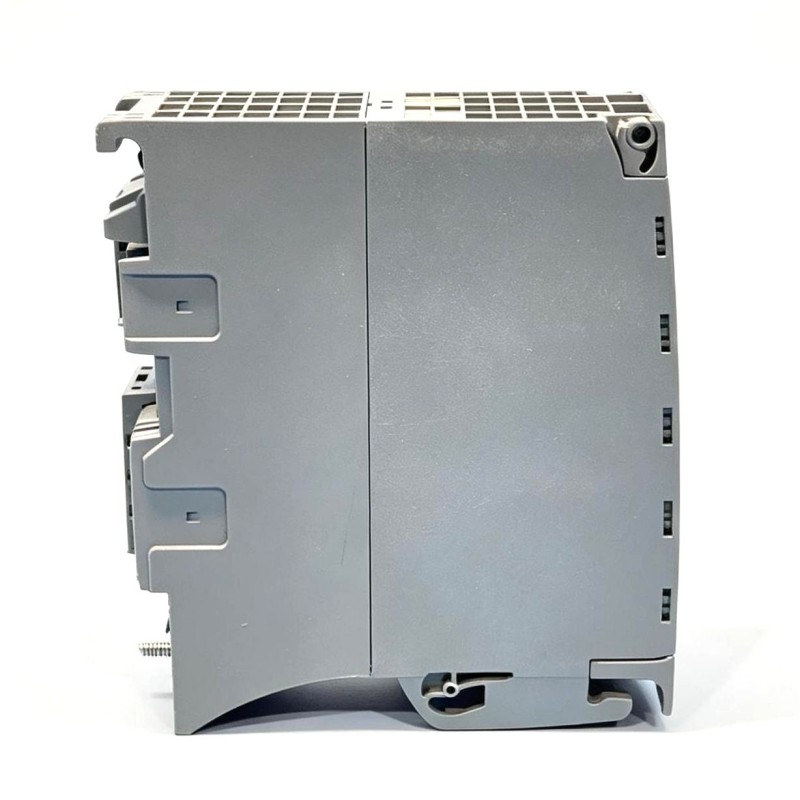

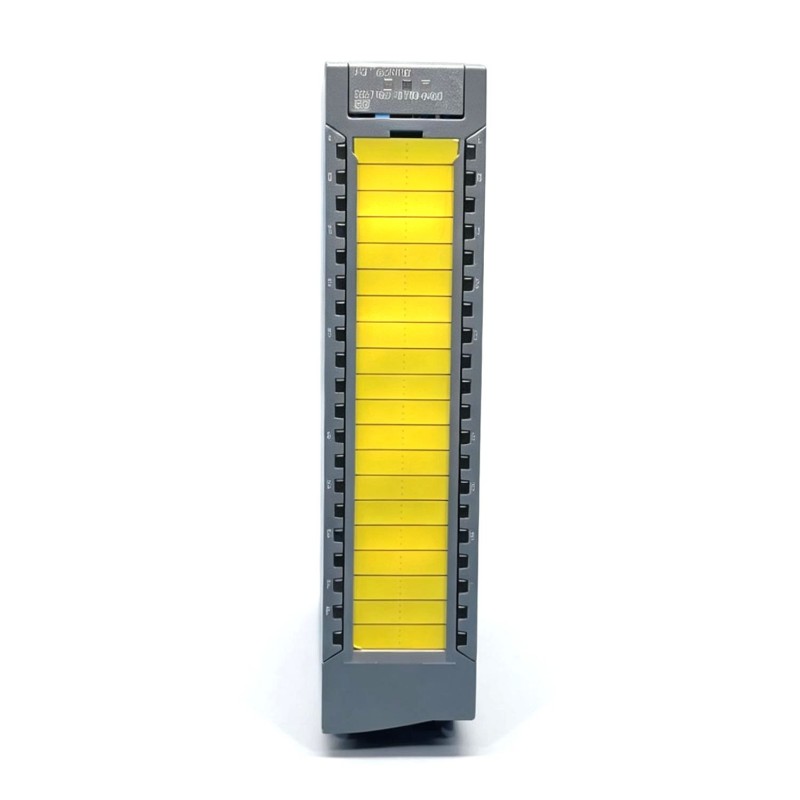

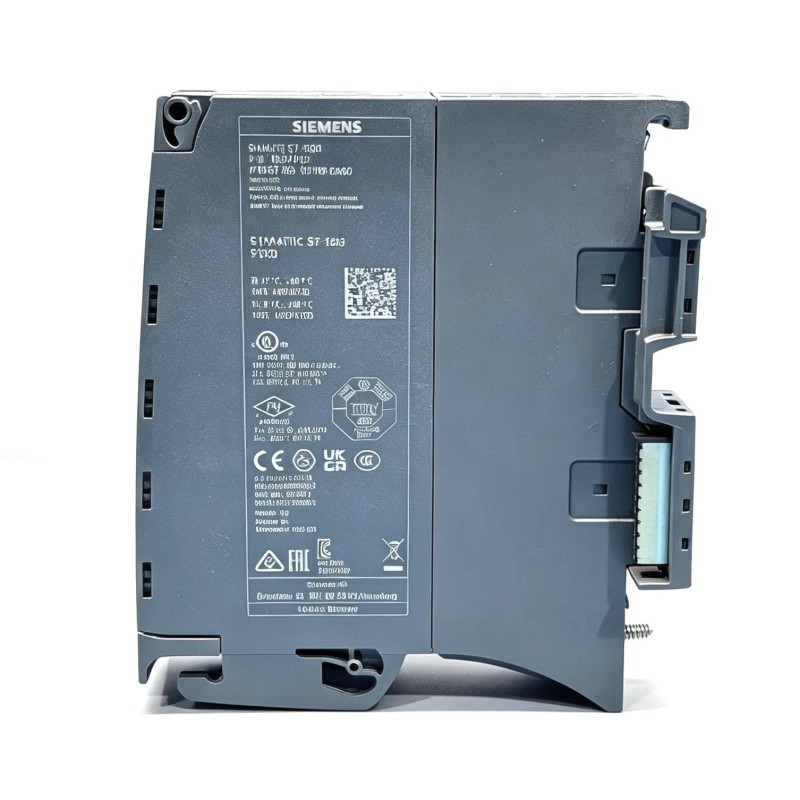

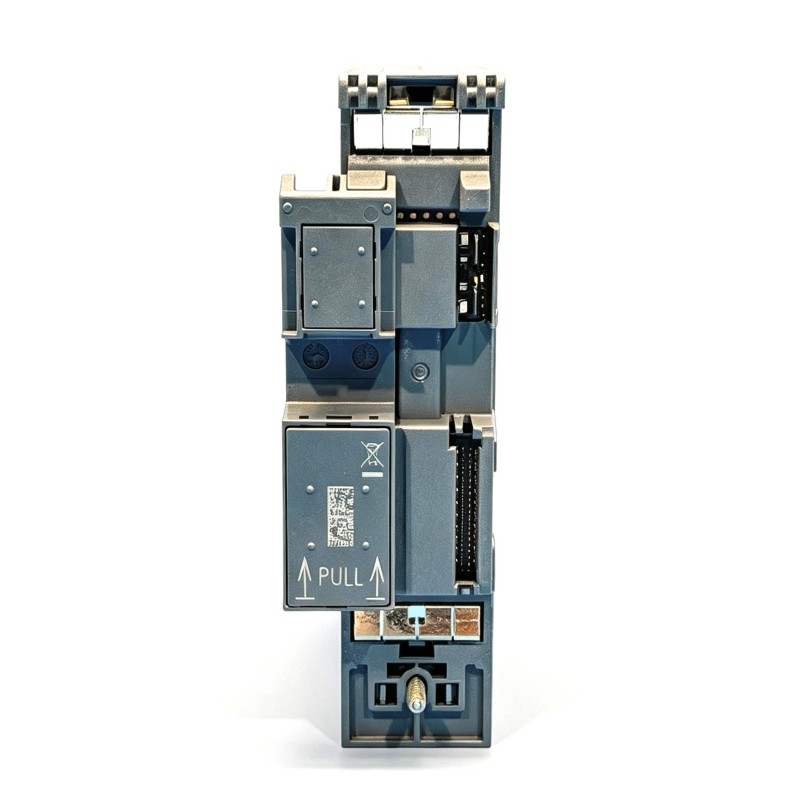

The Siemens 6AG1526-1BH00-2AB0 is a SIPLUS S7-1500 Digital Input Module used to bring discrete field signals into a Siemens S7-1500 control system. It sits between field devices such as switches, sensors, interlocks, and status contacts and the controller’s application logic.
In a typical machine or process cabinet, the module receives ON/OFF signals from field devices and makes those states available to the S7-1500 CPU through the backplane. The PLC program can then use the input information for sequencing, permissive checks, equipment status monitoring, alarm logic, and interlocking.
As part of the SIPLUS product family, this module is intended for applications where the environmental requirements are more demanding than those normally encountered by standard automation equipment. It is therefore relevant to industrial installations where control cabinets may experience challenging operating conditions and where the I/O layer needs to match the environmental requirements of the overall system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1526-1BH00-2AB0 |
| Based on Standard Model | 6ES7526-1BH00-0AB0 |
| Product Type | Digital Input Module |
| Product Family | SIPLUS S7-1500 |
| Module Type | Digital Input |
| System Platform | SIMATIC S7-1500 |
| Signal Type | Digital / Discrete |
| Primary Function | Field signal acquisition |
| System Integration | S7-1500 backplane |
| Application | Industrial automation and control |
| Installation | S7-1500 system configuration |
| Environmental Class | SIPLUS enhanced-environment application |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.341 kg |
Product Features
- SIPLUS S7-1500 digital input module for discrete field signals.
- Integrates field-level ON/OFF information into the S7-1500 automation system.
- Suitable for machine status, interlock, permissive, and sequence-control signals.
- Works as part of the S7-1500 modular I/O architecture.
- Transfers acquired input states to the controller through the system backplane.
- Supports structured separation between field wiring and PLC application logic.
- Suitable for industrial installations requiring the SIPLUS environmental product family.
- Can be used as part of a distributed and modular control cabinet architecture.
- Practical for replacement, system expansion, and modernization projects using compatible S7-1500 configurations.
Working Principle
1. Field device generates a discrete signal
A connected field device changes its electrical state according to the actual equipment condition. Typical examples include limit switches, auxiliary contacts, proximity sensors, selector switches, and machine interlocks.
2. Input circuit receives the field state
The digital input channel receives the incoming discrete signal and evaluates whether the connected circuit represents the corresponding input state. Correct field wiring and signal reference are essential for accurate acquisition.
3. Input status enters the S7-1500 backplane
The module processes the acquired input information within the S7-1500 I/O architecture and transfers the channel status through the backplane toward the controller.
4. CPU uses the input information
The S7-1500 CPU can use the input status in the configured PLC program. Depending on the application, an input may be used for sequence steps, motor permissives, machine-position confirmation, alarm logic, safety-related interlocks where the applicable safety architecture requires separate certified equipment, or general equipment monitoring.
5. Controller logic determines the next action
The CPU evaluates the input together with other process information and executes the programmed control logic. The resulting commands can then be sent through appropriate output modules or other control interfaces to actuators and equipment.
Role in a SIPLUS S7-1500 Control Architecture
The 6AG1526-1BH00-2AB0 occupies the field-input layer of the S7-1500 architecture. It does not replace the CPU or execute the overall machine program; instead, it provides the discrete input path that allows field conditions to become available to the controller.
| Control Layer | Typical Function | Relationship with Digital Input Module |
|---|---|---|
| Field Devices | Detect equipment states and operating conditions | Supplies discrete signals |
| Digital Input Layer | Acquires ON/OFF field information | 6AG1526-1BH00-2AB0 receives input signals |
| S7-1500 Backplane | Connects modules within the station | Carries module data toward the CPU |
| S7-1500 CPU | Executes user control logic | Processes acquired input states |
| Digital Output Layer | Sends discrete commands to field equipment | Acts on decisions made by the control program |
| Engineering System | Hardware and software configuration | Defines module configuration and PLC logic |
| HMI / Supervisory Layer | Displays operating information | Can use PLC data for status and diagnostics |
Industrial Applications
| Application | Typical Digital Input Use |
|---|---|
| Machine Automation | Position, limit, and machine-state signals |
| Conveyor Systems | Sensor, position, and equipment-status feedback |
| Packaging Equipment | Presence detection and sequence confirmation |
| Material Handling | Equipment position and interlock status |
| Process Skids | Valve, switch, and equipment-status signals |
| Industrial Production Lines | Machine condition and sequence feedback |
| Control Cabinets | Centralized acquisition of discrete field signals |
| Plant Modernization | Expansion or replacement of compatible S7-1500 I/O |
Installation and Maintenance
- Verify the module identification — Confirm the 6AG1526-1BH00-2AB0 ordering number and the intended S7-1500 configuration before installation.
- Check system compatibility — Confirm that the module is supported by the planned hardware configuration, engineering environment, and associated S7-1500 components.
- Isolate the control system — Follow the plant’s electrical isolation procedure before removing or installing an I/O module.
- Inspect the mounting area — Make sure the module position and adjacent components are free from contamination, mechanical damage, or obstructions.
- Check field wiring — Verify terminal assignments and inspect conductors for loose connections, damaged insulation, or incorrect routing.
- Separate signal wiring appropriately — Keep digital signal wiring arranged according to the cabinet’s electrical design to reduce the possibility of unwanted interference.
- Install the module correctly — Seat the module according to the S7-1500 installation procedure and make sure the mechanical and electrical interfaces are properly engaged.
- Verify the hardware configuration — Confirm that the configured module corresponds to the physical hardware installed in the station.
- Check input states during commissioning — Activate representative field devices and confirm that the corresponding input information is correctly recognized by the PLC.
- Inspect abnormal input behavior — If an input remains permanently active or inactive, check the field device, wiring, signal reference, terminal connection, and module configuration before replacing the module.
- Monitor diagnostics — Review available system diagnostics and module status information when commissioning or troubleshooting the I/O station.
- Record replacement information — Document the module identification, installation position, configuration changes, and commissioning results for future maintenance.
Related Components
| Component | Function |
|---|---|
| Siemens S7-1500 CPU | Executes the PLC application and control logic |
| S7-1500 Digital Output Module | Sends discrete control commands to field devices |
| S7-1500 Analog Input Module | Acquires analog process measurements |
| S7-1500 Analog Output Module | Sends analog control signals |
| S7-1500 System Power Supply | Supports the power architecture of the automation station |
| S7-1500 Interface Module | Connects applicable I/O stations within the system architecture |
| SIMATIC HMI | Provides operator visualization and status monitoring |
| Field Sensors and Switches | Generate discrete input information for the PLC |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1526-2BF00-2AB0 | SIPLUS S7-1500 Digital Input Module | Related SIPLUS digital input option |
| Siemens 6AG1522-5EH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Complementary digital output module |
| Siemens 6AG1522-5FF00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related output-side I/O component |
| Siemens 6AG1522-5FH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Complementary discrete output module |
| Siemens 6AG1522-5HF00-2AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS output module |
| Siemens 6AG1522-5HH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Complementary digital output component |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU | Controller-side component for S7-1500 architecture |
Key Advantages
- Integrates discrete field information into S7-1500 control logic.
- Fits the modular SIPLUS S7-1500 I/O architecture.
- Supports machine status, interlock, and sequence-control applications.
- Separates field signal acquisition from CPU-level application logic.
- Suitable for industrial environments requiring SIPLUS equipment.
- Practical for system expansion and replacement projects.
Technical FAQs
How does this digital input module communicate with the S7-1500 CPU?
The module is integrated into the S7-1500 station through the system backplane. Acquired digital input states are transferred through the station architecture so that the CPU can use them within the configured PLC program.
What should be checked if an input channel does not change state?
Start at the field device and work toward the PLC: check the device output, field wiring, signal reference, terminal connection, module seating, hardware configuration, and diagnostic information. This helps distinguish a field-side wiring problem from an I/O or configuration issue.
Can a standard S7-1500 digital input module be replaced directly by a SIPLUS version?
The two products should not be treated as automatically interchangeable simply because they belong to the same S7-1500 architecture. The exact ordering number, system configuration, environmental requirements, firmware or engineering compatibility, and project documentation should be checked before replacement.
What role does this module play in machine sequence control?
It supplies the controller with discrete feedback such as position confirmation, equipment status, switch states, or permissive conditions. The CPU then combines these inputs with the programmed sequence logic and other process data to determine the next control action.
