Product Overview

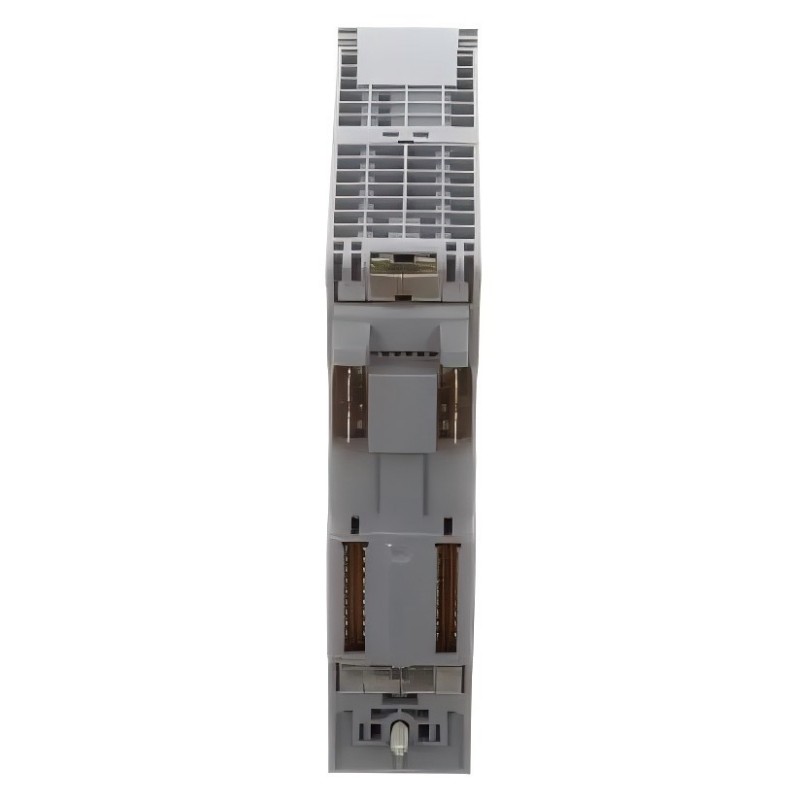

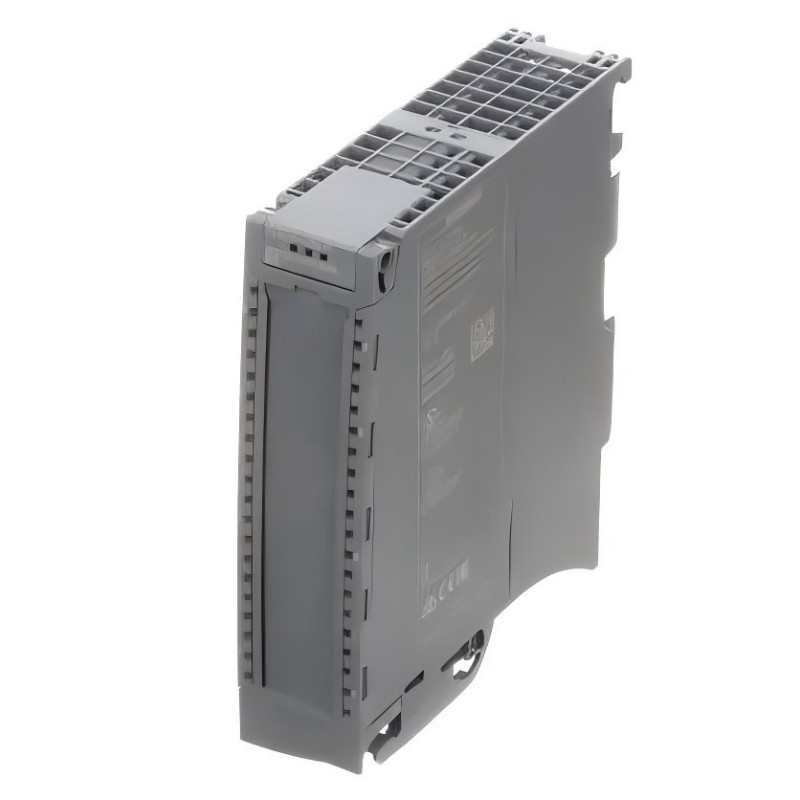

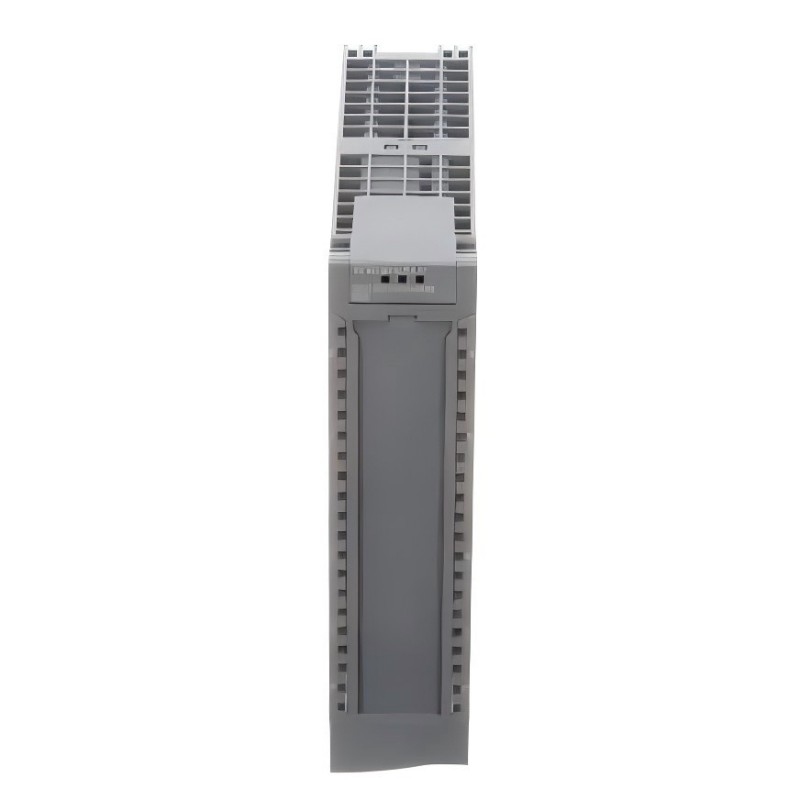

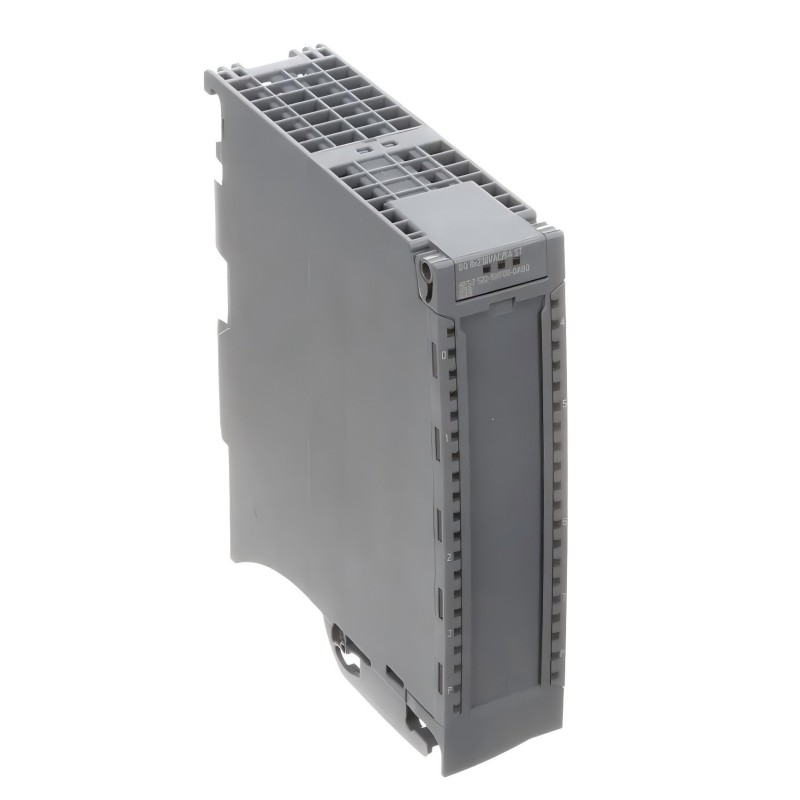

The Siemens 6AG1522-5HF00-2AB0 is a SIPLUS S7-1500 Digital Output Module used to connect the controller’s digital control logic with discrete field devices. Installed as part of an S7-1500 station, it receives output commands from the CPU through the system backplane and switches the corresponding digital output channels according to the configured PLC program.
In a typical automation cabinet, the module sits between the S7-1500 controller and the field-side switching circuit. The CPU determines when an actuator, relay, contactor, solenoid, indicator, or other discrete device should change state, while the output module performs the channel-level interface to the external circuit. This makes the module particularly useful for machine sequences, equipment interlocking, auxiliary control, and process on/off functions.
For maintenance engineers, the output module is also a convenient point for tracing a failed command. If the PLC program indicates that an output should be active but the field device remains inactive, the troubleshooting path can be followed from the CPU and backplane to the output channel, terminal wiring, interface components, external power supply, and finally the load.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 6AG1522-5HF00-2AB0 |
| Product Type | SIPLUS S7-1500 Digital Output Module |
| Product Family | Siemens SIPLUS S7-1500 |
| Module Type | Digital Output |
| System Platform | SIMATIC S7-1500 |
| Signal Type | Digital Output |
| Application | Discrete signal and load control |
| Mounting Concept | S7-1500 modular system |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.403 kg |
Product Features
- SIPLUS S7-1500 integration — Works as part of a SIMATIC S7-1500-based control station and fits into the modular PLC architecture.
- Digital output functionality — Transfers discrete output commands from the controller to connected field circuits.
- PLC-to-field interface — Provides the physical output stage between internal controller logic and external devices.
- Suitable for discrete automation — Can be used for switching commands associated with relays, contactors, solenoids, indicators, and other on/off equipment.
- Backplane-based communication — Receives process output data through the S7-1500 system architecture rather than operating as an independent controller.
- Structured cabinet integration — Fits into control cabinets where PLC modules, interface components, terminal blocks, and field wiring are arranged as a coordinated system.
- Service-friendly signal path — The output channel can be checked as part of a systematic PLC-to-field troubleshooting process.
- Complementary to S7-1500 input modules — Can be combined with digital input and analog I/O modules to form a complete automation station.
- SIPLUS platform hardware — Suitable for applications where the SIPLUS version of the S7-1500 platform is specified.
Working Principle
The 6AG1522-5HF00-2AB0 operates on the output side of the S7-1500 control system. Its task is not to determine the process sequence itself, but to execute the digital output states calculated by the PLC program.
1. PLC program evaluation
The S7-1500 CPU processes the application program using field inputs, internal variables, timers, counters, interlocks, and other control conditions. Based on this logic, the CPU determines whether each required output should be active or inactive.
2. Output data transfer
The resulting output states are transferred from the CPU through the S7-1500 backplane to the digital output module. The module therefore operates as part of the controller’s I/O architecture.
3. Channel-level switching
The output electronics interpret the received digital states and control the associated channels. An active command causes the relevant output circuit to assume its commanded state, while an inactive command returns it to the opposite state.
4. Field-side response
The output channel connects to the external control circuit through the cabinet wiring. Depending on the application, the circuit may drive an interposing relay, contactor, solenoid, indicator, or another discrete load. The field device then performs the physical action required by the control sequence.
5. Diagnostic troubleshooting
When an output does not produce the expected field response, the module should be evaluated as one section of the complete signal chain. The technician can compare the PLC command with the module status and then inspect wiring, external supply, interface devices, protection components, and the load.
Role in a SIMATIC S7-1500 Control Architecture
The 6AG1522-5HF00-2AB0 belongs to the digital output layer of the S7-1500 architecture. It translates controller-side output information into physical switching commands for discrete field equipment.
| Control Layer | Typical Function | Relationship to the Digital Output Module |
|---|---|---|
| HMI / Supervisory Layer | Operator commands and process visualization | Provides operator-level commands and displays equipment status |
| S7-1500 CPU | Program execution and sequence control | Determines the required digital output states |
| S7-1500 Backplane | Internal module communication | Transfers output data between the CPU and I/O module |
| Digital Output Module | Discrete output interface | Converts controller commands into physical output states |
| Interface Components | Relay, contactor, protection, or isolation | Connects the PLC output to the required field circuit where applicable |
| Field Equipment | Actuators and discrete loads | Performs the commanded machine or process action |
This architecture also helps isolate faults. For example, if the CPU logic shows an active command but the output channel does not respond as expected, the investigation can remain on the PLC and I/O side. If the output channel is behaving correctly, the technician can continue downstream toward the terminal wiring, external supply, relay or contactor, and field device.
Industrial Applications
| Application | Output Function | Typical Equipment |
|---|---|---|
| Machine Automation | Sequence-based switching | Relays, solenoids, contactors, indicators |
| Conveyor Systems | Actuator commands | Motor starters, pneumatic valves, sensors interfaces |
| Packaging Equipment | Station control | Cylinders, solenoid valves, machine interlocks |
| Process Equipment | Discrete control | On/off valves, auxiliary relays, alarm circuits |
| Material Handling | Equipment coordination | Contactors, actuators, status devices |
| Utility Systems | Auxiliary equipment control | Pumps, fans, valves, alarms |
| Production Lines | Machine sequence outputs | Interlocks, actuators, indicators, control relays |
| Control Cabinet Retrofits | PLC output replacement or expansion | S7-1500 field interfaces and switching circuits |
| Automated Machinery | Discrete command execution | Electromechanical and pneumatic control devices |
Installation and Maintenance
- Verify the hardware model — Confirm that the installed module matches the engineering project and the intended SIPLUS S7-1500 configuration.
- Check the module position — Make sure the module is installed in the correct S7-1500 station position and that the mechanical and backplane connections are properly seated.
- Review the hardware configuration — Confirm the module is correctly represented in the PLC engineering configuration before commissioning.
- Verify channel assignments — Check that the PLC program addresses the intended output channels and that the field devices correspond to the configured signals.
- Inspect terminal wiring — Check terminal connections, conductor identification, wire routing, and cabinet termination before energizing the field circuit.
- Check the external supply — Confirm that the associated field circuit has the required power source and that protective devices are correctly arranged.
- Separate control and power wiring — Keep PLC signal wiring organized separately from higher-power circuits where required by the cabinet design and electrical installation practice.
- Monitor the PLC command — When a field device does not respond, verify whether the application program is actually issuing the expected output command.
- Check module diagnostics — Review the available S7-1500 diagnostic information for configuration, hardware, or channel-related conditions.
- Trace the complete signal path — If the PLC command is correct, inspect the output channel, terminal connection, relay or contactor, external supply, and field load in sequence.
- Inspect connected switching devices — A failed relay coil, contactor, solenoid, fuse, terminal, or field device can produce symptoms that initially appear to be an I/O module problem.
- Document replacement and testing — Record the module model, channel wiring, configuration changes, and commissioning results after maintenance so the control cabinet can be serviced consistently in the future.
Related Components
| Component | Role in the System |
|---|---|
| Siemens SIMATIC S7-1500 CPU | Executes the PLC application and generates output commands |
| SIPLUS S7-1500 Digital Input Modules | Acquire discrete field signals for controller processing |
| SIPLUS S7-1500 Analog I/O Modules | Handle analog measurement and control signals |
| S7-1500 System Backplane | Provides internal communication between CPU and I/O modules |
| Signal Relays | Provide interface, switching, or isolation functions where required |
| Contactors | Switch motor and higher-power equipment according to PLC commands |
| Solenoid Valves | Convert electrical output commands into pneumatic or hydraulic actions |
| Terminal Blocks | Provide organized field wiring termination and distribution |
| HMI System | Allows operators to issue commands and monitor process conditions |
| Engineering Software | Used for PLC hardware configuration, I/O setup, diagnostics, and programming |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Siemens 6AG1522-5EH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related SIPLUS digital output hardware |
| Siemens 6AG1522-5FF00-7AB0 | SIPLUS S7-1500 Digital Output Module | Related output module within the same platform |
| Siemens 6AG1522-5FH00-7AB0 | SIPLUS S7-1500 Digital Output Module | Complementary SIPLUS digital output hardware |
| Siemens 6AG1521 Series | SIPLUS S7-1500 Digital Input Modules | Complementary digital input side of the control system |
| Siemens 6AG1522 Series | SIPLUS S7-1500 Digital Output Modules | Related output modules for S7-1500 stations |
| Siemens SIPLUS S7-1500 Analog I/O Series | SIPLUS S7-1500 Analog I/O Modules | Complementary analog process signal interface |
Key Advantages
- Integrates digital output control into the SIPLUS S7-1500 automation platform.
- Provides a clear interface between PLC logic and discrete field circuits.
- Suitable for machine, process, utility, material-handling, and production applications.
- Supports structured troubleshooting from CPU command through I/O channel to field device.
- Can work with relays, contactors, solenoids, indicators, and other suitable discrete circuits.
- Fits modular S7-1500 control cabinet architectures.
- Provides a practical output-side hardware option for SIPLUS-based automation systems.
Technical FAQs
How is the 6AG1522-5HF00-2AB0 integrated with an S7-1500 CPU?
The module is integrated into the S7-1500 station through the system backplane. The CPU executes the control program and sends the required output states to the digital output module, which then handles the corresponding output channels.
What is the correct troubleshooting sequence if an output command does not operate the field device?
First verify the PLC logic and confirm that the expected output command is being generated. Then check the module status and output channel, followed by terminal wiring, external power, relays or contactors, protection devices, and the field load. This approach helps identify whether the problem is located in the controller, I/O section, or field circuit.
Does the digital output module replace a contactor or relay in every application?
No. The digital output module is the PLC-side output interface. Whether a relay, contactor, or another interface component is required depends on the actual field circuit, connected load, electrical characteristics, and control cabinet design.
Why should the PLC output and the field circuit be checked separately during maintenance?
The PLC output represents the controller’s commanded state, while the field circuit determines whether that command actually reaches and operates the external device. Separating these two parts of the troubleshooting process makes it easier to distinguish programming or I/O issues from wiring, power, interface-component, or load failures.
