Product Overview

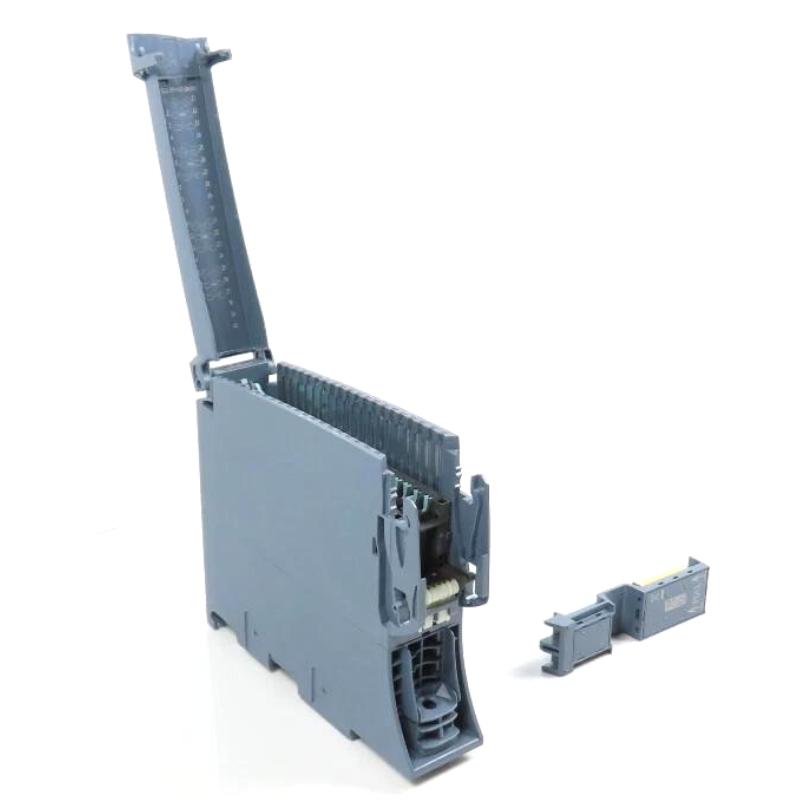

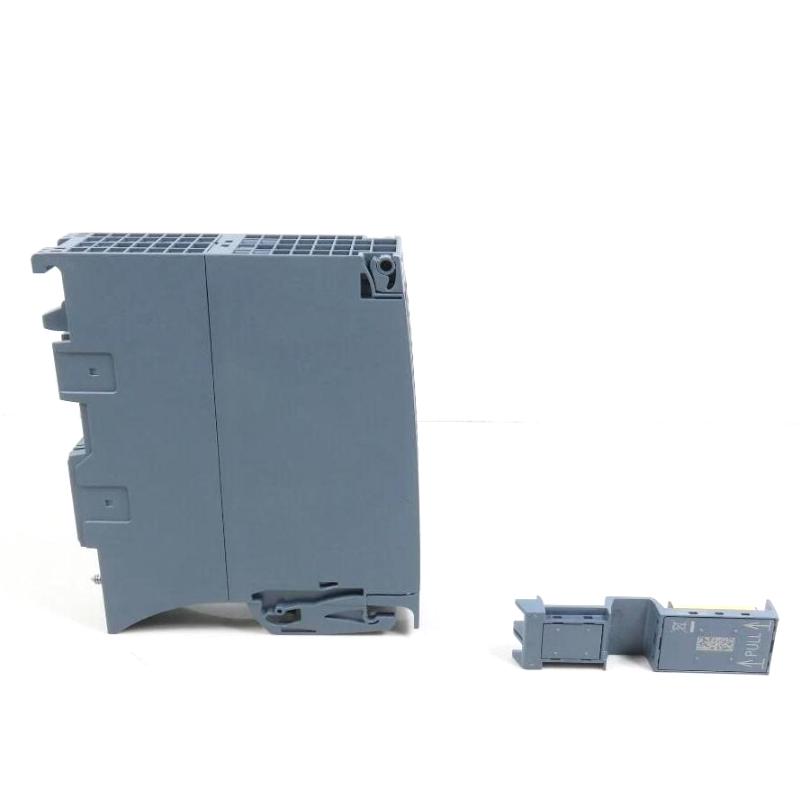

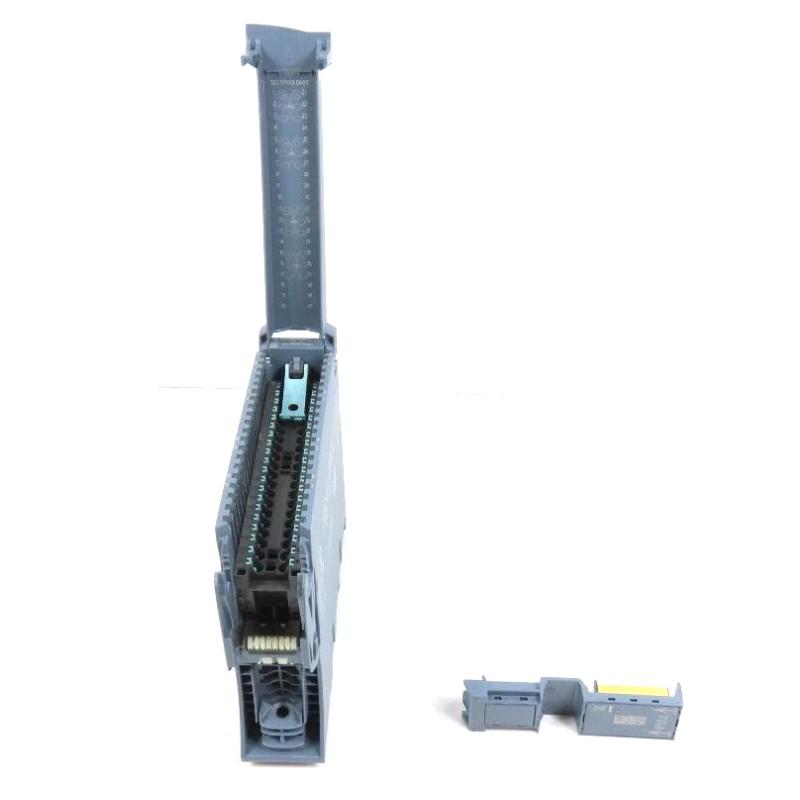

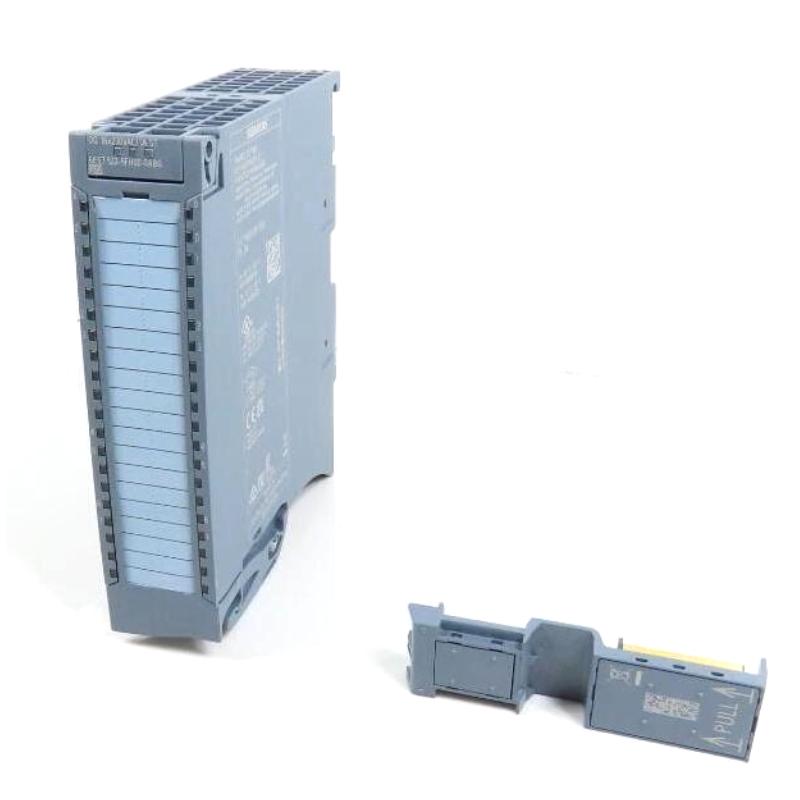

The Siemens 6AG1522-5FH00-7AB0 is a SIPLUS S7-1500 Digital Output Module used to connect PLC control logic with discrete field devices. Installed as part of an S7-1500 automation station, it takes output data generated by the CPU and makes the corresponding digital output states available to the external control circuits.

This type of module is commonly used where a machine or process contains a large number of on/off devices. Depending on the application, the output channels may be assigned to contactors, relay interfaces, solenoid-operated devices, signaling equipment, or other discrete loads. The PLC program determines when each output should change state based on process conditions, interlocks, sequences, alarms, and operator commands.

The module is part of the SIPLUS S7-1500 family, making it suitable for applications where the automation system is deployed in a more demanding industrial environment. It can be combined with other SIPLUS and SIMATIC S7-1500 components to build a modular control station with separate input, output, processing, communication, and power functions.

From a maintenance perspective, the module should be considered as one part of the complete output signal chain. When a field device does not respond, technicians normally need to check the PLC program, CPU status, I/O configuration, output-channel state, field wiring, external supply, interface components, and load rather than replacing the module immediately.

Technical Specifications

Product Features

• Provides a digital output interface for SIMATIC S7-1500 automation stations.
• Transfers PLC output commands from the control program to external discrete circuits.
• Suitable for machine and process applications containing multiple on/off control functions.
• Integrates with the modular S7-1500 backplane architecture.
• Can operate alongside digital input, analog I/O, communication, and other system modules.
• Supports organized I/O allocation by machine section, process unit, or functional group.
• Forms part of the SIPLUS family for industrial automation applications with demanding environmental conditions.
• Supports field-level control functions without requiring the output module itself to execute the main PLC application program.

Working Principle

The 6AG1522-5FH00-7AB0 receives output information from the S7-1500 CPU through the internal system architecture. The PLC application determines the required state of each configured output based on its programmed logic and current process information.

For example, a sequence program may detect that a machine step has been completed and then command an output to energize a control circuit. The CPU sends the corresponding output data to the module through the S7-1500 backplane. The digital output channel then changes to the commanded state, allowing the connected field circuit to respond.

The actual load circuit may contain additional interface or protection components. A PLC output therefore should not automatically be treated as the entire power path to the actuator. Contactors, relays, fuses, interface modules, and external power supplies may be part of the final field circuit depending on the application.

During commissioning, this signal chain provides a practical troubleshooting sequence:

PLC Program → S7-1500 CPU → Backplane → Digital Output Channel → Field Wiring / Interface → Actuator

If the output state shown by the PLC is correct but the actuator does not respond, checking the downstream part of this chain can quickly narrow the fault location.

Role in a SIMATIC S7-1500 Control Architecture

The 6AG1522-5FH00-7AB0 belongs to the output section of the S7-1500 architecture. It converts output information generated by the controller into discrete electrical states that can be used by external control circuits.

In a larger automation panel, the output module can be assigned to a specific functional area. For example, one group of outputs may operate material-handling devices while other I/O modules handle machine feedback and analog measurements. This modular organization simplifies I/O addressing, cabinet wiring, commissioning, and later troubleshooting.

Industrial Applications

Installation and Maintenance

1. Verify the ordering number — Confirm 6AG1522-5FH00-7AB0 against the project bill of materials and hardware configuration before installation.
2. Review the system architecture — Check the intended position of the module within the S7-1500 station and verify the surrounding modules.
3. Isolate the equipment — Follow the applicable electrical safety and lockout procedures before removing, installing, or rewiring the module.
4. Inspect the mounting arrangement — Make sure the module and adjacent S7-1500 components are correctly positioned and mechanically secure.
5. Check the backplane connection — Inspect the system connection for contamination, damage, or improper seating.
6. Verify field terminal assignments — Compare the wiring against the approved electrical drawings before reconnecting output circuits.
7. Check external circuits — Inspect the power supply, relay interfaces, contactors, protective devices, and other components connected to the digital outputs.
8. Confirm output allocation — Make sure each field device is connected to the intended PLC output address and channel.
9. Verify the engineering configuration — Check that the correct module is represented in the PLC hardware configuration and that the I/O addresses are consistent with the application.
10. Perform controlled output testing — During commissioning, test individual outputs under controlled conditions rather than energizing the complete machine sequence immediately.
11. Use diagnostics for troubleshooting — Compare the commanded output state, module diagnostics, field voltage or switching condition, and actuator response to identify the fault location.
12. Document maintenance work — Record replacement details, configuration changes, I/O assignments, and test results so the working configuration can be reproduced during future service.

Compatible System Components

Recommended Related Models

Key Advantages

• Extends the digital output capability of a SIMATIC S7-1500 automation station.
• Provides a clear interface between PLC logic and discrete field-level control circuits.
• Supports modular I/O organization in machine and process-control panels.
• Can be integrated with relays, contactors, solenoids, indicators, and other external control circuits.
• Supports systematic diagnosis from the PLC program through to the connected field device.
• Belongs to the SIPLUS S7-1500 family for demanding industrial automation applications.

Technical FAQs

What is the primary function of the Siemens 6AG1522-5FH00-7AB0?

It is a SIPLUS S7-1500 Digital Output Module that provides discrete output channels for transferring control commands from the PLC system to external field circuits.

How does the output module interact with the S7-1500 CPU?

The CPU executes the application program and determines the required output states. The corresponding output data is transferred through the S7-1500 system architecture to the digital output module, which applies the commanded states to its output channels.

Why might a field actuator remain inactive even when the PLC output is commanded?

The PLC command is only one part of the complete signal path. The fault may be associated with the output channel, field wiring, external power supply, fuse, relay or contactor interface, or the actuator itself. Checking these stages in sequence helps isolate the problem.

What should be considered when replacing this SIPLUS output module?

The exact ordering number, S7-1500 hardware configuration, I/O addressing, terminal assignment, field wiring, and connected loads should all be verified. After replacement, controlled output testing and PLC diagnostics should be performed before returning the equipment to normal operation.
