Product Overview

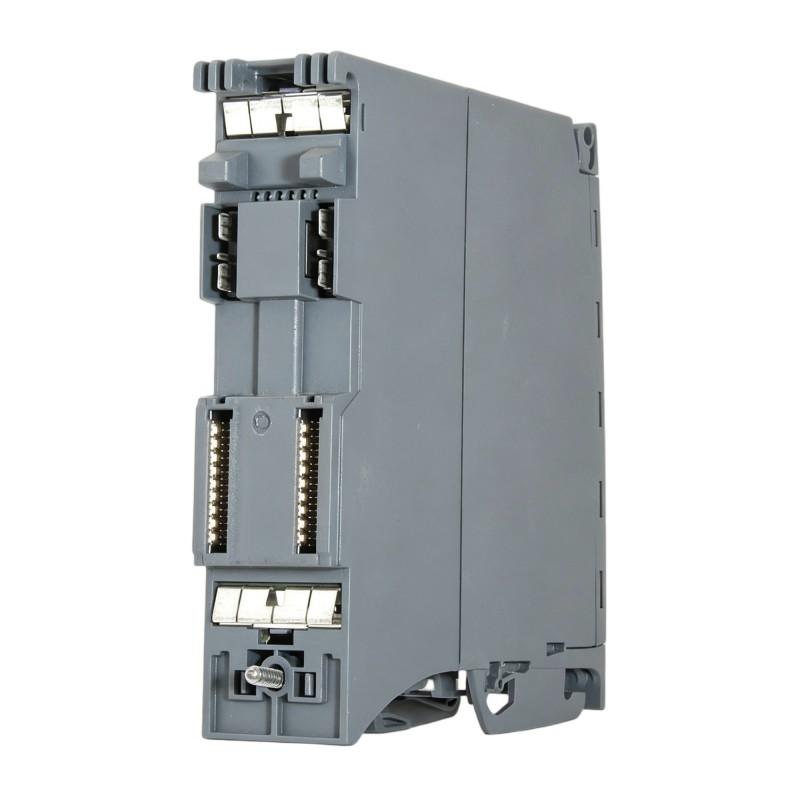

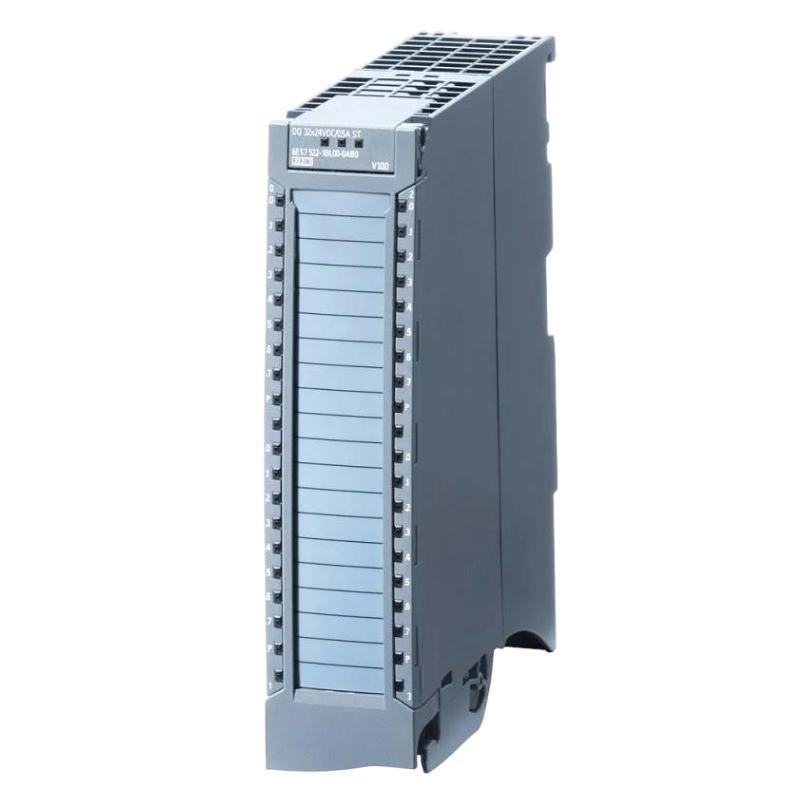

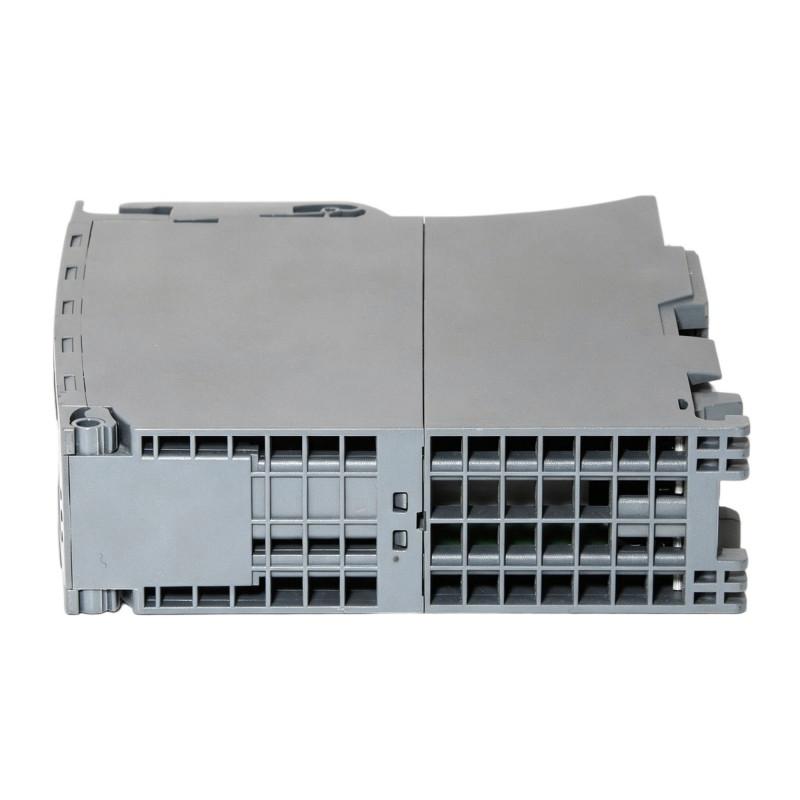

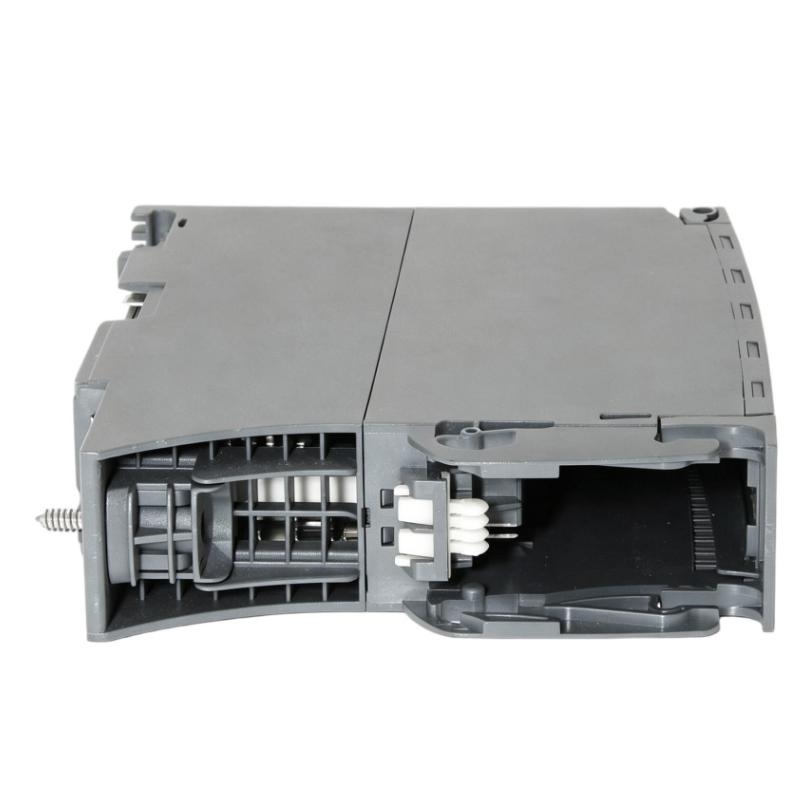

The Siemens 6AG1522-5FF00-7AB0 is a SIPLUS S7-1500 Digital Output Module used to extend the discrete output capability of a SIMATIC S7-1500 automation station. It sits between the PLC control program and the electrical loads in the field, turning output commands generated by the CPU into physical switching actions.
In a machine-control application, for example, the CPU may determine that a conveyor should start, a pneumatic valve should actuate, or a warning lamp should turn on. The output module handles the corresponding digital output channels, while the external field circuit supplies and drives the connected load according to the electrical design.
The module is especially relevant in modular S7-1500 control panels where output channels are distributed across several I/O modules. Rather than treating the output card as an isolated component, engineers normally consider it together with the CPU, system backplane, field wiring, load devices, protective components, and the diagnostic functions of the PLC platform.
As a SIPLUS S7-1500 component, it is part of Siemens’ industrial automation portfolio for applications where the automation station must operate in more demanding environmental conditions. The exact permitted operating conditions and installation requirements should always be checked against the applicable SIPLUS documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Output Module |
| Model | 6AG1522-5FF00-7AB0 |
| Product Family | SIPLUS |
| Automation Platform | SIMATIC S7-1500 |
| Manufacturer | Siemens |
| Module Type | Digital Output |
| Application | Industrial Automation and PLC Control |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.2 kg |
Product Features
- Adds discrete output capability to a SIMATIC S7-1500 automation station.
- Provides the interface between PLC-generated output commands and external digital loads.
- Suitable for applications involving discrete actuators and electrical control circuits.
- Integrates into the modular S7-1500 architecture through the system backplane.
- Can be used alongside digital input, analog I/O, communication, and other S7-1500 modules.
- Supports centralized I/O arrangements in which field devices are wired directly to the PLC station.
- The SIPLUS product family is intended for industrial applications with more demanding environmental requirements than standard automation installations.
- Useful for machine builders and plant engineers who need to separate field output functions across multiple modular I/O stations.
Working Principle
The 6AG1522-5FF00-7AB0 sits on the output side of the S7-1500 signal chain. The process program running in the CPU determines whether a particular output should be active or inactive based on the machine sequence, interlocks, input conditions, timers, counters, and other programmed logic.
The CPU transfers the required output data through the S7-1500 backplane to the configured output module. The module then applies the corresponding switching state to its digital output channels. A connected field device, such as a relay interface, contactor circuit, solenoid, or indicator, responds to the resulting electrical state.
This distinction is useful during troubleshooting. If a field actuator does not respond, the problem may be in the control logic, CPU communication, module configuration, output channel, field wiring, external power circuit, or load itself. A technician therefore needs to trace the complete path rather than immediately assuming that the output module has failed.
In a commissioning situation, engineers can also use PLC diagnostics and channel status information to separate a commanded output state from the actual field response. This makes the module part of both the control path and the diagnostic path of the automation system.
Role in a SIMATIC S7-1500 Control Architecture
The 6AG1522-5FF00-7AB0 occupies the discrete output layer of the S7-1500 architecture. It does not execute the main control program; instead, it translates the CPU’s output data into electrical switching states that can be used by field-level devices.
| Architecture Layer | Related Component | Role |
|---|---|---|
| Engineering Layer | Siemens TIA Portal | Hardware configuration, PLC programming, diagnostics, and commissioning |
| Control Layer | SIMATIC S7-1500 CPU | Executes the application program and determines required output states |
| System Layer | S7-1500 Backplane | Transfers data between the CPU and connected I/O modules |
| Digital Output Layer | 6AG1522-5FF00-7AB0 | Converts output data into discrete field-side switching states |
| Interface / Protection Layer | Relays, Fuses, Interface Components | Adapts or protects the electrical control circuit where required |
| Field Layer | Contactors, Solenoids, Valves, Indicators, Actuators | Performs the physical action commanded by the PLC |
For a machine builder, this separation makes the system easier to organize. The CPU remains responsible for sequence logic, while the output module handles the physical digital-output interface. If a machine has many independent actuators, additional output modules can be assigned to different functional groups and addressed within the PLC program.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Controls discrete machine functions such as actuators, relays, contactors, and indicators |
| Conveyor Systems | Provides PLC output commands for motor-control interfaces, solenoids, and signaling devices |
| Packaging Machinery | Operates discrete devices involved in filling, positioning, clamping, indexing, and machine sequencing |
| Material Handling | Controls pneumatic devices, diverters, interlocks, and other discrete mechanisms |
| Process Skids | Provides discrete commands to valves, pumps, auxiliary equipment, and alarm circuits |
| Factory Automation | Expands the output capacity of an S7-1500 control cabinet |
| Utility and Equipment Control | Interfaces PLC logic with discrete electrical equipment and auxiliary control circuits |
| Retrofit Projects | Provides an S7-1500-compatible output layer when modernizing an existing control architecture |
Installation and Maintenance
- Verify the exact ordering number — Confirm that 6AG1522-5FF00-7AB0 matches the project hardware list and the intended SIPLUS S7-1500 configuration.
- Review the electrical design — Check the PLC hardware configuration and electrical drawings before connecting field circuits.
- Isolate the equipment before service — Follow the plant’s lockout and electrical isolation procedures before removing or wiring the module.
- Check the mounting position — Make sure the module is installed in the permitted S7-1500 mounting arrangement and that adjacent modules are correctly positioned.
- Inspect the system connection — Check the module-to-backplane interface for contamination, mechanical damage, or improper seating.
- Verify terminal assignment — Compare every connected output circuit with the approved wiring documentation before energizing the system.
- Check the external load circuit — Confirm that the connected contactor, relay, solenoid, indicator, or other load is appropriate for the configured output circuit.
- Separate control and power considerations — Where external interface or protection components are used, verify that the field circuit is wired according to the machine’s electrical design rather than treating the PLC output as the complete power circuit.
- Check hardware configuration — Confirm that the engineering project recognizes the correct module and that the configured I/O addresses correspond to the intended field signals.
- Use diagnostics during commissioning — Monitor module and channel status while testing outputs so that configuration problems can be distinguished from external wiring faults.
- Troubleshoot from the PLC to the field — If an actuator does not operate, check the program command, CPU status, output-channel status, wiring, external supply, interface components, and load in sequence.
- Record replacement and configuration changes — Document the module replacement, hardware configuration, I/O assignment, and commissioning results so future maintenance personnel can reproduce the working configuration.
Compatible System Components
| Component | Product Type | Relationship to Digital Output Module |
|---|---|---|
| Siemens SIMATIC S7-1500 CPU | Central Processing Unit | Executes the control program and generates output commands |
| Siemens SIPLUS S7-1500 Digital Input Modules | Digital Input Module | Receives discrete feedback and status signals from the field |
| Siemens SIPLUS S7-1500 Analog Input Modules | Analog Input Module | Acquires analog process measurements |
| Siemens SIPLUS S7-1500 Analog Output Modules | Analog Output Module | Provides continuous analog control signals to field devices |
| Siemens S7-1500 Interface Modules | Interface Module | Supports communication and system architecture expansion |
| Siemens S7-1500 System Power Supply | Power Supply Module | Supports the power requirements of the automation station |
| Siemens TIA Portal | Engineering Software | Provides hardware configuration, programming, diagnostics, and commissioning functions |
Recommended Related Models
| Model / Series | Product Type | Application |
|---|---|---|
| Siemens 6AG1522 SIPLUS S7-1500 Series | Digital Output Module | Related SIPLUS digital output configurations |
| Siemens SIPLUS S7-1500 Digital Input Modules | Digital Input Module | Discrete field signal acquisition |
| Siemens SIPLUS S7-1500 Analog Input Modules | Analog Input Module | Analog process signal acquisition |
| Siemens SIPLUS S7-1500 Analog Output Modules | Analog Output Module | Analog control signal output |
| Siemens SIPLUS S7-1500 CPU Series | Central Processing Unit | PLC program execution and system control |
| Siemens S7-1500 Interface Modules | Interface Module | System communication and architecture expansion |
Key Advantages
- Extends the discrete output capacity of a SIMATIC S7-1500 control system.
- Creates a direct control interface between PLC logic and discrete field devices.
- Fits into the modular S7-1500 I/O architecture.
- Supports structured separation of machine output functions across multiple I/O modules.
- Useful for machine automation, process equipment, and industrial control-panel applications.
- Provides a SIPLUS-series option for demanding industrial automation environments.
Technical FAQs
What is the role of the 6AG1522-5FF00-7AB0 in an S7-1500 system?
The module provides the digital output interface between the S7-1500 CPU and connected field devices. The CPU determines the required output states, while the module applies those states to its digital output channels.
What types of field devices can be controlled through a digital output module?
Digital outputs are commonly used in discrete control circuits involving devices such as relays, contactors, solenoids, valves, indicators, and other actuators. The suitability of a particular load depends on the electrical characteristics of the specific output channel and the overall circuit design.
Why can an output appear active in the PLC while the field device does not operate?
The PLC command and the physical operation of the load are separate parts of the signal chain. A fault in the output channel, terminal connection, external supply, protective device, interface relay, field wiring, or actuator can prevent the final device from responding even when the program has issued the correct command.
What should be verified when replacing an existing S7-1500 digital output module?
Verify the complete ordering number, hardware configuration, I/O addressing, terminal assignment, field wiring, and connected loads. After installation, perform diagnostic and functional checks before returning the machine or process to normal operation.
