Product Overview

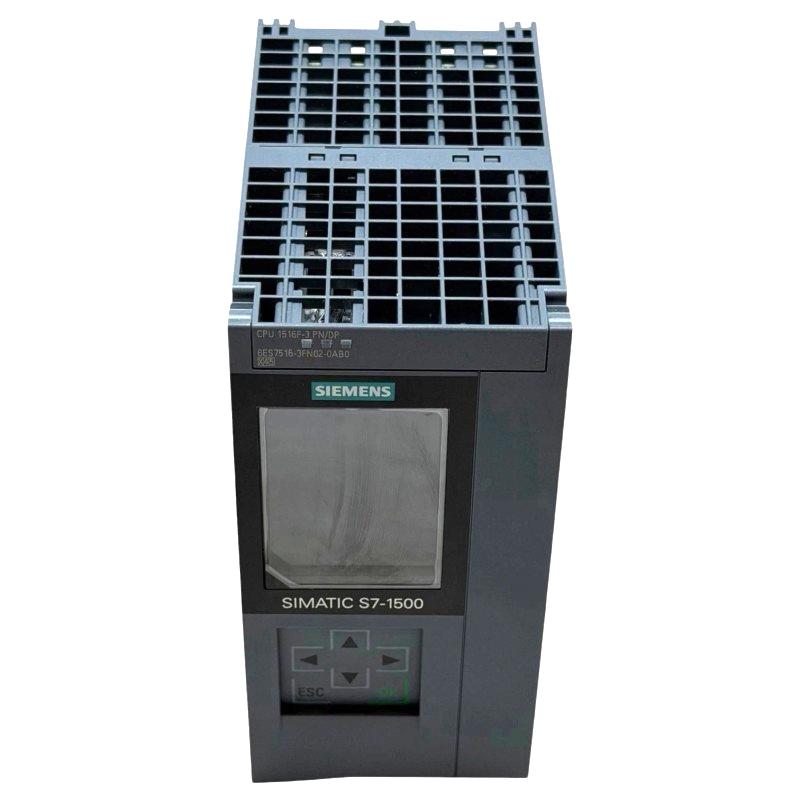

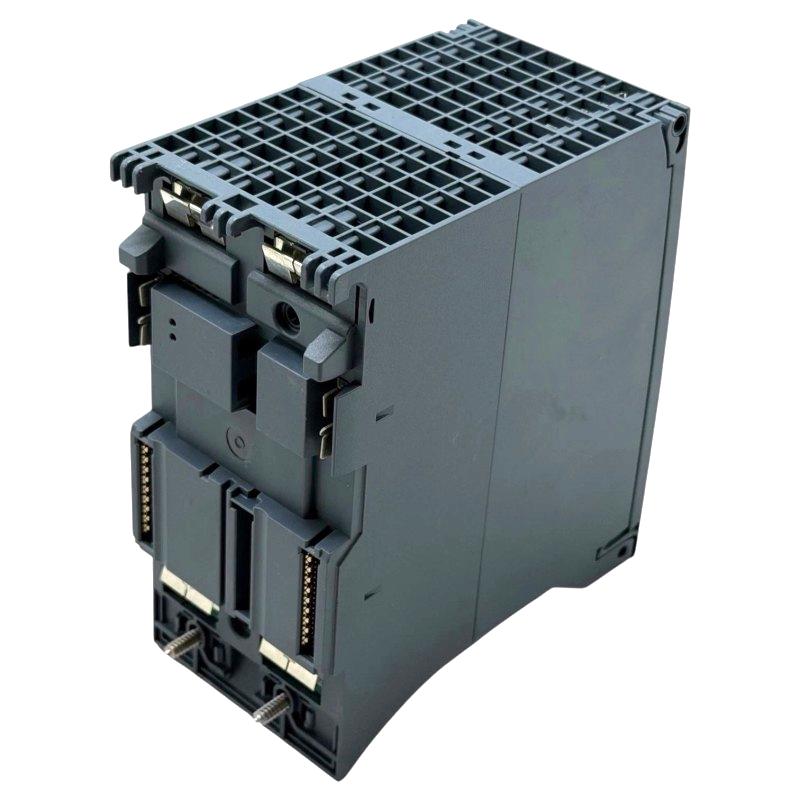

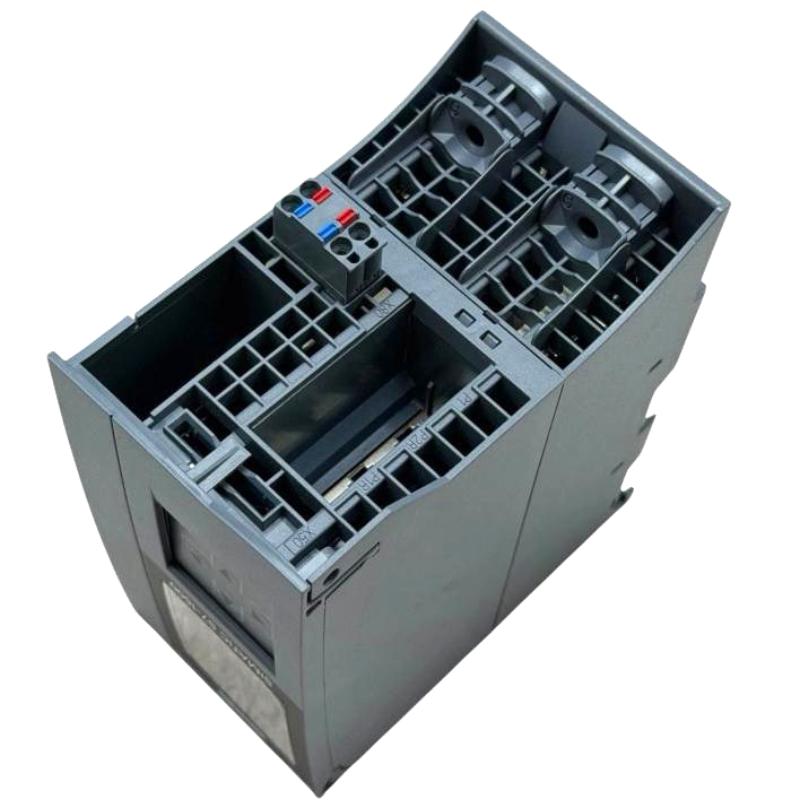

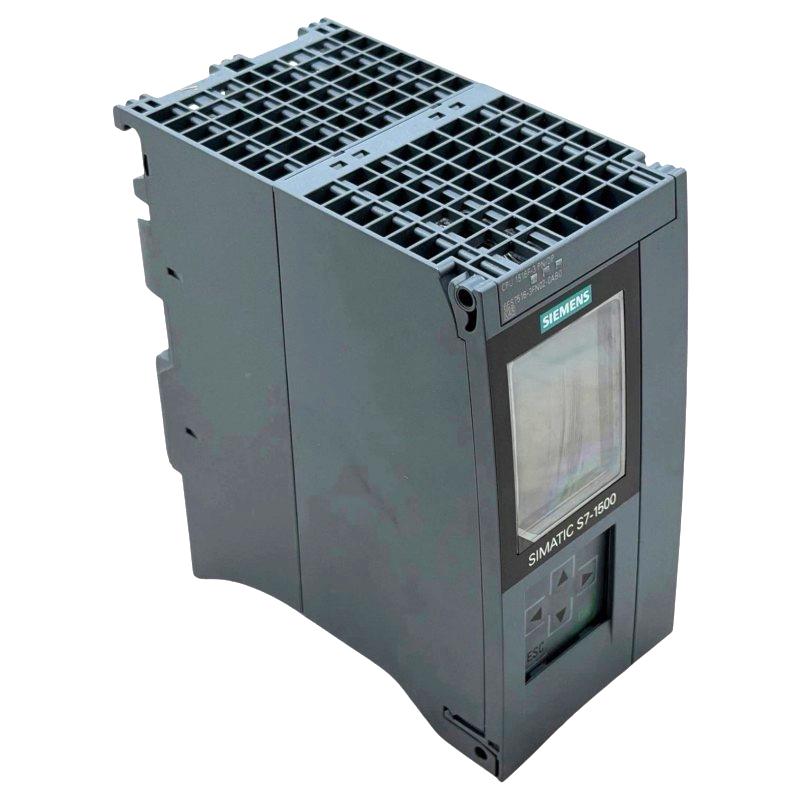

The Siemens 6AG1516-3FN02-2AB0 is a SIPLUS S7-1500 Central Processing Unit based on the CPU 1516-3 PN/DP platform. It serves as the main controller for S7-1500 automation systems where the PLC needs to coordinate machine sequences, distributed I/O, drives, operator interfaces, and industrial communication.
In a production line, for example, the CPU can process signals from sensors, coordinate several machine stations, exchange data with remote I/O, and control connected drives or actuators according to the configured PLC program. It is suited to control architectures where the controller has to handle both local automation logic and communication with equipment distributed around the machine.
The SIPLUS version is intended for installations with enhanced environmental requirements. This makes the product relevant to automation equipment installed in conditions where environmental characteristics need to be considered during PLC selection.
The CPU 1516-3 PN/DP platform also combines PROFINET and PROFIBUS DP communication. This is useful for projects that contain newer Ethernet-based devices alongside existing PROFIBUS equipment, particularly during control-system modernization.
A typical station can combine this CPU with S7-1500 signal modules, ET 200 distributed I/O, SINAMICS drives, SIMATIC HMI panels, and other industrial communication devices. The exact hardware arrangement depends on the machine architecture and the existing TIA Portal project.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1516-3FN02-2AB0 |
| Product Family | SIPLUS S7-1500 |
| Product Type | Central Processing Unit |
| CPU Type | CPU 1516-3 PN/DP |
| PLC Platform | SIMATIC S7-1500 |
| Engineering System | STEP 7 / TIA Portal |
| Communication Interfaces | PROFINET / PROFIBUS DP |
| PROFINET Interfaces | 2 |
| PROFIBUS Interface | 1 |
| Program Memory | 1 MB |
| Data Memory | 5 MB |
| Application | Machine and process automation |
| Environmental Version | SIPLUS |
| Dimensions | 70 × 147 × 129 mm |
| Weight | 0.615 kg |
Product Features
- SIPLUS S7-1500 central processing unit
- CPU 1516-3 PN/DP platform
- Integrated PROFINET communication
- Integrated PROFIBUS DP communication
- Suitable for centralized and distributed automation architectures
- Supports S7-1500 signal and communication modules
- Suitable for distributed I/O integration
- Supports integration with Siemens drive systems and HMI equipment
- Configured and programmed through the Siemens TIA Portal environment
- Suitable for machine and process control
- SIPLUS version for applications with enhanced environmental requirements
- Suitable for automation systems combining PROFINET and PROFIBUS devices
Working Principle
The 6AG1516-3FN02-2AB0 executes the PLC program that determines how the connected machine or process responds to incoming signals.
A typical control path is:
Sensors / Field Devices → S7-1500 I/O → CPU 1516-3 PN/DP → Control Logic → Drives / Valves / Actuators
Input modules collect signals from sensors, switches, transmitters, and other field devices. The CPU evaluates these values together with programmed conditions such as interlocks, timers, counters, operating modes, and process limits.
Consider a conveyor-based production system. A sensor detects when a product reaches a transfer position, while feedback from a motor or drive indicates the operating state of the conveyor. The CPU processes these signals and executes the programmed sequence, such as stopping one conveyor, starting another, or preventing movement when a required condition has not been met.
The CPU can also exchange data with HMIs, remote I/O, drives, and other controllers through the configured industrial network. PROFINET handles compatible Ethernet-based automation devices, while PROFIBUS DP allows the controller to communicate with suitable existing field equipment.
This communication combination can be useful in retrofit projects where an S7-1500 controller is introduced while some established PROFIBUS devices remain part of the machine.
Role in a Siemens SIPLUS S7-1500 Control Architecture
The 6AG1516-3FN02-2AB0 sits at the central control level of the S7-1500 automation architecture.
Field Devices → Local / Distributed I/O → CPU 1516-3 PN/DP → PROFINET / PROFIBUS DP → Drives, HMI and Other Automation Devices
| System Element | Function |
|---|---|
| 6AG1516-3FN02-2AB0 | Executes the PLC program and coordinates the automation system |
| S7-1500 Signal Modules | Acquire field signals and control connected outputs |
| ET 200 Distributed I/O | Extends signal acquisition and control closer to field equipment |
| PROFINET Devices | Exchange automation data over industrial Ethernet |
| PROFIBUS DP Devices | Connect compatible PROFIBUS field equipment |
| SINAMICS Drives | Handles motor and motion control under PLC coordination |
| SIMATIC HMI | Provides operator commands, status information, alarms, and diagnostics |
| S7-1500 Communication Modules | Add communication functions where required |
| 24 V DC Power Supply | Supplies the control system and connected components |
| TIA Portal / STEP 7 | Handles programming, configuration, diagnostics, and maintenance |
The final architecture depends on the required I/O arrangement, field devices, drive system, communication topology, and existing control project.
Industrial Applications
| Application | Typical Use |
|---|---|
| Production Lines | Coordinating multiple machine stations, sensors, actuators, and drives |
| Packaging Machinery | Managing conveyors, product detection, positioning, and machine sequences |
| Material Handling | Controlling conveyors, transfer systems, lifting equipment, and motor-driven sections |
| Assembly Machines | Executing multi-step assembly sequences and monitoring machine conditions |
| Manufacturing Equipment | Processing distributed signals and coordinating production operations |
| Process Machinery | Managing pumps, valves, instrumentation, and sequential operations |
| Drive-Based Systems | Coordinating multiple drives with PLC control logic |
| Retrofit Projects | Combining an S7-1500 controller with existing PROFIBUS equipment |
| Automated Inspection Equipment | Processing inspection signals and coordinating material handling |
| Industrial Utility Systems | Controlling pumps, fans, valves, and auxiliary equipment |
Installation and Maintenance
- Confirm the complete 6AG1516-3FN02-2AB0 ordering reference before replacement.
- Check the existing TIA Portal project and hardware configuration against the replacement CPU.
- Record the current CPU firmware, station configuration, network parameters, and device names before removing the original controller.
- Confirm the required PROFINET and PROFIBUS DP connections before commissioning.
- Check the connected S7-1500 signal modules and distributed I/O stations against the configured hardware project.
- Inspect network connectors, cables, and terminal connections for loose or damaged connections.
- Verify the 24 V DC control power before energizing the CPU and associated modules.
- Confirm that the correct PLC program and hardware configuration are available before putting the replacement CPU into service.
- Check communication with distributed I/O, drives, HMIs, and PROFIBUS devices after startup.
- Review CPU diagnostics and network diagnostics if connected devices fail to enter normal operation.
- If a PROFIBUS or PROFINET device does not communicate, check its addressing, configuration, cabling, and diagnostic information before replacing the CPU.
- Keep a record of the final firmware, PLC project version, network configuration, and connected-device arrangement for future maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Siemens S7-1500 Signal Modules | Provide digital and analog field I/O |
| Siemens ET 200 Distributed I/O | Provides remote signal acquisition and control |
| Siemens SINAMICS Drives | Provides motor and motion control |
| SIMATIC HMI Panels | Provides operator interface and machine visualization |
| PROFINET Devices | Connects compatible Ethernet-based automation equipment |
| PROFIBUS DP Devices | Connects existing PROFIBUS field equipment |
| S7-1500 Communication Modules | Extends communication capabilities where required |
| S7-1500 Power Supply Components | Supports the required control and system power arrangement |
| SIMATIC Memory Card | Supports applicable CPU program and configuration storage functions |
| TIA Portal / STEP 7 | Used for programming, configuration, diagnostics, and maintenance |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1516-3FN02-2AB0 | SIPLUS S7-1500 Central Processing Unit | Central PLC control where enhanced environmental specifications are required |
| Siemens 6ES7516-3FN02-0AB0 | SIMATIC S7-1500 CPU 1516-3 PN/DP | Standard S7-1500 machine and process control |
| Siemens SIPLUS S7-1500 CPUs | Enhanced-environment CPU Platform | PLC applications with demanding environmental conditions |
| Siemens S7-1500 Signal Modules | Digital / Analog I/O Modules | Expanding local PLC I/O |
| Siemens ET 200SP | Distributed I/O System | Remote I/O installation close to field equipment |
| Siemens SINAMICS S120 | Drive System | Coordinated motion and motor control |
| Siemens SINAMICS G120 | Drive System | General-purpose motor control and machine applications |
Key Advantages
- Combines the S7-1500 CPU 1516-3 PN/DP platform with the SIPLUS product range.
- Supports both PROFINET and PROFIBUS DP communication.
- Suitable for automation systems containing different generations of field equipment.
- Supports centralized and distributed S7-1500 architectures.
- Integrates with Siemens I/O, drive, HMI, and industrial networking equipment.
- Suitable for machine modernization projects involving existing PROFIBUS devices.
- Uses the Siemens TIA Portal engineering environment for configuration and diagnostics.
Technical FAQs
Can the 6AG1516-3FN02-2AB0 communicate with both PROFINET and PROFIBUS DP devices?
Yes. The CPU 1516-3 PN/DP platform supports both communication technologies, allowing compatible PROFINET devices and PROFIBUS DP equipment to be incorporated into the same automation architecture.
What should be checked before replacing an existing CPU with the 6AG1516-3FN02-2AB0?
The complete order number, firmware, TIA Portal project, hardware configuration, network parameters, connected I/O, and communication setup should be checked before replacement. The existing CPU configuration should also be backed up so that the controller can be restored correctly.
What is a practical first check when a PROFIBUS device stops communicating?
Check the PROFIBUS device address, bus termination, cable connections, hardware configuration, and diagnostic information. Comparing the actual network arrangement with the configured TIA Portal project can help identify whether the issue is related to wiring, addressing, configuration, or the field device itself.
When would the SIPLUS version be considered for an S7-1500 application?
The SIPLUS version is relevant when the installation has environmental conditions that require the enhanced environmental characteristics associated with the SIPLUS range. The actual site conditions and applicable Siemens specifications should be checked before selecting the CPU for a particular installation.
