Product Overview

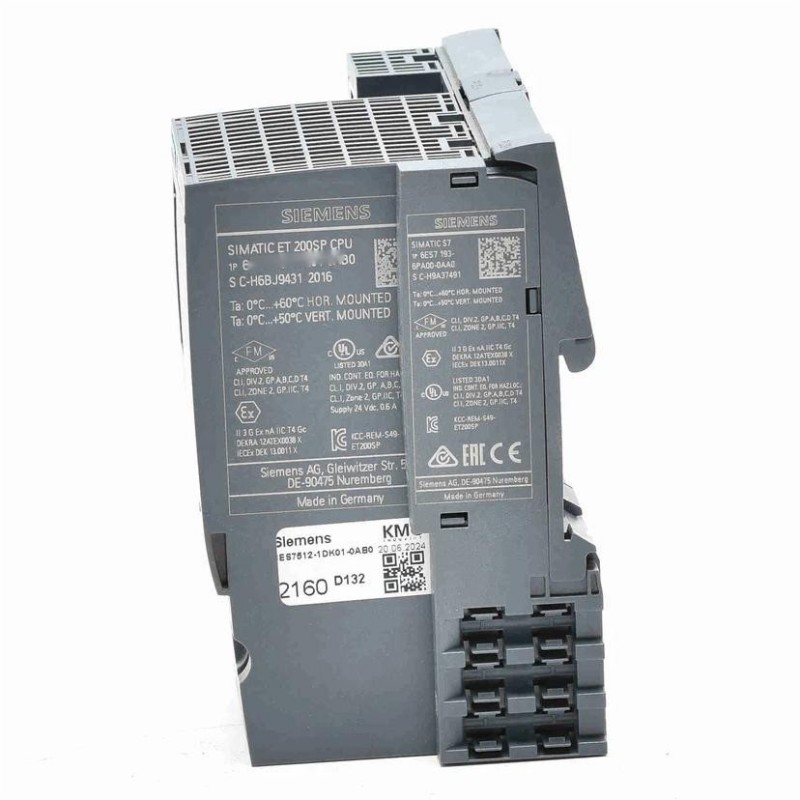

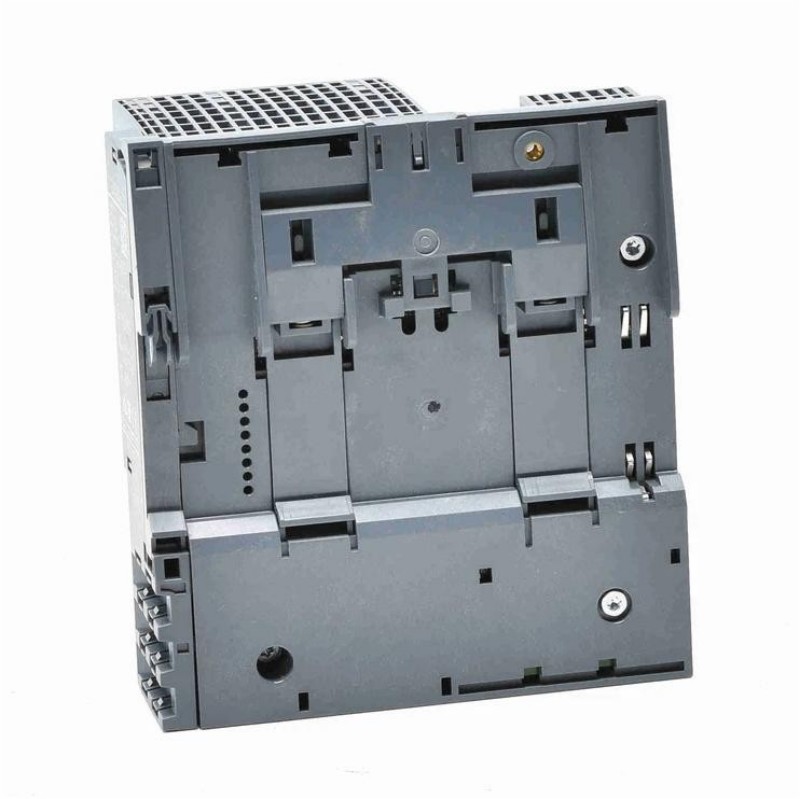

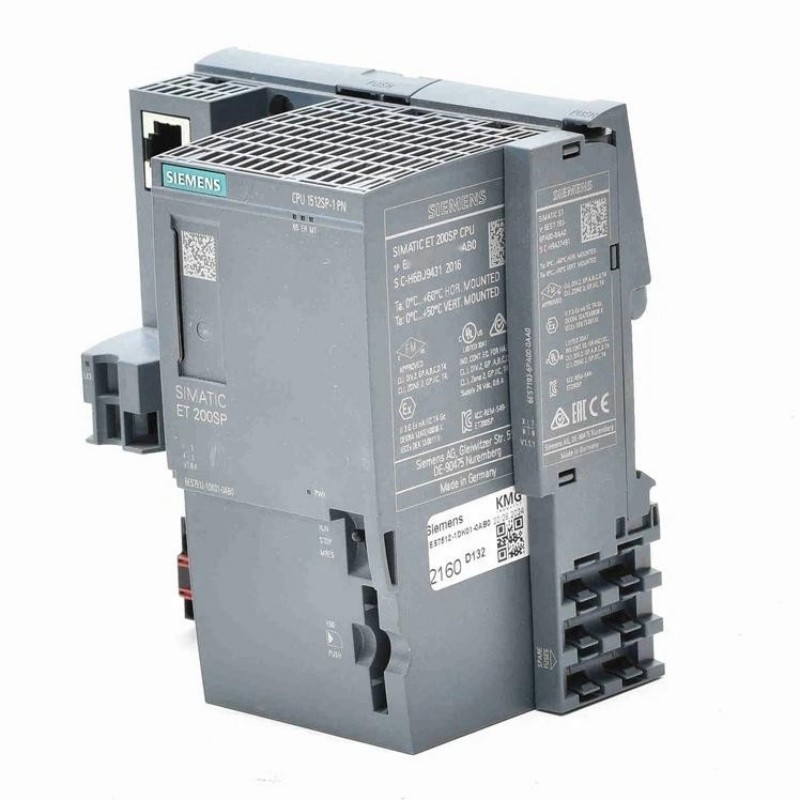

The Siemens 6AG1512-1DK01-7AB0 SIPLUS ET 200SP Central Processing Unit is a central controller for ET 200SP-based automation systems. It executes the user program, processes signals from connected I/O modules, manages controller functions, and exchanges process data with other devices in the automation architecture.
The CPU is used within the modular ET 200SP platform, where I/O modules and other system components can be assembled according to the requirements of the machine or process. This makes the controller suitable for applications that combine distributed field signals with centralized PLC processing.
As a SIPLUS product, the CPU is intended for industrial applications where enhanced environmental suitability is required. Replacement work should include verification of the complete order number, installed hardware configuration, firmware requirements, and TIA Portal project before commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6AG1512-1DK01-7AB0 |
| Product Family | SIPLUS ET 200SP |
| Product Type | Central Processing Unit |
| CPU Platform | ET 200SP |
| Controller Function | Central Processing and Automation Control |
| Application | Industrial Automation |
| Programming Environment | TIA Portal |
| System Architecture | ET 200SP Distributed Automation |
| Dimensions | 100 × 117 × 75 mm |
| Weight | 0.545 kg |
Product Features
- SIPLUS ET 200SP central processing unit for industrial automation.
- Executes user programs and coordinates automation sequences.
- Processes data from connected ET 200SP I/O modules.
- Supports communication with automation devices and higher-level systems.
- Provides controller and station diagnostics for commissioning and maintenance.
- Integrates into modular ET 200SP automation architectures.
- Supports engineering and programming through Siemens TIA Portal.
- Suitable for machine control, production automation, and distributed control applications.
Working Principle
The CPU receives process information from the ET 200SP I/O system and evaluates it according to the programmed control logic. Based on the resulting logic and calculations, it generates commands for output modules and connected field devices.
A typical control path is:
Sensors / Field Devices → ET 200SP I/O Modules → 6AG1512-1DK01-7AB0 CPU → User Program → ET 200SP Output Modules → Actuators
During operation, the CPU performs program execution, process-data handling, diagnostics, and configured communication tasks. It can exchange information with HMI systems, drives, distributed automation devices, and other controllers as defined by the system configuration.
For commissioning or replacement, the CPU must be matched with the configured ET 200SP station and engineering project. Hardware configuration, firmware, communication parameters, and application software all contribute to successful system startup.
Role in a Siemens SIPLUS ET 200SP Control Architecture
| System Element | Function |
|---|---|
| 6AG1512-1DK01-7AB0 CPU | Executes the user program and coordinates the automation station |
| ET 200SP Interface Components | Connect the station to the automation network |
| ET 200SP Digital I/O Modules | Process discrete field signals |
| ET 200SP Analog I/O Modules | Acquire and output analog process values |
| ET 200SP Technology Modules | Provide specialized functions for selected applications |
| ET 200SP BaseUnits | Provide module mounting and field-wiring interfaces |
| HMI System | Provides operator monitoring and control |
| Engineering Station | Handles configuration, programming, diagnostics, and maintenance |
| Drives | Execute motor-control commands |
| Field Sensors and Actuators | Provide process feedback and execute control commands |
The CPU provides the central processing layer for the ET 200SP station. It links field-level signal acquisition and output with the programmed automation sequence while also coordinating diagnostics and communication.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Sequence control, interlocking, and machine logic |
| Production Lines | Coordination of production stations and field devices |
| Packaging Equipment | Machine sequencing and process monitoring |
| Material Handling | Conveyor and transfer-system control |
| Manufacturing Systems | Distributed PLC control of production equipment |
| Process Equipment | Monitoring and control of industrial machinery |
| Distributed Automation | Central processing for modular ET 200SP stations |
Installation and Maintenance
- Verify the complete 6AG1512-1DK01-7AB0 order number before installation or replacement.
- Confirm compatibility with the existing ET 200SP station and application configuration.
- Back up the current TIA Portal project and controller configuration before removing the installed CPU.
- Isolate the automation system from electrical power according to the applicable lockout procedure.
- Record the existing ET 200SP module arrangement and communication connections before replacement.
- Inspect the mounting interface, connectors, and adjacent modules for contamination or physical damage.
- Install the CPU and associated system components according to the applicable ET 200SP installation procedure.
- Reconnect communication and system connections and verify that each connector is fully seated.
- Check firmware requirements and the configured hardware before transferring the automation project.
- Review CPU and station diagnostic information after startup for configuration or communication faults.
- Verify communication with ET 200SP I/O modules, HMI systems, drives, and other configured devices.
- Test the complete control sequence under controlled conditions before returning the equipment to automatic operation.
Related Components
| Component | Relationship |
|---|---|
| Siemens ET 200SP Digital I/O Modules | Provide discrete input and output functions |
| Siemens ET 200SP Analog I/O Modules | Process analog process signals |
| ET 200SP Interface Modules | Provide station-level network communication |
| ET 200SP BaseUnits | Support module mounting and field connections |
| ET 200SP System Components | Provide the supporting hardware for the station |
| Siemens HMI Systems | Provide operator visualization and control |
| Siemens Drives | Execute motor-control functions |
| TIA Portal | Provides programming, configuration, and diagnostic functions |
| SIPLUS ET 200SP Components | Extend the automation system with compatible SIPLUS hardware |
Recommended Related Models
| Model | Product Type / Application |
|---|---|
| Siemens 6AG1512-1DK01-7AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1512-1DK01-2AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1511 Series | SIPLUS Controller and CPU Components |
| Siemens 6AG1512 Series | SIPLUS Controller and CPU Components |
| Siemens ET 200SP Digital I/O Modules | Distributed discrete signal processing |
| Siemens ET 200SP Analog I/O Modules | Distributed analog signal processing |
Key Advantages
- Central PLC processing for ET 200SP automation stations.
- Supports modular distributed I/O configurations.
- Integrates control execution with communication and diagnostics.
- Supports TIA Portal-based engineering and commissioning.
- Suitable for machine and production automation.
- Provides a SIPLUS CPU platform for demanding industrial environments.
Technical FAQs
What is the role of the 6AG1512-1DK01-7AB0 in an ET 200SP system?
It acts as the central processing unit of the configured SIPLUS ET 200SP automation station. The CPU executes the user program and coordinates process data between the I/O system, control logic, and connected automation devices.
What should be verified before replacing this CPU?
The complete order number, ET 200SP station configuration, firmware requirements, communication settings, and TIA Portal project should be checked. The replacement should match the requirements of the existing application rather than being selected only by the CPU family.
What should be checked if the CPU cannot communicate with ET 200SP I/O after replacement?
Check the hardware configuration, module arrangement, firmware compatibility, network configuration, device addressing, and CPU diagnostic information. The I/O station should also be checked for its power and communication status.
How is the 6AG1512-1DK01-7AB0 used with TIA Portal?
TIA Portal is used to configure the automation hardware, develop and download the user program, set communication parameters, and diagnose controller and I/O conditions. The project configuration should correspond to the actual ET 200SP hardware installed in the system.
