Product Overview

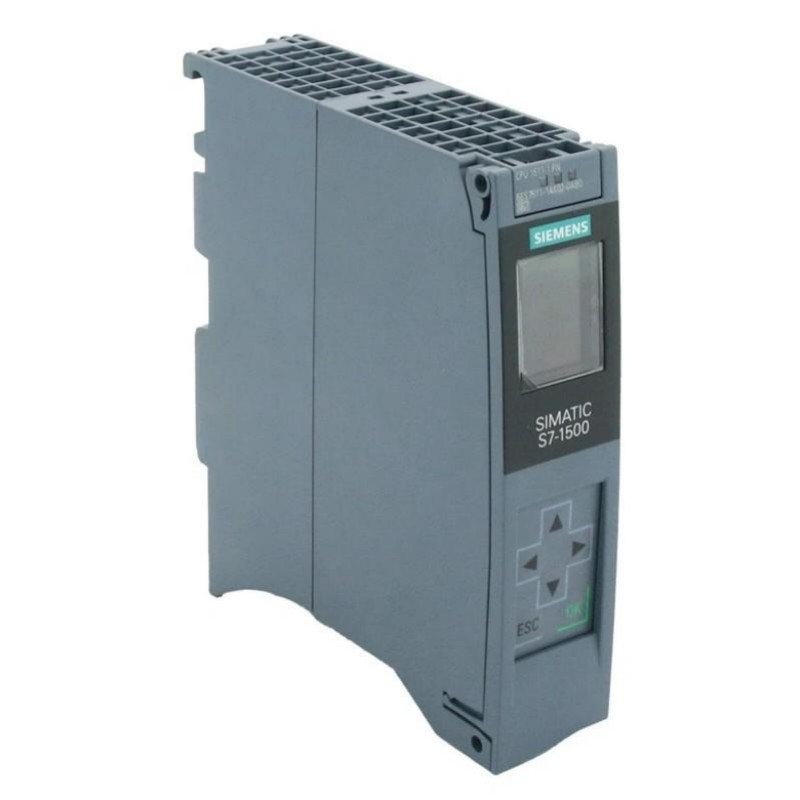

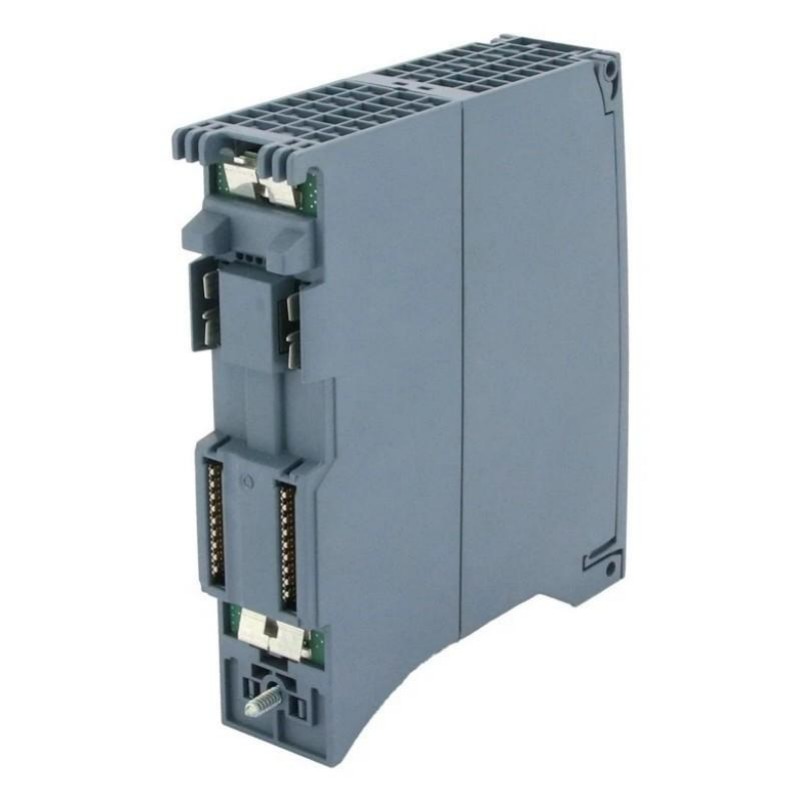

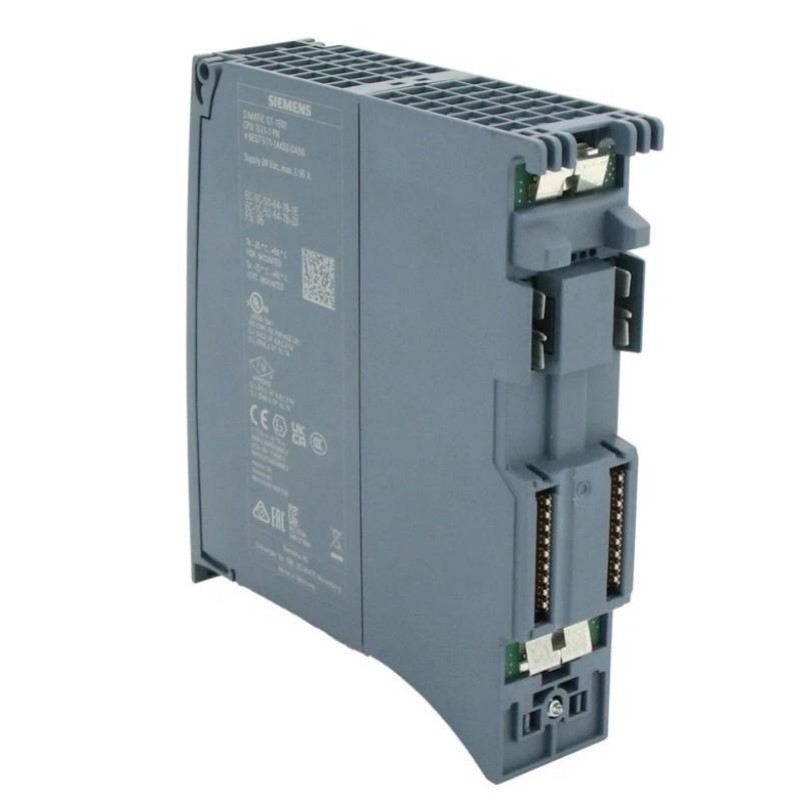

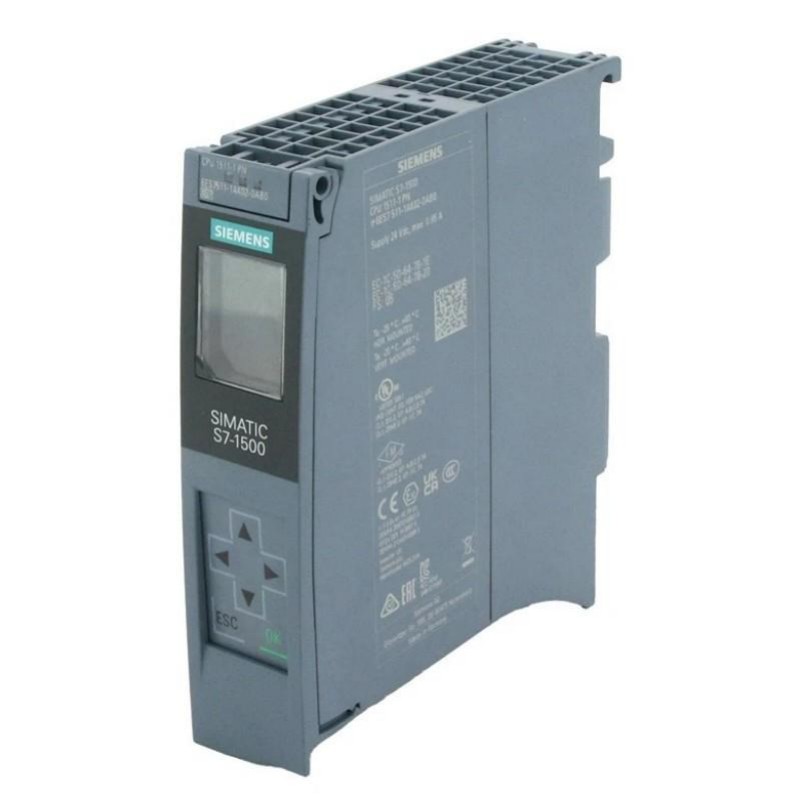

The Siemens 6AG1511-1AK02-7AB0 SIPLUS S7-1500 Central Processing Unit is a SIPLUS version of the S7-1500 CPU platform for industrial automation applications that require a more robust hardware configuration than standard control cabinet environments.
As the central processing unit of an S7-1500 automation station, the CPU executes the user program, processes input and output data, handles communication tasks, and coordinates the operation of connected automation components. It can be used as the main controller for machine control, production equipment, and distributed automation architectures.
The CPU works with S7-1500 signal modules, communication modules, and distributed I/O systems. For replacement projects, the complete order number should be matched with the existing hardware configuration and engineering project to ensure compatibility with the installed system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6AG1511-1AK02-7AB0 |
| Product Family | SIPLUS S7-1500 |
| Product Type | Central Processing Unit |
| CPU Platform | S7-1500 |
| Controller Function | Central Processing and Automation Control |
| Application | Industrial Automation |
| Programming Environment | TIA Portal |
| System Architecture | S7-1500 Modular Automation |
| Dimensions | 70 × 147 × 129 mm |
| Weight | 0.676 kg |
Product Features
- SIPLUS S7-1500 central processing unit for industrial automation.
- Executes the user control program and coordinates connected automation devices.
- Handles process data processing between the controller, local modules, and distributed I/O.
- Integrates into modular S7-1500 controller architectures.
- Supports engineering and programming through the Siemens TIA Portal environment.
- Suitable for machine automation, production systems, and process-oriented control applications.
- Can operate as the central controller within an S7-1500 automation station.
- Designed for applications where SIPLUS hardware is selected for demanding industrial operating conditions.
Working Principle
The CPU forms the processing center of the S7-1500 control system. Input data from connected signal modules and distributed I/O is made available to the controller, where the CPU processes the data according to the user program.
A typical control path is:
Sensors / Field Devices → S7-1500 I/O → 6AG1511-1AK02-7AB0 CPU → User Program → Output Modules / Distributed I/O → Actuators
During each controller operating cycle, the CPU reads process information, executes the configured logic, performs calculations and diagnostics, and updates the relevant outputs.
Communication services run alongside the control program. Depending on the system configuration, the CPU can exchange data with HMI devices, engineering stations, distributed I/O, drives, and other automation controllers.
For maintenance work, the CPU should be considered together with its firmware, configuration, communication partners, and installed TIA Portal project rather than as an isolated hardware replacement.
Role in a Siemens SIPLUS S7-1500 Control Architecture
| System Element | Function |
|---|---|
| 6AG1511-1AK02-7AB0 CPU | Executes the control program and coordinates the automation station |
| S7-1500 Signal Modules | Acquire process inputs and control discrete or analog outputs |
| Communication Modules | Provide additional communication interfaces where required |
| Distributed I/O | Connects remote field signals to the controller |
| HMI System | Provides operator monitoring and control |
| Engineering Station | Used for configuration, programming, diagnostics, and maintenance |
| Drives | Receive control commands and provide motor-control functions |
| Field Sensors | Supply process measurements and status information |
| Actuators | Execute commands generated by the control system |
The CPU sits between the field-level data acquisition/output hardware and the control application. Its role extends beyond basic logic execution because it also manages diagnostics, data handling, communication, and coordination between the different elements of the automation architecture.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Sequence control, interlocking, and machine logic |
| Production Lines | Coordination of sensors, actuators, drives, and production stations |
| Material Handling | Conveyor, sorting, and transfer-system control |
| Packaging Systems | Machine sequencing and process monitoring |
| Manufacturing Equipment | Central PLC control for automated production machinery |
| Process Equipment | Monitoring and control of industrial process units |
| Distributed Automation | Coordination of local and remote I/O stations |
Installation and Maintenance
- Verify the complete 6AG1511-1AK02-7AB0 order number before replacement.
- Confirm that the replacement CPU is compatible with the existing S7-1500 hardware configuration.
- Back up the current TIA Portal project and controller configuration before removing the existing CPU.
- Follow the applicable electrical isolation and lockout procedure before accessing the controller.
- Record the existing communication connections and module arrangement before disassembly.
- Inspect the mounting position, connectors, and adjacent modules for contamination or physical damage.
- Install the CPU correctly on the S7-1500 mounting system and secure it according to the applicable installation procedure.
- Reconnect communication and system connections carefully, ensuring that each connector is correctly seated.
- Verify the installed firmware and project configuration before downloading the control program.
- Check the CPU diagnostic information after startup for configuration, communication, or module-related faults.
- Confirm I/O communication and controller-to-device data exchange before returning the machine to automatic operation.
- Monitor the controller and connected automation system during the initial operating period after replacement.
Related Components
| Component | Relationship |
|---|---|
| Siemens S7-1500 Signal Modules | Provide local digital and analog I/O for the CPU |
| Siemens S7-1500 Communication Modules | Extend controller communication capabilities |
| SIPLUS S7-1500 I/O Modules | Provide compatible SIPLUS-rated I/O options |
| Distributed I/O Systems | Connect remote field signals to the controller |
| Siemens HMI | Provides operator interface and process visualization |
| Siemens Drives | Execute motor and motion-control commands |
| TIA Portal | Engineering environment for configuration, programming, and diagnostics |
| S7-1500 System Components | Provide the supporting hardware for the controller station |
Recommended Related Models
| Model | Product Type / Application |
|---|---|
| Siemens 6AG1511-1AK02-7AB0 | SIPLUS S7-1500 Central Processing Unit |
| Siemens 6AG1510 Series | SIPLUS S7-1500 CPU and controller components |
| Siemens 6AG1511 Series | SIPLUS S7-1500 Central Processing Units |
| Siemens 6AG1512 Series | SIPLUS S7-1500 Central Processing Units |
| Siemens 6AG1513 Series | SIPLUS S7-1500 Central Processing Units |
| Siemens 6AG1516 Series | SIPLUS S7-1500 Central Processing Units |
Key Advantages
- Centralized execution of S7-1500 automation logic.
- Supports modular PLC architectures with local and distributed I/O.
- Integrates control processing with communication and diagnostic functions.
- Suitable for demanding industrial automation applications using SIPLUS hardware.
- Supports TIA Portal-based engineering and maintenance.
- Provides a central processing platform for machine and production control.
Technical FAQs
What is the role of the 6AG1511-1AK02-7AB0 in an S7-1500 system?
It serves as the central processing unit of the automation station. The CPU executes the user program, processes I/O data, manages configured communication tasks, and coordinates the connected automation hardware.
Can this CPU be replaced without checking the existing TIA Portal project?
A hardware replacement should not be treated as a simple plug-in swap. The installed hardware configuration, firmware, user program, communication settings, and technology functions should be checked in the TIA Portal project before commissioning the replacement CPU.
What should be checked if the CPU does not communicate with distributed I/O after replacement?
Check the hardware configuration, network parameters, device addresses, communication connections, firmware compatibility, and diagnostic information first. The distributed I/O station should also be checked for its own power and communication status.
How does a SIPLUS CPU differ from a standard S7-1500 CPU?
SIPLUS products are Siemens versions intended for more demanding industrial operating environments. When replacing a SIPLUS CPU, the complete order number and environmental requirements should be matched rather than assuming that any CPU with a similar S7-1500 designation is directly interchangeable.
