Product Overview

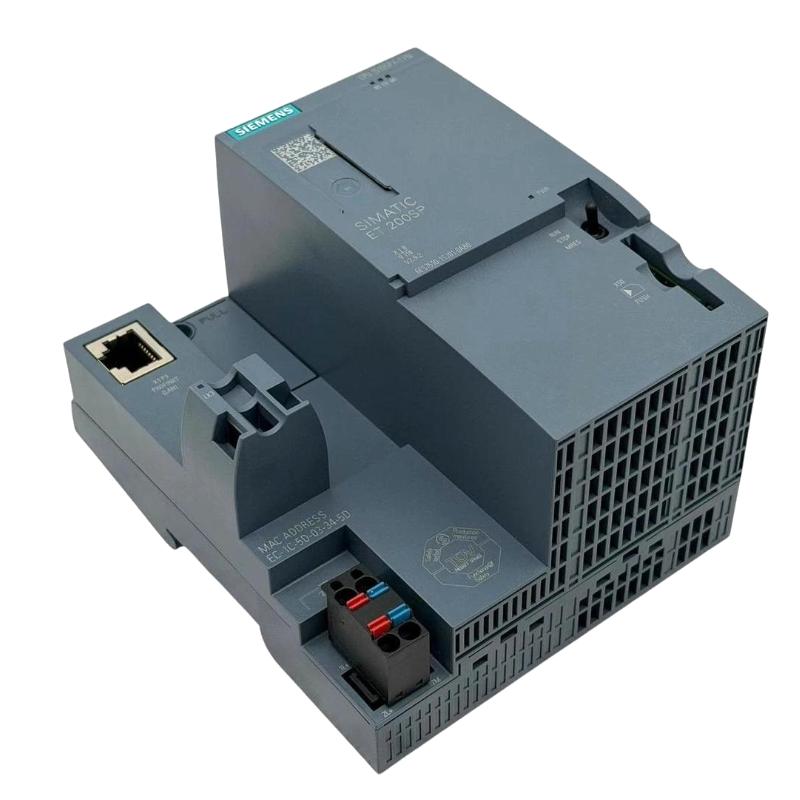

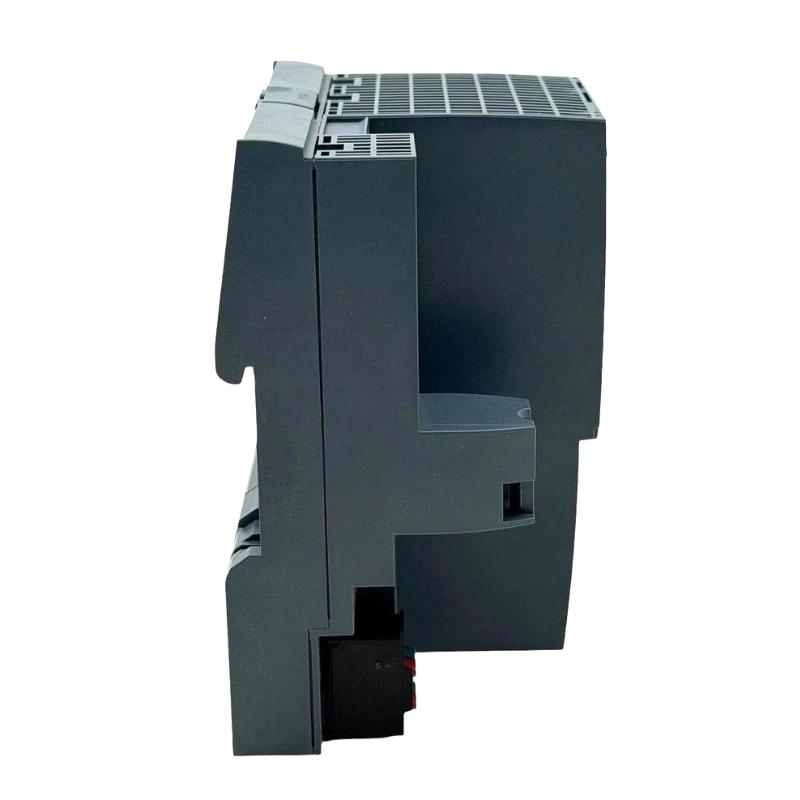

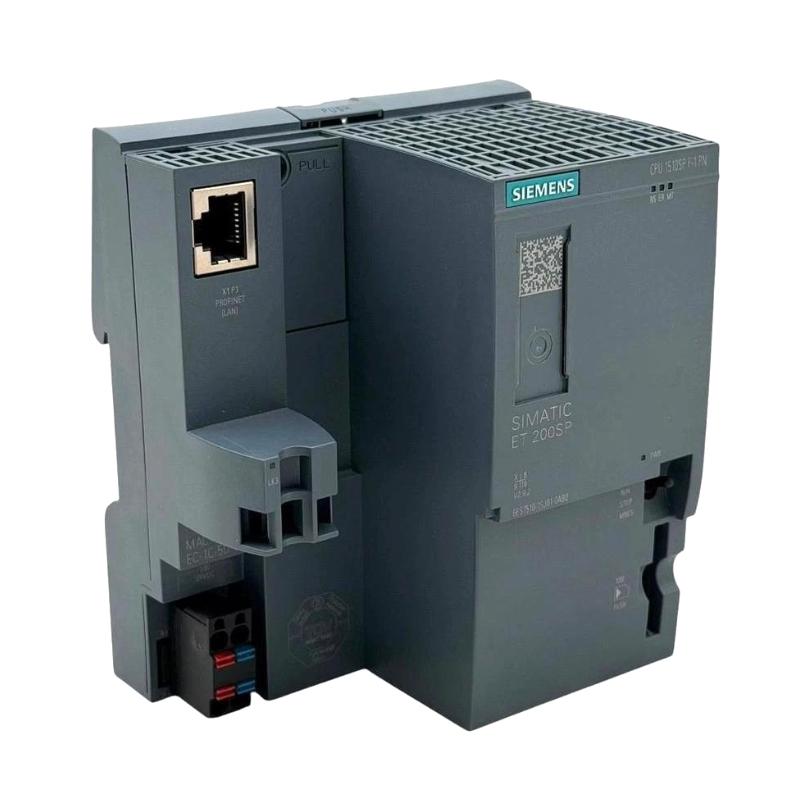

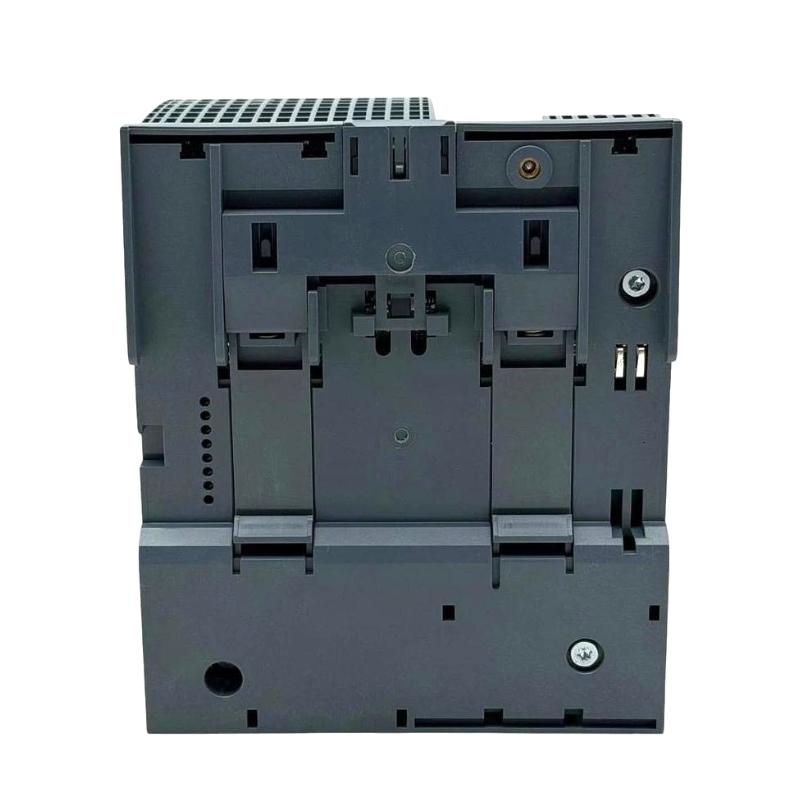

The Siemens 6AG1510-1SJ01-2AB0 SIPLUS ET 200SP Central Processing Unit is a central processing unit for distributed automation systems built around the ET 200SP platform. It executes the PLC program, processes signals from connected I/O modules, manages machine control sequences, and exchanges data with networked automation equipment.
The CPU is suitable for applications where the controller is installed together with distributed I/O in a compact ET 200SP station. It can coordinate sensor signals, process values, interlocks, operating sequences, and actuator commands within a localized control architecture.
As a SIPLUS product, the unit is intended for industrial applications requiring the environmental characteristics associated with the SIPLUS product family.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 6AG1510-1SJ01-2AB0 |
| Product Family | SIPLUS ET 200SP |
| Product Type | Central Processing Unit |
| System | ET 200SP |
| Function | Central Processing and PLC Control |
| Architecture | Distributed I/O and Controller System |
| Communication | PROFINET |
| Dimensions | 100 × 117 × 75 mm |
| Weight | 0.398 kg |
Product Features
- ET 200SP Central Processing: Provides PLC processing within an ET 200SP distributed station.
- PLC Program Execution: Handles control sequences, calculations, timers, counters, and interlocking logic.
- Distributed I/O Integration: Processes data from compatible digital, analog, and technology modules.
- PROFINET Communication: Exchanges process and diagnostic information with connected network devices.
- Compact Control Architecture: Suitable for machine-level and distributed automation applications.
- Local Signal Processing: Enables control logic to operate close to field-level I/O.
- Diagnostic Support: Facilitates monitoring of CPU, I/O, and communication status.
- SIPLUS Platform: Supports industrial installations requiring the environmental characteristics of SIPLUS equipment.
Working Principle
The 6AG1510-1SJ01-2AB0 CPU receives input data from the connected ET 200SP modules and processes these values according to the user program.
During each PLC execution cycle, the CPU evaluates sensor states, analog process values, interlocks, timers, counters, and other configured conditions. Based on the program logic, it generates output commands for connected output modules and networked automation equipment.
The controller also exchanges process and diagnostic data through PROFINET. This allows the ET 200SP station to communicate with HMI systems, drives, remote I/O, and other controllers within the automation network.
Field Sensors → ET 200SP I/O Modules → 6AG1510-1SJ01-2AB0 CPU → PLC Program → Output Modules / PROFINET Devices → Actuators
Role in a SIPLUS ET 200SP Distributed Control Architecture
| System Element | Function |
|---|---|
| ET 200SP CPU | Executes the PLC program and coordinates local control |
| Digital Input Module | Acquires discrete signals from field sensors and switches |
| Digital Output Module | Controls discrete actuators and switching devices |
| Analog Input Module | Acquires analog process measurements |
| Analog Output Module | Generates analog control signals |
| Technology Module | Handles specialized measurement and automation functions |
| BaseUnit | Provides module mounting and electrical connections |
| PROFINET Network | Connects the ET 200SP station with other automation equipment |
| HMI System | Provides operator monitoring and control |
| SINAMICS Drive | Controls motor speed, torque, or motion |
| Remote I/O Station | Extends distributed field signal acquisition |
| Engineering Station | Provides programming, configuration, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | PLC-based machine sequencing and control |
| Packaging Machinery | Sensor processing and actuator coordination |
| Material Handling | Conveyor and distributed equipment control |
| Assembly Lines | Production sequencing and machine interlocks |
| Automotive Manufacturing | Distributed production equipment control |
| Water and Wastewater | Pump, valve, and process equipment control |
| Process Machinery | Local monitoring and control of industrial equipment |
| Production Cells | Compact controller with distributed I/O |
| Infrastructure Systems | Control of distributed mechanical and electrical equipment |
| Industrial Plants | SIPLUS-based automation in demanding industrial environments |
Installation and Maintenance
- Verify the CPU Model: Confirm that 6AG1510-1SJ01-2AB0 matches the planned ET 200SP system configuration.
- Check the Hardware Configuration: Verify the CPU, I/O modules, BaseUnits, and communication setup before commissioning.
- Isolate Power: Disconnect relevant power sources before installing or removing the CPU.
- Inspect the Mounting Arrangement: Ensure the mounting rail and adjacent ET 200SP components are correctly positioned.
- Install the CPU Correctly: Mount the CPU according to the applicable ET 200SP installation procedure.
- Check PROFINET Connections: Inspect network cables, connectors, and connection points for proper installation.
- Verify Module Arrangement: Make sure the installed modules correspond to the configured station.
- Load the Correct Project: Download the appropriate hardware configuration and PLC program before operation.
- Check Diagnostic Information: Review CPU and I/O diagnostics during startup and commissioning.
- Monitor Operating Status: Observe CPU status indicators and communication behavior during operation.
- Maintain the Control Cabinet: Keep the installation clean and maintain suitable environmental conditions.
- Record Maintenance Activities: Document CPU replacement, configuration changes, diagnostic results, and commissioning work.
Related Components
| Component | Function |
|---|---|
| ET 200SP Digital Input Module | Acquires discrete field signals |
| ET 200SP Digital Output Module | Controls discrete field devices |
| ET 200SP Analog Input Module | Acquires analog process values |
| ET 200SP Analog Output Module | Generates analog control signals |
| ET 200SP BaseUnit | Provides module mounting and electrical connections |
| ET 200SP Interface Module | Connects distributed ET 200SP stations to the network |
| PROFINET Switch | Connects networked automation equipment |
| HMI Panel | Provides operator visualization and control |
| SINAMICS Drive | Controls connected motors and motion equipment |
| Engineering Station | Used for PLC programming and diagnostics |
| ET 200SP Technology Module | Provides specialized automation functions |
| Industrial Sensors and Actuators | Interface with the controlled process |
Recommended Related Models
| Model | Product Type / Application |
|---|---|
| Siemens 6AG1510-1DJ01-2AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1510-1DJ01-7AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1510-1SJ01-2AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU |
| Siemens 6AG1521-1FH00-7AA0 | SIPLUS S7-1500 Digital Input Module |
| Siemens 6AG1507-0RA00-7AB0 | SIPLUS S7-1500 System Power Supply |
| Siemens 6AG1503-2CA01-2AA0 | SIPLUS S7-1500 Communication Module |
Key Advantages
- Provides centralized PLC processing within an ET 200SP station.
- Integrates local control logic with distributed I/O.
- Supports PROFINET-based automation architectures.
- Fits compact machine and process control applications.
- Enables processing close to field-level I/O.
- Supports SIPLUS-oriented industrial automation installations.
Technical FAQs
What is the function of the 6AG1510-1SJ01-2AB0 CPU?
It acts as the central controller of an ET 200SP station, executing the configured PLC program and processing data from connected I/O modules and networked automation devices.
What should be considered when selecting this CPU for an ET 200SP station?
The CPU should be selected according to the required processing functions, communication architecture, compatible I/O configuration, application requirements, and the environmental conditions of the installation.
How does the CPU handle data from distributed I/O modules?
The CPU receives process data from connected ET 200SP I/O modules, evaluates the signals within the PLC program, and generates corresponding output commands based on the configured control logic.
What should be checked if communication with a PROFINET device is interrupted?
Check the PROFINET connection, network cabling, device configuration, station hardware configuration, device address settings, and CPU diagnostic information. The engineering project should also match the installed hardware and network structure.
