- 6AG1510-1DJ01-7AB0
- Central Processing Unit
- Germany
- 100 × 117 × 75 mm
- 0.547 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

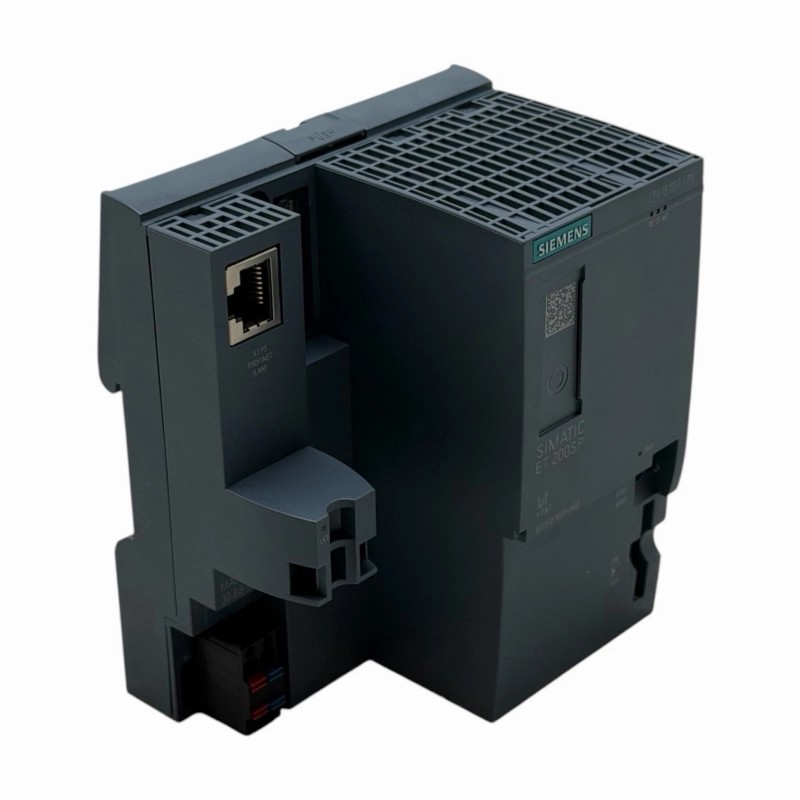

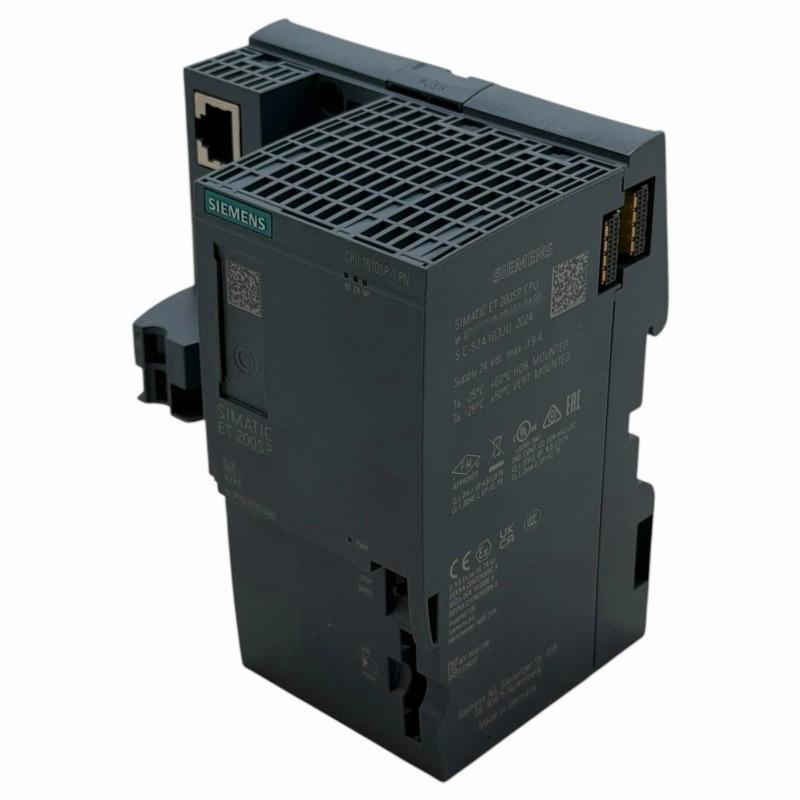

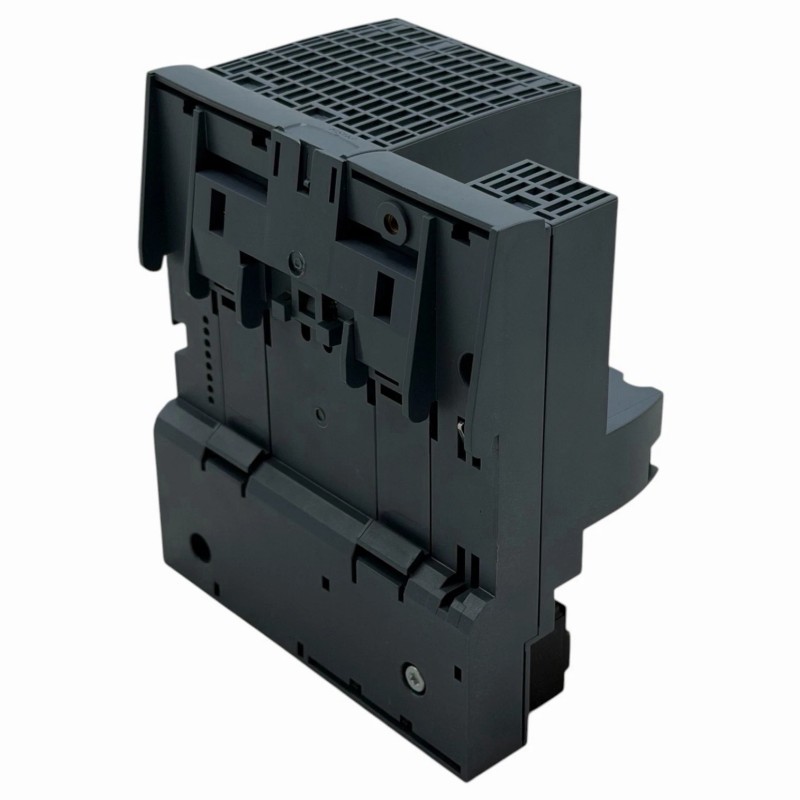

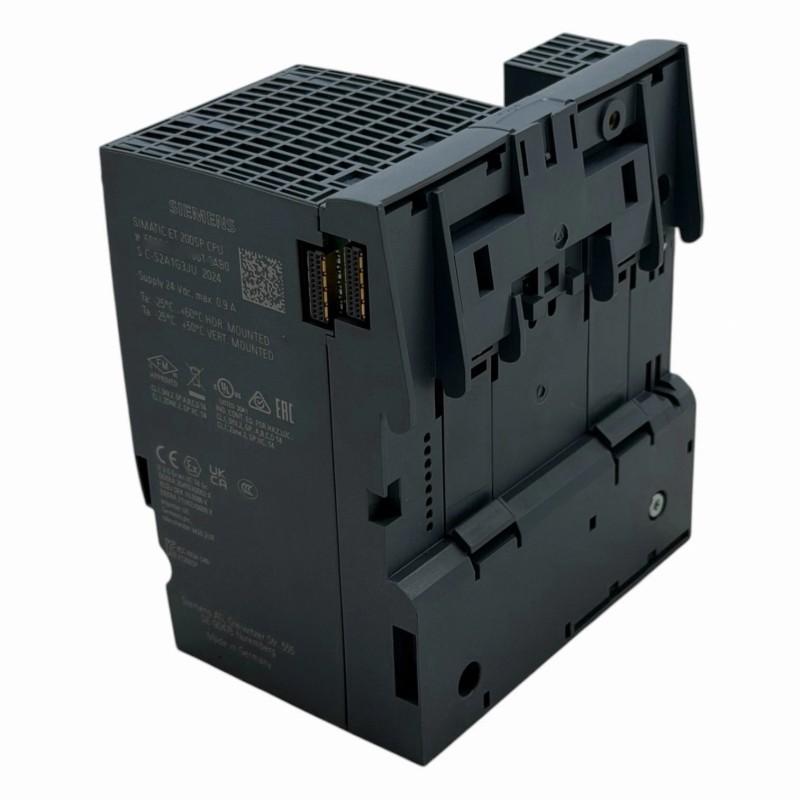

The Siemens 6AG1510-1DJ01-7AB0 SIPLUS ET 200SP Central Processing Unit is a central processing unit for distributed automation applications based on the ET 200SP platform. It executes the user program, processes data from connected I/O modules, manages local control logic, and exchanges process information with networked automation devices.
The CPU is used where control functions need to be concentrated in a compact ET 200SP station rather than handled by a separate conventional PLC rack. It can coordinate digital and analog field signals with machine sequences, interlocks, actuator commands, and communication tasks.
As part of the SIPLUS product family, this CPU is intended for industrial applications with environmental requirements beyond those normally associated with standard automation installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 6AG1510-1DJ01-7AB0 |
| Product Family | SIPLUS ET 200SP |
| Product Type | Central Processing Unit |
| System | ET 200SP |
| Function | Central Processing and PLC Control |
| Architecture | Distributed I/O and Controller System |
| Communication | PROFINET |
| Dimensions | 100 × 117 × 75 mm |
| Weight | 0.547 kg |
Product Features
- ET 200SP Central Processing: Provides PLC processing within a compact distributed I/O station.
- PLC Program Execution: Handles sequence logic, calculations, timers, counters, interlocks, and control routines.
- Distributed I/O Integration: Processes signals from compatible ET 200SP input and output modules.
- PROFINET Connectivity: Supports communication with networked automation equipment.
- Compact Controller Architecture: Fits machine-level and distributed control applications.
- Local Signal Processing: Allows control logic to operate close to the connected field devices.
- System Diagnostics: Supports monitoring of controller and connected station components.
- SIPLUS Design: Suitable for industrial environments requiring the environmental characteristics associated with the SIPLUS range.
Working Principle
The 6AG1510-1DJ01-7AB0 CPU receives process data from the ET 200SP I/O modules installed in the station. Input values are transferred to the controller, where the user program evaluates the current machine or process state.
The CPU executes control logic based on sensor conditions, configured parameters, interlocks, timers, counters, and process values. Output commands are then transferred to connected output modules or networked devices to control actuators and equipment.
PROFINET communication allows the CPU to exchange process data and diagnostic information with HMI systems, drives, remote stations, and other compatible automation components.
Field Sensors → ET 200SP I/O Modules → 6AG1510-1DJ01-7AB0 CPU → PLC Program → Output Modules / PROFINET Devices → Actuators
Role in a SIPLUS ET 200SP Distributed Control Architecture
| System Element | Function |
|---|---|
| ET 200SP CPU | Executes the PLC program and coordinates local control |
| Digital Input Module | Acquires discrete signals from sensors and switches |
| Digital Output Module | Controls discrete actuators and switching devices |
| Analog Input Module | Acquires analog process measurements |
| Analog Output Module | Generates analog control signals |
| Technology Module | Handles specialized automation functions |
| BaseUnit | Provides module mounting and electrical connections |
| PROFINET Network | Connects the station with controllers and field devices |
| HMI System | Provides operator monitoring and control |
| SINAMICS Drive | Handles motor speed, torque, or motion control |
| Remote I/O Station | Extends distributed field signal acquisition |
| Engineering Station | Provides programming, configuration, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | PLC-based sequencing and machine control |
| Packaging Machinery | Sensor processing and actuator coordination |
| Material Handling | Conveyor, sensor, and motor control |
| Assembly Lines | Automated production sequences and interlocks |
| Automotive Manufacturing | Distributed machine and production control |
| Water and Wastewater | Pump, valve, and process equipment control |
| Process Machinery | Local monitoring and equipment control |
| Production Cells | Compact controller and distributed I/O architecture |
| Infrastructure Systems | Control of distributed electrical and mechanical equipment |
| Industrial Plants | SIPLUS-based control installations with demanding environmental conditions |
Installation and Maintenance
- Verify the CPU Model: Confirm that 6AG1510-1DJ01-7AB0 matches the planned ET 200SP configuration.
- Check the Hardware Configuration: Verify the CPU, I/O modules, BaseUnits, and network configuration before commissioning.
- Isolate Power: Disconnect the relevant power sources before installing or removing the CPU.
- Inspect the Mounting Arrangement: Check that the mounting rail and adjacent ET 200SP components are correctly positioned.
- Install the CPU Correctly: Mount the CPU according to the applicable ET 200SP installation procedure.
- Check Network Connections: Inspect PROFINET cables, connectors, and communication ports for correct installation.
- Verify Module Arrangement: Make sure the physical module sequence corresponds to the configured station.
- Load the Correct Project: Download the appropriate hardware configuration and PLC program before operation.
- Check Diagnostic Information: Review CPU, I/O, and communication diagnostics during startup.
- Monitor Operating Status: Observe controller status indicators and network communication during normal operation.
- Maintain the Control Cabinet: Keep the installation clean and maintain suitable environmental conditions.
- Record Maintenance Activities: Document configuration changes, CPU replacement, diagnostic results, and commissioning work.
Related Components
| Component | Function |
|---|---|
| ET 200SP Digital Input Module | Acquires discrete field signals |
| ET 200SP Digital Output Module | Controls discrete field devices |
| ET 200SP Analog Input Module | Acquires analog process values |
| ET 200SP Analog Output Module | Generates analog control signals |
| ET 200SP BaseUnit | Provides module mounting and electrical connections |
| ET 200SP Interface Module | Connects distributed ET 200SP stations to the network |
| PROFINET Switch | Connects networked automation equipment |
| HMI Panel | Provides operator visualization and control |
| SINAMICS Drive | Controls connected motors and motion equipment |
| Engineering Station | Used for PLC programming and diagnostics |
| ET 200SP Technology Module | Provides specialized automation functions |
| Industrial Sensors and Actuators | Interface with the controlled machine or process |
Recommended Related Models
| Model | Product Type / Application |
|---|---|
| Siemens 6AG1510-1DJ01-2AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1510-1DJ01-7AB0 | SIPLUS ET 200SP Central Processing Unit |
| Siemens 6AG1516-3AN01-2AB0 | SIPLUS S7-1500 CPU |
| Siemens 6AG1521-1FH00-7AA0 | SIPLUS S7-1500 Digital Input Module |
| Siemens 6AG1507-0RA00-7AB0 | SIPLUS S7-1500 System Power Supply |
| Siemens 6AG1505-0RA00-7AB0 | SIPLUS S7-1500 Load Power Supply |
| Siemens 6AG1503-2CA01-2AA0 | SIPLUS S7-1500 Communication Module |
Key Advantages
- Provides central PLC processing within an ET 200SP station.
- Integrates distributed I/O with local control logic.
- Supports PROFINET-based automation architectures.
- Fits compact machine and process control systems.
- Enables control processing close to field-level I/O.
- Supports SIPLUS-based industrial automation applications.
Technical FAQs
What is the function of the 6AG1510-1DJ01-7AB0 CPU?
It acts as the central controller of an ET 200SP station, executing the configured PLC program and processing data from connected I/O modules and networked automation devices.
What is the difference between the 6AG1510-1DJ01-7AB0 and other ET 200SP CPUs?
The exact differences depend on the specific SIPLUS CPU variant, including its hardware revision, environmental specifications, performance characteristics, and supported system configuration. The ordering number should therefore be checked against the intended application and engineering project.
How does the CPU communicate with ET 200SP I/O modules?
The CPU exchanges process data with the connected ET 200SP station modules through the ET 200SP system architecture. PROFINET is used for communication with networked devices such as HMI systems, drives, remote stations, and other controllers.
What should be checked when the CPU reports a configuration error?
Check the installed CPU and I/O modules against the hardware configuration, verify the module arrangement, inspect the PROFINET network, review diagnostic information, and confirm that the correct hardware configuration and PLC program have been downloaded.
