Product Overview

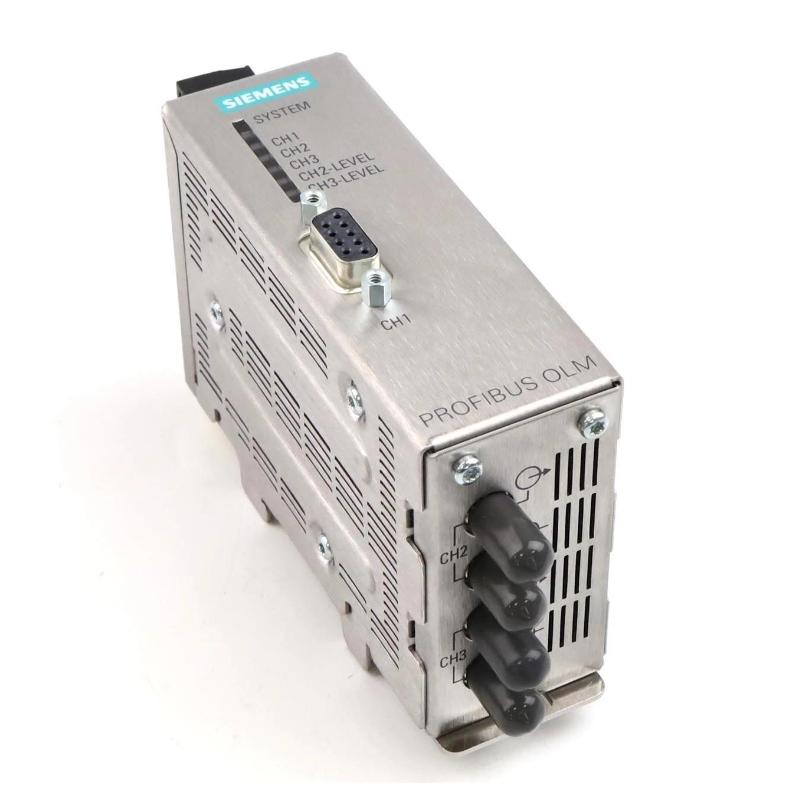

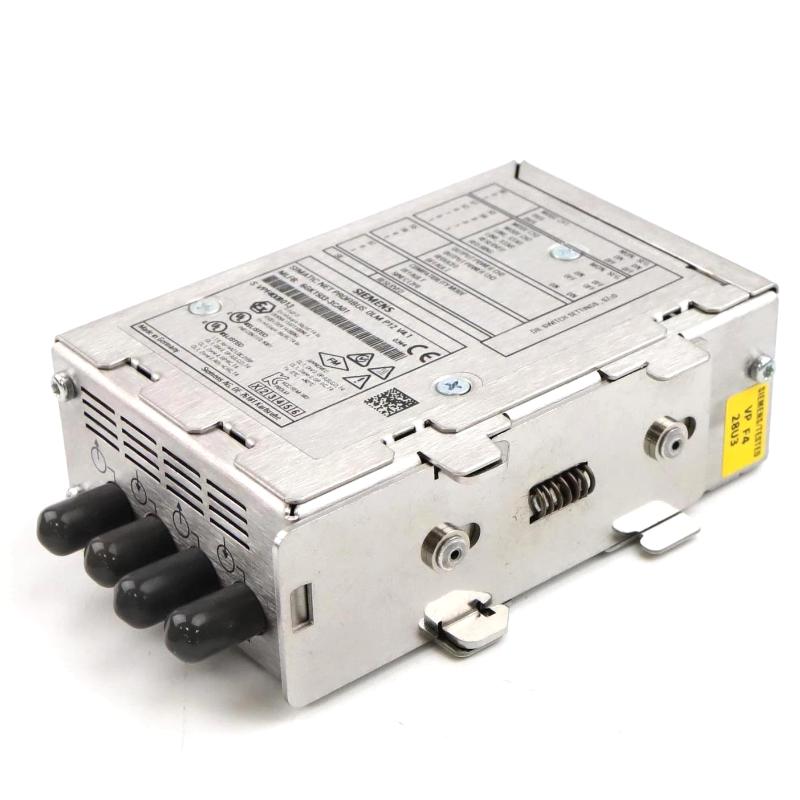

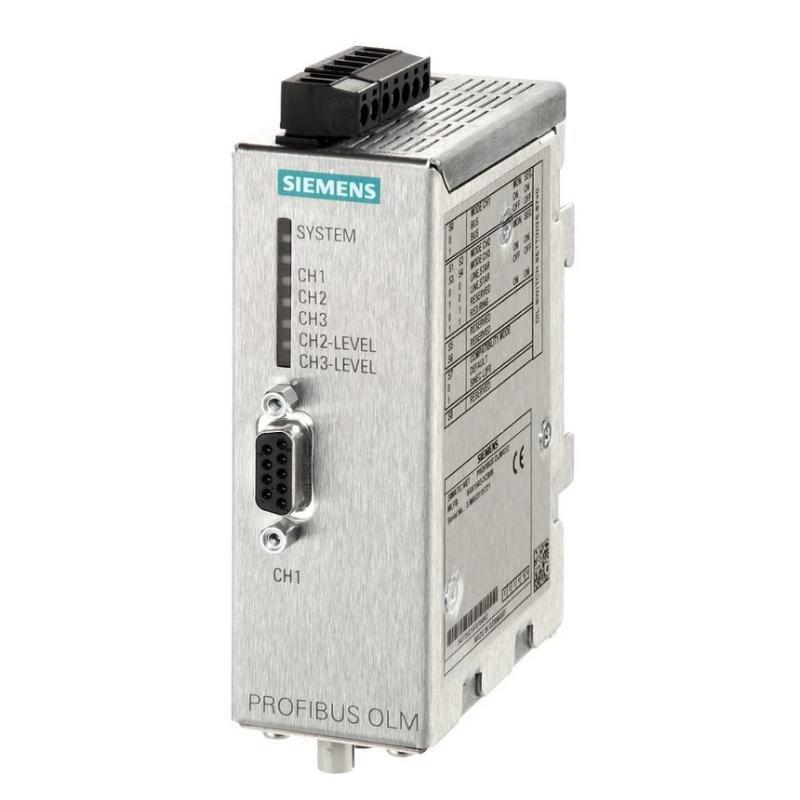

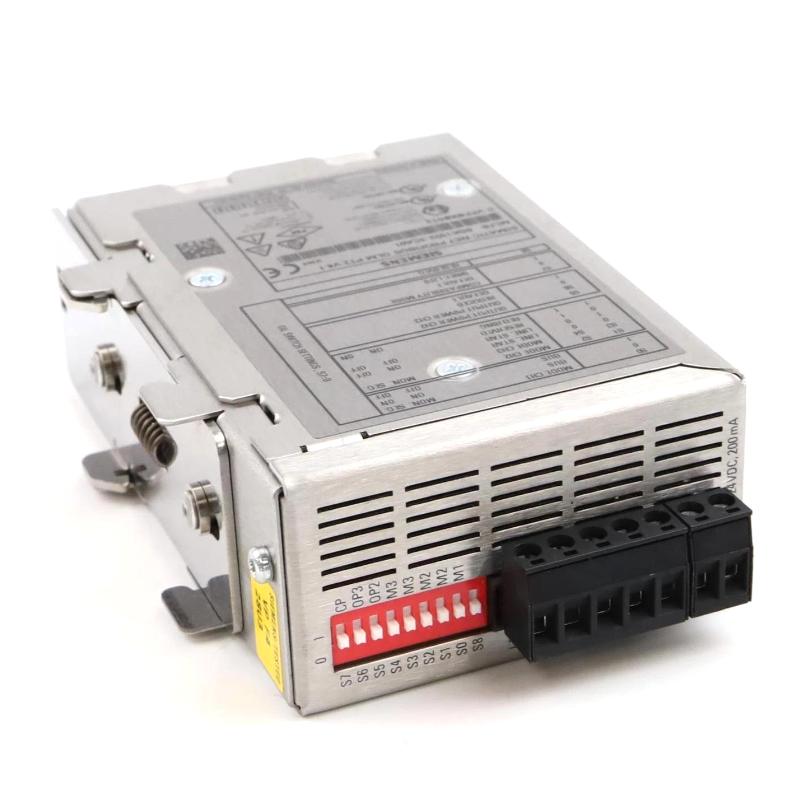

The Siemens 6AG1503-3CA01-2AA0 SIPLUS NET OLM/P12 V4.1 Optical Link Module is an industrial optical communication interface used to connect compatible network segments within Siemens automation systems. It belongs to the SIPLUS NET OLM family and provides a fiber-optic communication path for distributed automation equipment.
The OLM/P12 is useful in installations where network devices are located in separate control cabinets, production areas, or plant sections. Optical communication provides a practical way to connect these locations while reducing the influence of electromagnetic interference and avoiding a direct electrical connection between separated network sections.
The module operates within the communication infrastructure of the automation system. It does not execute PLC application programs or control field devices directly. Instead, it transfers communication data between compatible network interfaces and the optical transmission path.
As a SIPLUS component, the module can be incorporated into industrial installations subject to the applicable SIPLUS environmental requirements. When replacing an existing OLM/P12, the exact variant, network configuration, optical connections, and remote communication equipment should be checked together.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1503-3CA01-2AA0 |
| Product Family | SIPLUS NET |
| Product Series | OLM/P12 V4.1 |
| Product Type | Optical Link Module |
| Primary Function | Industrial optical network communication |
| System Role | Network communication interface |
| Typical Application | Industrial automation network infrastructure |
| Dimensions | 39.5 × 112 × 74.5 mm |
| Weight | 0.41 kg |
Product Features
- SIPLUS NET OLM/P12 V4.1 Optical Link Module.
- Provides optical communication connectivity for compatible Siemens networks.
- Supports communication between distributed network segments.
- Suitable for installations where automation equipment is physically separated.
- Useful for communication routes exposed to electromagnetic interference.
- Supports optical network infrastructure within compatible industrial automation systems.
- Operates as a communication interface rather than a PLC processing unit.
- Suitable for SIPLUS installations within the applicable environmental specifications.
Working Principle
The 6AG1503-3CA01-2AA0 transfers communication data between a compatible network interface and the optical transmission path. Data arriving from the local network is handled by the OLM/P12 and transmitted through the connected optical link toward the corresponding remote network section.
Automation Network → OLM/P12 → Optical Fiber Link → Remote OLM / Network Segment → Automation Devices
The module functions as part of the physical communication path and does not perform application-level control processing. PLCs, distributed I/O, HMIs, and other automation devices continue to handle their respective control and application functions.
Communication quality depends on the complete optical link. Connector cleanliness, fiber condition, local and remote OLM interfaces, network configuration, and connected devices should therefore be considered together when diagnosing communication faults.
Role in a Siemens SIPLUS NET Optical Communication Architecture
The OLM/P12 occupies the optical communication infrastructure layer between local network equipment and a remote automation segment. It allows compatible network sections to communicate through an optical path while maintaining separation between physically distributed equipment locations.
PLC / Network Device → OLM/P12 → Optical Fiber → Remote OLM / Network Device → Distributed Automation Equipment
| System Element | Function |
|---|---|
| Siemens PLC / Controller | Executes application control logic |
| Network Interface | Exchanges automation data with the communication system |
| 6AG1503-3CA01-2AA0 | Provides the optical network interconnection |
| Optical Fiber | Transfers communication data between network locations |
| Remote OLM / Network Node | Receives and forwards communication traffic |
| Distributed I/O | Exchanges process signals with the controller |
| HMI / SCADA | Provides operator visualization and supervisory functions |
The optical communication layer is useful for distributed control architectures where the network must span different equipment areas or where electrical isolation is beneficial.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Automation | Optical connection between distributed automation networks |
| Manufacturing Plants | Communication between separate production areas |
| Process Automation | Interconnection of distributed control equipment |
| Power and Utility Facilities | Network communication across separated electrical areas |
| Control Cabinets | Optical links between cabinet-level network segments |
| Electrically Noisy Areas | Communication infrastructure with reduced EMI susceptibility |
| Distributed I/O Systems | Optical connection between remote automation sections |
Installation and Maintenance
- Confirm that the 6AG1503-3CA01-2AA0 matches the intended SIPLUS NET communication architecture.
- Verify the OLM/P12 V4.1 variant against the existing network documentation before installation or replacement.
- Identify the local and remote communication endpoints before disconnecting the existing module.
- Inspect electrical interfaces and optical connections for physical damage or contamination.
- Keep fiber-optic connectors clean and protected while performing installation work.
- Route optical cables without excessive bending, pulling force, or mechanical stress.
- Confirm that the connected network interfaces are suitable for the planned optical communication arrangement.
- Energize the module under controlled commissioning conditions and check its status indications.
- Verify communication between the local and remote network segments.
- Inspect the fiber route, connectors, and network interfaces if communication becomes intermittent.
- Check network configuration and remote devices when a connected segment cannot be reached.
- After replacement, perform a complete communication test across the optical link before returning the automation system to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIPLUS PLC / Controller | Executes automation application logic |
| Siemens SIMATIC NET Equipment | Provides industrial communication functions |
| OLM Optical Link Modules | Establishes compatible optical communication connections |
| Optical Fiber Cable | Transfers communication signals between network locations |
| Industrial Network Equipment | Connects devices within the automation communication system |
| Distributed I/O | Exchanges field signals with the automation controller |
| HMI / SCADA | Provides operator and supervisory visualization |
| Engineering Station | Supports network configuration and diagnostics |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens SIPLUS NET OLM Series | Optical Link Module | Industrial optical network communication |
| Siemens OLM/P12 Series | Optical Link Module | Optical network segment interconnection |
| Siemens OLM/P11 Series | Optical Link Module | Optical communication infrastructure |
| Siemens OLM/G11 Series | Optical Link Module | Industrial optical network communication |
| Siemens OLM/G11-1300 Series | Optical Link Module | Optical network segment connection |
| Siemens SIMATIC NET Components | Industrial Network Equipment | Automation communication infrastructure |
| Siemens Optical Network Components | Fiber Communication Equipment | Distributed network connections |
Key Advantages
- Provides optical communication connectivity for compatible Siemens automation networks.
- Supports communication between physically separated network areas.
- Useful where electromagnetic interference or electrical separation is a concern.
- Helps organize distributed optical communication infrastructure.
- Integrates into compatible SIPLUS NET network architectures.
- Supports maintenance and expansion of fiber-based industrial communication links.
Technical FAQs
What is the role of the OLM/P12 in an automation network?
The OLM/P12 serves as an optical communication interface within the supported Siemens network architecture. It connects compatible network equipment through an optical transmission path while the PLC and other automation devices handle application-level functions.
How should an OLM/P12 communication fault be isolated?
Check the local network connection and module status first, followed by the optical connectors, fiber route, remote optical interface, and network configuration. Testing the complete communication path helps distinguish an optical-link problem from a fault in the connected automation equipment.
Why might fiber communication be preferred for separated control cabinets?
Fiber can be advantageous when cabinets are separated by distance, exposed to electromagnetic interference, or require electrical isolation between communication sections. The actual network design should still be matched to the supported communication interfaces and topology.
What should be verified before replacing a 6AG1503-3CA01-2AA0?
Confirm the complete part number and OLM/P12 version, then check the existing network topology, local and remote interfaces, optical connections, and configuration. After replacement, verify communication across the entire link rather than only confirming that the module powers up.
