Product Overview

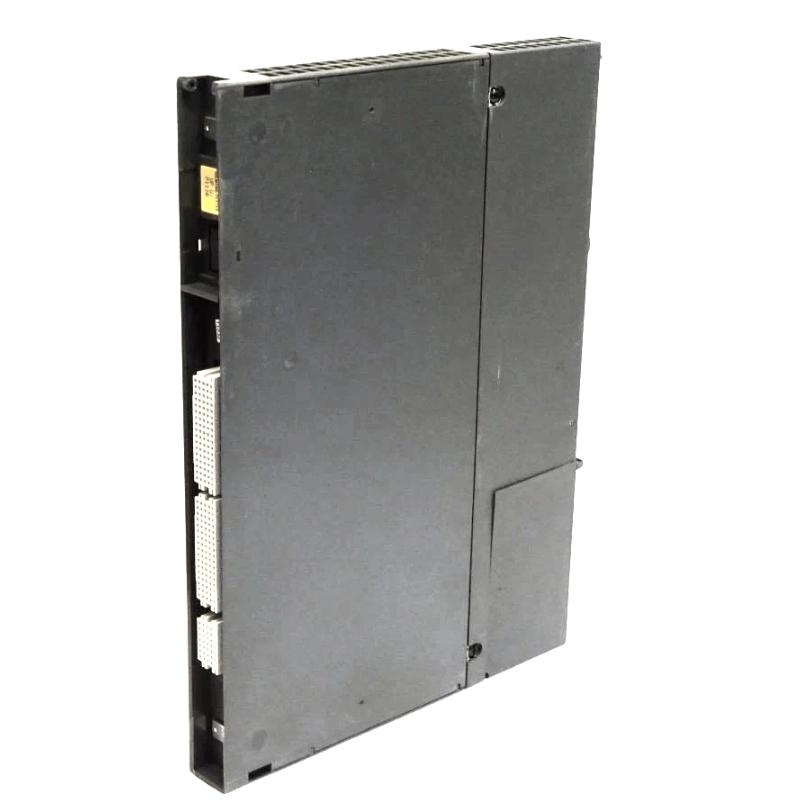

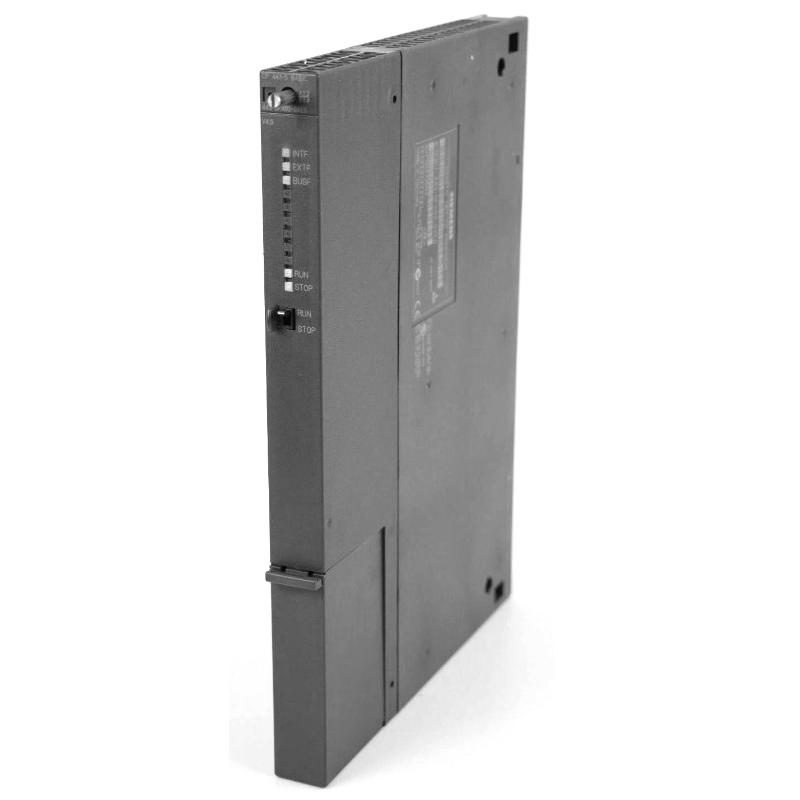

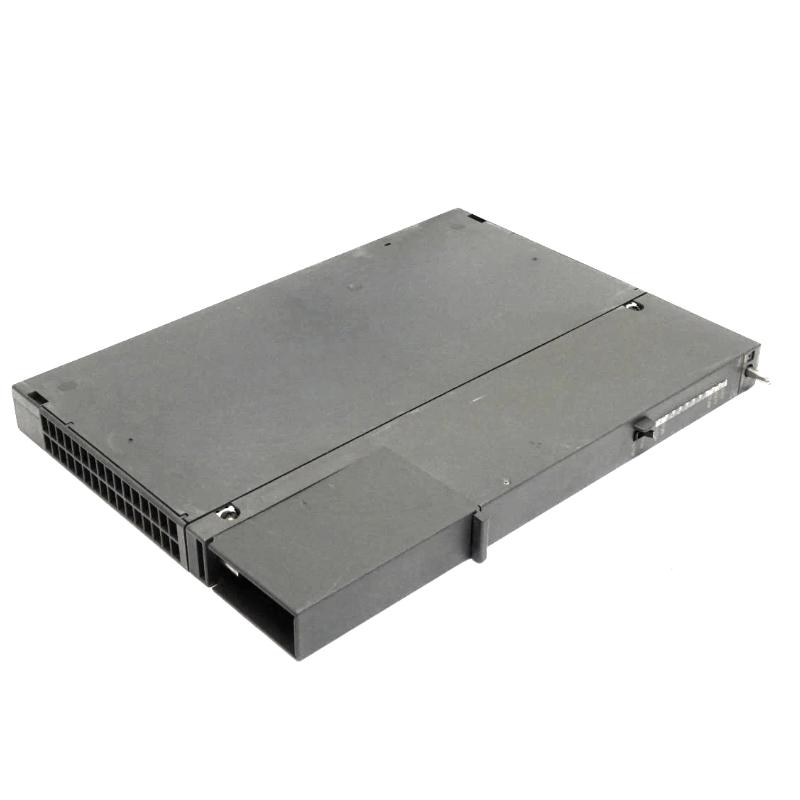

The Siemens 6AG1443-5FX02-4XE0 SIPLUS S7-400 CP 443-5 Communication Processor is a communication processor for SIPLUS S7-400 automation systems. It handles communication tasks between the S7-400 controller and connected automation equipment, reducing the need for the central CPU to manage every external communication function directly.
The CP 443-5 is particularly relevant in S7-400 architectures where communication with distributed or interconnected control equipment must be handled through a dedicated communication processor. It can be used as part of larger industrial networks in applications such as production lines, process plants, material handling systems, and machine-control installations.
As a communication module rather than a conventional input or output card, the processor focuses on data exchange. The central S7-400 CPU uses the communication processor to transfer control and diagnostic information to compatible external stations while receiving data required by the control program.
The SIPLUS version is intended for industrial automation installations requiring the corresponding SIPLUS product configuration. Before replacement, the complete ordering number should be checked against the installed S7-400 hardware and communication architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1443-5FX02-4XE0 |
| Product Family | SIPLUS S7-400 |
| Product Series | CP 443-5 |
| Product Type | Communication Processor |
| Primary Function | Industrial communication and data exchange |
| System Role | S7-400 communication interface |
| Application | Industrial automation and distributed control |
| Dimensions | 25 × 290 × 210 mm |
| Weight | 0.825 kg |
Product Features
- SIPLUS S7-400 communication processor for industrial automation systems.
- CP 443-5 communication interface for compatible S7-400 architectures.
- Offloads dedicated communication tasks from the central CPU.
- Supports data exchange between the S7-400 control system and connected automation equipment.
- Suitable for distributed control and plant-level communication architectures.
- Integrates into S7-400 rack-based automation systems.
- Provides a dedicated communication path for compatible networked devices.
- Suitable for industrial control applications requiring structured controller-to-device communication.
Working Principle
The CP 443-5 operates as an intermediary between the S7-400 CPU and the communication network or connected automation stations. The CPU exchanges data with the communication processor through the S7-400 backplane, while the CP handles the corresponding communication task through its network interface.
When the control program needs information from another station, the CPU passes the required communication request or data to the CP 443-5. The processor manages the communication transaction and transfers the received information back to the S7-400 system.
S7-400 CPU → CP 443-5 → Industrial Communication Network → Remote Automation Station
Data can also travel in the opposite direction when a remote station sends status, process, or diagnostic information toward the S7-400 controller.
The communication processor therefore acts as a dedicated communication layer. A communication fault may originate from the CP itself, network wiring, the remote station, addressing or configuration, or the controller application, so troubleshooting should consider the complete communication path.
Role in a SIPLUS S7-400 Communication Architecture
The 6AG1443-5FX02-4XE0 occupies the communication layer of the S7-400 control architecture. It works alongside the central CPU and rack infrastructure to connect the controller with compatible external automation equipment.
S7-400 CPU → CP 443-5 → Communication Network → Remote Controller / Automation Equipment → Field System
| System Element | Function |
|---|---|
| S7-400 CPU | Executes control logic and application programs |
| CP 443-5 | Handles dedicated communication functions |
| S7-400 Rack / Backplane | Provides module integration and internal data exchange |
| Industrial Communication Network | Transfers data between automation stations |
| Remote Automation Station | Exchanges process and control information |
| Engineering Station | Supports configuration, diagnostics, and maintenance |
| HMI / SCADA System | Presents operating and diagnostic information |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Controller communication with distributed equipment |
| Manufacturing Lines | Data exchange between S7-400 and automation stations |
| Production Systems | Plant-level controller communication |
| Material Handling | Communication with distributed control equipment |
| Industrial Machinery | Dedicated communication between control stations |
| Power and Utility Systems | Networked automation and equipment data exchange |
| Large Control Installations | Communication within distributed S7-400 architectures |
Installation and Maintenance
- Verify the complete 6AG1443-5FX02-4XE0 ordering number before installation.
- Confirm compatibility with the installed SIPLUS S7-400 rack and CPU configuration.
- Isolate the applicable control system according to the plant maintenance procedure before removing the module.
- Record the existing communication connections and module configuration before replacement.
- Inspect the rack slot and module interface for contamination or physical damage.
- Install the communication processor in the correct S7-400 rack position according to the system configuration.
- Check the communication cable and connector condition before reconnecting the network.
- Verify network addressing, communication parameters, and configured partner stations.
- Restore system power and check the processor’s diagnostic status.
- Test data exchange between the S7-400 CPU and the connected remote station.
- Investigate communication errors by checking the processor, network path, remote equipment, and application configuration separately.
- After replacement, verify the complete communication sequence and confirm that the connected control functions operate normally.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIPLUS S7-400 CPU | Executes the central control program |
| S7-400 Rack / Backplane | Provides module mounting and internal communication |
| CP 443-5 | Provides dedicated communication processing |
| Industrial Communication Network | Connects distributed automation stations |
| Remote PLC / Controller | Exchanges control and process information |
| HMI / SCADA System | Provides operator visualization and diagnostics |
| Engineering Station | Supports configuration and system commissioning |
| Network Cabling | Carries communication data between connected devices |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens SIPLUS S7-400 CP 443-5 | Communication Processor | Industrial controller communication |
| Siemens SIPLUS S7-400 CP 443-1 | Communication Processor | Industrial Ethernet communication |
| Siemens SIPLUS S7-400 CP 443-5 Extended | Communication Processor | Extended S7-400 communication |
| Siemens S7-400 CPU Modules | CPU Module | Central control and application logic |
| Siemens SIPLUS S7-400 Communication Modules | Communication Module | Distributed automation networking |
| Siemens S7-400 Interface Modules | Interface Module | Rack and system integration |
Key Advantages
- Adds dedicated communication capability to SIPLUS S7-400 systems.
- Separates communication processing from the central CPU’s main control tasks.
- Supports distributed automation architectures.
- Provides a structured communication path between the S7-400 controller and connected stations.
- Suitable for plant-wide and machine-level industrial communication.
- Simplifies troubleshooting by providing a dedicated communication interface within the controller architecture.
Technical FAQs
What should be checked before replacing a CP 443-5 communication processor?
The complete ordering number, S7-400 rack configuration, CPU arrangement, network connection, and communication partner configuration should be checked. A replacement module must match the communication architecture rather than only the physical module format.
How can a CP 443-5 communication fault be distinguished from a network problem?
First check the processor’s diagnostic condition and the communication status of the connected network. If the processor is operating normally but the remote station remains unreachable, inspect network cabling, addressing, communication parameters, and the remote device before replacing the CP.
Does the CP 443-5 replace the S7-400 CPU?
No. The CPU executes the application and control logic, while the communication processor handles dedicated communication functions. The two modules work together within the S7-400 architecture.
What should be verified after installing a replacement module?
Check the module diagnostic status, communication configuration, network connection, and data exchange with the intended communication partners. The final test should include the actual control functions that depend on the communication path.
