Product Overview

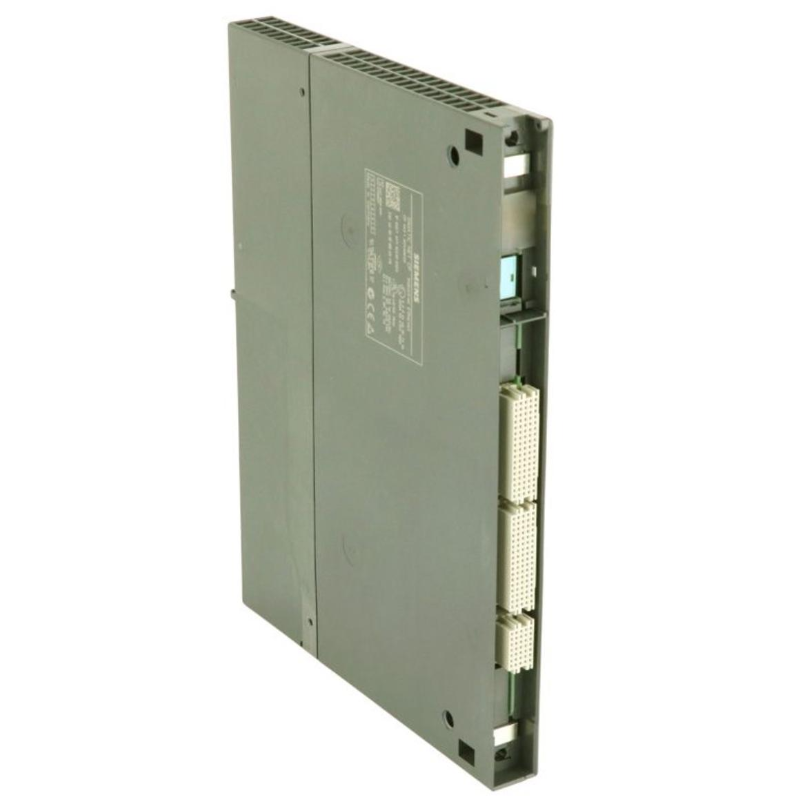

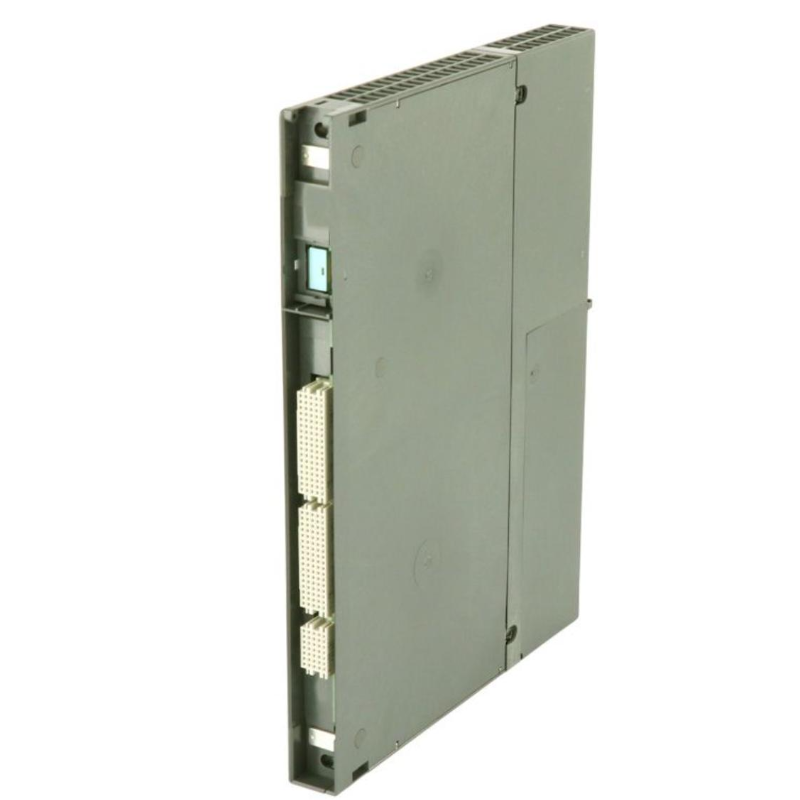

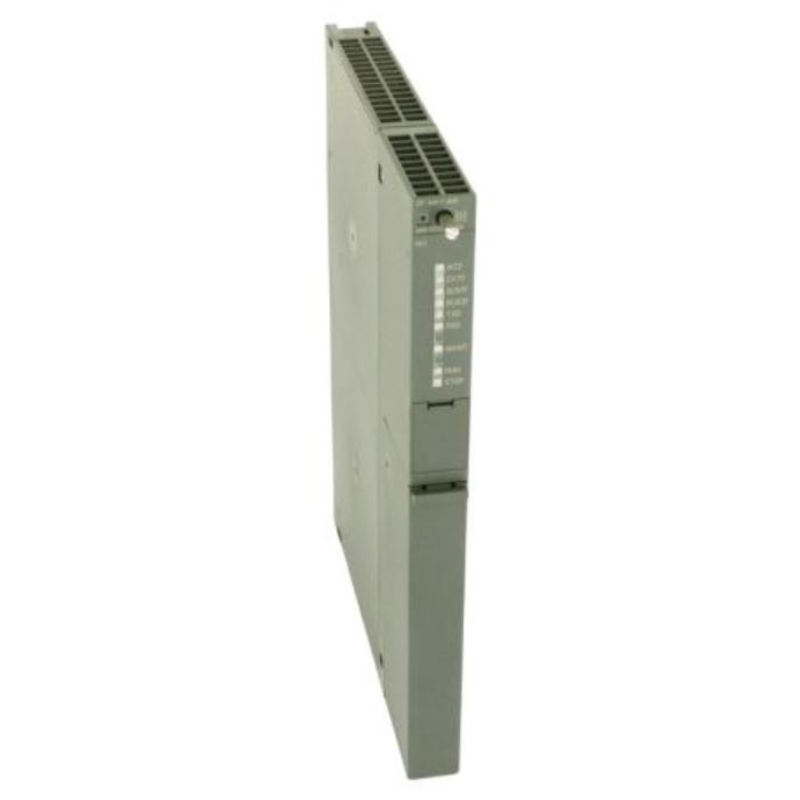

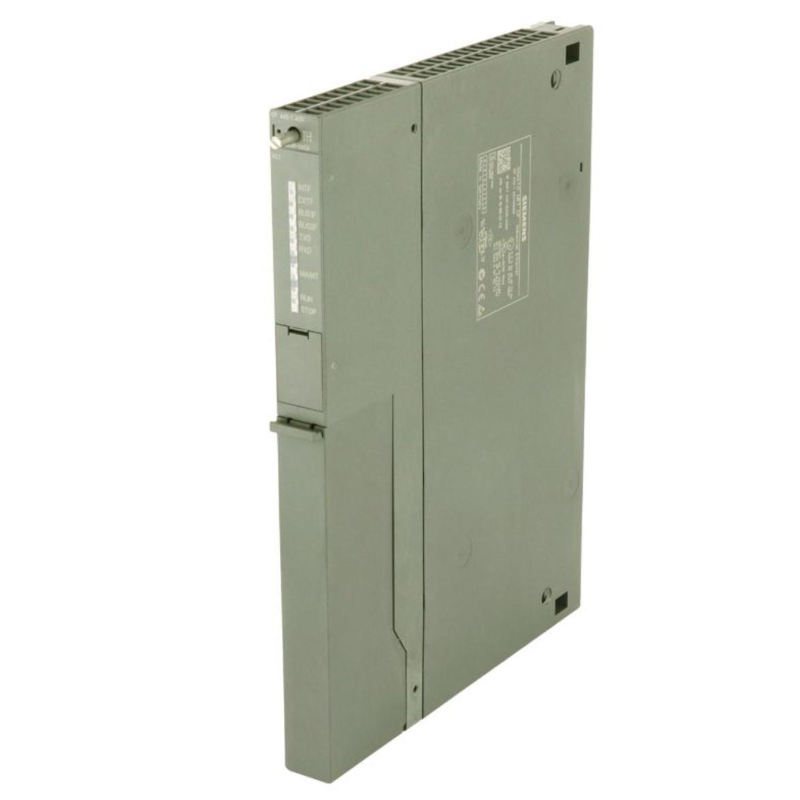

The Siemens 6AG1443-1GX30-4XE0 SIPLUS NET CP 443-1 Advanced Communication Processor is an S7-400 communication processor for Industrial Ethernet-based communication. It is used to connect an S7-400 automation station with Ethernet networks and external devices such as supervisory systems, engineering stations, HMIs, and other controllers.
The CP 443-1 Advanced operates alongside the S7-400 CPU rather than replacing the CPU’s application-control functions. The CPU continues to execute the user program and machine or process logic, while the communication processor handles the configured Ethernet communication tasks.
In a plant network, the module can provide the communication path between an S7-400 station and higher-level or distributed automation equipment. This makes it suitable for control systems where process data, diagnostic information, commands, and other configured data need to be exchanged over an Industrial Ethernet infrastructure.
As a SIPLUS component, the module is intended for industrial environments requiring the corresponding SIPLUS environmental characteristics. It is particularly useful when an S7-400 communication interface must be integrated into a demanding automation installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1443-1GX30-4XE0 |
| Product Family | SIPLUS NET |
| Product Series | CP 443-1 Advanced |
| Product Type | Communication Processor |
| Communication | Industrial Ethernet |
| System Role | S7-400 Communication Interface |
| Primary Function | Ethernet-based data communication |
| Application | Industrial automation and process control systems |
| Dimensions | 25 × 290 × 210 mm |
| Weight | 0.845 kg |
Product Features
- SIPLUS NET communication processor for S7-400 systems
- CP 443-1 Advanced platform for Industrial Ethernet communication
- Provides Ethernet connectivity for compatible S7-400 automation stations
- Operates alongside the S7-400 CPU for dedicated communication functions
- Suitable for communication with HMI, SCADA, engineering, and automation devices
- Supports integration of S7-400 stations into plant-level Ethernet networks
- Suitable for industrial control and process automation environments
- SIPLUS configuration for applications requiring enhanced environmental suitability
Working Principle
The CP 443-1 Advanced handles the Ethernet communication path associated with an S7-400 station. Data generated or required by the CPU is exchanged through the configured communication processor and transferred across the Industrial Ethernet network.
S7-400 CPU → CP 443-1 Advanced → Industrial Ethernet Network → HMI / SCADA / Remote Automation Device
For incoming communication, network data reaches the CP 443-1 Advanced and is transferred to the S7-400 system according to the configured communication services. For outgoing communication, the processor sends configured data from the S7-400 station to the corresponding Ethernet device.
The communication processor therefore acts as the network interface between the S7-400 automation system and external Ethernet-connected equipment. Communication configuration, addressing, network connectivity, and the application program must work together for successful data exchange.
Role in an S7-400 Industrial Ethernet Control Architecture
The 6AG1443-1GX30-4XE0 occupies the communication layer of an S7-400 control architecture. The CPU remains responsible for application logic, while the CP 443-1 Advanced provides the Ethernet communication interface used to exchange data with other systems.
S7-400 CPU → CP 443-1 Advanced → Industrial Ethernet Switch / Network → Supervisory and Automation Devices
| System Element | Function |
|---|---|
| S7-400 CPU | Executes application and process-control logic |
| CP 443-1 Advanced | Provides Industrial Ethernet communication |
| Industrial Ethernet Network | Connects distributed automation and supervisory equipment |
| Ethernet Switch | Distributes network communication between connected devices |
| HMI / SCADA | Provides visualization, monitoring, and supervisory functions |
| Engineering Station | Performs system configuration and diagnostics |
| Remote PLC / Controller | Exchanges configured control and process data |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Ethernet communication between S7-400 stations and systems |
| Factory Automation | Plant-level communication with controllers and HMIs |
| Production Lines | Data exchange between control stations and supervisory systems |
| Manufacturing Systems | Industrial Ethernet integration of S7-400 equipment |
| SCADA Integration | Communication between PLC stations and supervisory software |
| Engineering Networks | Ethernet connection for engineering and diagnostic activities |
| Distributed Control | Communication between separated automation stations |
| Industrial Plant Networks | Integration of S7-400 control stations into plant networks |
Installation and Maintenance
- Verify the complete 6AG1443-1GX30-4XE0 part number before installation.
- Confirm that the CP 443-1 Advanced is appropriate for the existing S7-400 hardware and communication architecture.
- Record the existing module position and Ethernet connections before replacement.
- Install the communication processor in the designated S7-400 rack position.
- Check that the module is correctly seated and mechanically secured.
- Connect the Ethernet cable to the intended network interface.
- Verify Ethernet cable condition and connector seating before commissioning.
- Confirm the configured network address and communication parameters.
- Check that the S7-400 CPU recognizes the communication processor correctly.
- Test communication with the intended HMI, SCADA, engineering station, or remote automation device.
- If communication fails, isolate the module, Ethernet cabling, network equipment, configuration, and remote device as separate troubleshooting points.
- After replacement or maintenance, verify the complete S7-400 communication path before returning the automation system to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Siemens S7-400 CPU | Executes control and application logic |
| S7-400 Rack | Provides the mounting and system backplane |
| Siemens Industrial Ethernet Switch | Connects multiple Ethernet-based automation devices |
| HMI Panel | Provides operator visualization and control |
| SCADA System | Provides supervisory monitoring and process visualization |
| Engineering Station | Provides configuration, programming, and diagnostics |
| Remote PLC / Controller | Exchanges configured automation data |
| Industrial Ethernet Cabling | Provides the physical network communication path |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens SIPLUS NET CP 443-1 Advanced | Communication Processor | S7-400 Industrial Ethernet communication |
| Siemens CP 443-1 Advanced | Communication Processor | S7-400 Ethernet networking |
| Siemens SIPLUS NET CP 443-1 | Communication Processor | S7-400 Industrial Ethernet integration |
| Siemens S7-400 CPU Series | CPU Module | Automation and process control |
| Siemens S7-400 Communication Processors | Communication Processor | Network and system communication |
| Siemens Industrial Ethernet Components | Network Equipment | Industrial automation networking |
| Siemens SIPLUS S7-400 Modules | Industrial Automation Modules | Harsh-environment S7-400 installations |
Key Advantages
- Provides Industrial Ethernet connectivity for compatible S7-400 systems.
- Separates Ethernet communication tasks from the S7-400 CPU’s main application logic.
- Supports integration with supervisory and distributed automation equipment.
- Suitable for plant-level and control-system Ethernet architectures.
- Available in a SIPLUS configuration for demanding industrial environments.
- Useful for upgrading, maintaining, or replacing compatible S7-400 communication interfaces.
Technical FAQs
What is the role of the CP 443-1 Advanced in an S7-400 system?
The CP 443-1 Advanced provides the Industrial Ethernet communication interface for the S7-400 station. The CPU continues to execute the application and control logic while the communication processor handles configured Ethernet communication functions.
How does the CP 443-1 Advanced exchange data with an external automation system?
The communication processor transfers configured data between the S7-400 system and Ethernet-connected devices through the Industrial Ethernet network. Successful communication depends on the module configuration, network addressing, connected equipment, and the communication service being used.
What should be checked if the S7-400 station is connected to Ethernet but data exchange fails?
Check the CP 443-1 Advanced status, Ethernet connection, network addressing, communication configuration, and the corresponding settings on the remote device. Network switches and cabling should also be checked when the communication path is intermittent or unavailable.
What configuration information should be preserved when replacing a SIPLUS CP 443-1 Advanced?
The existing hardware configuration, Ethernet network parameters, communication settings, and connections to external systems should be recorded before replacement. After installing the new module, verify that the S7-400 configuration and all required communication links operate as expected.
