Product Overview

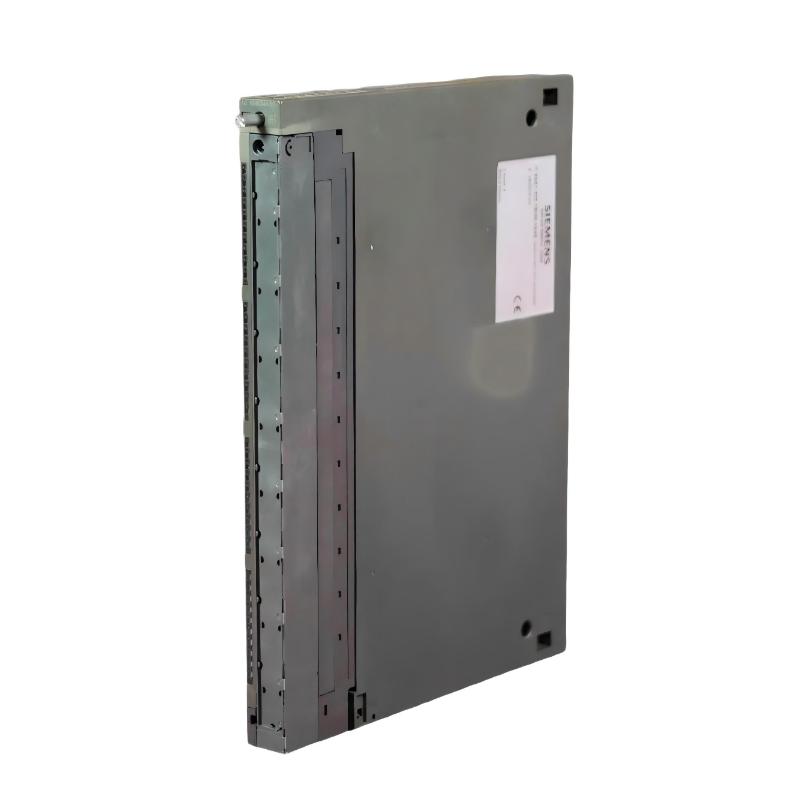

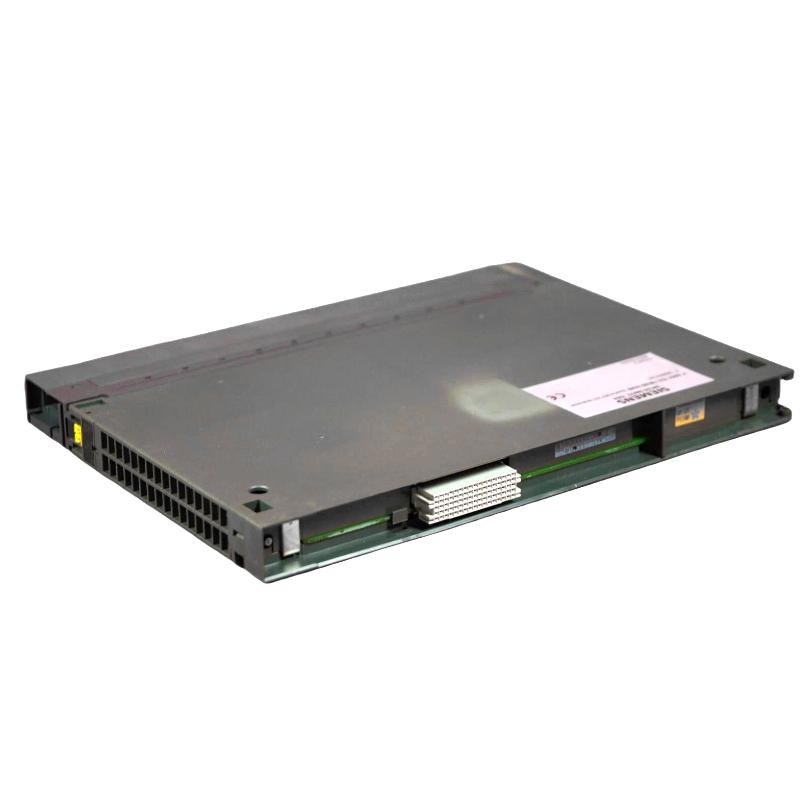

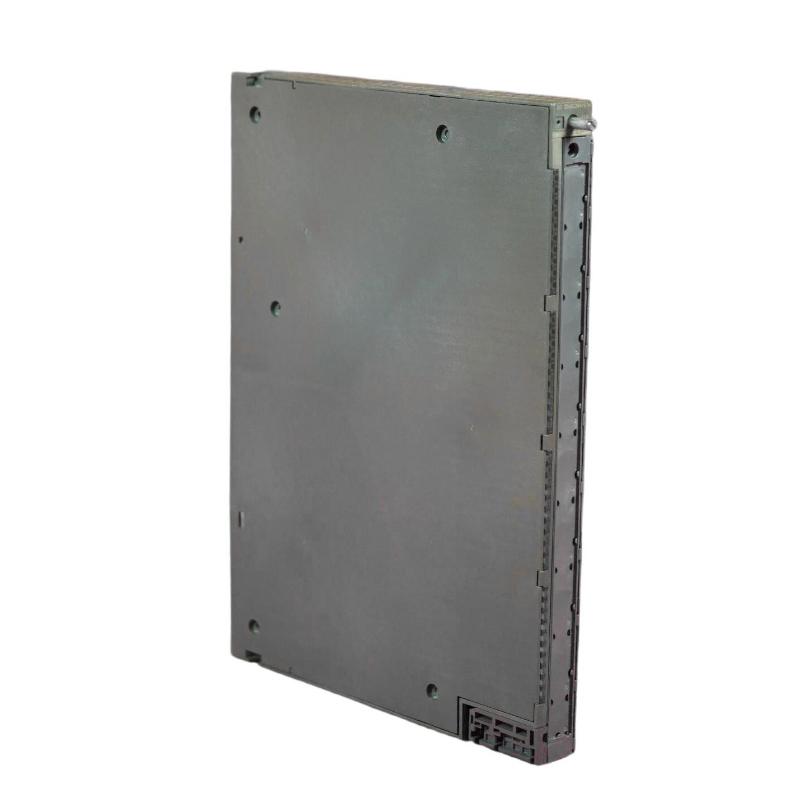

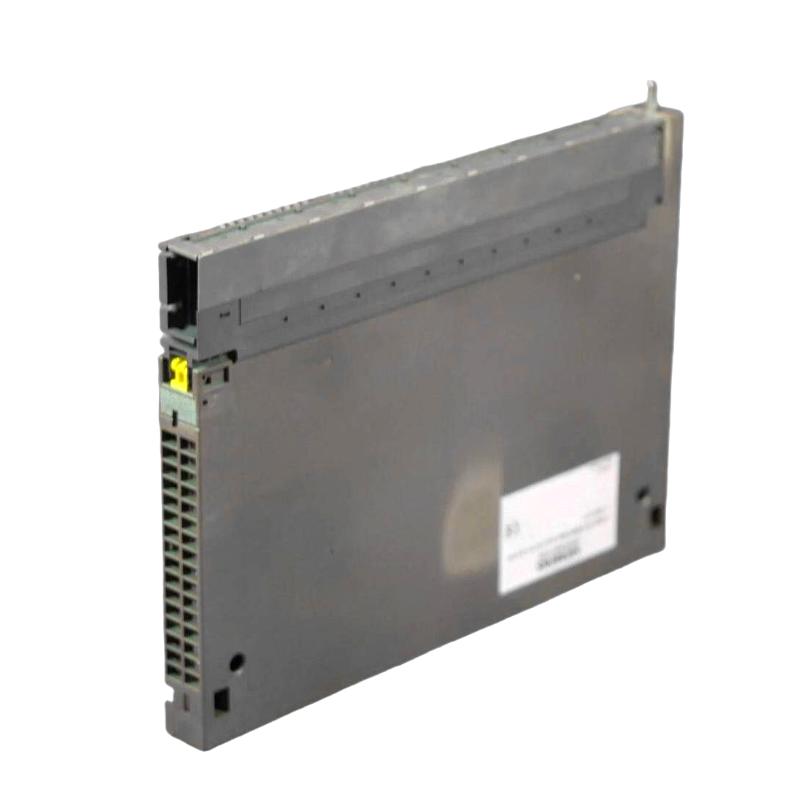

The Siemens 6AG1422-1BL00-2AA0 SIPLUS S7-400 Digital Output Module is a digital signal output module for Siemens S7-400 automation systems. It receives output commands from the PLC CPU and transfers the corresponding binary control states to connected field devices.
In a typical machine-control application, the module can be used to switch discrete loads such as contactors, relays, solenoid valves, indicator devices, and other binary actuators. The CPU determines the required output state according to the application program, while the output module handles the interface between the controller and the field circuit.
The module is useful in S7-400 systems with a substantial number of discrete control points. It can participate in machine sequences, equipment interlocking, motor starter commands, valve control, alarm functions, and other applications where field devices need clear ON/OFF control signals.
As part of the SIPLUS S7-400 family, the module is intended for industrial installations where environmental conditions need to be considered during component selection. For replacement work, the complete order number, existing rack configuration, output requirements, field wiring, and connected loads should be checked before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AG1422-1BL00-2AA0 |
| Product Family | SIPLUS S7-400 |
| Product Type | Digital Output Module |
| CPU Platform | Siemens S7-400 |
| Signal Type | Digital Output |
| System Role | Discrete field signal control |
| Primary Function | Transfer binary control commands to field devices |
| Typical Application | Industrial automation and process control |
| Dimensions | 25 × 290 × 210 mm |
| Weight | 0.784 kg |
Product Features
- Part of the Siemens SIPLUS S7-400 automation platform.
- Provides a digital output interface between the PLC and field equipment.
- Transfers binary control states generated by the S7-400 CPU.
- Suitable for discrete actuator and equipment control.
- Can be used for contactors, relays, solenoid valves, indicators, and other compatible loads.
- Integrates into the S7-400 rack-based I/O architecture.
- Suitable for machine sequences, interlocks, and equipment command functions.
- SIPLUS configuration supports demanding industrial installation environments.
Working Principle
The module receives output information generated by the S7-400 CPU and converts the programmed output state into the corresponding field-side switching condition.
PLC Control Logic → S7-400 CPU → 6AG1422-1BL00-2AA0 → Digital Output Circuit → Field Actuator
For example, when the PLC program determines that a valve should open, the CPU updates the associated output state. The digital output module then switches the corresponding output channel according to the commanded state, allowing the connected field device to respond.
The same principle applies to contactors, relays, indicator devices, and other compatible discrete loads. The CPU remains responsible for the control decision, while the output module provides the physical interface through which that decision reaches the field circuit.
During troubleshooting, the distinction between PLC logic and field-side switching is important. A correct command in the CPU does not necessarily mean the external device will operate; output-channel status, wiring, load conditions, and the actuator itself must also be checked.
Role in a Siemens S7-400 Control Architecture
The 6AG1422-1BL00-2AA0 occupies the output interface layer between the S7-400 CPU and discrete field equipment. It converts the logical output states generated by the control program into physical control signals for compatible field devices.
Sensors / Process Inputs → S7-400 CPU → Control Logic → 6AG1422-1BL00-2AA0 → Actuators
| System Element | Function |
|---|---|
| Field Sensors | Provide process and equipment status information |
| S7-400 Input Modules | Acquire field signals |
| S7-400 CPU | Executes the control program and determines output states |
| 6AG1422-1BL00-2AA0 | Provides discrete output signals |
| Contactors / Relays | Switch compatible external loads |
| Solenoid Valves / Actuators | Execute physical control commands |
| HMI System | Allows operators to monitor and control process functions |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Lines | Control of discrete machine actuators |
| Production Machinery | Sequence commands and equipment interlocking |
| Conveyor Systems | Motor starter, stop/start, and status-related control |
| Process Equipment | Solenoid valve and auxiliary device control |
| Material Handling | Control of contactors, relays, and discrete actuators |
| Plant Utilities | Switching commands for compatible auxiliary equipment |
Installation and Maintenance
- Confirm the complete 6AG1422-1BL00-2AA0 order number before installation.
- Verify that the module matches the existing S7-400 hardware configuration.
- Check the electrical requirements of every connected output load.
- Isolate the relevant control and load circuits before removing or installing the module.
- Inspect the rack and backplane interface for contamination or mechanical damage.
- Install the module securely in its designated S7-400 rack position.
- Verify output wiring and terminal assignments before energizing the system.
- Confirm that each output channel corresponds to the intended PLC address.
- Check CPU and module diagnostic information after startup.
- Test individual output channels using controlled commissioning procedures.
- If an output does not switch the load, check the module status, field wiring, protection devices, and actuator separately.
- Monitor output channels and connected loads for abnormal heating, intermittent operation, or repeated switching faults.
Related Components
| Component | Function |
|---|---|
| Siemens S7-400 Rack | Provides mounting and backplane connections |
| S7-400 Power Supply | Supplies power to the PLC rack |
| S7-400 CPU | Generates control commands according to the PLC program |
| S7-400 Digital Input Module | Acquires binary field signals |
| Contactors | Switch compatible motor and power circuits |
| Interposing Relays | Provide electrical isolation or load interface |
| Solenoid Valves | Execute discrete process control commands |
| HMI System | Provides operator monitoring and control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1422-1BL00-2AA0 | SIPLUS S7-400 Digital Output Module | Discrete actuator control |
| Siemens SIPLUS S7-400 Digital Output Family | Digital Output Module | Industrial binary output control |
| Siemens S7-400 Digital Output Modules | Digital Output Module | Machine and process outputs |
| Siemens S7-400 Digital Input Modules | Digital Input Module | Discrete signal acquisition |
| Siemens S7-400 Analog Output Modules | Analog Output Module | Analog actuator control |
| Siemens S7-400 Analog Input Modules | Analog Input Module | Analog process acquisition |
| Siemens S7-400 CPU Family | PLC CPU | Central control processing |
| Siemens S7-400 Communication Modules | Communication Module | Industrial network integration |
Key Advantages
- Provides a direct digital output interface for S7-400 systems.
- Suitable for controlling compatible discrete field devices.
- Integrates into the established S7-400 rack architecture.
- Supports machine sequence, interlocking, and actuator control functions.
- Separates central PLC logic from field-side switching.
- SIPLUS configuration is applicable to demanding industrial environments.
Technical FAQs
What types of equipment can be connected to a digital output module?
Depending on the module’s electrical specifications and the application circuit, typical loads include contactors, relays, solenoid valves, indicator devices, and other compatible binary actuators. The load characteristics must be checked before connection.
Why does the PLC show an active output while the field device does not operate?
The problem may be outside the CPU logic. Check the output-channel status, field wiring, external power supply, protection components, contactor or relay, and the connected actuator. A commanded output state alone does not confirm that the external load has actually switched.
What should be considered when connecting inductive loads?
Inductive loads such as coils and solenoids can generate transient voltage when switched. Appropriate suppression and protection should be applied according to the module’s electrical requirements and the connected load characteristics.
Can a digital output module directly replace a digital input module?
No. The two modules perform opposite signal-interface functions. A digital input module acquires binary information from field devices, while a digital output module sends control signals from the PLC to field equipment. The module type must match the required signal direction and system configuration.
