Product Overview

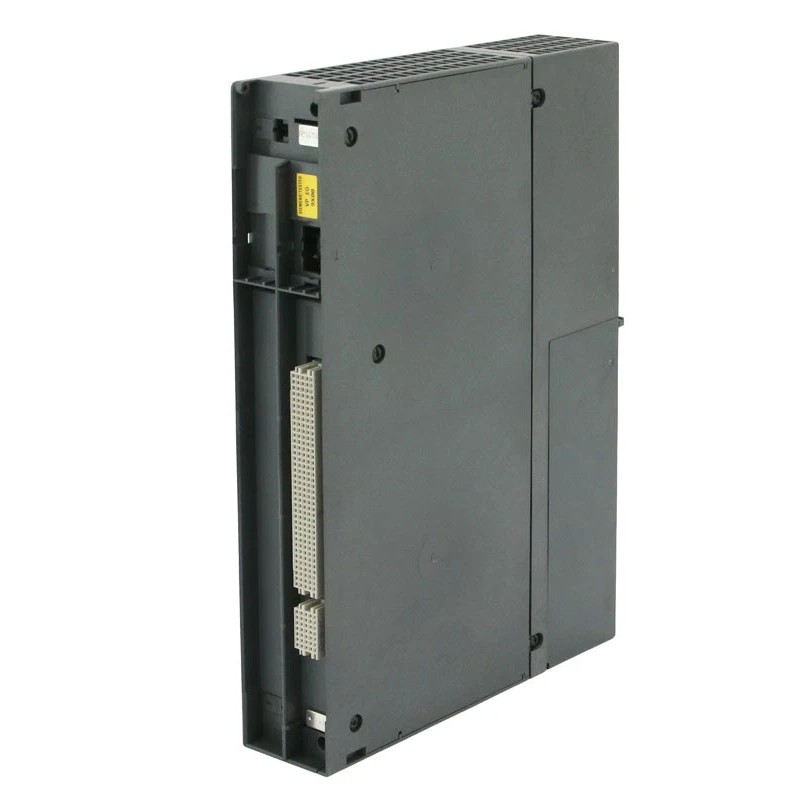

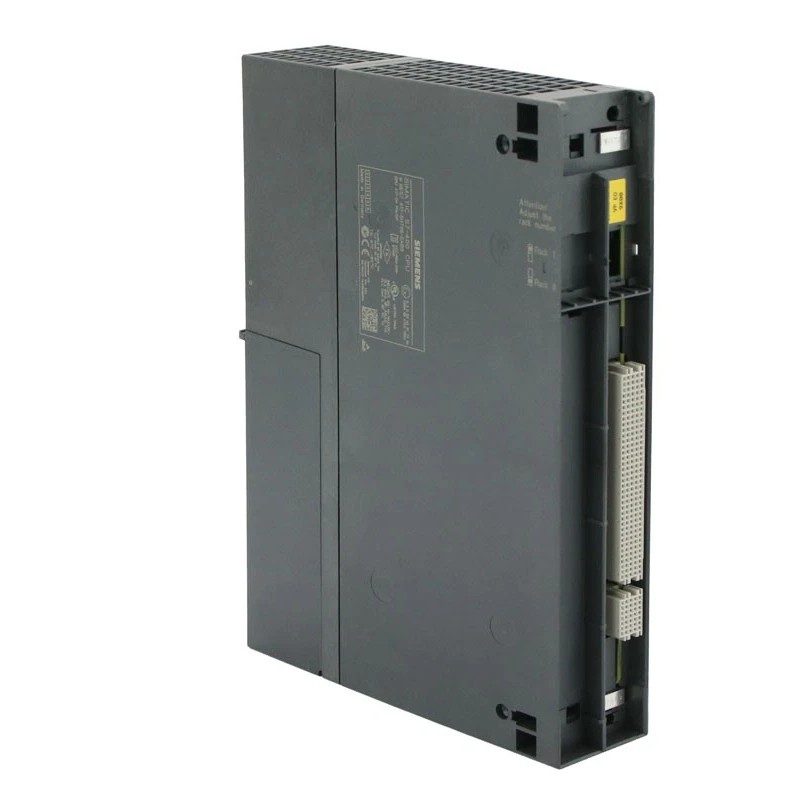

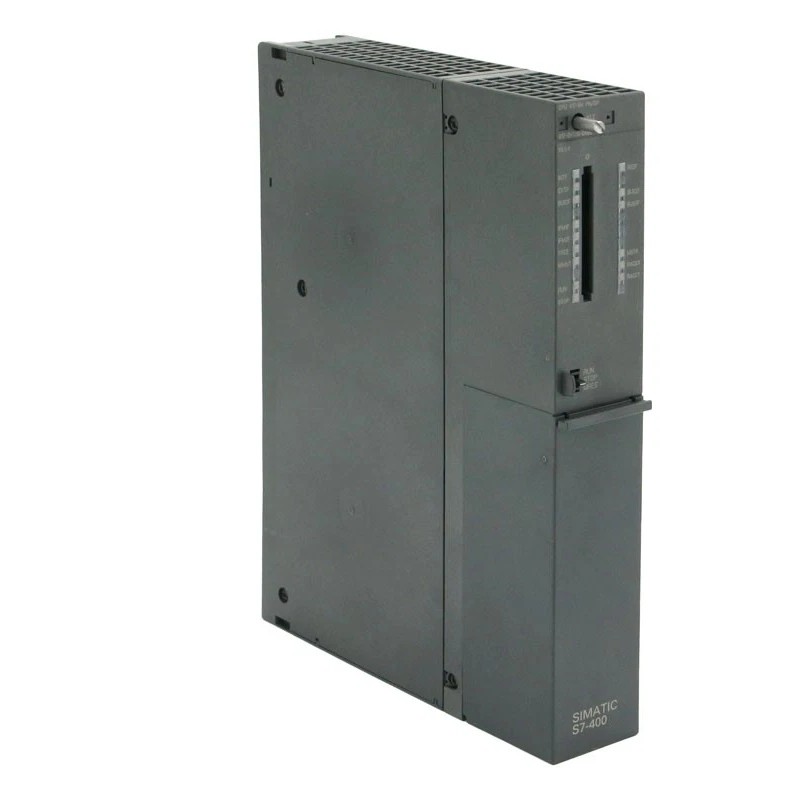

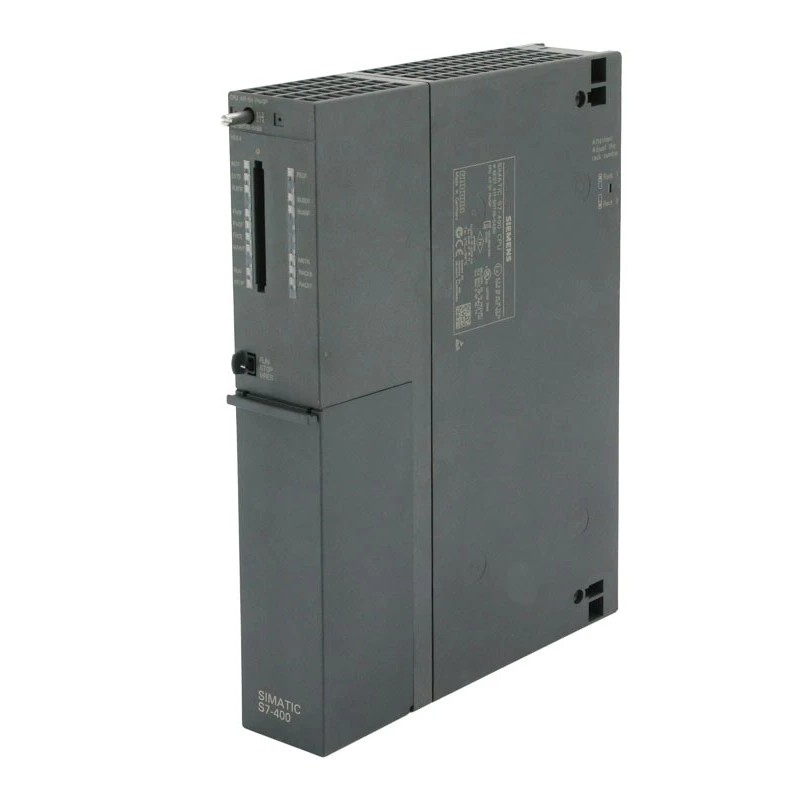

The Siemens 6AG1417-5HT06-7AB0 SIPLUS S7-400 CPU Module is a central processing unit for Siemens S7-400 automation systems. It handles the execution of the PLC application, evaluates process information, and coordinates control operations between the controller, I/O modules, communication interfaces, and field equipment.
In a large automation installation, the CPU can coordinate several process sections from a centralized control program. Signals collected from sensors and I/O stations are processed according to the configured logic, while commands are sent to output modules and connected equipment such as motors, valves, drives, and other actuators.
The SIPLUS version is intended for industrial applications where the controller must operate under more demanding environmental conditions. This makes the module suitable for established S7-400 installations in manufacturing, process automation, infrastructure, and plant utility applications where environmental requirements need to be considered during hardware selection.
For replacement work, the complete 6AG1417-5HT06-7AB0 ordering code should be matched against the existing CPU and system configuration. The rack arrangement, application program, connected I/O, communication setup, and environmental conditions should all be reviewed before commissioning the replacement unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AG1417-5HT06-7AB0 |
| Product Family | SIPLUS S7-400 |
| Product Type | CPU Module |
| CPU Platform | Siemens S7-400 |
| System Role | Central PLC processing unit |
| Primary Function | PLC program execution and process control |
| Typical Application | Industrial automation and process control |
| Dimensions | 50 × 290 × 219 mm |
| Weight | 1.362 kg |
Product Features
- Part of the Siemens SIPLUS S7-400 controller family.
- Functions as the central processing unit in an S7-400 automation system.
- Executes configured PLC programs and control sequences.
- Processes information received from connected I/O modules.
- Coordinates output commands with field-level equipment.
- Suitable for centralized control architectures with multiple automation components.
- SIPLUS configuration supports applications with demanding environmental conditions.
- Suitable for maintenance, modernization, and replacement of compatible S7-400 systems.
Working Principle
The CPU receives process information through the S7-400 I/O structure and evaluates that information using the configured PLC application. Sensor states, analog process values, equipment status signals, and other available data can be used by the control program to determine the next control action.
Field Devices → S7-400 I/O Modules → 6AG1417-5HT06-7AB0 CPU → PLC Control Logic → Output / Communication Modules → Actuators
The CPU executes the programmed sequence and determines the required responses according to the current process conditions. For example, a change in a sensor signal can initiate an interlock, change an operating sequence, or generate an output command for downstream equipment.
The resulting commands are transferred through the appropriate output or communication components. This allows the CPU to coordinate multiple process operations while maintaining the programmed relationship between inputs, control logic, and outputs.
Role in a Siemens S7-400 Control Architecture
The 6AG1417-5HT06-7AB0 acts as the central logic-processing element of the S7-400 system. It connects the application program with the physical I/O and communication structure used to control the plant or machine.
Field Level → S7-400 I/O → SIPLUS S7-400 CPU → Application Logic → Output / Communication Layer → Process Equipment
| System Element | Function |
|---|---|
| Field Sensors | Detect process conditions and equipment states |
| S7-400 Input Modules | Acquire field signals for CPU processing |
| 6AG1417-5HT06-7AB0 | Execute the control program and process logic |
| Communication Modules | Exchange process and system data |
| S7-400 Output Modules | Deliver control signals to field devices |
| HMI / Supervisory System | Provides operator monitoring and commands |
| Actuators | Execute the resulting control actions |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Systems | Centralized machine and sequence control |
| Process Automation | Continuous process monitoring and control |
| Production Equipment | Coordinated control of machine functions |
| Material Handling | Conveyor and transfer system automation |
| Plant Utilities | Control of pumps, fans, and auxiliary equipment |
| Infrastructure Systems | Central PLC control of distributed equipment |
Installation and Maintenance
- Confirm the complete 6AG1417-5HT06-7AB0 ordering code before installation.
- Verify compatibility with the existing S7-400 rack and hardware configuration.
- Back up the current PLC program and configuration before CPU replacement.
- Follow the plant’s electrical isolation procedure before removing the existing module.
- Inspect the rack and backplane interface for contamination or mechanical damage.
- Install the CPU in the appropriate S7-400 rack position.
- Restore the required power, communication, and system connections.
- Load or restore the correct PLC configuration and application program.
- Check CPU diagnostic information during startup.
- Verify communication with the connected I/O and automation devices.
- Test critical input and output functions under controlled commissioning conditions.
- Monitor diagnostic status and process behavior after returning the system to normal operation.
Related Components
| Component | Function |
|---|---|
| Siemens S7-400 Rack | Provides mounting and backplane connections |
| S7-400 Power Supply | Supplies power to the PLC rack |
| S7-400 Digital Input Module | Acquires discrete field signals |
| S7-400 Digital Output Module | Controls discrete field devices |
| S7-400 Analog Input Module | Acquires analog process information |
| S7-400 Analog Output Module | Sends analog control signals |
| S7-400 Communication Module | Provides communication with external systems |
| HMI System | Provides operator control and process visualization |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1417-5HT06-7AB0 | SIPLUS S7-400 CPU Module | Central PLC processing |
| Siemens SIPLUS S7-400 CPU Family | Industrial CPU | Demanding automation environments |
| Siemens S7-400 CPU Family | PLC CPU | Large-scale control systems |
| Siemens S7-400 Digital Input Modules | Digital Input Module | Discrete signal acquisition |
| Siemens S7-400 Digital Output Modules | Digital Output Module | Discrete actuator control |
| Siemens S7-400 Analog Input Modules | Analog Input Module | Process signal acquisition |
| Siemens S7-400 Analog Output Modules | Analog Output Module | Analog control |
| Siemens S7-400 Communication Modules | Communication Module | Industrial network integration |
Key Advantages
- Central processing for Siemens S7-400 automation systems.
- Suitable for coordinated control of complex industrial processes.
- Integrates with the S7-400 rack and I/O architecture.
- Supports centralized PLC program execution and process coordination.
- SIPLUS configuration is suitable for demanding industrial environments.
- Useful for replacement and maintenance projects where system compatibility is confirmed.
Technical FAQs
What is the function of the 6AG1417-5HT06-7AB0 in an S7-400 system?
It functions as the central CPU, executing the configured PLC application and coordinating data processing between the S7-400 I/O structure, communication components, and controlled equipment.
What should be verified before installing this CPU as a replacement?
The complete order number, S7-400 rack configuration, application program, connected I/O modules, communication setup, and environmental requirements should be checked. A replacement should be validated at the system level rather than by physical compatibility alone.
Why might the CPU report a configuration fault after replacement?
A configuration fault can occur when the installed CPU does not match the stored hardware configuration or when associated modules, communication settings, or application data differ from the previous system arrangement. The configured hardware should be compared with the actual rack after replacement.
What should be investigated if the CPU executes the program but the process does not respond correctly?
Check the input signals first, then review PLC logic, output module status, communication paths, and field wiring. If the CPU shows normal operation but an actuator does not respond, the fault may be located in the output or field-device layer rather than in the CPU itself.
