Product Overview

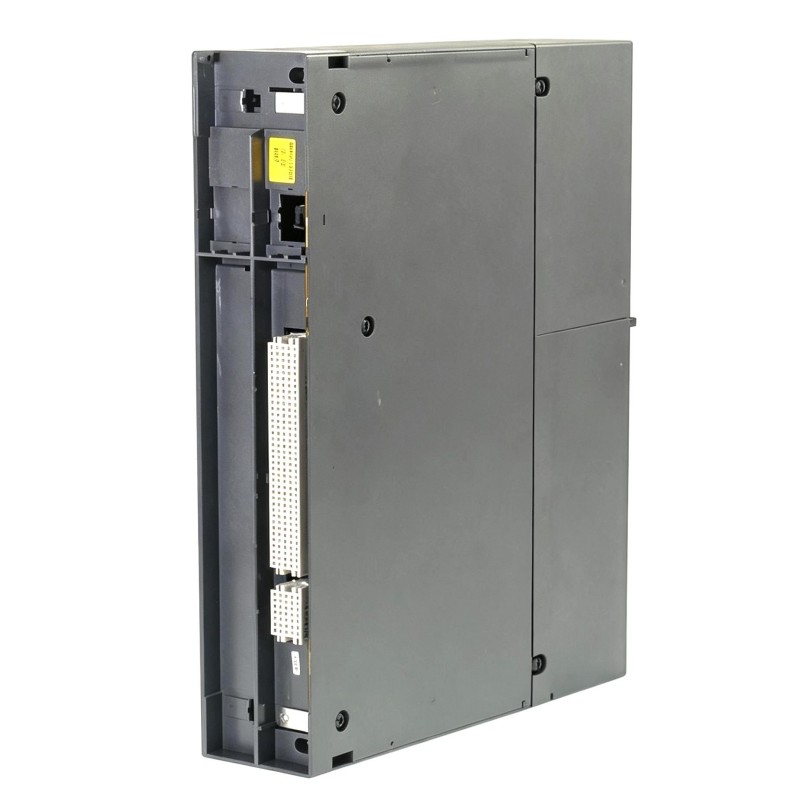

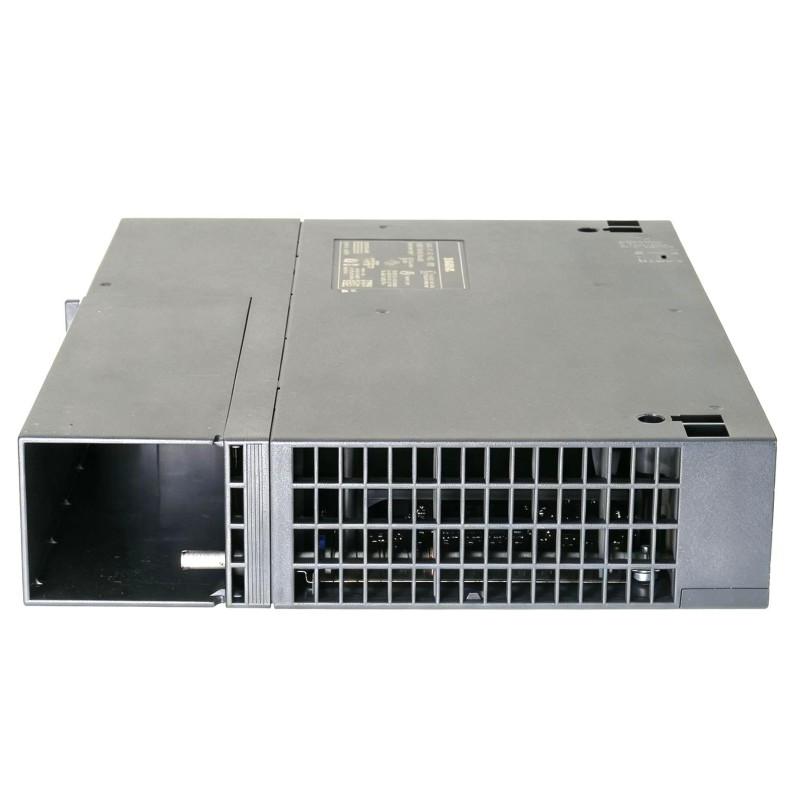

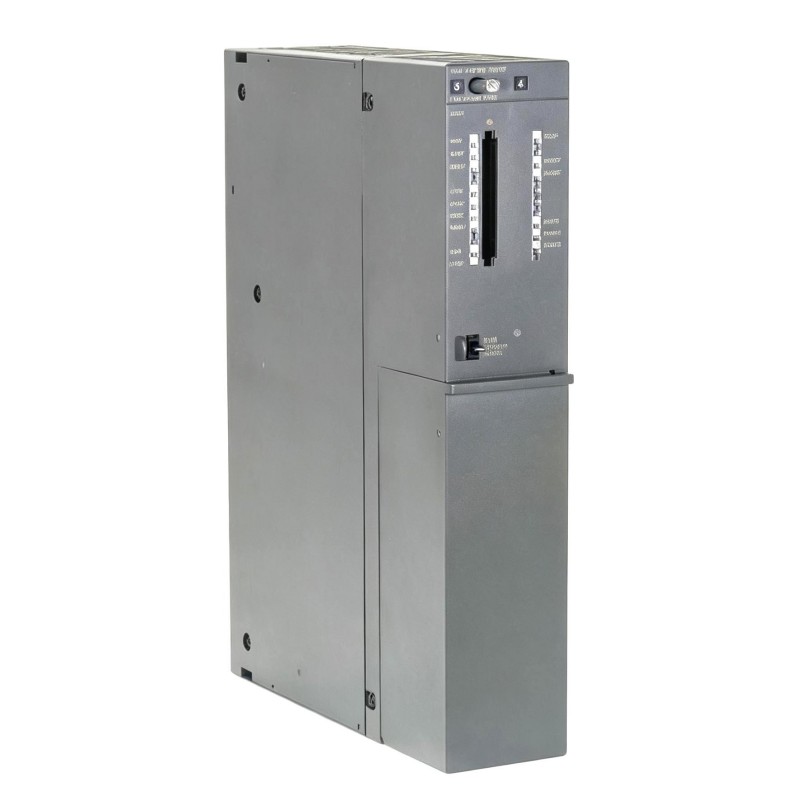

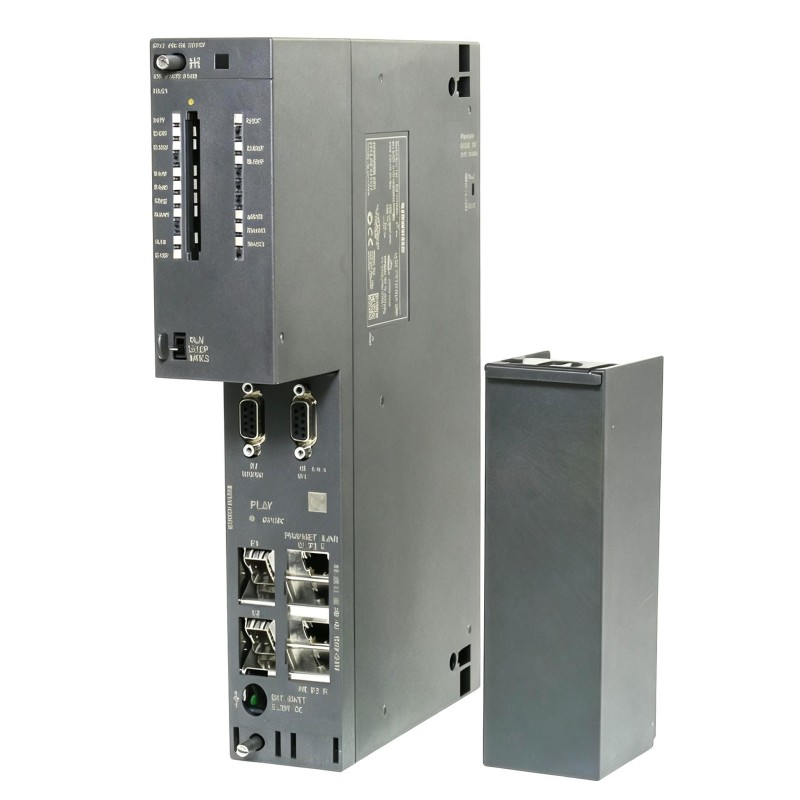

The Siemens 6AG1416-5HS06-7AB0 SIPLUS S7-400 CPU Module is a high-performance CPU used in Siemens S7-400 automation systems for executing the central control program and coordinating communication with distributed I/O and other automation components. As a SIPLUS version, it belongs to the Siemens product range intended for demanding industrial environments.
In a typical S7-400 installation, the CPU receives process information from input modules, executes the configured control logic, and transfers resulting commands to output modules. It can therefore serve as the central processing element for applications involving multiple I/O stations, machine sequences, and continuous process control.
The module is suited to control cabinets where the automation system must coordinate a substantial number of field signals and system functions. Typical applications include manufacturing lines, process equipment, infrastructure systems, and other centralized PLC architectures where the S7-400 platform is used as the main controller.
For replacement work, the exact 6AG1416-5HS06-7AB0 ordering code should be checked against the existing CPU, hardware configuration, communication setup, and application program. Particular attention should be given to the configured S7-400 rack and the interfaces used by the existing automation system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AG1416-5HS06-7AB0 |
| Product Family | SIPLUS S7-400 |
| Product Type | CPU Module |
| CPU Platform | Siemens S7-400 |
| System Role | Central PLC processing unit |
| Primary Function | Program execution and automation control |
| Typical Application | Industrial automation and process control |
| Dimensions | 50 × 290 × 219 mm |
| Weight | 1.357 kg |
Product Features
- Belongs to the Siemens SIPLUS S7-400 controller family.
- Functions as the central processing unit of an S7-400 PLC system.
- Executes the user control program and coordinates process operations.
- Exchanges process data with S7-400 I/O modules.
- Suitable for centralized automation architectures with multiple system components.
- Supports integration with the broader S7-400 control and communication structure.
- Intended for demanding industrial automation applications.
- Suitable for maintenance and replacement of compatible S7-400 CPU configurations.
Working Principle
The CPU operates as the processing center of the S7-400 PLC. Input data collected from field sensors and connected I/O modules is made available to the CPU, which processes the signals according to the configured user program.
Field Sensors → S7-400 Input Modules → 6AG1416-5HS06-7AB0 CPU → Control Logic → Output Modules → Actuators
During each control cycle, the CPU evaluates process conditions, executes programmed logic, manages control sequences, and updates output commands. Communication with other automation components allows the CPU to coordinate distributed signals and higher-level control functions.
In an operating plant, the CPU therefore links the physical process with the programmed automation strategy. If a process condition changes, the corresponding input information reaches the CPU, the programmed logic determines the required response, and the resulting command is transferred to the appropriate output or communication path.
Role in a Siemens S7-400 Control Architecture
The 6AG1416-5HS06-7AB0 occupies the central processing position within an S7-400 PLC architecture. It coordinates I/O processing, executes the application program, and manages the control sequence implemented by the automation system.
Field Level → S7-400 I/O → SIPLUS S7-400 CPU → Communication / Control Logic → Output I/O → Process Equipment
| System Element | Function |
|---|---|
| Field Sensors | Detect process conditions and machine states |
| S7-400 Input Modules | Acquire field signals |
| 6AG1416-5HS06-7AB0 | Execute PLC program and process control logic |
| S7-400 Communication Components | Exchange data with connected automation systems |
| S7-400 Output Modules | Convert control commands into output signals |
| Actuators | Execute commands in the physical process |
| HMI / Supervisory System | Display process information and operator commands |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Lines | Sequence control and machine coordination |
| Process Automation | Centralized process monitoring and control |
| Material Handling | Conveyor and transfer system control |
| Production Machinery | Coordinated machine logic and I/O processing |
| Infrastructure Systems | Central PLC-based equipment control |
| Industrial Utilities | Monitoring and control of plant utility equipment |
Installation and Maintenance
- Verify the complete 6AG1416-5HS06-7AB0 ordering code before installation.
- Confirm that the replacement CPU is compatible with the existing S7-400 hardware configuration.
- Isolate the control system according to the plant’s electrical safety procedure before removing the existing CPU.
- Record the existing CPU configuration and application program before replacement.
- Check the S7-400 rack and backplane connections for contamination or mechanical damage.
- Install the CPU securely in its designated rack position.
- Verify all required communication and system connections before energizing the rack.
- Restore the appropriate hardware configuration and user program after replacement.
- Check CPU diagnostic information after startup.
- Verify communication with connected I/O stations and automation devices.
- Confirm input processing and output response using controlled commissioning procedures.
- Monitor the CPU and connected system for diagnostic faults during the initial operating period.
Related Components
| Component | Function |
|---|---|
| Siemens S7-400 Rack | Provides the physical mounting and backplane structure |
| S7-400 Digital Input Module | Acquires discrete field signals |
| S7-400 Digital Output Module | Controls discrete field devices |
| S7-400 Analog Input Module | Acquires analog process signals |
| S7-400 Analog Output Module | Sends analog control signals |
| S7-400 Power Supply | Supplies power to the PLC rack |
| S7-400 Communication Module | Connects the controller with external networks or devices |
| HMI System | Provides operator monitoring and control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1416-5HS06-7AB0 | SIPLUS S7-400 CPU Module | Central PLC control |
| Siemens SIPLUS S7-400 | CPU Module Family | Industrial automation |
| Siemens S7-400 CPU Family | PLC CPU | Large-scale automation systems |
| Siemens S7-400 Digital Input Modules | Digital Input Module | Discrete signal acquisition |
| Siemens S7-400 Digital Output Modules | Digital Output Module | Discrete actuator control |
| Siemens S7-400 Analog Input Modules | Analog Input Module | Process signal acquisition |
| Siemens S7-400 Analog Output Modules | Analog Output Module | Analog control |
| Siemens S7-400 Communication Modules | Communication Module | Industrial network integration |
Key Advantages
- Central processing capability for S7-400 automation systems.
- Suitable for complex PLC control and coordinated I/O processing.
- Integrates into established S7-400 rack architectures.
- SIPLUS product family positioning supports demanding industrial applications.
- Suitable for centralized machine and process control.
- Useful as a replacement CPU when the existing hardware and configuration are compatible.
Technical FAQs
What should be checked before replacing a 6AG1416-5HS06-7AB0 CPU?
Check the complete order number, existing S7-400 hardware configuration, rack arrangement, application program, communication setup, and connected I/O. The replacement should match the functional requirements of the existing control system.
What happens if the CPU starts but connected I/O is not operating correctly?
Check the rack configuration, module connections, communication status, diagnostic information, and user program. A CPU startup without normal I/O operation can result from configuration mismatches, communication problems, or faults elsewhere in the rack.
Can the CPU be used as a standalone control component?
The CPU is intended to operate as part of an S7-400 automation system. Its practical function depends on the associated rack, power supply, I/O, communication components, and configured application program.
Why is the SIPLUS version relevant when selecting a replacement?
SIPLUS products are intended for industrial applications with more demanding environmental requirements than standard automation products. When replacing an existing SIPLUS CPU, the environmental specification of the installation should be considered rather than selecting a standard S7-400 CPU solely by basic processing function.
