Product Overview

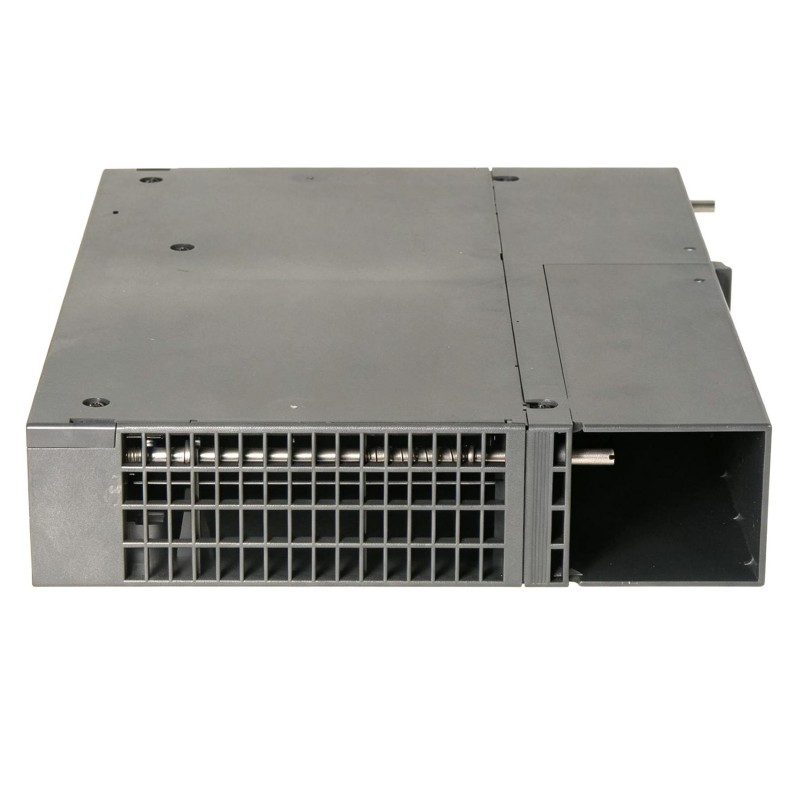

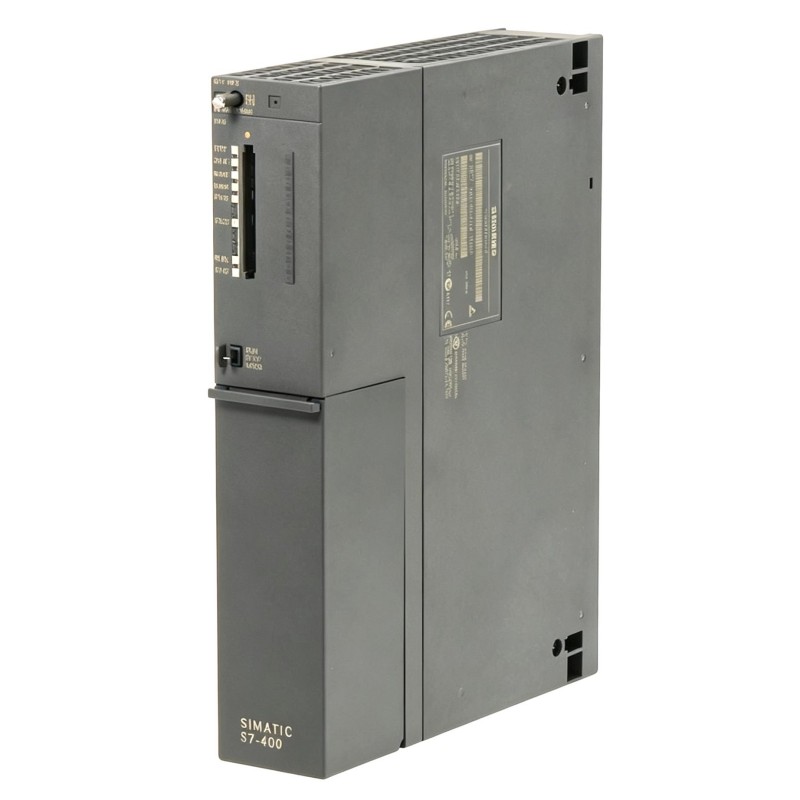

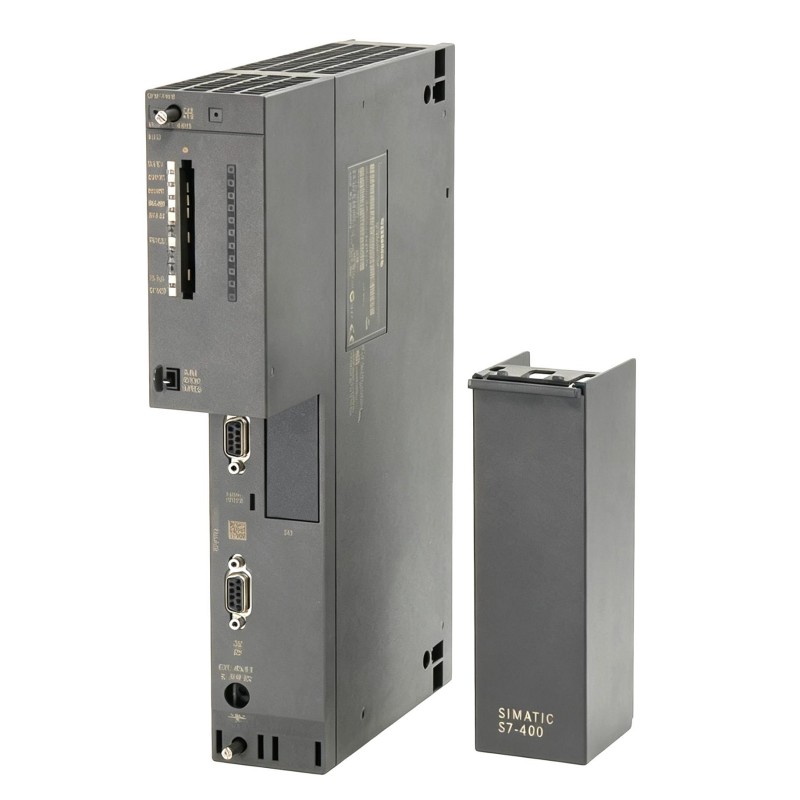

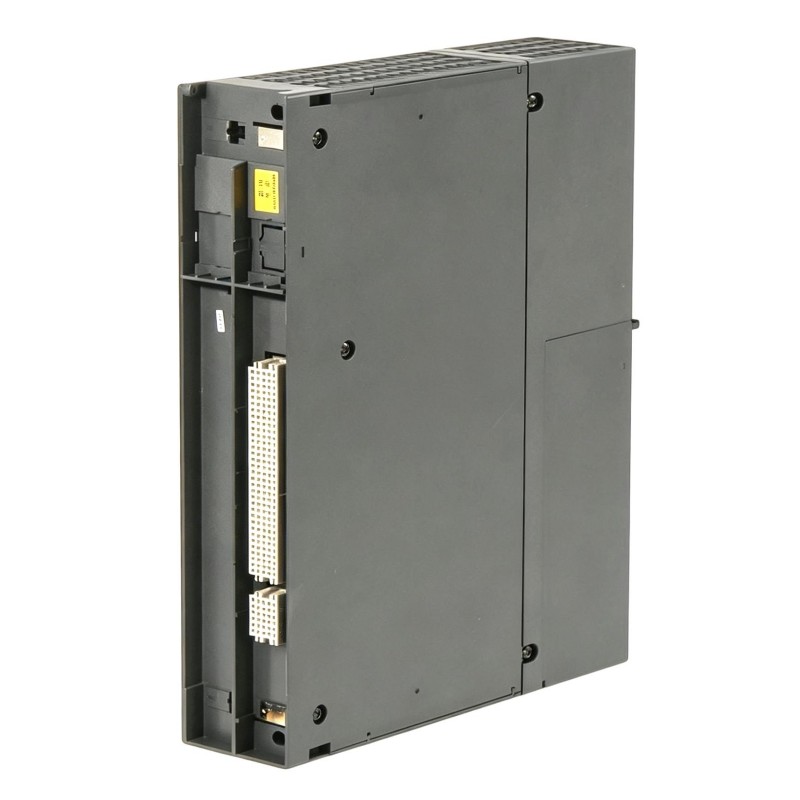

The Siemens 6AG1416-3XS07-7AB0 is a SIPLUS S7-400 CPU 416-3 central processing unit for high-performance SIMATIC S7-400 automation systems. It is based on the 6ES7416-3XS07-0AB0 standard CPU and adds conformal coating and an extended operating temperature range for more demanding industrial environments.
The CPU provides 16 MB of integrated work memory, divided into 8 MB for program and 8 MB for data. This memory capacity makes it suitable for larger control programs and automation applications with substantial data-processing requirements.
Communication is handled through three interface provisions: the first interface supports MPI/PROFIBUS DP at up to 12 Mbps, the second provides PROFIBUS DP, and the third accepts a pluggable IFM module. This arrangement allows the CPU to be integrated into S7-400 architectures with both programming/diagnostic connections and distributed field-level communication.
The SIPLUS construction is intended for installations where environmental conditions exceed those normally associated with standard control equipment. With its combination of higher processing capacity, multiple communication interfaces, and environmental protection, the CPU is suited to demanding process, manufacturing, infrastructure, and distributed automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1416-3XS07-7AB0 |
| Product Family | SIPLUS S7-400 CPU 416 |
| Product Type | SIPLUS S7-400 CPU 416-3 |
| Based On | 6ES7416-3XS07-0AB0 |
| CPU Type | CPU 416-3 |
| Work Memory | 16 MB |
| Program Memory | 8 MB |
| Data Memory | 8 MB |
| 1st Interface | MPI/DP, up to 12 Mbps |
| 2nd Interface | PROFIBUS DP |
| 3rd Interface | Plug-in IFM module |
| Operating Temperature | -25 to +70 °C |
| Environmental Protection | Conformal coating |
| Application | High-performance S7-400 automation systems |
| Dimensions | 50 × 290 × 219 mm |
| Weight | 1.082 kg |
Product Features
- CPU 416-3 platform for high-performance S7-400 automation.
- Provides 16 MB integrated work memory with separate program and data areas.
- First interface supports MPI/DP communication at up to 12 Mbps.
- Second interface provides PROFIBUS DP connectivity.
- Third interface accepts a pluggable IFM communication module.
- Supports demanding centralized and distributed S7-400 control architectures.
- Conformal coating increases suitability for challenging industrial environments.
- Extended operating temperature range from -25 to +70 °C.
- Supports PROFIBUS DP communication with distributed field devices.
Working Principle
Process Inputs → CPU 416-3 Processing → User Program Execution → Control Calculations → Output Commands / PROFIBUS Communication
The 6AG1416-3XS07-7AB0 receives process data from local S7-400 modules and connected PROFIBUS devices. The CPU executes the configured STEP 7 user program and processes the incoming signals according to the programmed control logic.
Its three interface provisions allow the controller to handle different communication requirements within the same S7-400 station:
- The MPI/DP interface supports programming, diagnostics, and PROFIBUS DP communication.
- The dedicated PROFIBUS DP interface connects distributed field devices and I/O.
- The IFM module interface allows an additional communication interface to be installed according to system requirements.
- The 16 MB work memory holds the program and working data required during controller operation.
- Process results are transferred to local I/O modules or distributed devices as control commands.
This arrangement allows the CPU to act as the central processing element while communication and I/O modules extend its connection to the physical process.
Role in a SIMATIC S7-400 Control Architecture
Engineering Station / HMI → MPI / PROFIBUS DP → CPU 416-3 → S7-400 Signal Modules / Distributed I/O → Sensors and Actuators
| System Element | Function |
|---|---|
| 6AG1416-3XS07-7AB0 CPU | Executes the user program and coordinates central control functions |
| S7-400 Rack | Provides the backplane and mechanical installation structure |
| S7-400 Power Supply | Supplies power to the controller station |
| S7-400 Signal Modules | Process digital and analog field signals |
| PROFIBUS DP Network | Connects distributed I/O and field devices |
| IFM Communication Module | Extends the CPU’s communication capabilities |
| SIMATIC HMI | Provides operator visualization and process control |
| Engineering Station | Handles programming, configuration, commissioning, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | High-performance PLC processing for complex process systems |
| Chemical Plants | Central control of distributed instrumentation and process equipment |
| Manufacturing Lines | Coordinating large I/O configurations and production machinery |
| Water and Wastewater | Control of pumps, valves, instrumentation, and treatment equipment |
| Power and Utilities | Automation of plant auxiliary and infrastructure systems |
| Material Handling | Coordination of conveyors, drives, sensors, and actuators |
| Large Machine Systems | Centralized control where substantial program and data capacity is required |
Installation and Maintenance
- Verify that the CPU part number matches the planned S7-400 hardware and software configuration.
- Switch off the relevant rack power before installing or removing the CPU.
- Install the CPU in the designated S7-400 rack position.
- Connect the required MPI/DP and PROFIBUS DP networks.
- Install the appropriate IFM module if an additional communication function is required.
- Load the correct hardware configuration and STEP 7 user program.
- Check PROFIBUS addresses, network parameters, and connected distributed devices before commissioning.
- Power up the station and inspect CPU diagnostic indicators.
- Verify communication with local I/O, distributed I/O, HMI equipment, and engineering stations.
- During preventive maintenance, inspect rack contacts, communication connectors, cables, and IFM connections.
- Keep unused interfaces protected with the appropriate connector covers during operation.
- Back up the existing program and configuration before replacing the CPU.
- After replacement, verify memory configuration, communication parameters, I/O operation, and CPU diagnostics before returning the system to service.
Related Components / Compatible System Components
| Component | Function |
|---|---|
| SIMATIC S7-400 Rack | Provides the CPU mounting and backplane infrastructure |
| S7-400 Power Supply Module | Supplies operating power to the automation station |
| S7-400 Digital I/O Modules | Process discrete field signals |
| S7-400 Analog I/O Modules | Process analog measurement and control signals |
| PROFIBUS DP Devices | Connect distributed field-level equipment |
| IFM Communication Module | Adds an additional communication interface to the CPU |
| SIMATIC Memory Card | Provides load-memory storage for the controller |
| SIMATIC HMI | Provides operator monitoring and control |
| Engineering Station | Used for PLC configuration, programming, and diagnostics |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1416-3XS07-7AB0 | SIPLUS S7-400 CPU 416-3 | High-performance S7-400 control |
| Siemens 6AG1416-3ES07-7AB0 | SIPLUS S7-400 CPU 416-3 PN/DP | S7-400 control with PROFINET and PROFIBUS communication |
| Siemens 6AG1414-3EM07-7AB0 | SIPLUS S7-400 CPU 414-3 PN/DP | S7-400 control with integrated PN/DP communication |
| Siemens 6AG1414-5HM06-7AB0 | SIPLUS S7-400 CPU 414-5H | High-availability S7-400H control |
| Siemens 6AG1416-5HS06-7AB0 | SIPLUS S7-400 CPU 416-5H | Higher-performance redundant automation |
| Siemens SIPLUS S7-400 Signal Modules | SIPLUS I/O Modules | Extended-environment S7-400 I/O systems |
Key Advantages
- Provides 16 MB work memory for demanding S7-400 control programs.
- Separates program and data memory into dedicated 8 MB areas.
- Combines MPI/DP and PROFIBUS DP communication capabilities.
- Supports an additional pluggable IFM communication module.
- Suitable for larger S7-400 applications with extensive data and I/O requirements.
- Conformal coating and extended temperature capability support demanding installation environments.
- Integrates with the established S7-400 modular control architecture.
Technical FAQs
What is the main difference between 6AG1416-3XS07-7AB0 and the standard CPU 416-3?
The 6AG1416-3XS07-7AB0 is a SIPLUS version based on 6ES7416-3XS07-0AB0. It adds conformal coating and an extended operating temperature range of -25 to +70 °C, making it more suitable for demanding environmental conditions.
How much work memory does the 6AG1416-3XS07-7AB0 provide?
The CPU has 16 MB of integrated work memory, consisting of 8 MB for program processing and 8 MB for data. The load memory can also be expanded using a compatible memory card.
What is the purpose of the third IFM interface?
The third interface accepts a pluggable IFM module, allowing the S7-400 CPU to gain an additional communication function according to the requirements of the automation system.
Is this CPU suitable for PROFIBUS DP distributed I/O?
Yes. The CPU has a dedicated PROFIBUS DP interface and can communicate with compatible distributed I/O and field devices. The exact network architecture depends on the selected DP devices and the STEP 7 hardware configuration.
