Product Overview

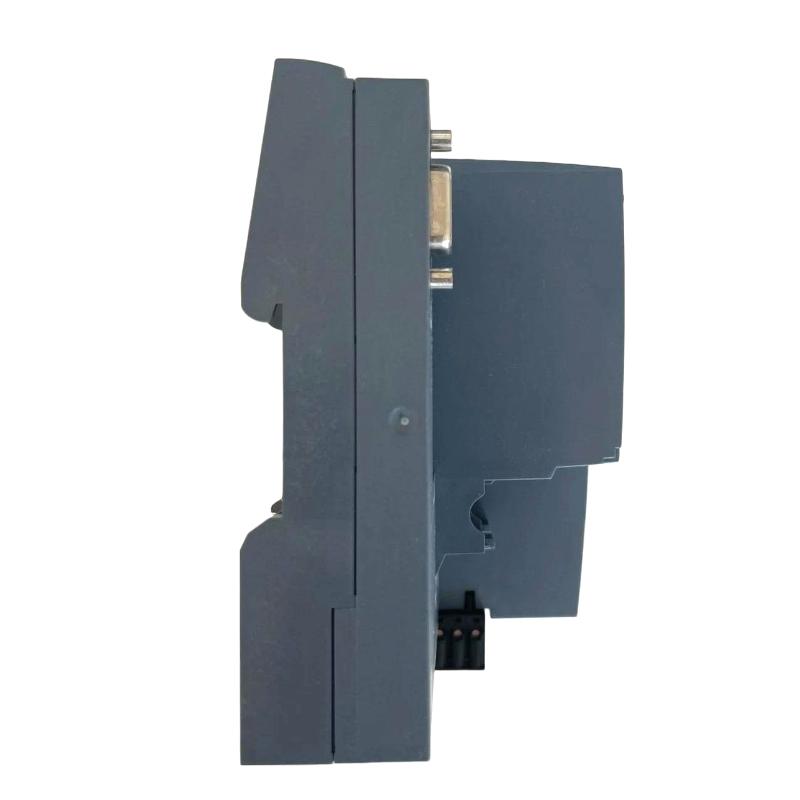

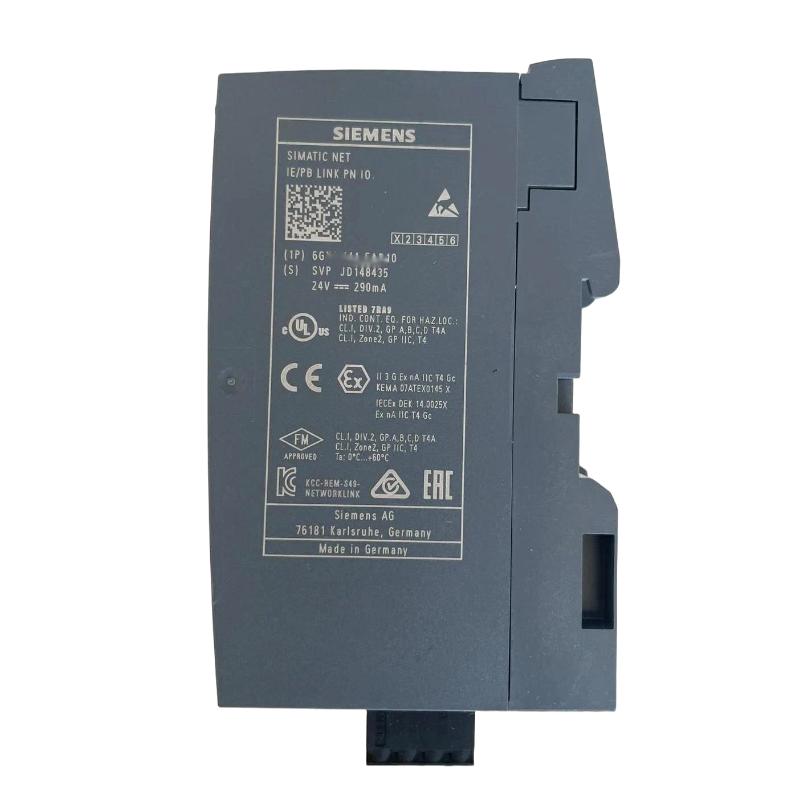

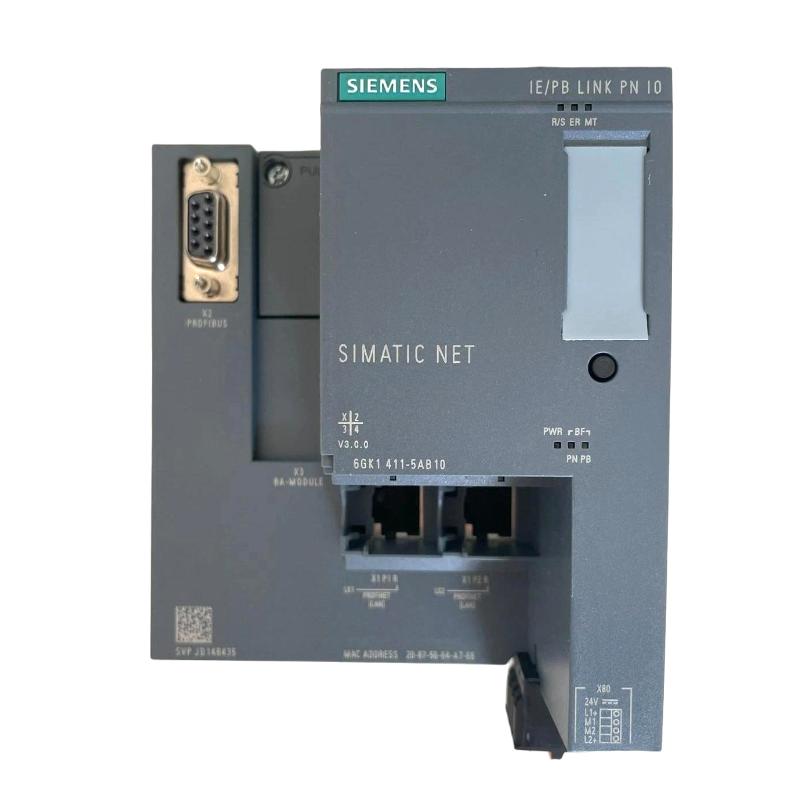

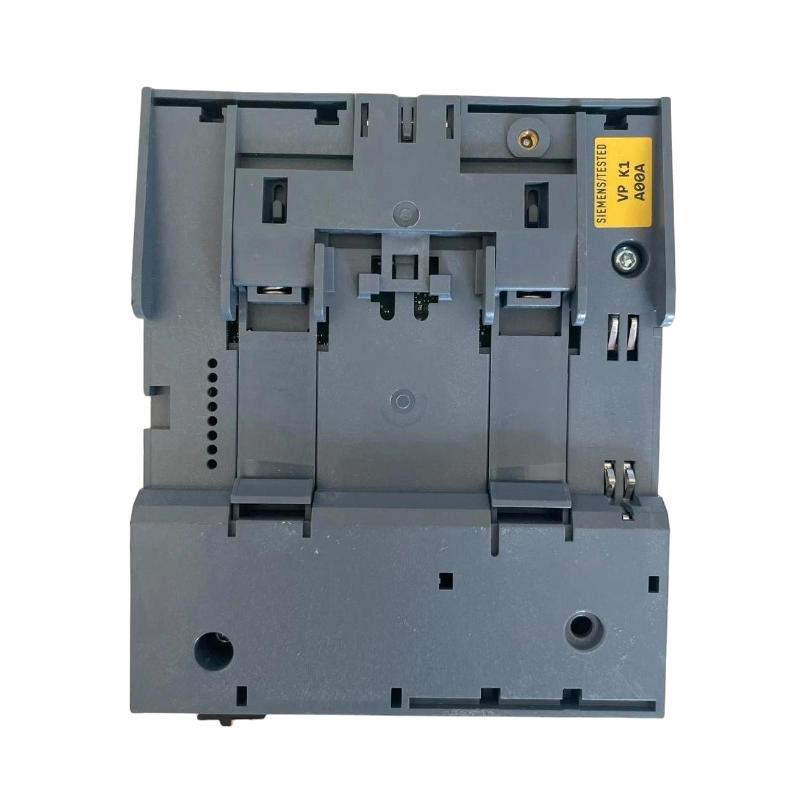

The Siemens 6AG1411-5AB10-2AA0 is a SIPLUS NET IE/PB LINK PROFINET I/O Gateway Module used to connect PROFIBUS-based field devices with PROFINET communication environments. It serves as a communication bridge in automation architectures where existing PROFIBUS equipment needs to exchange process data with a PROFINET-based control system.
In a typical installation, the module connects a PROFIBUS field network on one side with an Industrial Ethernet / PROFINET network on the other. This allows compatible PROFIBUS devices and distributed I/O stations to exchange cyclic process information with a PROFINET controller without requiring the complete field-level infrastructure to be replaced.
The gateway is particularly useful during modernization projects where established PROFIBUS installations are being integrated into newer PROFINET control architectures. It can also be applied in mixed-network systems where different communication generations must operate together within the same automation environment.
The module handles the communication conversion between the connected network segments while maintaining the configured process-data exchange. This makes it suitable for machine automation, production systems, process equipment, and distributed I/O architectures requiring integration between PROFIBUS and PROFINET.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AG1411-5AB10-2AA0 |
| Product Family | SIPLUS NET |
| Product Series | IE/PB LINK |
| Product Type | PROFINET I/O Gateway Module |
| Primary Function | PROFIBUS to PROFINET communication gateway |
| System Role | Network interface / gateway |
| Communication Environment | PROFINET / PROFIBUS |
| Application | Industrial automation and distributed I/O communication |
| Dimensions | 100 × 117 × 74 mm |
| Weight | 0.351 kg |
Product Features
- SIPLUS NET IE/PB LINK gateway for integrating PROFIBUS and PROFINET networks.
- Connects compatible PROFIBUS field-level devices with PROFINET-based automation systems.
- Supports communication between different industrial network segments.
- Suitable for distributed I/O architectures and mixed-generation automation installations.
- Useful for modernization projects that retain existing PROFIBUS infrastructure.
- Provides a practical interface between established field networks and Industrial Ethernet architectures.
- Can be integrated into Siemens automation systems using compatible network components.
Working Principle
The module operates as a communication gateway between the PROFIBUS and PROFINET sides of an automation network. Process data originating from connected PROFIBUS devices is received by the gateway and made available to the PROFINET control environment according to the configured communication structure.
In the opposite direction, process data and control information from the PROFINET side are transferred through the gateway toward the connected PROFIBUS network. The gateway therefore separates the two communication domains while maintaining the required data exchange between the controller and field-level equipment.
PROFINET Controller → 6AG1411-5AB10-2AA0 → PROFIBUS Network → Field Devices / I/O
This arrangement allows an existing PROFIBUS segment to remain in service while the higher-level automation architecture is migrated toward PROFINET.
Role in a PROFINET / PROFIBUS Control Architecture
The 6AG1411-5AB10-2AA0 occupies the interface position between the Industrial Ethernet / PROFINET control network and the PROFIBUS field network. It is especially useful when a controller or automation station communicates through PROFINET while field equipment remains connected through PROFIBUS.
Architecture chain
PROFINET Controller → Industrial Ethernet → IE/PB LINK → PROFIBUS Segment → PROFIBUS I/O / Field Devices
| System Element | Function |
|---|---|
| PROFINET Controller | Executes the automation program and manages process data |
| Industrial Ethernet / PROFINET | Transfers controller and process information |
| 6AG1411-5AB10-2AA0 | Provides the gateway between PROFINET and PROFIBUS |
| PROFIBUS Network | Connects field-level automation equipment |
| PROFIBUS I/O | Acquires field signals and controls connected devices |
| Field Devices | Measure process conditions or execute control commands |
Industrial Applications
| Application | Typical Use |
|---|---|
| Factory Automation | Integration of PROFIBUS equipment into PROFINET control systems |
| Machine Building | Connecting legacy PROFIBUS devices to newer Ethernet-based controllers |
| Production Lines | Maintaining existing distributed I/O while upgrading the control network |
| Process Equipment | Linking field-level PROFIBUS devices with higher-level automation systems |
| System Modernization | Migrating network architecture without replacing all existing field devices |
| Distributed I/O Systems | Communication between PROFINET controllers and PROFIBUS I/O stations |
Installation and Maintenance
- Verify the required PROFINET and PROFIBUS network architecture before installation.
- Confirm that the connected controller and PROFIBUS devices are compatible with the configured gateway arrangement.
- Install the module according to the applicable Siemens automation-system configuration.
- Connect the PROFINET side to the appropriate Industrial Ethernet network.
- Connect the PROFIBUS side to the intended field network using the correct PROFIBUS infrastructure.
- Check network addressing and device configuration before starting communication.
- Verify the PROFIBUS station configuration and connected field devices.
- Confirm that the PROFINET controller recognizes the gateway and configured downstream devices.
- Check diagnostic indicators during commissioning to identify communication or configuration problems.
- Inspect network connectors and cables when intermittent communication faults occur.
- When replacing the gateway, record the existing hardware and network configuration before removing the original module.
- After replacement, verify communication in both directions and confirm that the connected I/O data is correctly exchanged with the controller.
Related Components
| Component | Function |
|---|---|
| Siemens PROFINET Controller | Controls the PROFINET automation network |
| PROFIBUS Master / Controller | Manages communication with PROFIBUS devices |
| PROFIBUS I/O Modules | Provides distributed field I/O |
| PROFINET I/O Devices | Connects field equipment to the Ethernet-based automation network |
| Industrial Ethernet Switches | Provides network connectivity for PROFINET infrastructure |
| PROFIBUS Connectors | Provides physical connection to the PROFIBUS segment |
| PROFIBUS Cables | Carries communication signals between field devices |
| Siemens SIMATIC / SIPLUS Modules | Provides compatible automation and I/O functions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens SIPLUS NET IE/PB LINK | PROFINET / PROFIBUS Gateway | Network integration |
| Siemens IE/PB LINK Series | Network Gateway | PROFIBUS to Industrial Ethernet communication |
| Siemens SIPLUS PROFINET Interface Modules | PROFINET Interface | Ethernet-based automation communication |
| Siemens SIPLUS PROFIBUS Interface Modules | PROFIBUS Interface | PROFIBUS field communication |
| Siemens SIMATIC ET 200 Distributed I/O | Distributed I/O System | Remote process signal acquisition and control |
| Siemens S7-300 / S7-400 Communication Modules | Communication Module | PLC network integration |
| Siemens SIPLUS Communication Modules | Industrial Communication Module | Harsh-environment automation networking |
| Siemens Industrial Ethernet Switches | Network Switch | PROFINET network infrastructure |
Key Advantages
- Bridges established PROFIBUS installations with PROFINET automation networks.
- Supports gradual migration from PROFIBUS to Industrial Ethernet architectures.
- Reduces the need to replace existing PROFIBUS field equipment during system modernization.
- Suitable for distributed I/O and mixed-network automation systems.
- Integrates communication between different industrial network levels.
- Provides a practical interface for Siemens automation architectures using PROFINET and PROFIBUS.
Technical FAQs
What is the main network boundary handled by the 6AG1411-5AB10-2AA0?
The module sits between a PROFINET / Industrial Ethernet environment and a PROFIBUS segment. Its primary function is to allow process data to move between these two communication domains within a configured automation architecture.
How can this gateway be used when modernizing an existing PROFIBUS installation?
The existing PROFIBUS field devices can remain connected to their established field network while the supervisory controller or newer automation infrastructure communicates through PROFINET. This approach allows the network architecture to be upgraded in stages rather than replacing every field device at once.
What should be investigated if the PROFINET controller cannot access downstream PROFIBUS devices?
The troubleshooting sequence should include PROFINET configuration, gateway recognition, PROFIBUS station configuration, network addressing, physical connections, and diagnostic information from both communication segments. A fault on either side can prevent the controller from receiving the expected field data.
Why is the gateway useful in a mixed-generation Siemens automation system?
Many industrial plants contain established PROFIBUS equipment alongside newer PROFINET controllers and Ethernet-based infrastructure. A gateway such as the 6AG1411-5AB10-2AA0 allows these technologies to coexist, helping maintain existing field equipment while extending the automation architecture with newer network technology.
