Product Overview

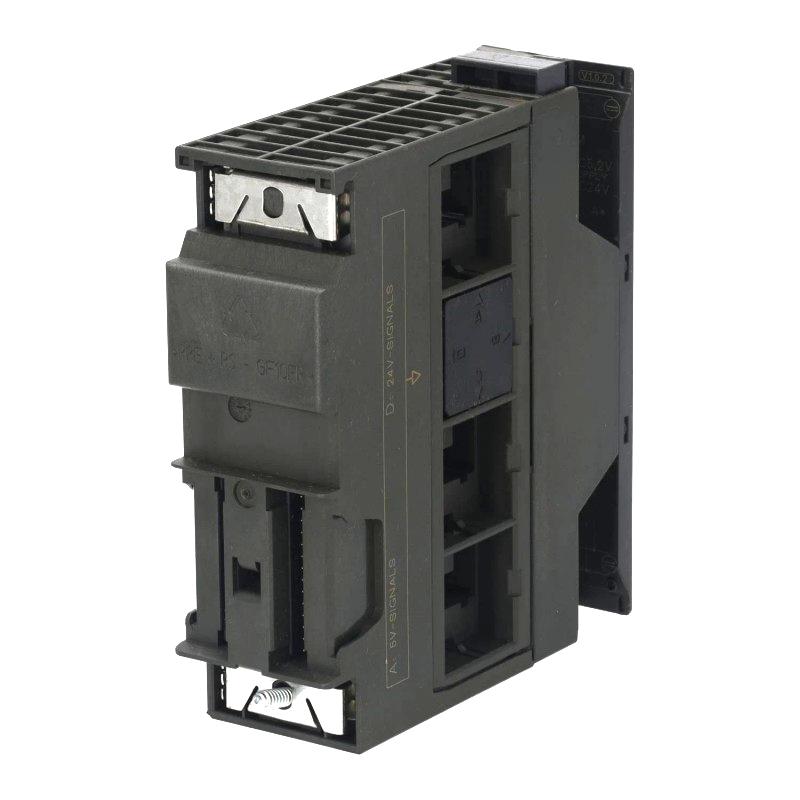

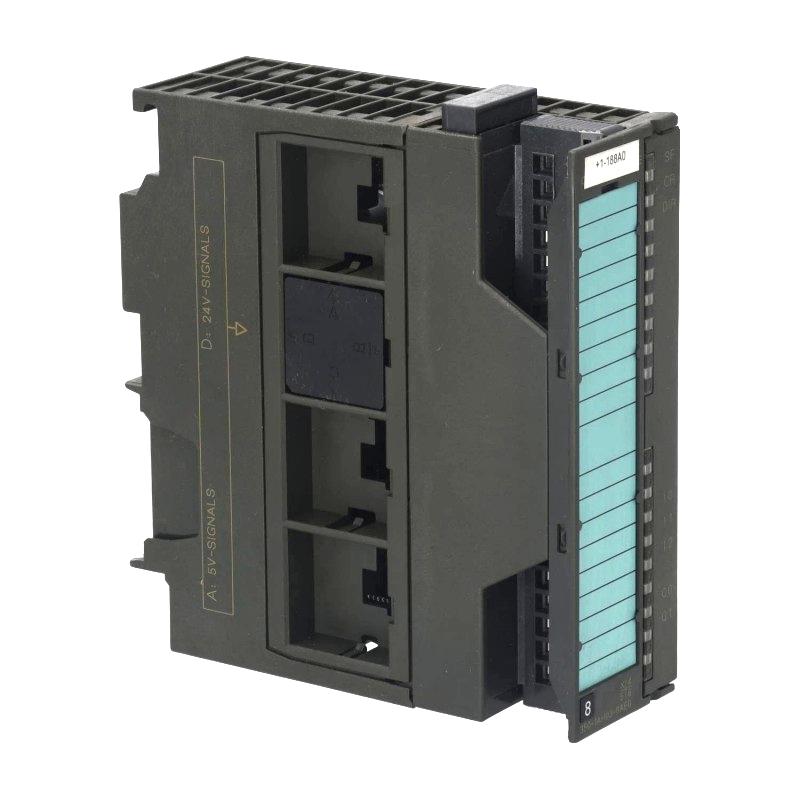

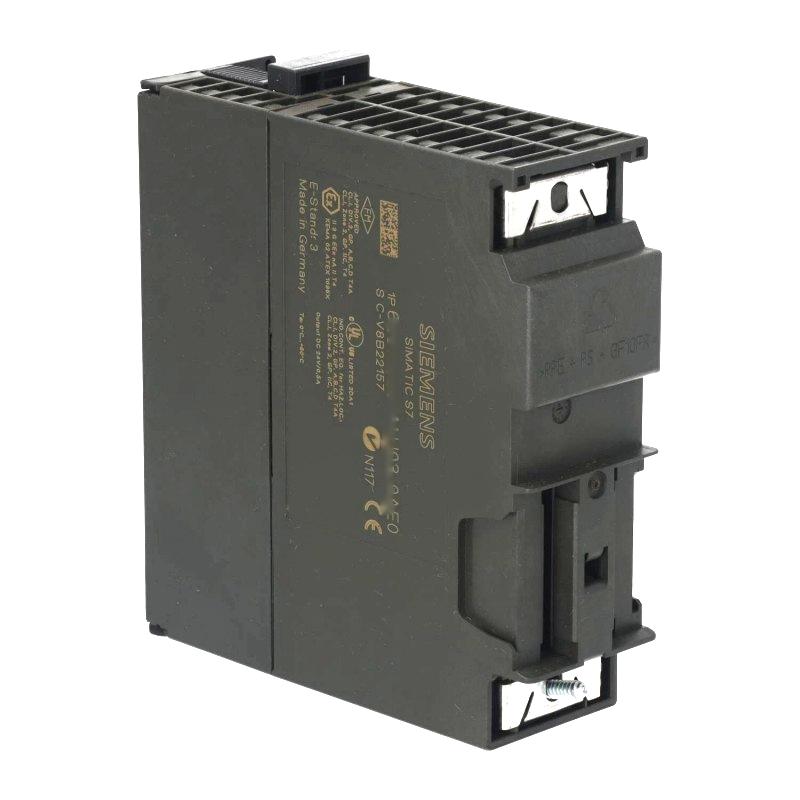

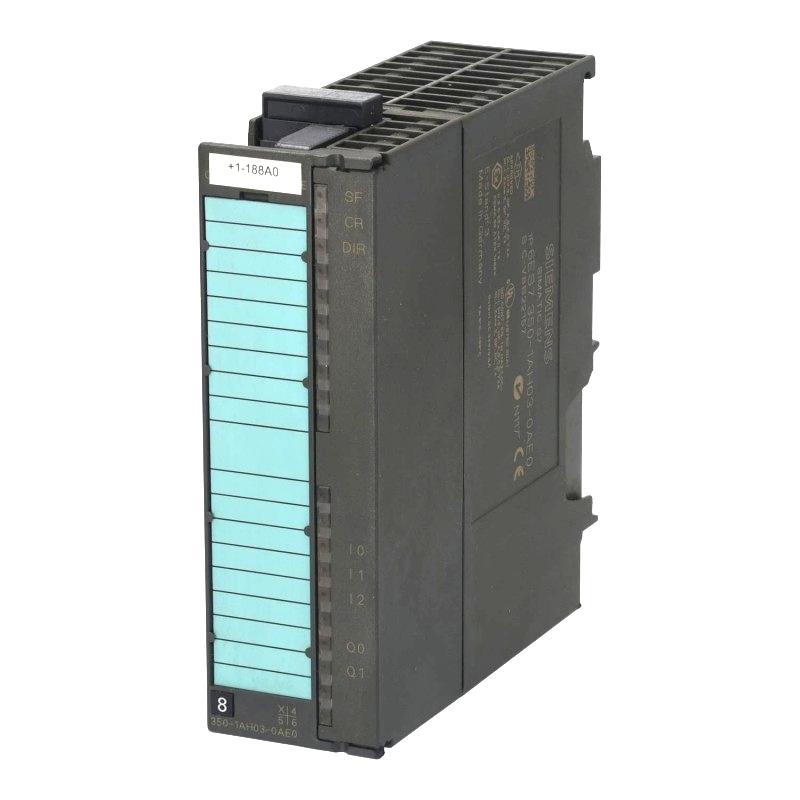

The Siemens 6AG1350-1AH03-2AY0 is a SIPLUS S7-300 FM 350-1 high-speed counter module for machine applications where pulse signals need to be captured and evaluated independently of the standard PLC scan cycle. It is suited to tasks such as product counting, rotary speed measurement, encoder monitoring, and other machine processes in which pulse timing has to be handled directly by dedicated counter hardware.

In a production line, for example, an incremental encoder can send pulses representing conveyor movement or shaft rotation to the FM 350-1. The module processes those signals while the S7-300 CPU continues executing the main automation program. This arrangement is useful when fast pulse acquisition would otherwise place unnecessary timing demands on the CPU program.

The 6AG1350-1AH03-2AY0 belongs to the SIPLUS version of the S7-300 FM 350-1 and is intended for industrial installations requiring the environmental characteristics of the SIPLUS range. Its single-channel counter architecture can be used for continuous, single, or periodic counting as well as frequency, period, and speed measurement.

Technical Specifications

Product Features

• Single-channel high-speed counter for SIMATIC S7-300 systems.
• Processes fast pulse signals through dedicated counting hardware.
• Supports continuous, single, and periodic counting modes.
• Provides frequency, period, and speed measurement functions.
• Suitable for incremental encoder and other pulse-based applications.
• Supports counting control through software and hardware gate functions.
• Can be used in central S7-300 configurations and suitable ET 200M architectures.
• SIPLUS version intended for applications with extended environmental requirements.

Working Principle

The FM 350-1 receives pulse signals from an encoder or other suitable signal source and performs the counting operation directly within the module. The S7-300 CPU does not need to monitor each individual pulse through its normal program scan, which allows the control program to concentrate on the wider machine sequence.

For a conveyor application, encoder pulses can represent a defined distance of material movement. The FM 350-1 counts these pulses and makes the resulting value available to the PLC program for production tracking, positioning-related logic, or machine monitoring.

The module can also evaluate pulse timing rather than simply accumulating pulses. Depending on the selected operating mode, the same input signal can be used to determine frequency, period, or rotational speed. This is useful for applications involving motors, rollers, shafts, and other rotating equipment.

The counting window can be controlled by a software gate from the PLC program or by an external hardware gate signal. This allows the counting operation to be synchronized with machine events without requiring the CPU to perform high-frequency pulse processing itself.

Role in a SIMATIC S7-300 Counting System

Industrial Applications

Installation and Maintenance

1. Check the S7-300 hardware configuration — Confirm that the module is suitable for the intended rack and controller arrangement.
2. Install the module securely — Make sure the module is correctly seated and the backplane connection is properly established.
3. Connect the signal source — Wire the incremental encoder or pulse sensor according to the selected input arrangement.
4. Keep high-speed signal wiring clean — Separate encoder cables from strong power cables where possible and maintain appropriate shielding and grounding.
5. Configure the counting mode — Select the required counting, frequency, period, or speed measurement function.
6. Set the counting gate — Configure the software or hardware gate according to the machine sequence.
7. Verify pulse direction and scaling — Confirm that the actual encoder signal corresponds to the expected machine movement and count relationship.
8. Test under operating conditions — Compare counter values with actual production counts or mechanical movement during commissioning.
9. Inspect the module and wiring periodically — Check connectors, encoder cables, shielding, and module seating during scheduled maintenance.

Related Components

Recommended Related Models

Key Advantages

• Dedicated hardware processing for high-speed pulse counting.
• Supports both counting and measurement functions.
• Suitable for encoder-based speed and movement monitoring.
• Reduces the need for high-frequency pulse processing inside the S7-300 CPU program.
• Provides software and hardware gate options for machine synchronization.
• Fits established S7-300 automation architectures.
• SIPLUS configuration supports extended environmental application requirements.

Technical FAQs

What type of signals can the FM 350-1 process?

The module is intended primarily for high-speed pulse signals, including signals generated by incremental encoders and other suitable pulse sources. The actual input configuration should match the selected sensor and signal characteristics.

Why use the FM 350-1 instead of counting pulses directly in the S7-300 CPU?

A dedicated counter module can process high-frequency pulses independently of the normal CPU scan cycle. This avoids relying on program-cycle timing for every pulse and is particularly useful when the input frequency is too high for conventional PLC logic.

How can the 6AG1350-1AH03-2AY0 be used for speed monitoring?

An encoder connected to the counter input generates pulses as the monitored shaft or machine element rotates. By evaluating the pulse frequency or period, the module can provide information used to determine rotational speed.

What should be checked if the counter value does not match the actual machine movement?

First check the encoder wiring, signal quality, pulse configuration, scaling, counting mode, and mechanical relationship between encoder pulses and machine movement. Incorrect signal connections or an incorrect pulse-to-unit conversion can produce apparently incorrect count values even when the module itself is functioning normally.
