Product Overview

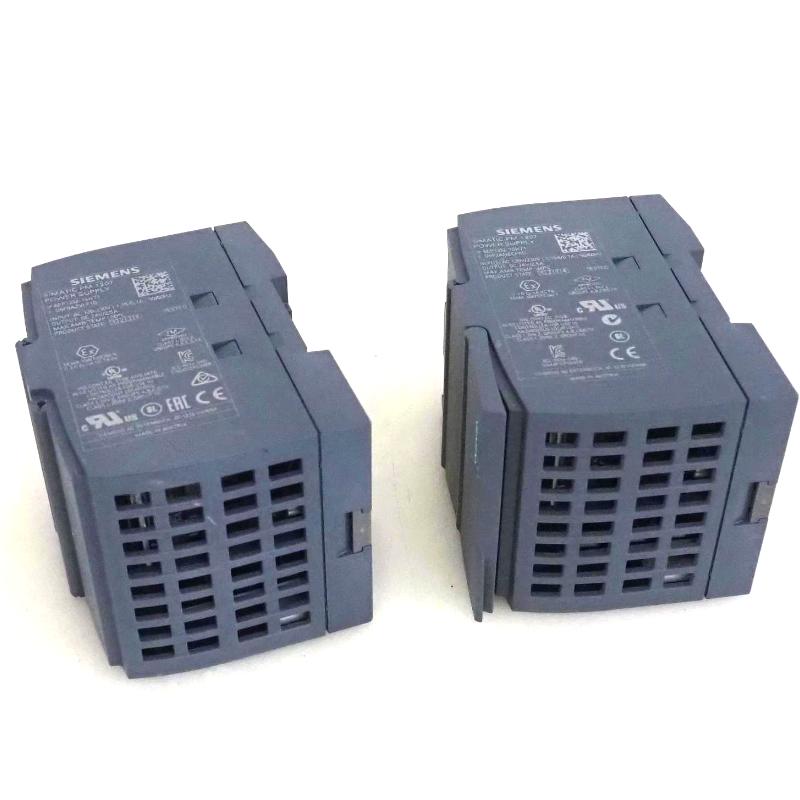

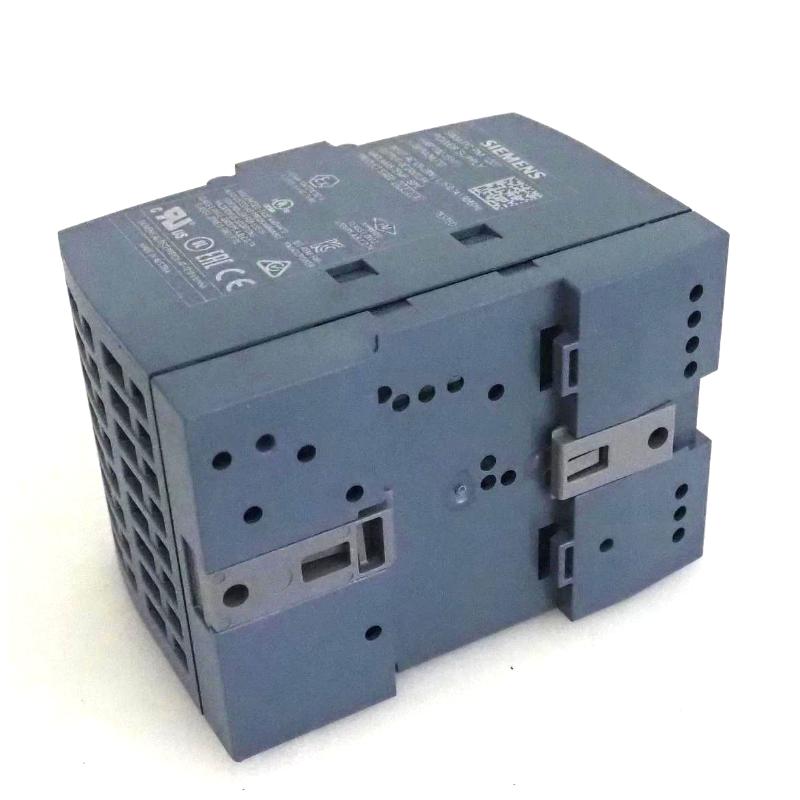

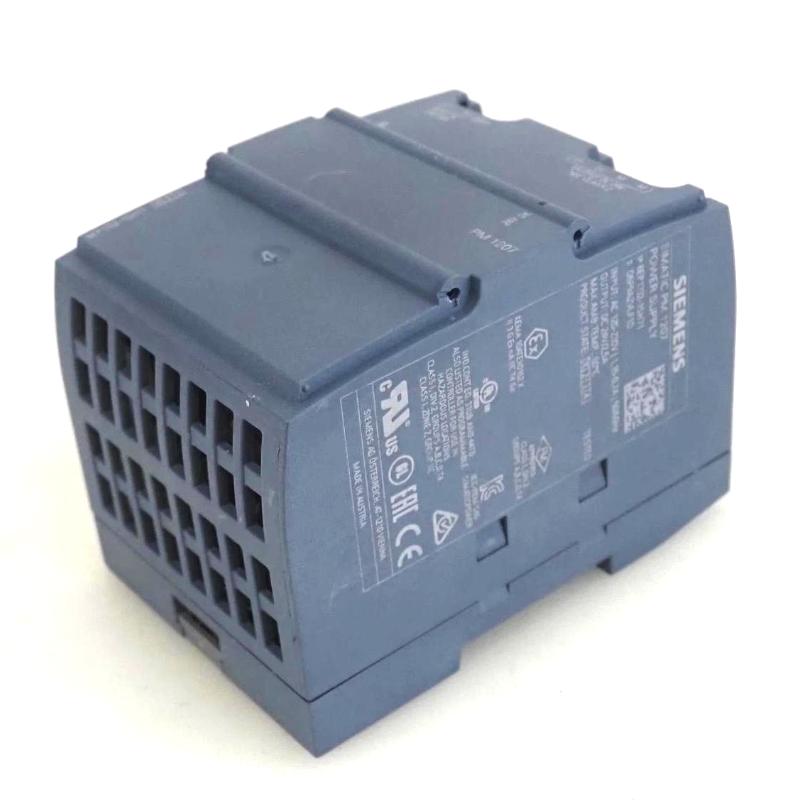

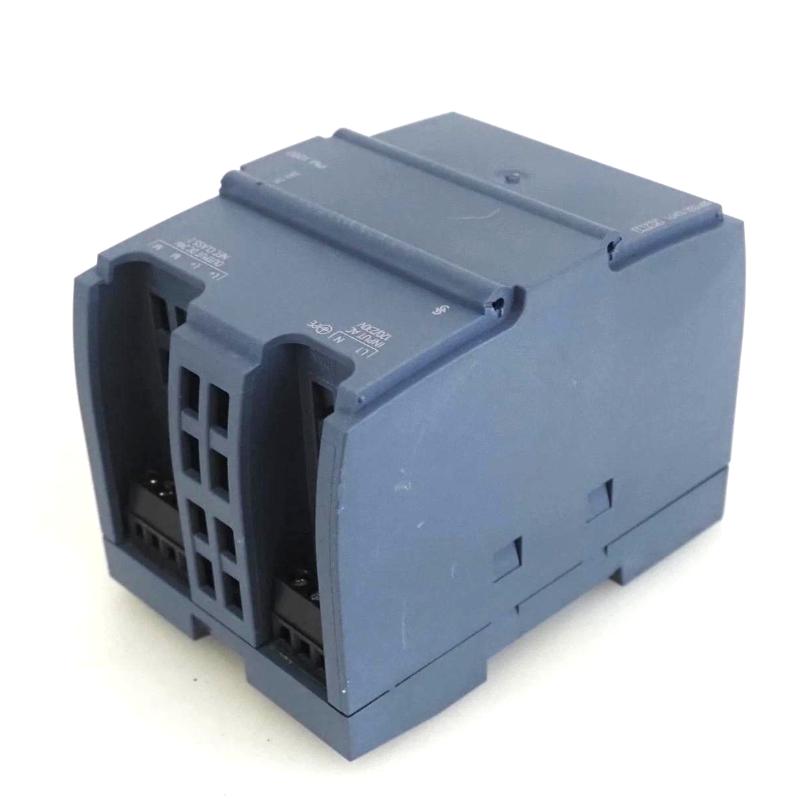

The Siemens 6AG1332-1SH71-7AA0 SIPLUS S7-1200 Power Supply Module is a power supply component used in Siemens SIPLUS S7-1200 automation systems. It supports the electrical operation of PLC hardware by supplying power within the control system architecture.
In compact automation applications, the power supply section directly affects the availability of the entire PLC installation. The CPU, signal modules, communication modules, and other connected devices require a suitable power source to operate correctly. A properly configured power supply helps maintain consistent operation of the control cabinet and reduces interruptions caused by unstable electrical conditions.
Unlike S7-1200 signal modules that handle field data acquisition or output control, this module is responsible for the energy supply layer of the automation system. It works as part of the supporting infrastructure that allows the PLC hardware to execute control tasks.
The SIPLUS version is commonly applied in industrial environments where automation equipment needs additional environmental suitability. It is often used in existing S7-1200 installations, machine control systems, and retrofit projects where maintaining the current Siemens platform is preferred.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1332-1SH71-7AA0 |
| Product Family | SIPLUS S7-1200 |
| Product Type | Power Supply Module |
| System Series | S7-1200 Automation System |
| Main Function | PLC system power supply |
| Installation Type | Control Cabinet / PLC System Installation |
| Application | Industrial Automation |
| Dimensions | 70 × 100 × 75 mm |
| Weight | 0.3 kg |
Product Features
The Siemens 6AG1332-1SH71-7AA0 SIPLUS S7-1200 Power Supply Module is used to support the power requirements of S7-1200 based control systems.
Key characteristics include:
- Siemens SIPLUS S7-1200 series power supply module
- Provides power support for PLC system components
- Designed for compact automation installations
- Suitable for industrial control cabinet applications
- Supports existing S7-1200 system configurations
- Used in applications requiring SIPLUS hardware characteristics
- Works together with CPU, I/O, and communication modules
- Suitable for PLC replacement and expansion projects
The module should be selected according to the complete automation system design, including connected modules, power requirements, and environmental conditions.
Working Principle
The 6AG1332-1SH71-7AA0 operates as the power distribution component within an S7-1200 automation system.
A simplified structure can be described as:
Electrical Supply → SIPLUS Power Supply Module → S7-1200 PLC Hardware → Control System Operation
During operation, the module receives electrical input and supplies the required power for compatible automation components. This allows the PLC hardware to maintain normal processing, communication, and I/O operation.
Its practical role includes:
- Supporting PLC hardware startup
- Maintaining power availability for connected modules
- Providing a dedicated power source within the control cabinet
- Supporting continuous operation of automation equipment
The module itself does not process control programs or collect field signals. Instead, it provides the electrical foundation required for other PLC components to perform their functions.
Role in an S7-1200 Control Architecture
The Siemens 6AG1332-1SH71-7AA0 belongs to the power supply layer of an S7-1200 automation system.
A typical control structure can be viewed as:
Industrial Power Source → SIPLUS Power Supply Module → S7-1200 CPU → Signal Modules → Field Equipment
The power supply module supports the operation of the controller and connected expansion hardware. If the power section experiences problems, symptoms may appear in other areas, including CPU status, communication availability, or module operation.
For maintenance engineers, checking the power supply path is an important step when diagnosing PLC system interruptions.
Industrial Applications
The Siemens 6AG1332-1SH71-7AA0 SIPLUS S7-1200 Power Supply Module is used in industrial automation systems requiring a dedicated PLC power component.
| Application | Typical Use |
|---|---|
| Machine Automation | Power support for PLC control cabinets |
| Packaging Equipment | Supporting compact S7-1200 installations |
| Manufacturing Systems | Maintaining controller operation |
| Industrial Panels | Integration into automation enclosures |
| Process Monitoring Equipment | Supporting PLC infrastructure |
| Retrofit Projects | Replacing existing power modules |
| Factory Automation | Providing system-level power support |
The final application depends on the PLC configuration and electrical design of the automation system.
Installation and Maintenance
Installation of the 6AG1332-1SH71-7AA0 should be performed after confirming the electrical requirements of the complete S7-1200 system.
Recommended maintenance procedures include:
- Verify the correct module model before installation
- Check the system power configuration
- Inspect wiring and terminal connections
- Confirm cabinet installation conditions
- Verify connection with PLC components
- Monitor system behavior after startup
- Check for abnormal heating or operating conditions
- Record replacement and maintenance information
When PLC faults occur, technicians should evaluate the power supply module together with input voltage conditions, wiring, connected loads, and controller status.
Related Components
The 6AG1332-1SH71-7AA0 operates together with other S7-1200 automation components.
| Component | Function |
|---|---|
| Siemens S7-1200 CPU Module | Executes user control programs |
| S7-1200 Signal Modules | Expands system input and output functions |
| S7-1200 Communication Modules | Provides network communication |
| Analog Input Modules | Collect continuous measurement signals |
| Digital Input Modules | Collect switching signals |
| Terminal Blocks | Provide electrical connections |
| Engineering Software | Configures and diagnoses PLC hardware |
| Field Devices | Provide process information or receive commands |
The complete PLC system depends on correct matching between the power supply, controller, expansion modules, and field equipment.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1332-1SH71-7AA0 | SIPLUS S7-1200 Power Supply Module | PLC system power support |
| Siemens 6AG1332-1SH71-4AA0 | SIPLUS S7-1200 Power Supply Module | S7-1200 power supply applications |
| Siemens S7-1200 Power Supply Modules | PLC Power Components | Standard automation power supply |
| Siemens SIPLUS S7-1200 CPU Modules | PLC Controller Modules | Control logic execution |
| Siemens SIPLUS S7-1200 Signal Modules | PLC Expansion Modules | Additional system I/O |
Selection should be based on the PLC architecture, electrical requirements, and environmental conditions of the installation.
Key Advantages
- Siemens SIPLUS S7-1200 power supply module.
- Supports power requirements of S7-1200 automation systems.
- Suitable for compact industrial control applications.
- Integrates with Siemens PLC hardware architectures.
- Supports existing system maintenance and expansion.
- Suitable for industrial environments requiring SIPLUS components.
Technical FAQs
What is the main difference between a power supply module and an S7-1200 signal module?
A power supply module supports the electrical operation of the PLC hardware, while signal modules are responsible for collecting field inputs or controlling outputs.
What symptoms may indicate a problem with the 6AG1332-1SH71-7AA0?
Possible signs include PLC startup issues, unexpected module shutdowns, communication interruptions, or abnormal system behavior related to power conditions.
What should be checked before replacing this SIPLUS power supply module?
Technicians should confirm the module model, system configuration, wiring connections, power requirements, and the condition of connected PLC hardware.
Why are SIPLUS power supply modules used in some industrial control cabinets?
They are commonly selected for automation installations where environmental conditions require hardware with enhanced industrial suitability compared with standard components.
