Product Overview

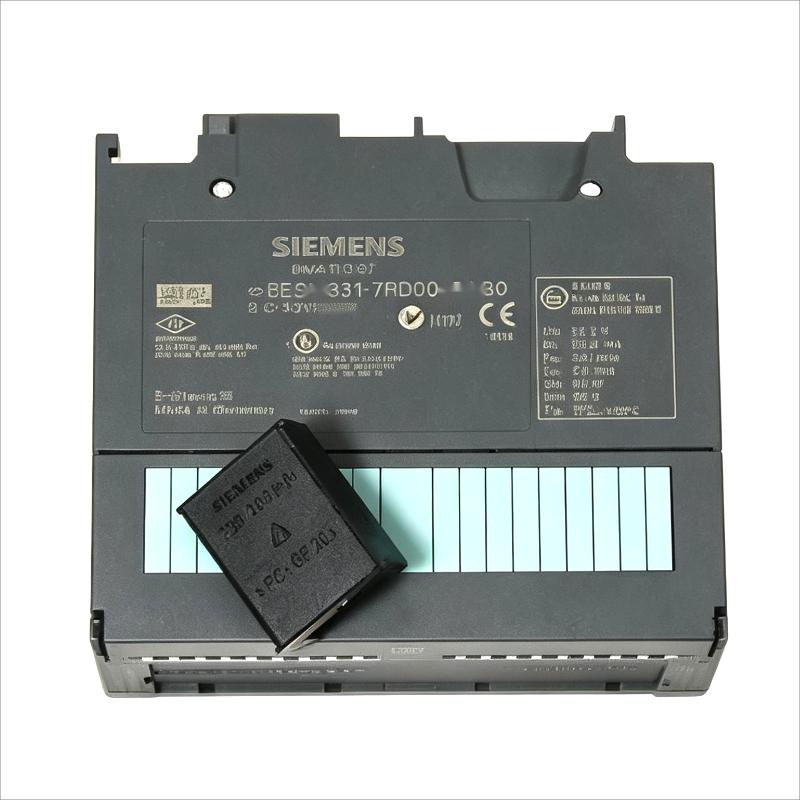

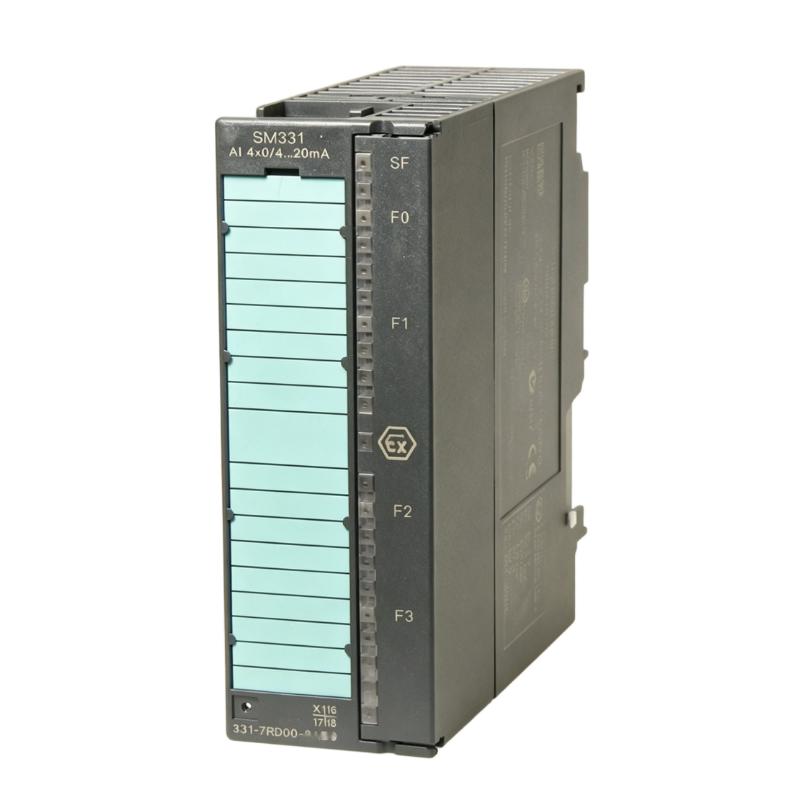

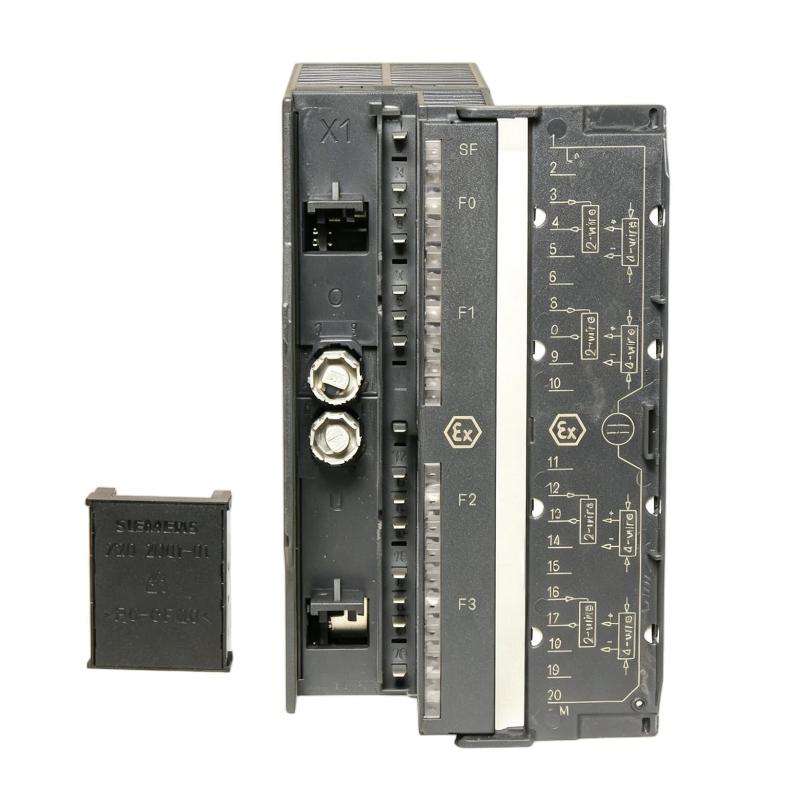

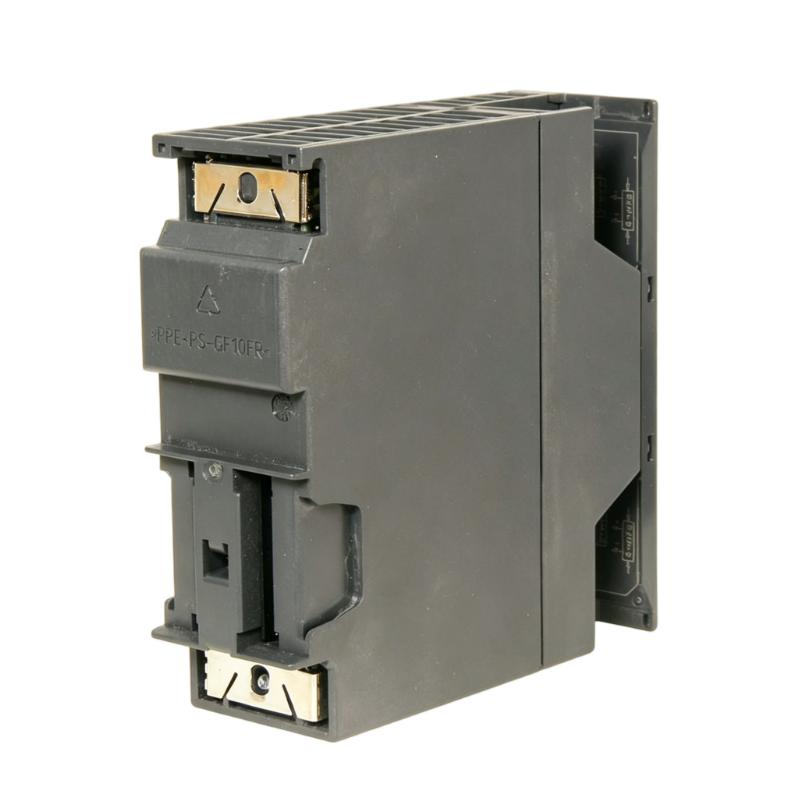

The Siemens 6AG1331-7RD00-2AB0 SIPLUS S7-300 Analog Input Module is an analog signal acquisition module used in SIPLUS S7-300 automation systems. It is installed as part of the PLC I/O configuration and handles the conversion of analog field signals into digital values that can be processed by the controller.
In industrial control applications, many measurement devices such as pressure transmitters, temperature sensors, flow instruments, and other process sensors output continuous analog signals rather than simple ON/OFF states. The role of this module is to collect these variable signals and make them available to the PLC application program for monitoring, regulation, and process control.
The SIPLUS version is intended for applications where standard automation hardware may require enhanced environmental capability. It is commonly considered in systems operating under more demanding conditions, such as temperature variations or industrial environments where extended equipment availability is required.
For engineers maintaining existing S7-300 installations, the 6AG1331-7RD00-2AB0 is typically used as part of a distributed control structure where reliable analog signal acquisition is required without changing the established PLC architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1331-7RD00-2AB0 |
| Product Family | SIPLUS S7-300 |
| Product Type | Analog Input Module |
| System Series | S7-300 Automation System |
| Main Function | Analog signal acquisition |
| Installation Type | PLC Rack Module |
| Application | Industrial Automation and Process Control |
| Dimensions | 40 × 125 × 120 mm |
| Weight | 0.36 kg |
Product Features
The Siemens 6AG1331-7RD00-2AB0 SIPLUS S7-300 Analog Input Module is used for integrating analog measurement devices into Siemens PLC-based control systems.
Key characteristics include:
- Siemens SIPLUS S7-300 series analog input module
- Converts field analog signals into PLC-readable data
- Supports connection of industrial measuring devices
- Suitable for process monitoring and control applications
- Designed for integration with existing S7-300 hardware configurations
- Used in automation systems requiring continuous signal processing
- Suitable for industrial environments with demanding operating conditions
- Supports replacement and expansion of existing PLC installations
The module is normally selected according to the type of field signal, required measurement range, system configuration, and application requirements.
Working Principle
The 6AG1331-7RD00-2AB0 works as the interface between analog field instruments and the PLC control program.
A typical signal path can be described as:
Field Sensor → Analog Input Module → PLC CPU → Control Program → Output Devices
During operation, connected sensors generate continuous electrical signals representing physical values such as pressure, temperature, level, or flow. The analog input module receives these signals and converts them into digital values that the S7-300 CPU can interpret.
The PLC program then uses these processed values for functions such as:
- Process monitoring
- Limit comparison
- Closed-loop control
- Alarm generation
- Equipment status evaluation
Unlike digital input modules that only detect two states, analog input modules allow the controller to respond to changing process conditions.
Role in an S7-300 Control Architecture
The Siemens 6AG1331-7RD00-2AB0 is positioned within the signal acquisition layer of an S7-300 automation system.
A simplified architecture can be viewed as:
Field Instruments → SIPLUS Analog Input Module → S7-300 CPU → Engineering Logic → Actuators
The module collects measurement data from the field level and transfers it into the PLC processing environment. It does not execute the control program itself and does not directly drive output devices.
In existing industrial plants, analog input modules are often critical components because process variables must be continuously monitored to maintain safe and stable equipment operation.
Industrial Applications
The Siemens 6AG1331-7RD00-2AB0 SIPLUS S7-300 Analog Input Module is suitable for automation systems that require analog measurement processing.
| Application | Typical Use |
|---|---|
| Process Automation | Monitoring continuous process variables |
| Manufacturing Equipment | Collecting sensor measurement signals |
| Energy Systems | Monitoring operating parameters |
| Water Treatment | Acquiring level, pressure, and flow signals |
| Chemical Processing | Integrating field measurement instruments |
| Machine Control | Receiving analog feedback signals |
| Industrial Facilities | Expanding existing S7-300 control systems |
The final application depends on the connected sensors, PLC configuration, and process requirements.
Installation and Maintenance
Installation of the 6AG1331-7RD00-2AB0 should be performed according to the existing S7-300 hardware configuration and wiring requirements.
Recommended maintenance practices include:
- Confirm the exact module order number before replacement
- Verify rack position and module arrangement
- Check field wiring connections
- Inspect terminal connections for looseness or oxidation
- Confirm sensor signal compatibility
- Review PLC diagnostics after installation
- Check analog signal values during operation
- Record module replacement information
For troubleshooting, engineers should check the complete signal path, including field instruments, wiring, module configuration, and PLC program settings.
Related Components
The analog input module works together with several components in an S7-300 automation system.
| Component | Function |
|---|---|
| Siemens S7-300 CPU Module | Executes PLC control logic |
| S7-300 Power Supply Module | Provides system operating power |
| S7-300 Signal Modules | Expands system input and output capability |
| Analog Sensors | Provide continuous process measurements |
| Engineering Software | Supports PLC configuration and diagnostics |
| Communication Modules | Exchange data with other automation systems |
| Terminal Blocks | Provide field wiring connections |
| Control Actuators | Execute commands generated by the PLC |
The performance of an analog input system depends on correct coordination between the module, sensors, wiring, and PLC configuration.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1331-7RD00-2AB0 | SIPLUS S7-300 Analog Input Module | Analog signal acquisition |
| Siemens 6ES7331 Series | S7-300 Analog Input Modules | Standard analog signal processing |
| Siemens SIPLUS S7-300 Signal Modules | Industrial Signal Modules | Harsh environment automation applications |
| Siemens S7-300 CPU Modules | PLC Controller Modules | Program execution and system control |
| Siemens S7-300 Communication Modules | Communication Modules | Industrial network integration |
Model selection should be based on signal requirements, environmental conditions, and the existing S7-300 system configuration.
Key Advantages
- Siemens SIPLUS S7-300 analog input module.
- Integrates analog field signals into PLC control systems.
- Suitable for existing S7-300 automation installations.
- Supports continuous process measurement applications.
- Designed for industrial automation environments.
- Provides an interface between field instruments and PLC processing.
Technical FAQs
What type of signals are typically connected to the 6AG1331-7RD00-2AB0?
The module is used for acquiring continuous analog signals from industrial measuring devices. The exact signal type depends on the configured module application and connected field instruments.
Why would an engineer choose a SIPLUS version instead of a standard S7-300 module?
SIPLUS modules are commonly selected for applications where environmental conditions require enhanced equipment capability compared with standard automation hardware.
What should be checked when replacing this analog input module in an existing S7-300 system?
Engineers should verify the order number, hardware configuration, wiring connections, PLC diagnostics, and signal scaling settings before returning the system to operation.
How can incorrect analog input readings be diagnosed?
Troubleshooting should include checking the field sensor output, cable condition, module wiring, PLC hardware configuration, and the application program that processes the analog value.
