Product Overview

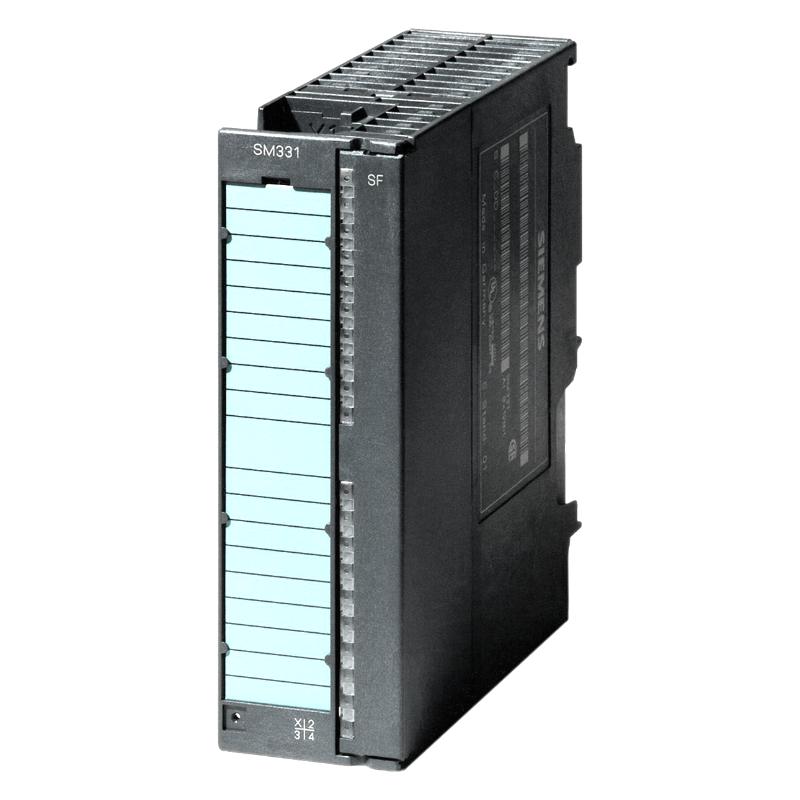

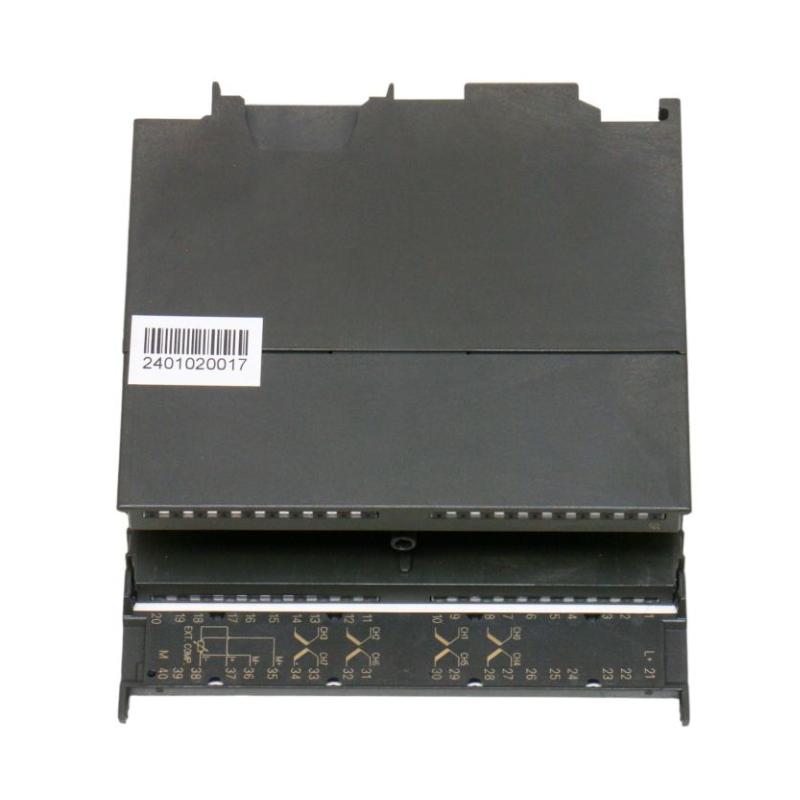

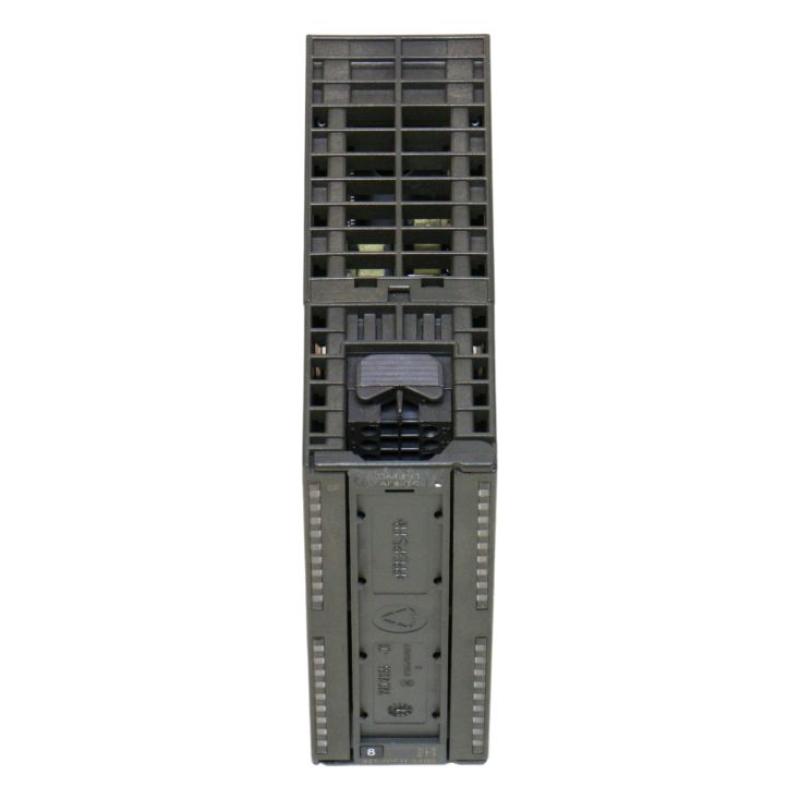

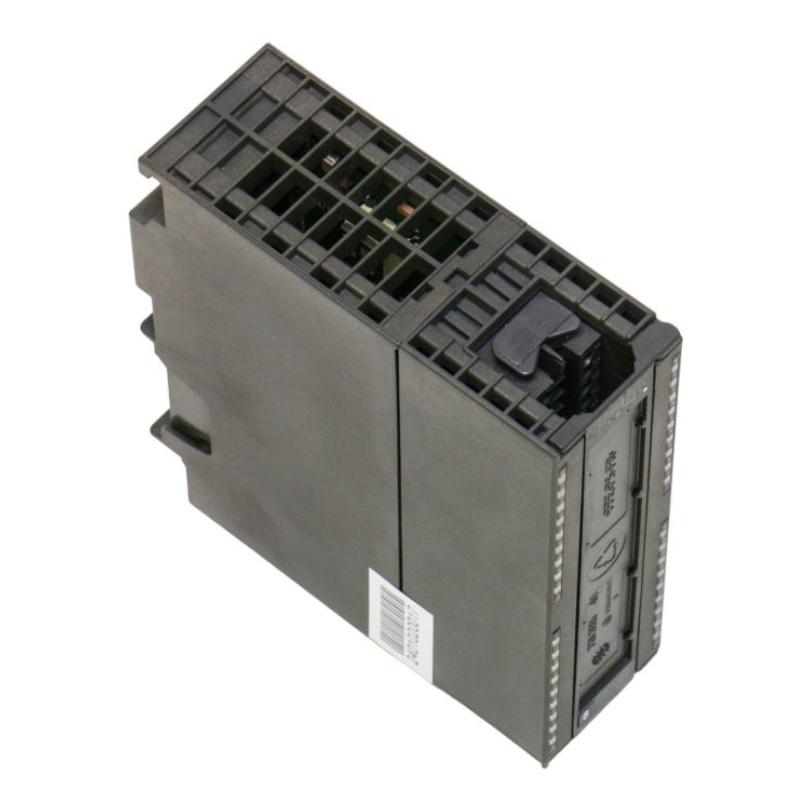

The Siemens 6AG1331-7PF11-4AB0 SIPLUS S7-300 Analog Input Module is an industrial analog signal acquisition module used in Siemens S7-300 automation systems. As a SIPLUS series component, it is designed for applications where PLC hardware needs to maintain reliable operation in industrial environments with higher demands on equipment adaptability.
The module provides the interface between field measurement devices and the PLC control system. It receives continuous analog signals from sensors and transmitters, converts these signals into digital process values, and transfers the information to the S7-300 CPU for further processing.
Unlike digital input modules that only detect discrete switching conditions, analog input modules are used for collecting variable process data. This makes the 6AG1331-7PF11-4AB0 suitable for applications involving temperature monitoring, pressure measurement, flow detection, level control, and other industrial process parameters.
The module integrates into the Siemens S7-300 modular automation architecture and works together with CPUs, power supply modules, communication modules, and field devices to support complete industrial control solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1331-7PF11-4AB0 |
| Product Family | SIPLUS S7-300 |
| Product Type | Analog Input Module |
| Module Function | Analog Signal Acquisition |
| System Application | Industrial PLC Control |
| Installation | Siemens S7-300 Rack System |
| Signal Role | Field Measurement Data Input |
| Dimensions | 40 × 125 × 117 mm |
| Weight | 0.336 kg |
Product Features
The Siemens 6AG1331-7PF11-4AB0 SIPLUS S7-300 Analog Input Module provides analog data acquisition capability for industrial automation systems.
Key characteristics include:
- Siemens SIPLUS S7-300 analog input module
- Model 6AG1331-7PF11-4AB0
- Designed for industrial analog signal processing
- Converts field measurement signals into PLC process data
- Integrates with Siemens S7-300 automation platforms
- Supports continuous process monitoring
- Suitable for modular PLC system expansion
- Designed for industrial operating environments
- Supports existing S7-300 system maintenance
- Suitable for process control and monitoring applications
The module should be selected according to field signal requirements, connected instrumentation, and the overall PLC system design.
Working Principle
The 6AG1331-7PF11-4AB0 works by acquiring analog signals from field devices and converting them into digital values that can be processed by the PLC CPU.
A simplified signal flow is:
Industrial Sensor → Analog Input Module → Signal Processing → S7-300 CPU → Automation Program
Field sensors and transmitters generate analog electrical signals based on real-time process conditions. The module receives these signals, performs signal conversion, and transfers the processed measurement data to the PLC CPU.
The CPU then uses this information for monitoring, alarm handling, control calculations, and automated process adjustment.
Within the control system, the analog input module serves as the data connection point between physical equipment and PLC software logic.
Role in S7-300 PLC Control Architecture
The 6AG1331-7PF11-4AB0 operates within the signal acquisition layer of the Siemens S7-300 automation system.
A typical architecture can be represented as:
Field Instruments → SIPLUS Analog Input Module → S7-300 CPU → Output Modules → Controlled Equipment
| System Layer | Typical Function |
|---|---|
| Field Sensors | Measure industrial process variables |
| Analog Input Module | Converts analog signals into PLC data |
| S7-300 CPU | Executes automation logic |
| Communication Modules | Exchange system information |
| Output Modules | Control external equipment |
| Engineering Software | Configure and maintain PLC systems |
The module provides measurement information to the CPU and supports data-based automation decisions.
Industrial Applications
The Siemens 6AG1331-7PF11-4AB0 SIPLUS S7-300 Analog Input Module is suitable for industrial systems requiring analog measurement collection.
| Application | Typical Use |
|---|---|
| Process Automation | Monitoring continuous process values |
| Manufacturing Equipment | Collecting analog sensor feedback |
| Machine Control | Acquiring operating parameters |
| Water Treatment Systems | Monitoring flow and level signals |
| Energy Facilities | Collecting equipment data |
| Chemical Processing | Measuring process conditions |
| Factory Automation | Expanding PLC input capability |
| Legacy Control Systems | Maintaining S7-300 installations |
The actual application depends on the connected sensors, control requirements, and system configuration.
Installation and Maintenance
Proper installation and configuration are important for maintaining accurate analog signal acquisition.
Recommended maintenance checks include:
- Confirm the correct 6AG1331-7PF11-4AB0 model.
- Verify compatibility with the S7-300 rack system.
- Check module addressing and hardware configuration.
- Inspect field signal wiring.
- Verify sensor connection conditions.
- Check terminal connections.
- Monitor PLC diagnostic information.
- Confirm stable system power supply.
- Check analog signal stability.
- Inspect module installation status.
- Record replacement information.
- Test system operation after installation.
If abnormal measurement values appear, troubleshooting should include field devices, signal wiring, grounding conditions, module parameters, and PLC program settings.
Related Components
The 6AG1331-7PF11-4AB0 works together with various Siemens S7-300 system components.
| Component | Function |
|---|---|
| Siemens S7-300 CPU | Executes PLC control programs |
| SIPLUS Analog Input Modules | Acquire analog measurement signals |
| Digital Input Modules | Collect switching signals |
| Digital Output Modules | Control field devices |
| Power Supply Modules | Provide system operating power |
| Communication Modules | Support industrial networking |
| Engineering Software | Configure PLC hardware |
| Field Transmitters | Provide process measurement data |
These components together create a complete industrial automation control system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1331-7PF11-4AB0 | SIPLUS S7-300 Analog Input Module | Industrial analog signal acquisition |
| Siemens 6AG1331-7PF01-4AB0 | SIPLUS S7-300 Analog Input Module | Process measurement input |
| Siemens 6AG1331-7NF10-2AB0 | SIPLUS S7-300 Analog Input Module | PLC analog signal processing |
| Siemens 6AG1331-7NF00-2AB0 | SIPLUS S7-300 Analog Input Module | Industrial monitoring applications |
| Siemens 6ES7331 Series | S7-300 Analog Input Modules | Standard automation systems |
| Siemens SIPLUS S7-300 Series | Industrial PLC Components | Demanding industrial applications |
Selection should be based on signal type, field device requirements, environmental conditions, and existing S7-300 system architecture.
Key Advantages
- Siemens SIPLUS S7-300 automation component
- Provides analog signal acquisition capability
- Supports industrial process monitoring
- Integrates with Siemens PLC control systems
- Connects field instruments with PLC programs
- Suitable for modular automation expansion
- Supports maintenance of existing S7-300 installations
- Suitable for demanding industrial environments
- Provides stable measurement data processing
- Supports long-term automation applications
Technical FAQs
What is the main function of the Siemens 6AG1331-7PF11-4AB0 Analog Input Module?
The module collects analog signals from industrial sensors and transmitters, converts them into digital values, and provides process data for the S7-300 PLC control program.
What applications typically require an S7-300 analog input module?
These modules are commonly used in systems that need continuous measurement monitoring, including temperature, pressure, flow, level, and other industrial process variables.
What role does this module play in a PLC control system?
The module acts as the connection layer between field measurement devices and the PLC CPU, allowing automation software to process real-time operating information.
What should be verified before replacing a 6AG1331-7PF11-4AB0 module?
The module part number, hardware configuration, field wiring, signal settings, PLC addressing, and diagnostic information should be checked before system commissioning.
