Product Overview

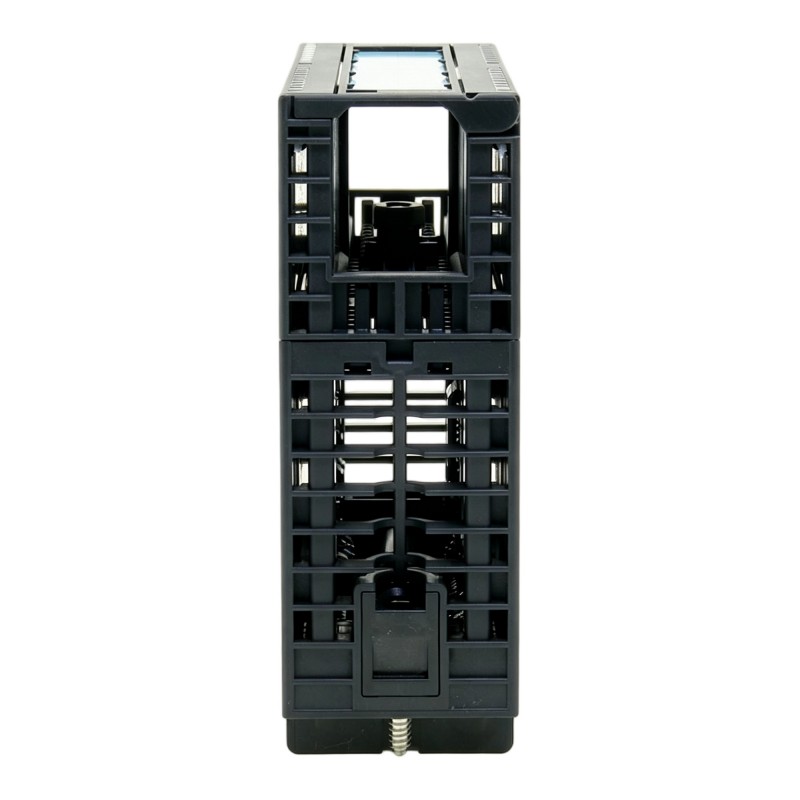

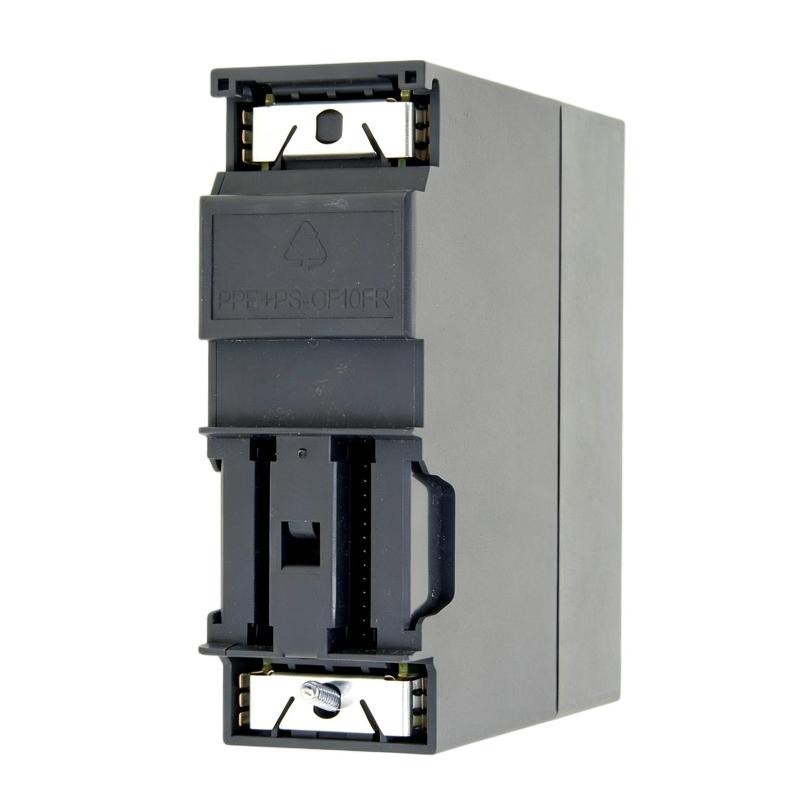

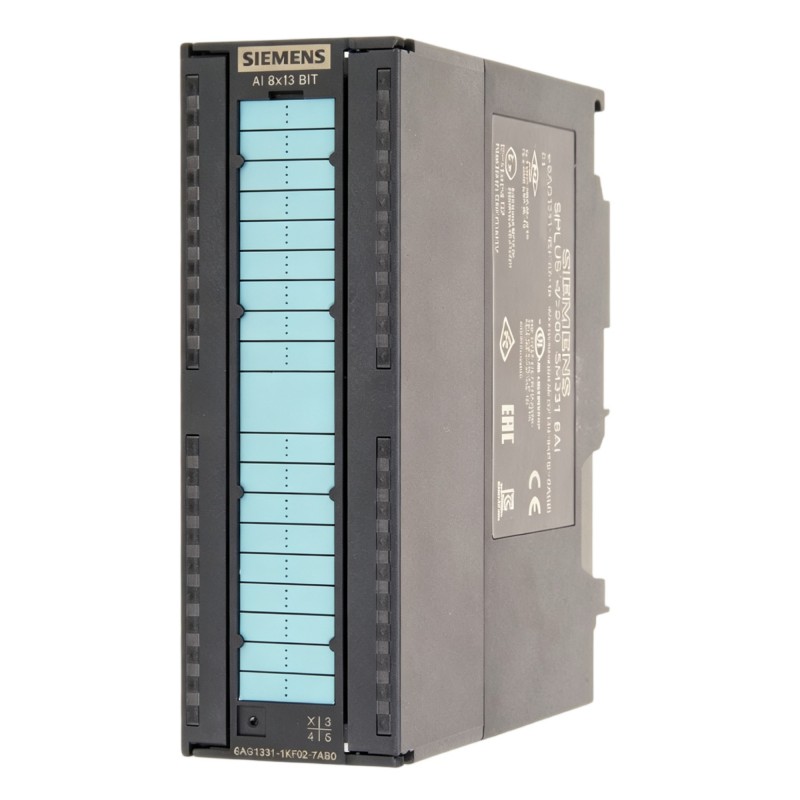

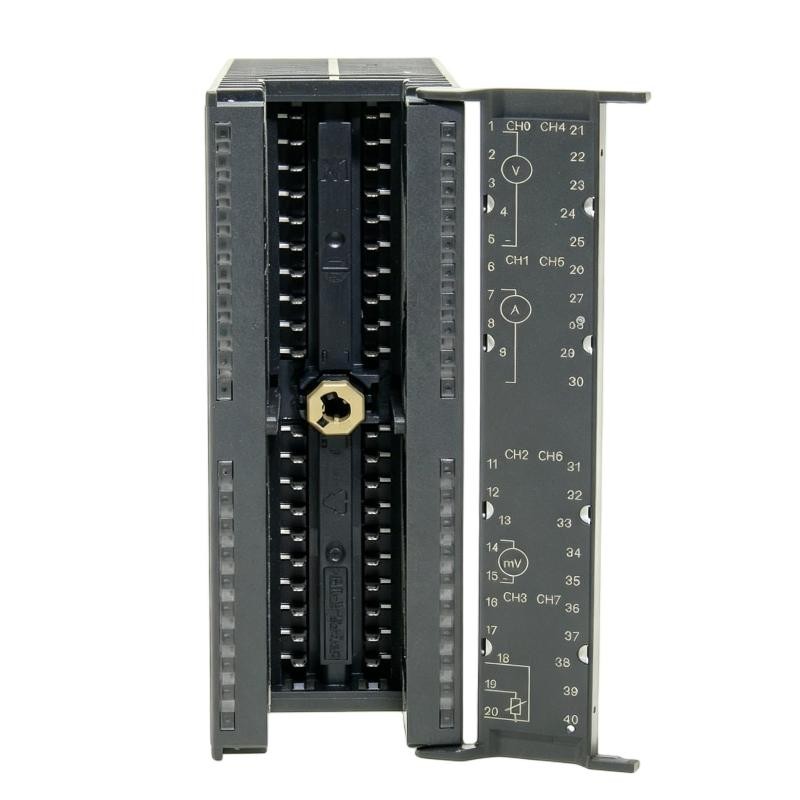

The Siemens 6AG1331-1KF02-7AB0 SIPLUS S7-300 Analog Input Module is an analog signal acquisition module used in Siemens S7-300 control systems. It brings continuously varying field signals into the PLC so that the control program can monitor process variables rather than relying only on discrete ON/OFF states.
Typical signals handled by an analog input module come from transmitters and measuring instruments installed around the process. Depending on the system configuration, these signals can represent variables such as pressure, temperature, level, flow, or other process conditions.
The module is part of the SIPLUS S7-300 family, making it suitable for automation installations where environmental conditions may be more demanding. It is particularly useful in process control panels and existing S7-300 systems that require analog measurement and monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1331-1KF02-7AB0 |
| Product Family | SIPLUS S7-300 |
| Product Type | Analog Input Module |
| Signal Type | Analog Input |
| Application | Process Signal Acquisition |
| System Platform | S7-300 |
| Dimensions | 40 × 125 × 117 mm |
| Weight | 0.303 kg |
Main Features
- SIPLUS S7-300 system integration
- Analog field signal acquisition
- Converts measured process signals into PLC-readable values
- Suitable for continuous process monitoring
- Interfaces with industrial measuring instruments
- Supports centralized S7-300 I/O architecture
- Suitable for process automation and machine monitoring
- Compact S7-300 module format
- SIPLUS platform suitable for demanding industrial environments
- Useful for maintenance and expansion of existing control systems
Working Principle
The module acts as the measurement interface between field instruments and the PLC control program.
Field Sensor / Transmitter → Analog Input Module → S7-300 CPU → PLC Program → Control / Monitoring
The general signal process is:
- A field transmitter measures a physical process variable.
- The transmitter sends an analog electrical signal toward the PLC cabinet.
- The 6AG1331-1KF02-7AB0 receives the analog input.
- The module processes the incoming electrical signal and converts it into a digital value usable by the S7-300 control system.
- The CPU uses the acquired value for monitoring, calculation, alarming, regulation, or other programmed functions.
- The resulting information can be used by operator interfaces or other control components.
This arrangement allows continuously changing physical parameters to become part of the PLC’s control and monitoring logic.
Role in an S7-300 Control System
An analog input module occupies a different role from a digital I/O module because it handles variable measurement values.
| System Component | Function |
|---|---|
| Field Transmitter | Measures the process variable |
| 6AG1331-1KF02-7AB0 | Acquires analog signal |
| S7-300 CPU | Processes measurement data |
| Engineering Software | Configures hardware and signal processing |
| HMI | Displays process values |
| Analog Output Module | Sends variable control signals |
| Control Valve / Drive | Executes control commands |
For closed-loop process control, the analog input value can become the feedback variable used by the PLC control algorithm.
Industrial Applications
| Industry | Typical Application |
|---|---|
| Process Automation | Pressure, flow, and level monitoring |
| Manufacturing | Machine process measurement |
| Chemical Industry | Process variable acquisition |
| Water Treatment | Tank level and flow monitoring |
| Energy Systems | Equipment condition monitoring |
| HVAC | Temperature and pressure measurement |
| General Automation | Analog sensor integration |
The module is useful wherever a PLC needs to continuously monitor physical process conditions.
Signal Integration
Correct field signal integration is important for obtaining stable measurement values.
During installation, engineers should consider:
- Confirming the transmitter signal type.
- Matching the field instrument with the configured input channel.
- Using suitable shielded instrumentation wiring where required.
- Separating analog signal cables from strong power conductors.
- Checking grounding and potential differences.
- Configuring the input correctly within the S7-300 hardware setup.
- Verifying the measured value during commissioning.
Incorrect signal wiring or configuration can result in unstable readings, measurement offsets, or incorrect process values.
Compatible System Components
| Component | Function |
|---|---|
| SIPLUS S7-300 CPU | Executes PLC control program |
| Analog Transmitter | Provides process measurement |
| Digital Input Module | Acquires discrete signals |
| Analog Output Module | Provides variable control outputs |
| HMI Panel | Displays process values |
| Communication Module | Transfers control-system data |
| Control Valve | Performs process adjustment |
The analog input module can serve as the measurement front end for a larger closed-loop automation system.
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| Siemens 6AG1331-1KF02-7AB0 | SIPLUS S7-300 Analog Input Module | Analog process acquisition |
| Siemens 6AG1326-1BK02-2AB0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Safety input acquisition |
| Siemens 6AG1326-1BK02-2AY0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Fail-safe digital signals |
| Siemens 6AG1326-1RF01-4AB0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Safety-oriented input |
| Siemens 6AG1326-2BF41-2AY0 | SIPLUS S7-300 Fail-Safe Digital Output Module | Safety output control |
Key Advantages
- Provides analog measurement acquisition for S7-300 systems
- Allows continuously varying process values to enter PLC logic
- Suitable for transmitter-based process monitoring
- Supports measurement, alarming, calculation, and regulation functions
- Integrates into established S7-300 architectures
- Compact module format
- Suitable for demanding industrial environments
- Useful for both system expansion and replacement projects
Technical FAQs
What types of process information can an analog input module acquire?
It can be used as the PLC-side interface for continuously varying measurements such as temperature, pressure, flow, level, and other process variables when the connected transmitter and input configuration are compatible.
Why is signal scaling required in an S7-300 application?
The electrical input value received by the PLC does not necessarily represent the engineering unit used by the process. Scaling converts the acquired value into a meaningful value such as °C, bar, liters per minute, or another configured process unit.
What can cause unstable analog readings?
Common causes include electrical interference, poor shielding or grounding, unsuitable wiring, transmitter problems, incorrect channel configuration, or signal compatibility issues. Troubleshooting should therefore cover the complete measurement loop.
Where is this module used in a closed-loop control application?
It normally serves as the feedback interface. A transmitter measures the process variable, the module brings that measurement into the S7-300 CPU, and the control program can then compare it with a setpoint and generate an appropriate control output.
