- Siemens
- 6AG1326-1RF01-4AB0
- Digital Input Module
- Germany
- 80 × 125 × 120 mm
- 0.560 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 8
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

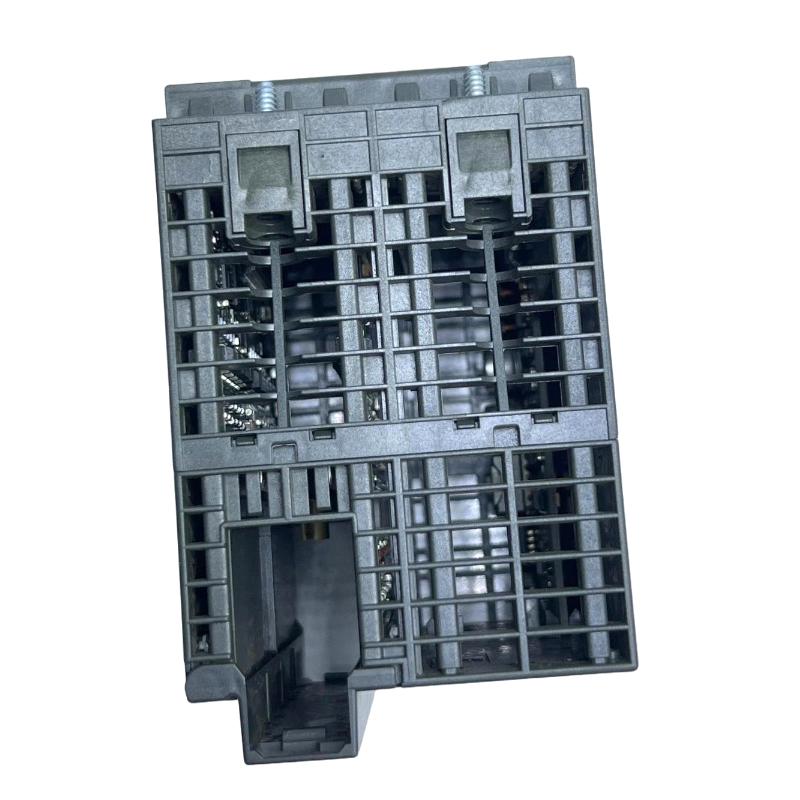

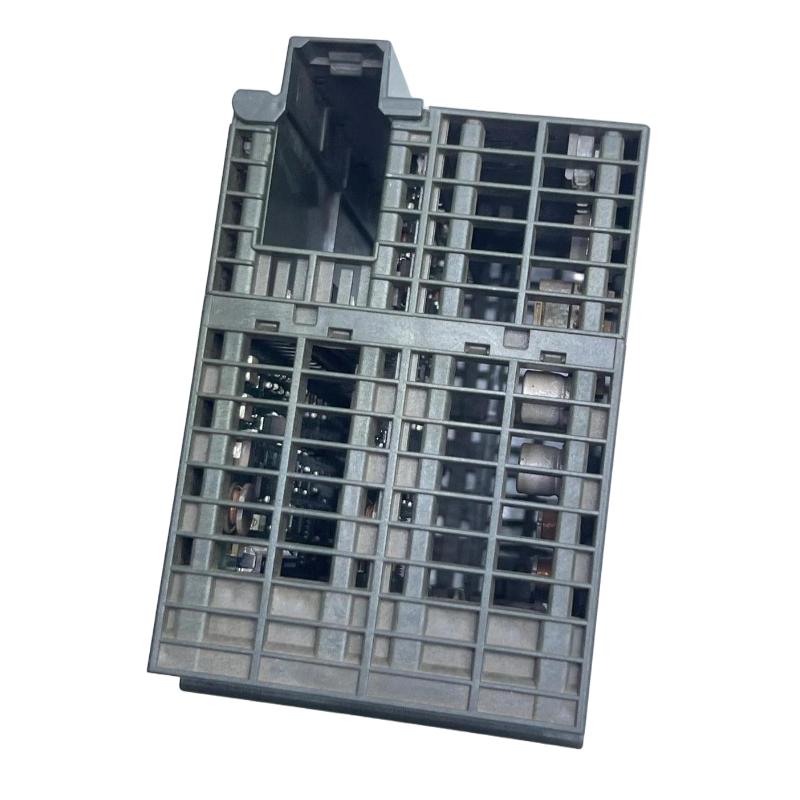

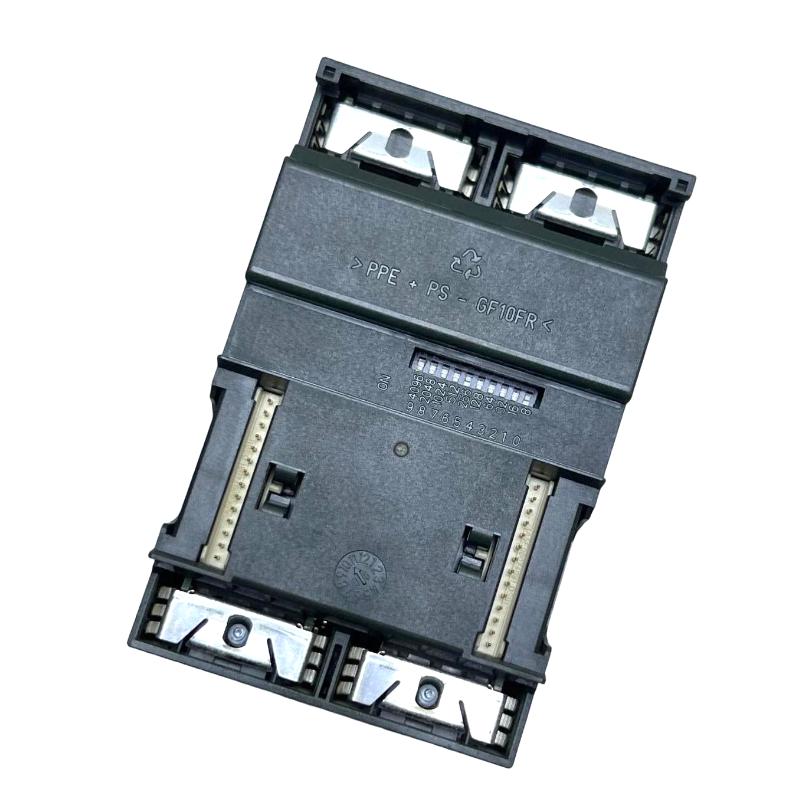

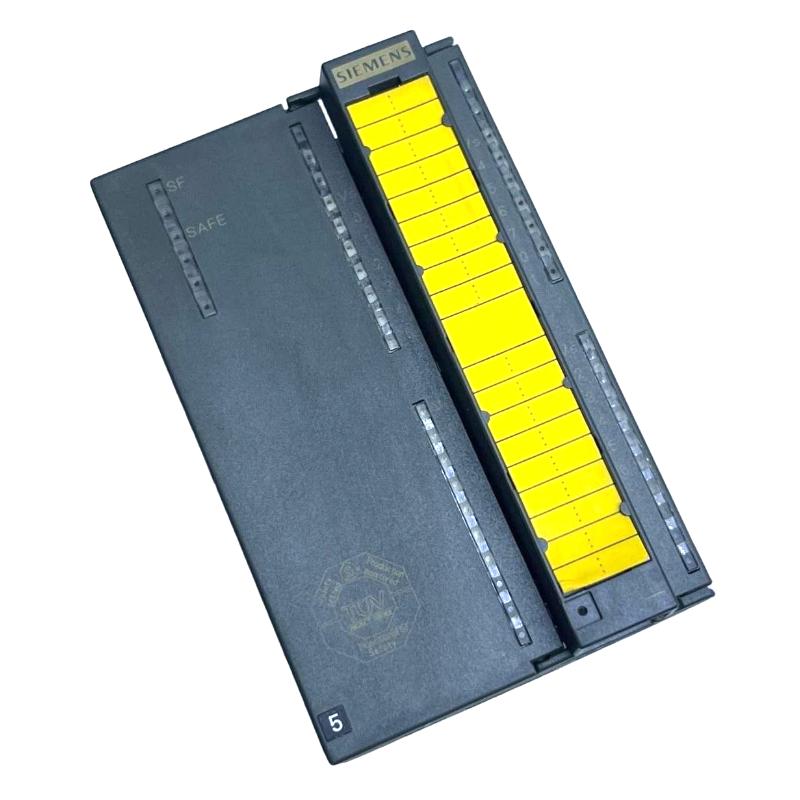

The Siemens 6AG1326-1RF01-4AB0 SIPLUS S7-300 Fail-Safe Digital Input Module is a safety-oriented digital input module designed for Siemens SIPLUS S7-300 automation systems. It is used to collect safety-related digital signals from field devices and transfer these signals to a fail-safe PLC controller for processing within the safety program.
In industrial safety applications, input modules serve as the connection point between protective devices installed on machines and the safety control system. The 6AG1326-1RF01-4AB0 allows the S7-300 safety platform to monitor external safety conditions, such as emergency stop commands, protective switches, and safety sensors.
Compared with conventional digital input modules, this fail-safe module focuses on safety signal monitoring, diagnostic capability, and integration into safety-related control structures. It is suitable for applications where machine protection, operator safety, and controlled shutdown functions are required.
As part of the SIPLUS product family, the module is intended for industrial environments that require enhanced operational stability. It provides a practical solution for expanding or maintaining existing Siemens S7-300 safety automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1326-1RF01-4AB0 |
| Product Family | SIPLUS S7-300 |
| Product Type | Fail-Safe Digital Input Module |
| Function | Safety Digital Signal Acquisition |
| Application | Industrial Safety Automation |
| Compatible System | Siemens S7-300 Safety PLC Platform |
| Module Type | Fail-Safe Digital Input |
| Signal Type | Digital Input |
| Dimensions | 80 × 125 × 120 mm |
| Weight | 0.560 kg |
Product Features
The Siemens 6AG1326-1RF01-4AB0 provides safety input acquisition functions for S7-300 based safety control systems.
Main features include:
- Siemens SIPLUS S7-300 fail-safe digital input module
- Model 6AG1326-1RF01-4AB0
- Designed for safety-related digital signal monitoring
- Compatible with Siemens S7-300 safety automation architecture
- Supports connection of safety field devices
- Provides input interface for protective equipment
- Suitable for emergency stop and safety interlock applications
- Supports integration into machine safety systems
- Helps separate safety functions from standard PLC control
- Suitable for industrial environments requiring stable operation
- Supports expansion and replacement of existing safety modules
The module provides the input channel interface required for safety systems to detect machine operating conditions and initiate protective responses when necessary.
Working Principle
The Siemens 6AG1326-1RF01-4AB0 works by receiving digital signals from safety devices installed in the field and transmitting the input status to the fail-safe PLC system.
A typical safety control signal path is:
Safety Device → 6AG1326-1RF01-4AB0 Fail-Safe Input Module → Safety CPU → Safety Logic Processing → Safety Output
During operation:
- Safety devices monitor machine conditions and generate digital signals.
- The input module receives signals from connected protective components.
- The module transfers the input information to the safety CPU.
- The safety program evaluates the operating state.
- The controller activates predefined safety actions when abnormal conditions are detected.
Typical connected devices include:
- Emergency stop buttons
- Safety limit switches
- Protective door switches
- Safety sensors
- Machine guarding devices
The module acts as the safety signal acquisition layer between field equipment and the PLC safety application.
Role in S7-300 Safety Control Architecture
The 6AG1326-1RF01-4AB0 is installed in the safety input section of a Siemens S7-300 safety automation system.
A typical safety architecture consists of:
| Component | Function |
|---|---|
| Safety Sensors | Detect hazardous machine conditions |
| Fail-Safe Digital Input Module | Collect safety-related signals |
| Safety CPU | Executes safety logic programs |
| Fail-Safe Output Module | Controls safety actuators |
| Actuators | Perform protective actions |
In this structure, the module provides the communication path from physical safety devices to the PLC safety controller, enabling automated monitoring and response functions.
Industrial Applications
The Siemens 6AG1326-1RF01-4AB0 is suitable for industrial systems where safety-related digital inputs must be integrated into PLC control.
| Application | Typical Use |
|---|---|
| Machine Safety Systems | Emergency stop signal monitoring |
| Industrial Robotics | Safety zone protection |
| Automotive Manufacturing | Production line safety circuits |
| Packaging Equipment | Guard door monitoring |
| CNC Machines | Operator protection functions |
| Material Handling Systems | Safety interlock monitoring |
| Automated Production Lines | Safety input expansion |
| OEM Machinery | Integrated safety control solutions |
The module is commonly selected for applications requiring continuous monitoring of safety devices and reliable communication with a fail-safe controller.
Installation and Maintenance
Correct installation and regular inspection are essential for maintaining safety system performance.
Recommended practices include:
- Confirm compatibility with the Siemens S7-300 safety CPU.
- Install the module according to system configuration requirements.
- Check safety input wiring and terminal connections.
- Verify connected safety devices are functioning correctly.
- Confirm safety program configuration.
- Review module diagnostic information.
- Perform safety function tests during commissioning.
- Maintain records of safety system parameters.
- Inspect field devices during scheduled maintenance.
For troubleshooting, engineers should check the complete safety circuit, including external devices, wiring, module status, PLC diagnostics, and safety logic configuration.
Compatible System Components
The Siemens 6AG1326-1RF01-4AB0 is typically used together with the following components:
| Component | Function |
|---|---|
| Siemens S7-300F CPU | Executes fail-safe control programs |
| Fail-Safe Output Modules | Drive safety-related actuators |
| Emergency Stop Devices | Provide shutdown signals |
| Safety Sensors | Detect hazardous conditions |
| Safety Switches | Monitor machine protection systems |
| Engineering Software | Safety programming and diagnostics |
| Communication Modules | Connect safety systems with higher-level control |
These components together form a complete industrial safety automation solution.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1326-1RF01-4AB0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Safety signal acquisition |
| Siemens 6AG1326-1BK02-2AB0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Machine safety applications |
| Siemens 6AG1326-1BK02-2AY0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Safety input expansion |
| Siemens S7-300F Safety Modules | Fail-Safe I/O Components | Industrial safety control |
| Siemens SIPLUS S7-300 Series | Industrial PLC Hardware | Harsh environment automation |
Model selection should be based on safety requirements, connected field devices, PLC compatibility, and environmental conditions.
Key Advantages
- Siemens SIPLUS S7-300 fail-safe digital input module
- Model 6AG1326-1RF01-4AB0
- Provides safety-related digital signal acquisition
- Compatible with Siemens S7-300 safety systems
- Supports emergency stop and safety sensor integration
- Enables reliable machine protection monitoring
- Suitable for industrial safety applications
- Helps expand existing S7-300 safety architectures
- Supports integration of protective field devices
- Designed for demanding automation environments
Technical FAQs
What is the Siemens 6AG1326-1RF01-4AB0 mainly used for?
The module is used to collect safety-related digital signals from field devices and transfer them to a Siemens S7-300 fail-safe controller for safety logic processing.
What types of devices can be connected to this fail-safe input module?
Typical connected devices include emergency stop buttons, safety switches, protective doors, and other safety-related digital sensors.
Why use a SIPLUS fail-safe input module instead of a standard digital input module?
A fail-safe input module is designed for safety applications where signal monitoring, fault detection, and protective responses are required.
How should engineers troubleshoot input signal faults?
Troubleshooting should include checking field devices, wiring, module diagnostics, PLC safety configuration, and the complete safety control chain.
