Product Overview

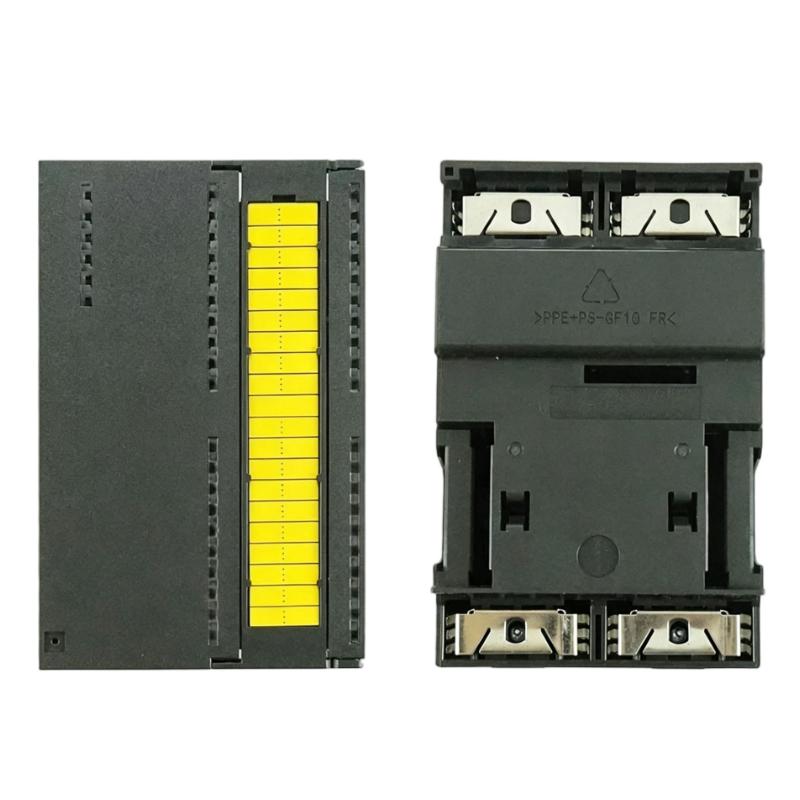

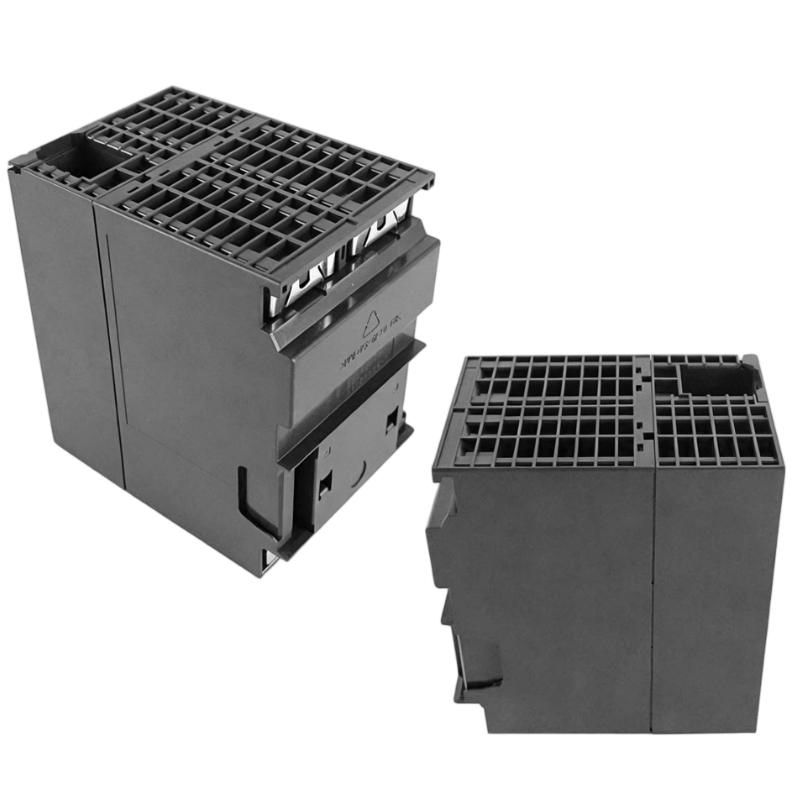

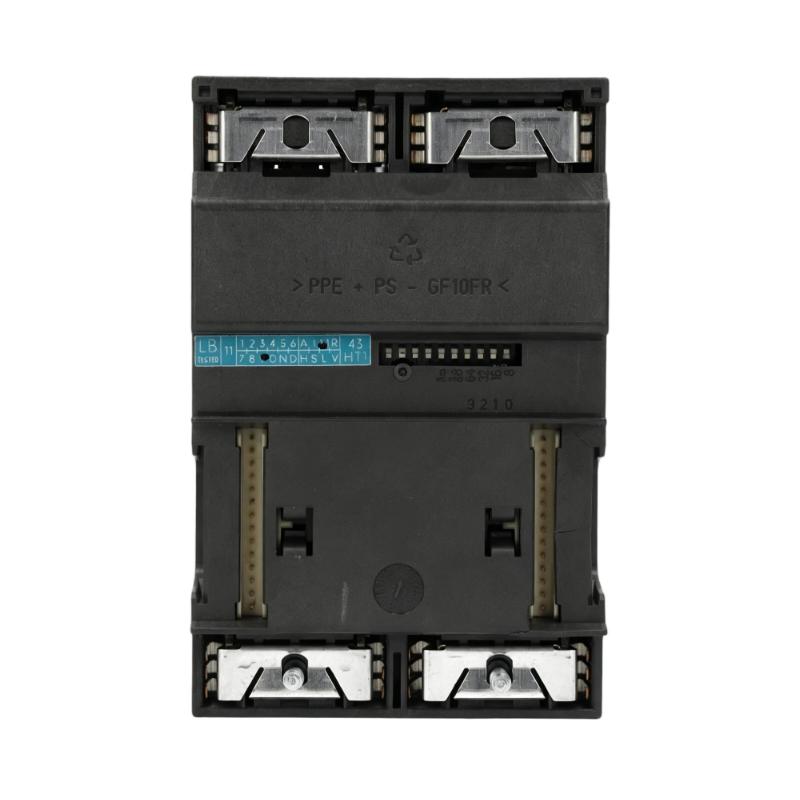

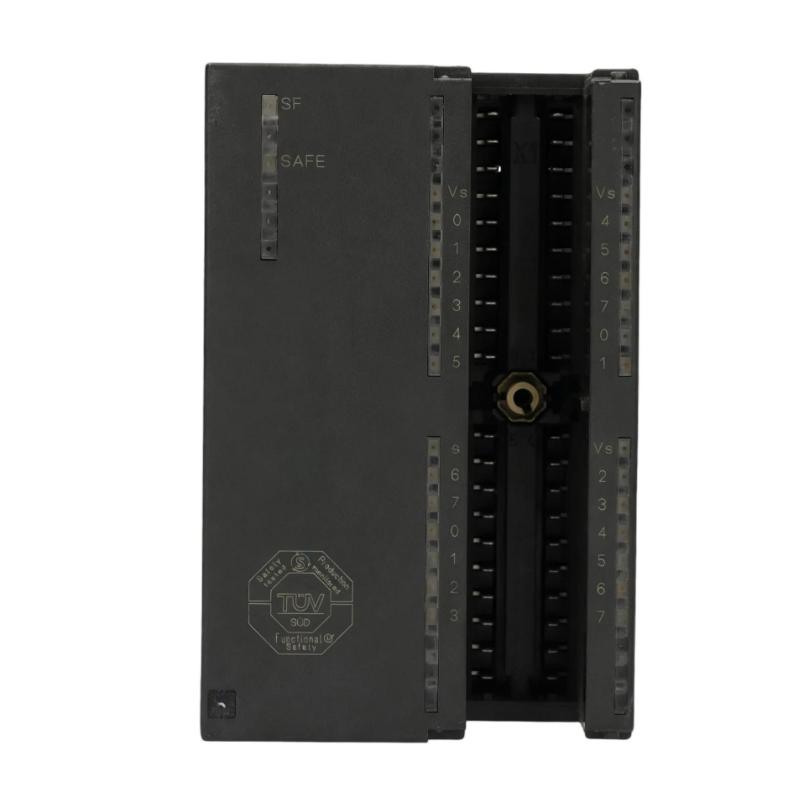

The Siemens 6AG1326-1BK02-2AY0 SIPLUS S7-300 Fail-Safe Digital Input Module is a safety-oriented digital input module designed for Siemens SIPLUS S7-300 automation systems. It is used to collect safety-related switching signals from field devices and transmit input information to a fail-safe PLC controller for evaluation and safety logic execution.
Compared with standard digital input modules used in conventional automation applications, this fail-safe module focuses on applications where signal accuracy, fault detection, and machine protection are critical. It is commonly integrated with emergency stop devices, safety switches, protective doors, and other safety sensors used in industrial equipment.
The module belongs to the SIPLUS product family, which is developed for industrial applications requiring stable operation under demanding environmental conditions. It allows engineers to expand existing S7-300 safety control systems while maintaining the original PLC architecture.
For machine builders and automation engineers, the 6AG1326-1BK02-2AY0 provides a dedicated interface between safety field devices and the PLC safety program, helping create a complete safety control solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1326-1BK02-2AY0 |
| Product Family | SIPLUS S7-300 |
| Product Type | Fail-Safe Digital Input Module |
| Function | Safety Digital Signal Acquisition |
| Application | Safety Automation / Industrial Control |
| Compatible System | Siemens S7-300 Safety PLC Platform |
| Module Type | Fail-Safe Digital Input |
| Signal Type | Digital Input |
| Dimensions | 80 × 125 × 120 mm |
| Weight | 0.480 kg |
Product Features
The Siemens 6AG1326-1BK02-2AY0 provides safety input processing capability for S7-300 based automation systems.
Key features include:
- Siemens SIPLUS S7-300 fail-safe digital input module
- Model 6AG1326-1BK02-2AY0
- Designed for safety-related digital signal acquisition
- Supports connection of industrial safety devices
- Compatible with Siemens S7-300 safety automation architecture
- Suitable for emergency stop and protective monitoring applications
- Provides reliable communication between field devices and safety CPU
- Supports integration into machine safety systems
- Suitable for industrial environments requiring stable operation
- Helps separate safety functions from standard control processes
- Simplifies expansion of existing safety PLC systems
The module enables safety controllers to continuously monitor field conditions and respond appropriately when unsafe situations are detected.
Working Principle
The Siemens 6AG1326-1BK02-2AY0 operates by receiving digital safety signals from connected field devices and transferring these signals to the fail-safe PLC system.
A typical safety signal path is:
Safety Sensor / Switching Device → 6AG1326-1BK02-2AY0 → Safety CPU → Safety Logic → Safety Output Device
During operation:
- Safety devices monitor machine operating conditions.
- Digital signals are transmitted to the fail-safe input module.
- The module processes the input status and communicates with the safety CPU.
- The safety program evaluates the condition according to configured logic.
- The controller activates protective actions when abnormal conditions are detected.
Typical input devices include:
- Emergency stop buttons
- Safety limit switches
- Guard door switches
- Safety sensors
- Machine protection devices
The module provides the input interface required for implementing safety-related control functions.
Role in S7-300 Safety Architecture
The 6AG1326-1BK02-2AY0 is installed as part of the safety input layer in Siemens S7-300 automation systems.
A typical safety control structure includes:
| Component | Function |
|---|---|
| Safety Sensors | Detect hazardous conditions |
| Fail-Safe Digital Input Module | Collect safety signals |
| Safety CPU | Executes safety application logic |
| Fail-Safe Output Module | Controls safety actuators |
| Actuators | Perform shutdown or protection actions |
In this architecture, the input module acts as the connection point between physical safety devices and the PLC safety program.
Industrial Applications
The Siemens 6AG1326-1BK02-2AY0 is widely used in industrial automation systems where safety signal monitoring is required.
| Application | Typical Use |
|---|---|
| Machine Safety | Emergency stop monitoring |
| Industrial Robotics | Safety zone protection |
| Automotive Manufacturing | Production line safety control |
| Packaging Equipment | Protective door monitoring |
| CNC Machinery | Operator safety functions |
| Material Handling Systems | Safety interlock monitoring |
| Automated Production Lines | Safety circuit integration |
| OEM Equipment | Safety PLC expansion |
The module is suitable for applications where machine operation must be monitored and controlled according to safety requirements.
Installation and Maintenance
Proper installation and regular inspection are important for maintaining safety system performance.
Recommended practices include:
- Verify compatibility with the S7-300 safety controller.
- Check correct module installation position.
- Confirm safety wiring connections.
- Verify input device operation.
- Configure safety parameters correctly.
- Check diagnostic information during commissioning.
- Perform safety function testing.
- Inspect field devices regularly.
- Maintain updated PLC safety documentation.
When a safety input fault occurs, engineers should check the complete safety chain, including sensors, wiring, module diagnostics, PLC configuration, and safety program logic.
Compatible System Components
The Siemens 6AG1326-1BK02-2AY0 is commonly integrated with the following components:
| Component | Function |
|---|---|
| Siemens S7-300F CPU | Executes fail-safe control programs |
| Fail-Safe Output Modules | Control safety actuators |
| Emergency Stop Devices | Provide safety shutdown signals |
| Safety Sensors | Detect machine conditions |
| Safety Relays | Additional protective switching |
| Engineering Software | Safety programming and diagnostics |
| Industrial Communication Modules | Connect automation systems |
These components work together to create a complete industrial safety control system.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Siemens 6AG1326-1BK02-2AY0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Safety signal acquisition |
| Siemens 6AG1326-1BK02-2AB0 | SIPLUS S7-300 Fail-Safe Digital Input Module | Safety automation applications |
| Siemens S7-300F Fail-Safe Modules | Safety I/O Components | Machine protection systems |
| Siemens SIPLUS S7-300 Series | Industrial PLC Hardware | Harsh environment applications |
| Siemens ET 200 Safety Modules | Distributed Safety I/O | Remote safety control |
Model selection should consider safety requirements, PLC compatibility, connected devices, and environmental conditions.
Key Advantages
- Siemens SIPLUS S7-300 fail-safe digital input module
- Model 6AG1326-1BK02-2AY0
- Provides safety-related digital signal acquisition
- Compatible with Siemens S7-300 safety systems
- Supports emergency stop and safety sensor integration
- Helps improve machine protection functions
- Suitable for industrial safety applications
- Supports expansion of existing safety PLC systems
- Designed for demanding automation environments
- Simplifies safety system integration
Technical FAQs
What is the main purpose of the Siemens 6AG1326-1BK02-2AY0?
The module collects safety-related digital signals from field devices and transfers them to the fail-safe PLC for safety logic processing.
Which field devices can be connected to this fail-safe input module?
Typical devices include emergency stop switches, safety interlocks, protective doors, and industrial safety sensors.
How does a fail-safe input module differ from a standard digital input module?
A fail-safe input module includes safety monitoring functions and is used in applications where incorrect signal processing could affect personnel or equipment safety.
What troubleshooting steps should be performed when a safety input fault occurs?
Engineers should check sensor status, field wiring, module diagnostics, safety program configuration, and the complete safety control chain.
