Product Overview

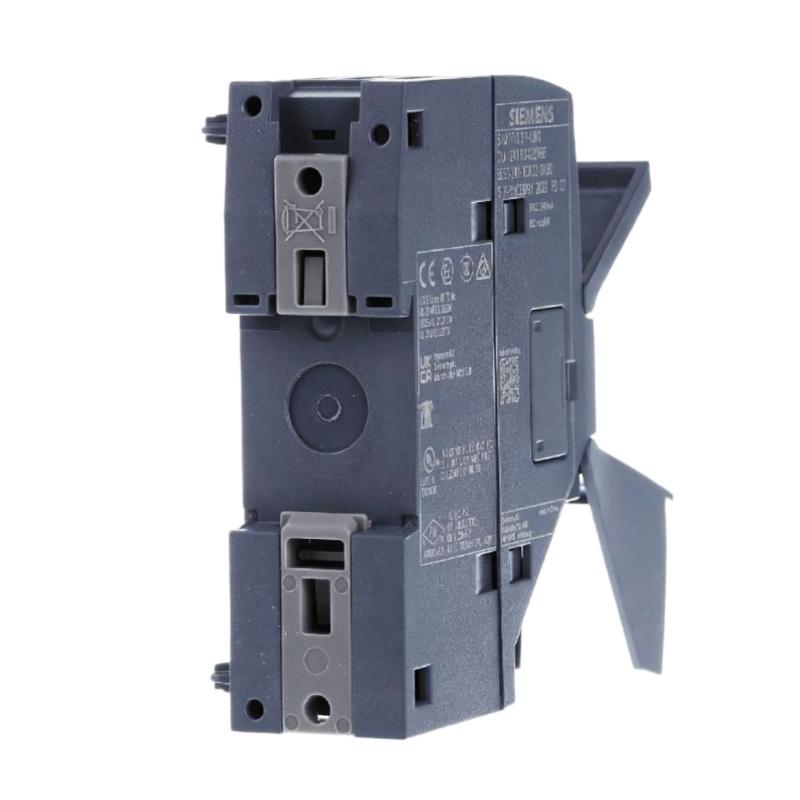

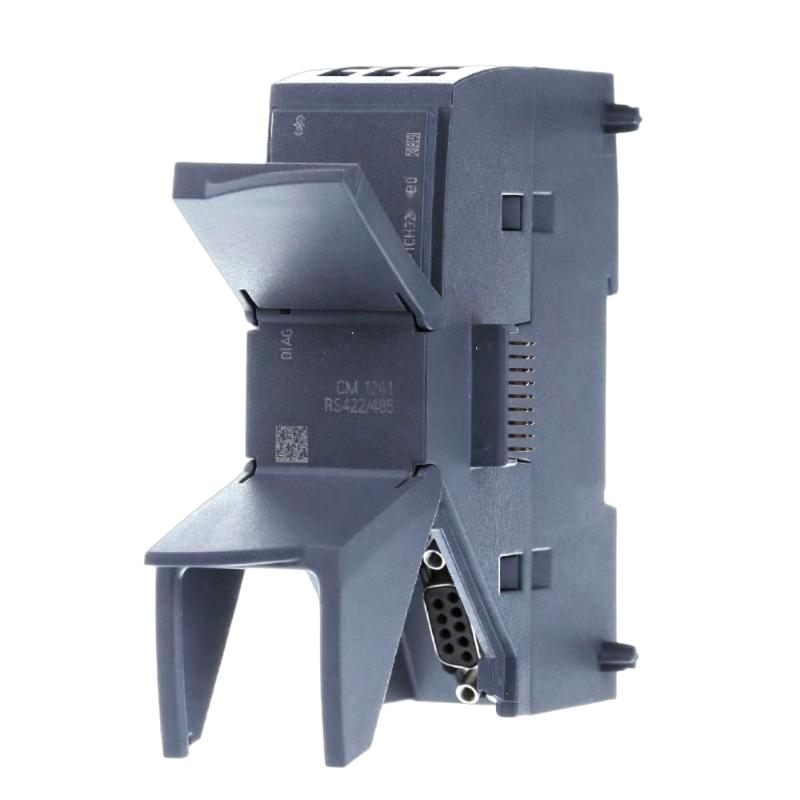

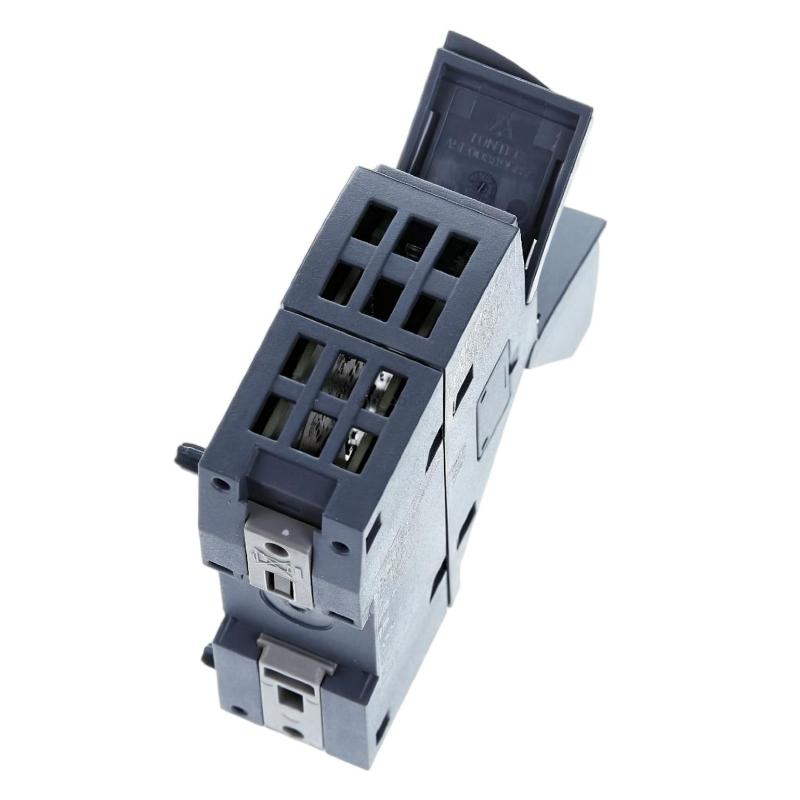

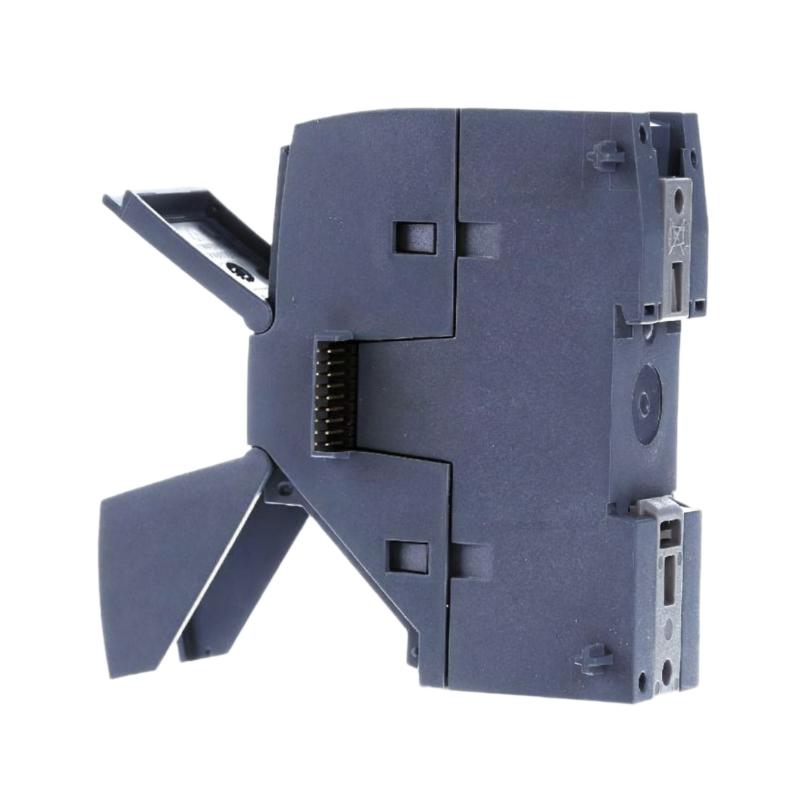

The Siemens 6AG1241-1CH32-2XB0 SIPLUS S7-1200 Communication Module is a communication expansion module designed for Siemens SIPLUS S7-1200 PLC systems. It provides additional connectivity options for the controller, enabling data exchange between the PLC and external automation equipment, intelligent devices, and industrial communication networks.
In an S7-1200 control architecture, the CPU handles application logic execution, while communication modules expand the system’s ability to exchange information with external components. The 6AG1241-1CH32-2XB0 works as an interface between the PLC and connected devices, helping engineers build more flexible automation solutions.
The SIPLUS series is developed for industrial applications where stable operation under demanding environmental conditions is required. The module is suitable for machine automation, OEM equipment, and distributed control systems that require reliable communication performance.
For existing Siemens S7-1200 installations, the 6AG1241-1CH32-2XB0 offers a compact method to increase communication capability without replacing the main controller platform.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1241-1CH32-2XB0 |
| Product Family | SIPLUS S7-1200 |
| Product Type | Communication Module |
| Function | PLC Communication Expansion |
| Application | Industrial Automation Control Systems |
| Compatible System | Siemens S7-1200 PLC |
| Module Role | Communication Interface Extension |
| Installation Type | S7-1200 Expansion Module |
| Dimensions | 30 × 100 × 75 mm |
| Weight | 0.155 kg |
Product Features
The Siemens 6AG1241-1CH32-2XB0 provides communication expansion capability for industrial S7-1200 automation systems.
Key features include:
- Siemens SIPLUS S7-1200 communication module
- Model 6AG1241-1CH32-2XB0
- Designed for PLC communication expansion
- Compatible with Siemens S7-1200 controller systems
- Supports integration of external automation devices
- Provides additional communication resources
- Compact design for control cabinet installation
- Suitable for distributed automation architectures
- Supports machine and equipment networking
- Designed for industrial applications requiring stable operation
- Simplifies PLC system expansion and maintenance
The module allows engineers to extend the communication structure of an existing S7-1200 system while maintaining the original control architecture.
Working Principle
The Siemens 6AG1241-1CH32-2XB0 operates as a communication interface between the S7-1200 CPU and external equipment.
A typical data exchange path is:
Industrial Device / Network → 6AG1241-1CH32-2XB0 Communication Module → S7-1200 CPU → Control Program
During operation, the communication module receives data from connected devices and transfers it to the PLC CPU for processing. The CPU can then execute programmed logic based on the received information and send control data back through the communication interface.
Main communication functions include:
- Transmitting and receiving automation data
- Connecting external intelligent devices
- Expanding PLC communication capability
- Supporting distributed control systems
- Integrating third-party equipment into automation networks
The module works as a communication extension rather than a standalone controller, providing additional connectivity while relying on the S7-1200 CPU for control execution.
Role in S7-1200 Automation Architecture
The 6AG1241-1CH32-2XB0 is installed within the communication expansion layer of the S7-1200 PLC system.
A typical automation structure can be represented as:
Field Devices → Communication Module → S7-1200 CPU → HMI / SCADA System
System functions include:
- S7-1200 CPU: Executes user application programs and control logic.
- Communication Module: Provides additional data exchange capability.
- Field Equipment: Supplies operational information.
- HMI / SCADA: Displays and manages production information.
This modular architecture allows automation engineers to expand system communication without redesigning the complete PLC platform.
Industrial Applications
The Siemens 6AG1241-1CH32-2XB0 is commonly used in industrial systems requiring additional PLC communication capability.
| Application | Typical Use |
|---|---|
| Machine Automation | Connecting intelligent machine components |
| OEM Equipment | Expanding PLC communication functions |
| Manufacturing Lines | Controller-to-device communication |
| Process Automation | Distributed equipment integration |
| Packaging Systems | Compact automation networking |
| Material Handling Systems | Equipment data exchange |
| Industrial Control Panels | PLC communication expansion |
| Retrofit Projects | Upgrading existing automation systems |
The final application depends on the communication requirements, connected devices, and overall control system design.
Installation and Maintenance
Proper configuration and installation help ensure stable communication operation.
Recommended practices include:
- Verify compatibility with the S7-1200 CPU model.
- Confirm correct module installation position.
- Check communication parameter configuration.
- Inspect wiring and connection interfaces.
- Verify connected device settings.
- Monitor PLC diagnostic information.
- Test communication before system operation.
- Keep backup copies of configuration data.
- Check communication stability during maintenance.
If communication faults occur, engineers should inspect the complete connection path, including the module status, PLC configuration, external equipment parameters, and physical connections.
Compatible System Components
The 6AG1241-1CH32-2XB0 is commonly integrated with the following Siemens automation components:
| Component | Function |
|---|---|
| Siemens S7-1200 CPU | Main PLC control processor |
| SIPLUS Expansion Modules | Additional system functions |
| Signal Modules | Digital and analog signal expansion |
| HMI Panels | Operator monitoring and control |
| Engineering Software | PLC programming and configuration |
| Industrial Communication Devices | Network connection support |
| Field Sensors and Actuators | Process data exchange |
These components form a complete automation solution for industrial control applications.
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| Siemens 6AG1241-1CH32-2XB0 | SIPLUS S7-1200 Communication Module | PLC communication expansion |
| Siemens 6AG1241-1AH32-2XB0 | SIPLUS S7-1200 Communication Module | Industrial communication integration |
| Siemens 6AG1241-1AH32-4XB0 | SIPLUS S7-1200 Communication Module | Automation network expansion |
| Siemens 6AG1241-1CH30-5XB1 | SIPLUS S7-1200 Communication Module | Compact PLC communication |
| Siemens SIPLUS S7-1200 Series Modules | Industrial PLC Components | Harsh environment automation |
Model selection should consider PLC configuration, communication requirements, installation conditions, and connected devices.
Key Advantages
- Siemens SIPLUS S7-1200 communication module
- Model 6AG1241-1CH32-2XB0
- Provides additional PLC communication capability
- Compatible with Siemens S7-1200 systems
- Supports flexible industrial integration
- Compact installation dimensions
- Suitable for machine automation applications
- Helps simplify PLC system expansion
- Supports distributed control architectures
- Designed for industrial automation environments
Technical FAQs
What application is the Siemens 6AG1241-1CH32-2XB0 mainly used for?
The module is used to expand communication capability in Siemens S7-1200 PLC systems, enabling data exchange with external automation devices.
How does this module work with an S7-1200 CPU?
The CPU performs control logic execution, while the communication module handles additional data exchange between the PLC and connected equipment.
What factors should be considered when selecting an S7-1200 communication module?
Engineers should consider PLC compatibility, required communication functions, connected devices, network structure, and installation environment.
What troubleshooting steps are recommended for communication failures?
Check module status, PLC configuration, communication parameters, wiring connections, external device settings, and diagnostic information to locate the fault.
