Product Overview

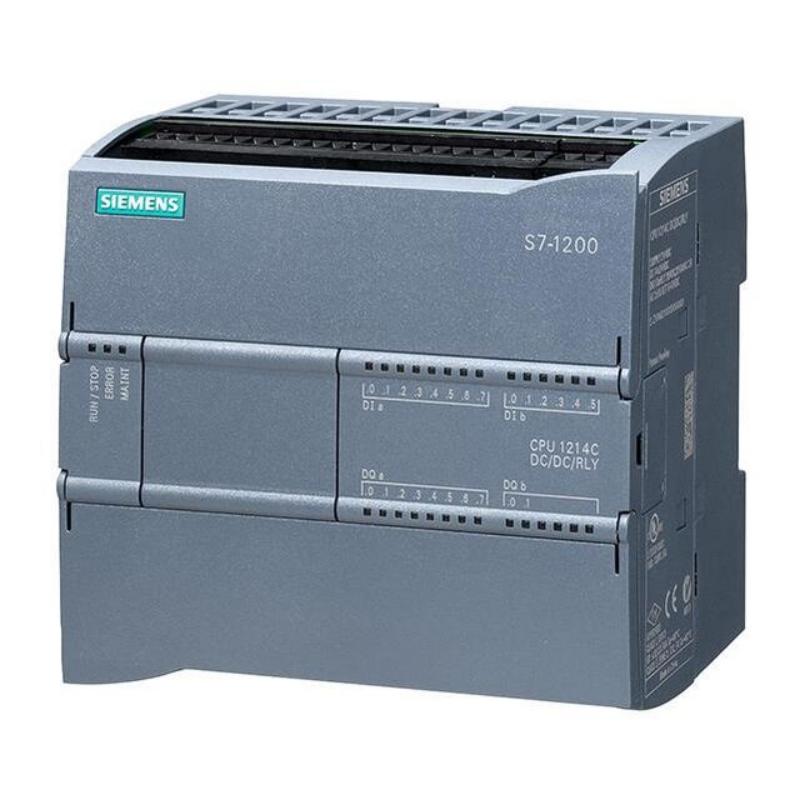

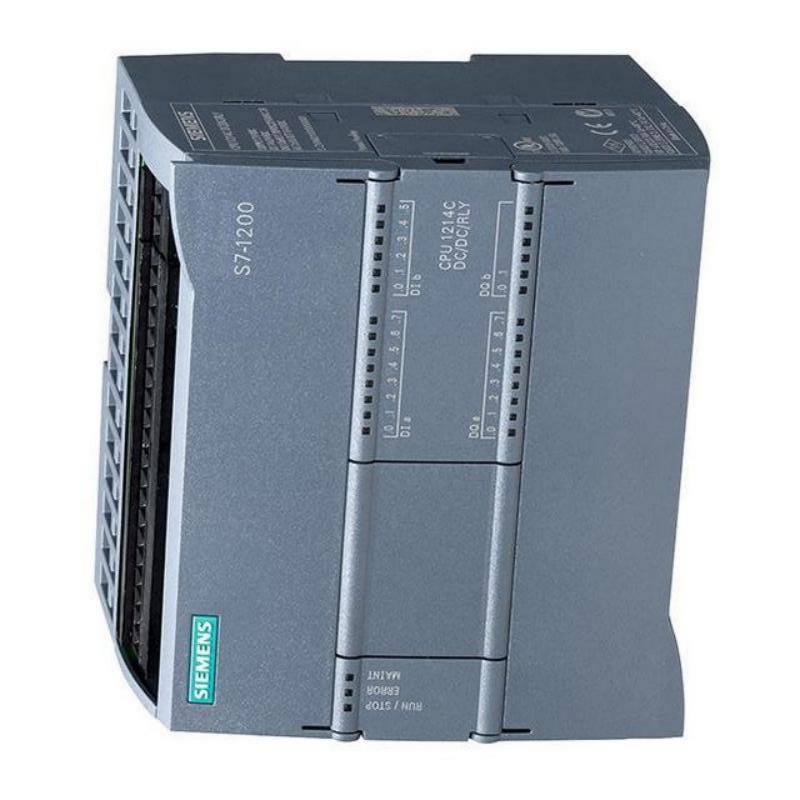

The Siemens 6AG1214-1HG40-5XB0 Central Processing Unit is an industrial automation CPU designed to perform central control, program execution, data processing, and system coordination functions within a Siemens SIMATIC automation architecture. As the processing core of a programmable automation system, the CPU connects control logic with field-level devices, I/O modules, communication components, and machine equipment.
A central processing unit continuously evaluates information received from the automation system and executes the programmed control logic. Based on this logic, it can determine the appropriate response for connected motors, valves, actuators, indicators, drives, and other industrial devices.
The 6AG1214-1HG40-5XB0 has supplied dimensions of 110 × 100 × 75 mm and a listed weight of 0.435 kg. Its compact physical design allows it to be incorporated into industrial control cabinets where space efficiency, organized wiring, and modular system construction are important.
In a typical automation application, the CPU works together with input and output modules, sensors, actuators, HMIs, communication equipment, and other control-system components. The exact hardware configuration depends on the machine, process, and required automation functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1214-1HG40-5XB0 |
| Product Type | Central Processing Unit |
| Product Family | Siemens SIMATIC automation system |
| Primary Function | Central control and program processing |
| Application | Industrial automation and machine control |
| Dimensions (H × W × D) | 110 × 100 × 75 mm |
| Weight | 0.435 kg |
| Installation | Industrial control cabinet / automation panel |
| System Role | Central processing and control |
| Typical Applications | Machine automation, production systems, process control |
Specification note: The dimensions and weight are based on the information supplied for this product. Exact memory capacity, communication functions, integrated I/O characteristics, supported technologies, power requirements, firmware features, and other detailed electrical specifications should be confirmed against the actual hardware version and intended system configuration.
Understanding the Siemens 6AG1214-1HG40-5XB0
The Siemens 6AG1214-1HG40-5XB0 serves as a central processing component in a programmable automation system.
Its basic control relationship can be represented as:
Sensors → Input System → CPU → Output System → Actuators
The CPU receives information from the connected input side, executes the configured automation program, and generates the required control response.
For example, a machine may use a sensor to detect a product at a specific position. The input system transfers the sensor state to the CPU. The CPU evaluates the programmed conditions and then sends a control command through the appropriate output system.
The resulting action may activate a motor, valve, relay, drive, cylinder, or other machine component.
This continuous processing cycle allows the CPU to coordinate complex automated operations.
CPU Operating Principle
The operation of an industrial PLC CPU can generally be understood as a repeated sequence of information acquisition, logic processing, and control output.
Input Acquisition
Information from connected sensors and input devices enters the control system.
Typical information may include:
- Sensor status
- Switch position
- Machine position
- Process conditions
- Equipment status
- Feedback information
Program Execution
The CPU processes the available information according to the configured control program.
Program logic may contain:
- Logical operations
- Sequential control
- Timers
- Counters
- Interlocks
- Data processing
- Machine-state management
- Communication functions
Output Processing
After executing the control logic, the CPU determines the required output conditions.
Connected output equipment can then operate according to the programmed sequence.
System Communication
Where supported by the system configuration, the CPU can exchange information with other automation components, operator interfaces, and communication devices.
This enables coordinated operation across multiple layers of an industrial control system.
Main Functions of the 6AG1214-1HG40-5XB0
Central Program Execution
The CPU executes the automation program responsible for controlling the machine or process.
Signal Processing
It processes information received from connected input devices and modules.
Machine Sequencing
The CPU can organize machine operations into defined sequences and operating states.
Equipment Coordination
Multiple motors, valves, sensors, drives, and other devices can be coordinated through the programmed control logic.
Interlocking
Control logic can be used to prevent incompatible or unsafe machine operations according to the application’s design.
Alarm and Status Processing
The control program can evaluate abnormal conditions and generate appropriate responses or operator information.
Data Handling
The CPU can process automation data required for machine operation, monitoring, and communication.
Role in Industrial Automation
The CPU is the logical center of a PLC-based automation system.
A typical architecture can be represented as:
Field Sensors → I/O → 6AG1214-1HG40-5XB0 → Outputs / Communication → Machine Equipment
At the field level, sensors provide information about the physical process.
The CPU processes that information according to the automation program.
The output system then activates the required equipment.
For example, consider an automated material-handling system:
- A sensor detects an incoming product.
- The input system sends the signal to the CPU.
- The CPU checks the programmed conditions.
- The control logic determines the required machine response.
- An output command activates the relevant equipment.
- Additional feedback confirms the machine operation.
- The CPU continues processing the next control cycle.
This architecture enables machines to operate continuously without requiring manual intervention for every individual operation.
Industrial Applications
Manufacturing Equipment
The CPU can be incorporated into automated manufacturing machines where sensors, actuators, drives, and mechanical equipment must operate according to a defined sequence.
Conveyor Automation
Conveyor systems can use a PLC CPU to coordinate sensors, motors, drives, stops, diverters, and material-positioning equipment.
Packaging Machinery
Packaging machines often require precise coordination between feeding, positioning, filling, sealing, labeling, and product-transfer operations.
A central CPU can execute the corresponding sequence logic.
Assembly Machines
Automated assembly systems can use a CPU to coordinate detection, positioning, clamping, fastening, inspection, and transfer operations.
Material Handling
Industrial material-handling systems can use programmable control logic to coordinate transportation, sorting, positioning, and accumulation.
Process Equipment
Pumps, valves, motors, sensors, and other process equipment can be integrated into a programmable control architecture.
Production Lines
Multiple machines can be coordinated through a central automation system in which the CPU processes information from different sections of the production line.
PLC System Architecture
The 6AG1214-1HG40-5XB0 is normally used as part of a broader control architecture.
A simplified structure is:
Operator Interface
↓
Central Processing Unit
↓
Input / Output and Communication System
↓
Sensors and Actuators
↓
Industrial Machine or Process
Each layer performs a different function.
| System Component | Typical Function |
|---|---|
| Central Processing Unit | Executes control logic |
| Digital Input | Receives discrete signals |
| Digital Output | Controls discrete devices |
| Analog Input | Receives process measurements |
| Analog Output | Provides analog control signals |
| Communication Module | Connects external devices |
| HMI | Operator monitoring and control |
| Sensor | Detects process conditions |
| Actuator | Performs physical actions |
| Drive | Controls motor operation |
The actual configuration should be selected according to the requirements of the specific machine.
Installation and Setup
Correct installation is important for reliable CPU operation.
Product Identification
Before installation, verify the complete ordering number:
Siemens 6AG1214-1HG40-5XB0
The complete part number should be checked against the intended hardware configuration.
Mounting Space
The supplied dimensions are:
110 × 100 × 75 mm
Additional space should be provided for wiring, adjacent modules, connectors, ventilation, and maintenance.
Cabinet Installation
The CPU should be installed in a suitable industrial control cabinet or automation enclosure appropriate for the system.
Power Supply
The control-system power supply must be compatible with the requirements of the actual CPU and associated modules.
I/O Connections
Connected input and output modules should be installed and wired according to the intended automation architecture.
Communication Connections
Where communication is required, network connections should be installed and checked before commissioning.
Wiring Inspection
All power, signal, I/O, grounding, and communication connections should be inspected before the system is energized.
Commissioning Procedure
A systematic commissioning procedure helps identify hardware, wiring, and configuration problems.
1. Hardware Inspection
Inspect the CPU, connected modules, connectors, wiring, and mounting arrangement.
2. Power Check
Verify that the control-system power supply is correctly installed.
3. Hardware Configuration
Confirm that the configured hardware corresponds to the actual system.
4. Program Verification
Check that the correct automation program and configuration have been loaded.
5. Input Testing
Verify that connected sensors and input devices provide the expected signals.
6. Output Testing
Test output channels and connected actuators under controlled conditions.
7. Communication Testing
Where applicable, verify communication with connected automation equipment.
8. Machine Sequence Testing
Run the machine through its operating sequence step by step.
9. Alarm Testing
Verify configured alarm and abnormal-condition responses.
10. Production Verification
After successful testing, operate the system under normal conditions and monitor CPU and equipment status.
Troubleshooting the 6AG1214-1HG40-5XB0
Troubleshooting should always consider the complete automation system.
CPU Has No Operating Response
Check:
- Control power
- Wiring
- CPU status
- Hardware configuration
- Connected modules
- System diagnostics
- Installation conditions
A power supply or configuration problem can create symptoms similar to a CPU hardware failure.
Program Does Not Behave as Expected
Inspect:
- Program logic
- Hardware configuration
- Input states
- Output states
- Data values
- Interlocks
- Communication status
The CPU should be evaluated together with the control program.
Incorrect Input Signals
Possible causes include:
- Sensor problems
- Wiring errors
- Input module issues
- Incorrect addressing
- Configuration problems
- Field-device faults
The input path should be tested from the sensor toward the CPU.
Outputs Do Not Operate
Check:
- Program logic
- Output status
- Output module
- Wiring
- Actuator condition
- Interlocks
- External power circuits
A CPU may correctly generate an output command while a problem exists elsewhere in the output circuit.
Communication Failure
Inspect:
- Network connections
- Device configuration
- Communication parameters
- Connected devices
- Network topology
- Diagnostic information
Communication troubleshooting should be performed systematically rather than replacing the CPU immediately.
Preventive Maintenance
Control Cabinet Inspection
Inspect the cabinet for:
- Excessive dust
- Moisture
- Abnormal heat
- Vibration
- Contamination
- Poor ventilation
Connector Inspection
Check connectors and wiring for looseness, corrosion, contamination, or mechanical damage.
Diagnostic Monitoring
Regularly review available system diagnostics and identify repeated abnormal conditions.
Program Backup
Maintain a current backup of the PLC program and relevant configuration information.
Hardware Documentation
Record CPU model numbers, connected modules, network configuration, and hardware modifications.
Environmental Management
Maintain the control cabinet environment according to the requirements of the installed automation equipment.
Physical Dimensions and Weight
The supplied physical specifications for the Siemens 6AG1214-1HG40-5XB0 are:
Dimensions: 110 × 100 × 75 mm
Weight: 0.435 kg
These values are useful for:
- Control cabinet planning
- Equipment layout
- Mounting preparation
- Transportation
- Warehouse management
- Replacement planning
- Maintenance access
The physical envelope of the CPU should be considered together with the space required for connectors, wiring, adjacent modules, and service access.
Replacement and Compatibility Considerations
When replacing a 6AG1214-1HG40-5XB0, the complete model number should be verified before installation.
Important considerations include:
- Full ordering number
- Hardware version
- Firmware compatibility
- PLC program compatibility
- Existing hardware configuration
- Connected I/O modules
- Communication architecture
- Power requirements
- Network configuration
- Cabinet installation requirements
A visually similar CPU should not automatically be considered a direct replacement.
The complete system configuration must be checked to ensure that the replacement CPU is suitable for the intended application.
Integration with HMI and Industrial Networks
A PLC CPU can operate as part of a multi-level automation architecture.
The HMI provides the operator with a visual interface for machine status, commands, alarms, and process information.
The CPU executes the control logic.
I/O modules provide the connection between the CPU and field devices.
Communication components allow data to be exchanged with other controllers, drives, HMIs, or supervisory systems where supported by the installed configuration.
This creates an integrated control structure:
Operator → HMI → CPU → I/O / Network → Machine
Feedback from the machine travels back through the same architecture, allowing the control system to continuously monitor operating conditions.
Engineering Best Practices
Maintain Accurate Hardware Records
Record the exact CPU model and all connected system components.
Back Up the Control Program
Keep current program and configuration backups in a controlled engineering environment.
Label Wiring
Clear identification of field wiring makes troubleshooting and maintenance more efficient.
Monitor Diagnostics
Repeated warnings or abnormal conditions should be investigated before they become larger system failures.
Protect the Control Cabinet
Maintain appropriate cleanliness, ventilation, temperature, and environmental conditions.
Test Modifications
Hardware and software changes should be tested in a controlled environment before being introduced into normal production.
Plan for Replacement
Record the complete model number and system configuration so that future maintenance personnel can identify compatible equipment quickly.
Key Advantages
The Siemens 6AG1214-1HG40-5XB0 Central Processing Unit provides a compact central processing platform for industrial automation applications.
Key characteristics include:
- Centralized PLC program execution
- Industrial machine-control functionality
- Coordination of connected I/O
- Processing of sensor and process information
- Support for automated sequences
- Integration into modular control architectures
- Communication with compatible automation equipment
- Compact 110 × 100 × 75 mm dimensions
- Listed weight of 0.435 kg
- Suitable for control cabinets and industrial automation panels
Technical FAQs
What is the Siemens 6AG1214-1HG40-5XB0?
The Siemens 6AG1214-1HG40-5XB0 is a Central Processing Unit used for executing control programs and managing automation operations within a compatible Siemens industrial control system.
What is the primary function of the CPU?
The CPU processes input information, executes programmed logic, controls outputs, and coordinates connected automation equipment.
What are the dimensions of the 6AG1214-1HG40-5XB0?
The supplied dimensions are 110 × 100 × 75 mm.
What is the weight of the CPU?
The supplied weight is 0.435 kg.
What types of applications can use this CPU?
Potential applications include manufacturing machines, conveyor systems, packaging equipment, assembly machinery, material-handling systems, production lines, and process-control equipment, provided the complete system configuration is compatible.
Is the 6AG1214-1HG40-5XB0 an input module?
No. It is a Central Processing Unit. Input and output functions are provided through compatible I/O components within the automation architecture.
Can the CPU control motors?
The CPU can execute the control logic that commands motor-control equipment. A suitable drive, contactor, or other motor-control device is normally used between the PLC control system and the motor, depending on the application.
What should be checked before replacing the CPU?
The complete ordering number, hardware and firmware compatibility, control program, connected modules, communication configuration, power requirements, and existing PLC architecture should be verified.
Why might a PLC system fail even when the CPU is functioning?
Problems can occur in sensors, I/O modules, wiring, communication networks, power supplies, actuators, program logic, or mechanical equipment. Troubleshooting should therefore cover the complete automation system.
How should the CPU be maintained?
Regular maintenance should include control-cabinet inspection, connector and wiring checks, diagnostic monitoring, program backups, hardware documentation, and maintenance of suitable environmental conditions.
Conclusion
The Siemens 6AG1214-1HG40-5XB0 Central Processing Unit is a compact industrial automation CPU designed to provide central program execution, signal processing, machine sequencing, and coordination of connected automation equipment. It serves as the logical center of a PLC-based control architecture, connecting field-level information with programmed machine-control operations.
The supplied physical dimensions are 110 × 100 × 75 mm, and the listed weight is 0.435 kg. These specifications make the physical characteristics of the CPU straightforward to incorporate into control-cabinet planning, equipment handling, replacement procedures, and system documentation.
For manufacturing systems, packaging machinery, conveyor equipment, assembly systems, material-handling applications, production lines, and other industrial automation installations, the 6AG1214-1HG40-5XB0 can form part of a modular PLC architecture together with I/O modules, HMIs, sensors, actuators, drives, and industrial communication equipment.
For installation, commissioning, troubleshooting, or replacement, the complete model number and the requirements of the existing automation configuration should always be verified before the CPU is placed into service.
