- Siemens
- 6AG1214-1HF40-5XB0
- Central Processing Unit
- Germany
- 110 × 100 × 75 mm
- 0.435 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

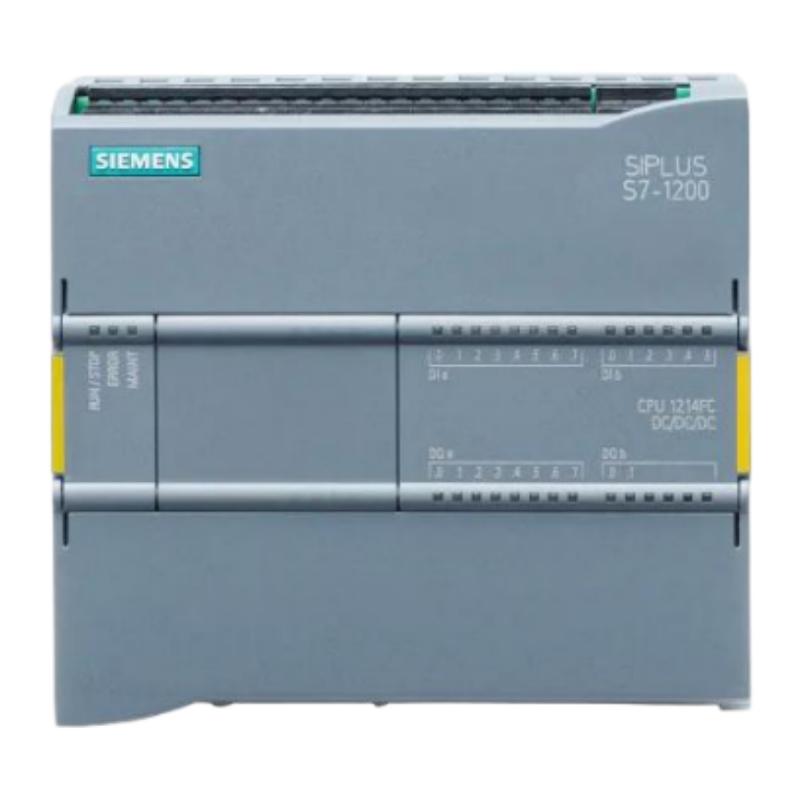

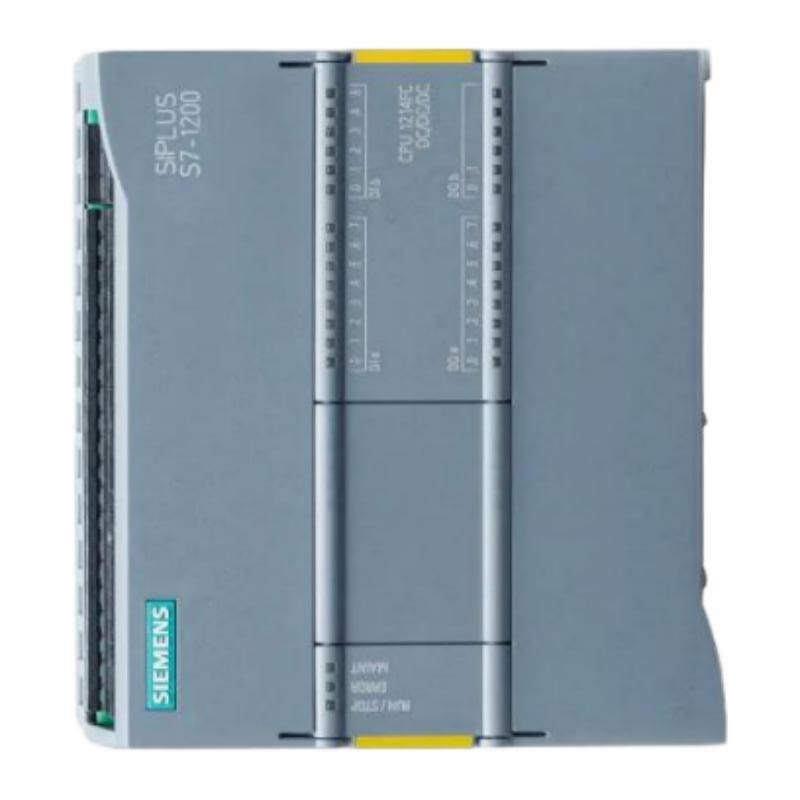

The Siemens 6AG1214-1HF40-5XB0 Central Processing Unit is a compact PLC processing unit designed for compatible Siemens industrial automation systems. As the central processor of a programmable logic controller, it executes the application program, processes input information, coordinates connected I/O equipment, and manages the control logic required by automated machines and industrial processes.
The CPU represents the processing center of a PLC architecture. Field sensors and input devices provide information about the physical process, while the controller evaluates this information according to the programmed application. The resulting control commands can then be transferred through the appropriate output system to motors, valves, actuators, and other equipment.
The 6AG1214-1HF40-5XB0 has listed dimensions of 110 × 100 × 75 mm and a weight of 0.435 kg. Its compact form factor makes it suitable for industrial control cabinets and machine automation installations where efficient use of panel space is important.
The exact capabilities of a CPU depend on the installed hardware, firmware, engineering software, connected modules, and application architecture. These factors should be verified for the specific project before commissioning or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1214-1HF40-5XB0 |
| Product Type | Central Processing Unit |
| Application | PLC and Industrial Automation |
| Primary Role | Central PLC Processing |
| Dimensions | 110 × 100 × 75 mm |
| Weight | 0.435 kg |
| Installation | Industrial Control Cabinet / Compatible PLC System |
| Main Function | PLC program execution and control processing |
| Typical Applications | Machine Automation, Factory Automation, Process Control |
What Is the Siemens 6AG1214-1HF40-5XB0?
The Siemens 6AG1214-1HF40-5XB0 is a Central Processing Unit intended to serve as the processing core of a compatible Siemens PLC system.
The processor receives information from connected input devices and system modules, executes the programmed control logic, processes internal data, and generates control responses for connected outputs.
A simplified PLC control structure can be represented as:
Sensors → Input Modules → CPU → Output Modules → Actuators
The CPU also forms an important connection between the automation application and engineering or supervisory systems:
Engineering Software ↔ PLC CPU ↔ Automation Equipment
Through this architecture, the controller can continuously evaluate operating conditions and execute programmed machine or process sequences.
PLC CPU Working Principle
A PLC CPU normally operates through a repeated control-processing cycle.
Input Processing
The controller receives information from connected sensors, switches, input modules, and other field devices.
This information represents the current state of the machine or process.
Program Execution
The CPU executes the application logic configured by the automation engineer.
The program determines how the controller should respond to different input and operating conditions.
Data Processing
During program execution, the processor handles internal variables, logic operations, timers, counters, calculations, and other supported instructions.
Output Processing
The CPU updates output information according to the results of the control program.
Connected output modules then provide the required signals to actuators and other controlled equipment.
Diagnostics and Communication
The CPU also participates in supported system diagnostics and communication functions according to the overall PLC architecture.
Main Functions
PLC Application Execution
The primary role of the 6AG1214-1HF40-5XB0 is to execute the programmed automation application.
Control Logic Processing
The CPU evaluates programmed conditions and determines the required response for the connected machine or process.
I/O Coordination
The processor coordinates data between the application program and the connected input/output system.
Sequence Control
The CPU can execute programmed operating sequences and coordinate multiple stages of an automated process.
System Diagnostics
PLC diagnostic information can assist engineers in identifying hardware, configuration, communication, and application-related issues.
Automation Coordination
The CPU acts as the central processing layer connecting field information with control logic and automation responses.
Role in Industrial Automation
A PLC CPU is the central processing element of an automated control architecture.
A typical system can contain:
- Central Processing Unit
- Digital Input Modules
- Digital Output Modules
- Analog Input Modules
- Analog Output Modules
- Communication Interfaces
- HMI Devices
- Sensors
- Actuators
- Industrial Networks
- Engineering Workstations
The 6AG1214-1HF40-5XB0 can coordinate these components according to the configured application.
For example, an automated machine may use sensors to detect workpiece position. The sensors provide input information, the PLC CPU processes the signals according to the application program, and the resulting commands control motors, valves, cylinders, or other actuators.
Industrial Applications
Factory Automation
The CPU can serve as the processing center for automated manufacturing equipment requiring programmable control logic and sequence management.
Machine Automation
Machine builders can use PLC processing to coordinate sensors, actuators, motors, valves, and other equipment.
Packaging Equipment
Packaging machines frequently require coordinated timing and sequencing. A PLC CPU can execute the control logic required for these operations.
Conveyor Systems
Conveyor applications can use PLC processors to coordinate product detection, motor control, positioning, and machine interlocks.
Assembly Machines
Automated assembly systems can use the CPU to coordinate multiple machine stations and execute defined production sequences.
Process Control
Compatible PLC systems can be used to monitor process conditions and control pumps, valves, motors, and other industrial equipment.
Material Handling
Material-handling equipment can use PLC processing to coordinate conveyors, sensors, drives, and handling mechanisms.
PLC System Architecture
The 6AG1214-1HF40-5XB0 operates as part of a complete PLC architecture rather than as an isolated component.
| System Component | General Function |
|---|---|
| PLC CPU | Executes application logic |
| Digital Input Module | Receives discrete field signals |
| Digital Output Module | Controls discrete devices |
| Analog Input Module | Receives continuous process signals |
| Analog Output Module | Provides analog control signals |
| Communication Module | Exchanges information with other systems |
| HMI | Provides operator visualization |
| Sensors | Detect physical or process conditions |
| Actuators | Perform physical control actions |
| Engineering Software | Programs and diagnoses the PLC |
The exact configuration depends on the application and compatible Siemens automation equipment.
Installation Guidelines
Proper installation is important for reliable operation.
Verify the Complete Model
Before installation, confirm the exact CPU ordering number:
6AG1214-1HF40-5XB0
The complete ordering number should be checked because similar Siemens CPU models may have different system requirements.
Confirm System Compatibility
Verify compatibility with:
- PLC hardware configuration
- Firmware
- Connected I/O modules
- Application program
- Communication system
- Engineering software
Mechanical Installation
The CPU should be installed according to the applicable Siemens mounting requirements.
The listed physical dimensions are:
110 × 100 × 75 mm
Adequate space should be provided for wiring, service access, and the overall control-cabinet design.
Electrical Connections
Power, I/O, communication, and grounding connections should be completed according to the applicable system requirements.
Control and communication cables should be routed appropriately to minimize the effects of electrical interference.
PLC Program Configuration
After hardware installation, the CPU should be configured within the appropriate Siemens engineering environment.
A typical workflow includes:
- Create or open the PLC project.
- Select the correct CPU model.
- Configure the required hardware.
- Add compatible I/O modules.
- Configure supported communication functions.
- Download the approved application program.
- Check diagnostic information.
- Verify I/O operation.
- Perform functional testing.
The exact configuration process depends on the controller platform, firmware, and engineering software.
Commissioning Procedure
A controlled commissioning procedure can reduce startup risks.
Hardware Inspection
Confirm that the CPU and associated modules are installed correctly.
Wiring Verification
Check power, I/O, communication, and grounding connections.
Configuration Check
Verify that the engineering project matches the installed hardware.
Application Download
Transfer the approved PLC program to the CPU using the appropriate engineering procedure.
Diagnostic Verification
Check the CPU and connected modules for unexpected diagnostic conditions.
I/O Testing
Verify relevant input and output signals under controlled conditions.
Functional Testing
Run the machine or process through its intended operating sequence and confirm that the programmed responses are correct.
Documentation
Record the CPU model, application version, hardware configuration, and commissioning results.
Troubleshooting the 6AG1214-1HF40-5XB0
CPU Does Not Start Correctly
If the CPU does not enter the expected operating state, inspect:
- Power supply
- Electrical connections
- Hardware configuration
- Firmware compatibility
- Connected modules
- Controller diagnostics
- Application configuration
A complete system check should be performed before determining that the processor itself has failed.
PLC Program Does Not Execute Correctly
Possible causes include:
- Incorrect application program
- Hardware configuration mismatch
- Unsupported configuration
- I/O configuration problems
- Communication faults
- Incorrect CPU operating state
Review diagnostic information and the engineering project before replacing the CPU.
I/O Signals Are Incorrect
Follow the complete signal path:
Field Device → Wiring → Input Module → CPU → Application Logic → Output Module → Actuator
This helps determine whether the problem originates from field equipment, wiring, I/O hardware, application logic, or the processor.
Communication Problems
For communication-related faults, inspect:
- Physical connections
- Network configuration
- Device settings
- Communication parameters
- Diagnostic information
- Connected equipment
The appropriate procedure depends on the communication architecture implemented in the automation system.
Intermittent Operation
Intermittent PLC behavior may be associated with:
- Loose connections
- Power instability
- Electrical interference
- Communication problems
- Environmental conditions
- Configuration errors
The complete control system should be inspected before replacing the CPU.
Maintenance Recommendations
Maintain the Control Cabinet
Keep the cabinet clean and protect the PLC from excessive dust, moisture, heat, and vibration.
Inspect Connections
Check power, I/O, and communication connections periodically for looseness or damage.
Monitor Diagnostics
Use available controller diagnostics to identify abnormal operating conditions.
Maintain Application Backups
Keep controlled copies of the PLC program and hardware configuration.
Document System Changes
Record CPU replacements, software modifications, firmware updates, and configuration changes.
Physical Dimensions and Weight
The Siemens 6AG1214-1HF40-5XB0 has the following listed physical specifications:
- Dimensions: 110 × 100 × 75 mm
- Weight: 0.435 kg
These specifications are useful when planning cabinet installation, mounting arrangements, wiring space, service access, and equipment transportation.
The compact physical design also allows the CPU to be integrated into control panels where available space is limited.
Replacement Considerations
When replacing a Siemens 6AG1214-1HF40-5XB0, verify the complete ordering number and the requirements of the existing automation system.
Important considerations include:
- Exact CPU model
- Hardware revision
- Firmware compatibility
- Existing PLC project
- I/O configuration
- Communication architecture
- Engineering software
- Application requirements
A CPU with similar dimensions should not automatically be considered a direct replacement.
Whenever possible, the existing PLC program and configuration should be backed up before removing the original CPU.
After installation, the replacement CPU should be configured, diagnosed, and functionally tested before the machine returns to normal production.
Engineering Best Practices
Reliable PLC operation requires systematic engineering and maintenance.
Recommended practices include:
- Maintain an accurate hardware inventory.
- Record the complete CPU ordering number.
- Keep PLC programs under controlled version management.
- Maintain current application backups.
- Record firmware information.
- Keep hardware configurations updated.
- Clearly label I/O wiring.
- Separate control and high-power wiring where appropriate.
- Monitor controller diagnostics.
- Test modifications before production use.
These practices can simplify troubleshooting and reduce downtime during future maintenance activities.
Key Advantages
Centralized PLC Processing
The 6AG1214-1HF40-5XB0 provides the central processing function required by a compatible PLC automation architecture.
Compact Construction
With dimensions of 110 × 100 × 75 mm, the CPU can be integrated into space-conscious industrial control cabinets.
Lightweight Design
The listed weight of 0.435 kg facilitates handling during installation, replacement, and maintenance.
Automation System Integration
The CPU can operate as the central processing component of a larger system containing I/O modules, communication equipment, HMIs, and field devices.
Programmable Control
The processor executes application logic that can coordinate machine sequences and industrial processes according to the configured PLC program.
Technical FAQs
What is the Siemens 6AG1214-1HF40-5XB0?
The Siemens 6AG1214-1HF40-5XB0 is a Central Processing Unit designed for a compatible Siemens PLC and industrial automation system.
What is the primary function of the CPU?
The CPU executes the PLC application program, processes input information, manages internal control logic, coordinates I/O operations, and generates control responses.
What are the dimensions of the 6AG1214-1HF40-5XB0?
The listed dimensions are 110 × 100 × 75 mm.
What is the weight of the CPU?
The listed weight is 0.435 kg.
What applications can use this type of CPU?
It can be incorporated into compatible machine automation, manufacturing, packaging, conveyor, assembly, material-handling, and process-control systems.
What should be checked before installation?
Verify the complete ordering number, hardware configuration, firmware, connected I/O modules, PLC program, communication architecture, and engineering software.
Can another Siemens CPU with the same physical dimensions replace it?
Not necessarily. Physical dimensions alone do not establish electrical, firmware, software, or system compatibility.
How should a CPU fault be investigated?
Check power, wiring, hardware configuration, firmware, connected modules, diagnostic information, application logic, and communication connections before determining whether the CPU itself requires replacement.
Conclusion
The Siemens 6AG1214-1HF40-5XB0 Central Processing Unit is a compact PLC processor designed to serve as the central processing element of a compatible Siemens industrial automation system. It executes application logic, processes input information, coordinates I/O operations, manages programmed sequences, and supports the control architecture of automated machines and industrial processes.
With listed dimensions of 110 × 100 × 75 mm and a weight of 0.435 kg, the CPU is suitable for industrial control cabinets and automation applications where compact equipment integration is important.
For reliable implementation, the complete 6AG1214-1HF40-5XB0 ordering number should be verified together with the installed hardware, firmware, PLC application, I/O configuration, communication architecture, and engineering environment. Proper installation, commissioning, diagnostics, application backup, and preventive maintenance can help maintain stable and dependable PLC operation.
