Product Overview

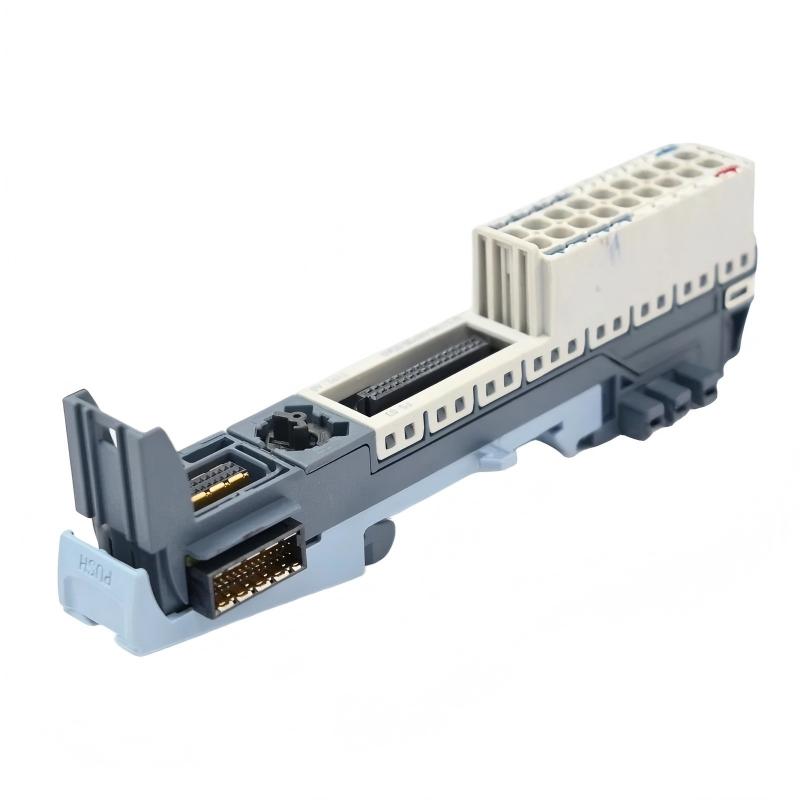

The Siemens 6AG1193-6BP00-7DA0 Basic Unit is an industrial-grade base module developed for the SIMATIC ET 200SP distributed I/O system and is part of the SIPLUS ET 200SP product family. Designed for reliable operation in harsh industrial environments, this basic unit provides a secure mechanical mounting platform and dependable electrical interface for ET 200SP I/O modules, ensuring stable signal transmission and efficient power distribution throughout the automation system.

As an essential component of a modular distributed I/O architecture, the 6AG1193-6BP00-7DA0 simplifies module installation while maintaining reliable backplane communication between interface modules and signal modules. Its compact footprint allows engineers to maximize cabinet space without compromising accessibility or maintainability, making it an excellent choice for both new automation projects and system expansions.

Manufactured with high-quality engineering plastics, precision electrical contacts, and industrial-grade connector technology, the 6AG1193-6BP00-7DA0 offers excellent resistance to vibration, dust, humidity, temperature variations, and electromagnetic interference. The rugged construction ensures long-term reliability even in demanding industrial environments such as manufacturing plants, energy facilities, transportation infrastructure, and process automation systems.

With dimensions of 15 × 117 × 35 mm and a lightweight design of 0.04 kg, the Siemens 6AG1193-6BP00-7DA0 Basic Unit provides a compact, durable, and highly reliable foundation for SIMATIC ET 200SP distributed I/O installations.

Technical Specifications

Function and Working Principle

The Siemens 6AG1193-6BP00-7DA0 Basic Unit serves as the physical and electrical connection platform for SIMATIC ET 200SP I/O modules.

After installation on a standard DIN rail, the basic unit provides secure mechanical support for compatible signal modules while establishing reliable electrical connections through the integrated ET 200SP backplane bus. The backplane enables high-speed communication, operating power distribution, and signal transfer between interface modules, CPUs, and connected I/O modules.

Its precision contact system minimizes electrical resistance while maintaining stable communication performance. The rugged housing protects internal connections from vibration and environmental influences, ensuring continuous operation in demanding industrial conditions.

Key operating features include:

• Secure module mounting
• Reliable ET 200SP backplane communication
• Stable power distribution
• Compact modular design
• High mechanical strength
• Excellent electrical contact reliability
• Fast module installation and replacement
• Long operational service life

Role in Industrial Control Systems

Within the SIMATIC ET 200SP Distributed I/O System, the 6AG1193-6BP00-7DA0 provides the infrastructure necessary for reliable installation and operation of distributed I/O modules.

Its primary functions include:

• Supporting ET 200SP signal modules
• Providing electrical backplane connectivity
• Distributing operating power
• Maintaining communication continuity
• Simplifying modular expansion
• Improving cabinet organization
• Supporting rapid maintenance
• Enhancing long-term system reliability

The basic unit forms the foundation of a flexible and scalable automation architecture suitable for both centralized and distributed control systems.

Industrial Applications

The Siemens 6AG1193-6BP00-7DA0 Basic Unit is widely used in:

• Factory Automation
• Process Automation
• Automotive Manufacturing
• Food & Beverage Production
• Pharmaceutical Manufacturing
• Chemical Processing Plants
• Oil & Gas Facilities
• Water & Wastewater Treatment Plants
• Power Generation Systems
• Steel and Metallurgy Plants
• Mining Operations
• Packaging Machinery
• Logistics and Material Handling Systems
• Railway and Transportation Infrastructure
• Renewable Energy Systems

Its rugged SIPLUS design makes it particularly suitable for harsh industrial environments where high reliability and long-term stability are required.

Installation and System Integration

Proper installation ensures optimal system performance and long service life.

Recommended installation procedures include:

• Verify compatibility with the ET 200SP system configuration.
• Mount the basic unit securely on a standard DIN rail.
• Ensure proper alignment with adjacent base units.
• Install compatible ET 200SP I/O modules according to Siemens installation guidelines.
• Verify all electrical contacts are fully engaged.
• Maintain sufficient cabinet ventilation.
• Perform communication and I/O diagnostics during commissioning.
• Inspect the unit periodically during preventive maintenance.

These practices help maximize system availability while minimizing maintenance downtime.

Compatible System Components

The Siemens 6AG1193-6BP00-7DA0 commonly operates together with:

• Siemens SIMATIC ET 200SP Interface Modules
• Siemens ET 200SP Digital Input Modules
• Siemens ET 200SP Digital Output Modules
• Siemens ET 200SP Analog Input Modules
• Siemens ET 200SP Analog Output Modules
• Siemens ET 200SP Fail-Safe Modules
• Siemens ET 200SP Communication Modules
• Siemens S7-1500 PLC
• Siemens S7-1200 PLC
• Siemens PROFINET Network Components
• Siemens Industrial Ethernet Switches
• Siemens HMI Panels
• Siemens SINAMICS Drive Systems
• Siemens SIMATIC STEP 7 Engineering Software
• Siemens TIA Portal Engineering Platform

These components create a comprehensive automation solution capable of delivering high-speed communication, accurate signal acquisition, and reliable industrial process control.

Recommended Alternative Models

Key Advantages

• Compact space-saving design
• Reliable ET 200SP backplane connectivity
• Industrial-grade SIPLUS construction
• High mechanical durability
• Excellent resistance to vibration and EMI
• Simple DIN rail installation
• Fast module replacement
• Flexible modular expansion
• Long operational service life
• Optimized for Siemens SIMATIC ET 200SP Distributed I/O Systems

Technical FAQs

What is the primary function of the Siemens 6AG1193-6BP00-7DA0?

The 6AG1193-6BP00-7DA0 Basic Unit provides the mechanical mounting platform and electrical backplane interface required for installing and operating compatible SIMATIC ET 200SP I/O modules.

Which automation systems use the 6AG1193-6BP00-7DA0?

This basic unit is designed for the Siemens SIMATIC ET 200SP Distributed I/O System, including applications integrated with S7-1500, S7-1200, and PROFINET industrial automation networks.

What equipment commonly works with this basic unit?

The 6AG1193-6BP00-7DA0 is commonly integrated with SIMATIC ET 200SP Interface Modules, Digital Input Modules, Digital Output Modules, Analog Input Modules, Analog Output Modules, Fail-Safe Modules, Communication Modules, Siemens S7-1500 PLCs, S7-1200 PLCs, PROFINET communication devices, Industrial Ethernet switches, Siemens HMI panels, SINAMICS drives, and TIA Portal engineering software, creating a highly scalable and reliable automation platform.

Conclusion

The Siemens 6AG1193-6BP00-7DA0 Basic Unit is a critical infrastructure component within the SIMATIC ET 200SP Distributed I/O System. By providing secure module installation, dependable backplane communication, rugged industrial construction, and flexible modular expansion, it contributes significantly to long-term system reliability and operational efficiency.

Featuring compact dimensions of 15 × 117 × 35 mm and a lightweight design of 0.04 kg, the Siemens 6AG1193-6BP00-7DA0 is ideally suited for factory automation, process industries, power generation, transportation, water treatment, chemical processing, and numerous other industrial applications requiring reliable distributed I/O infrastructure.
