Product Overview

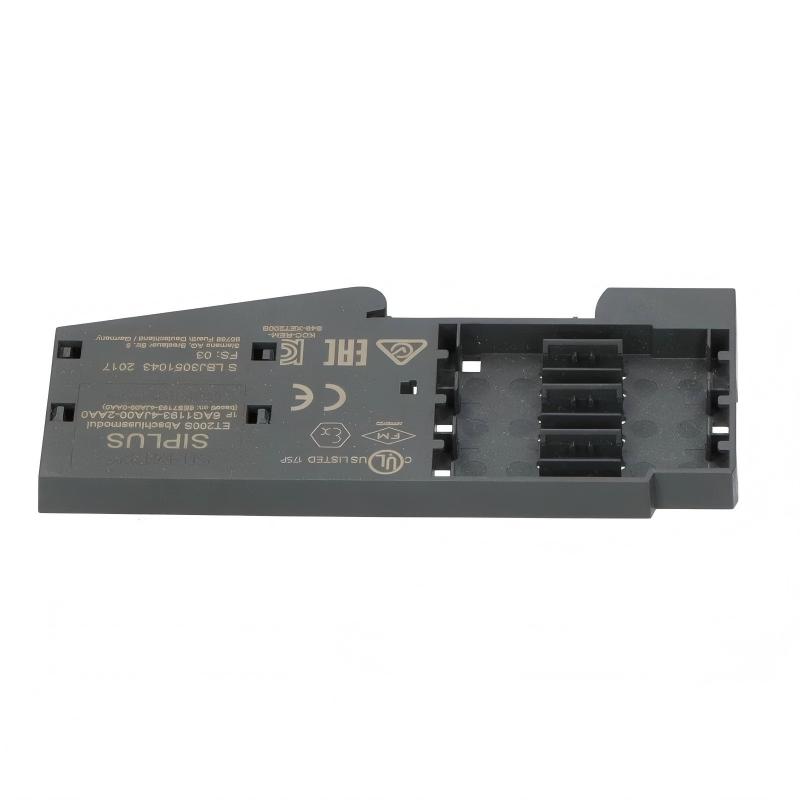

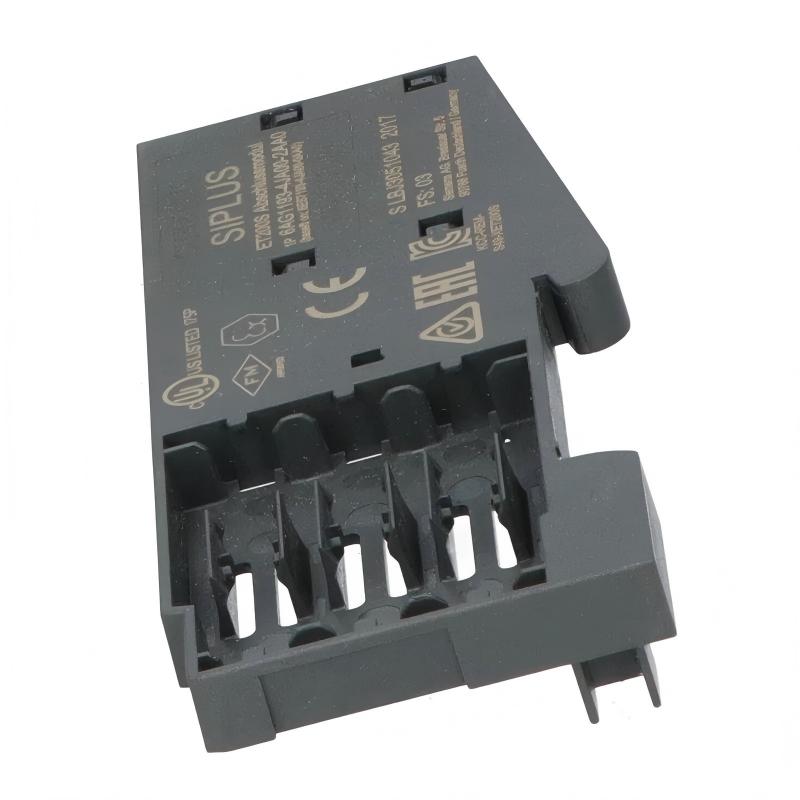

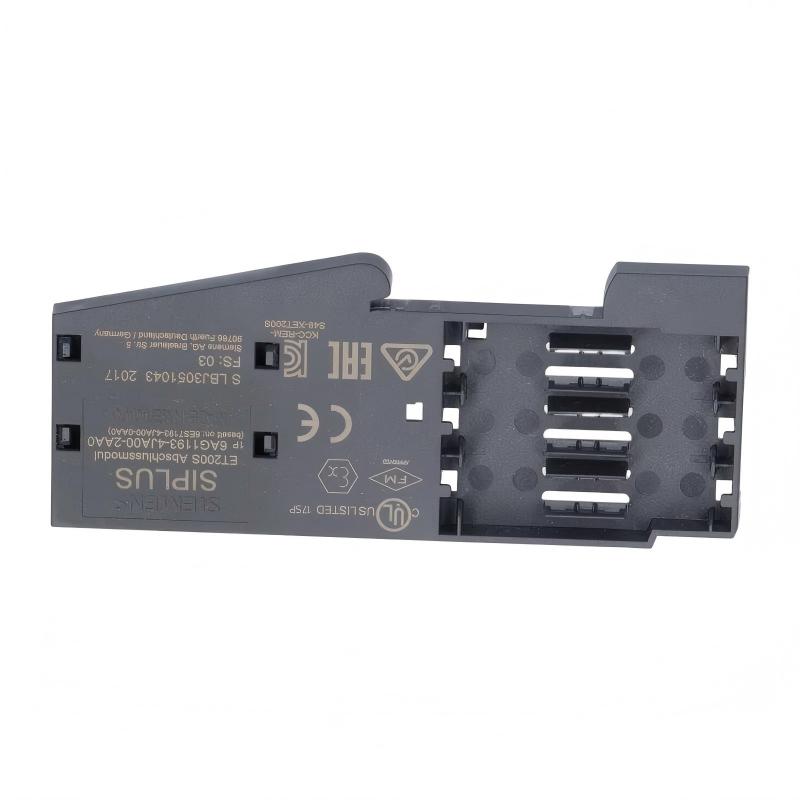

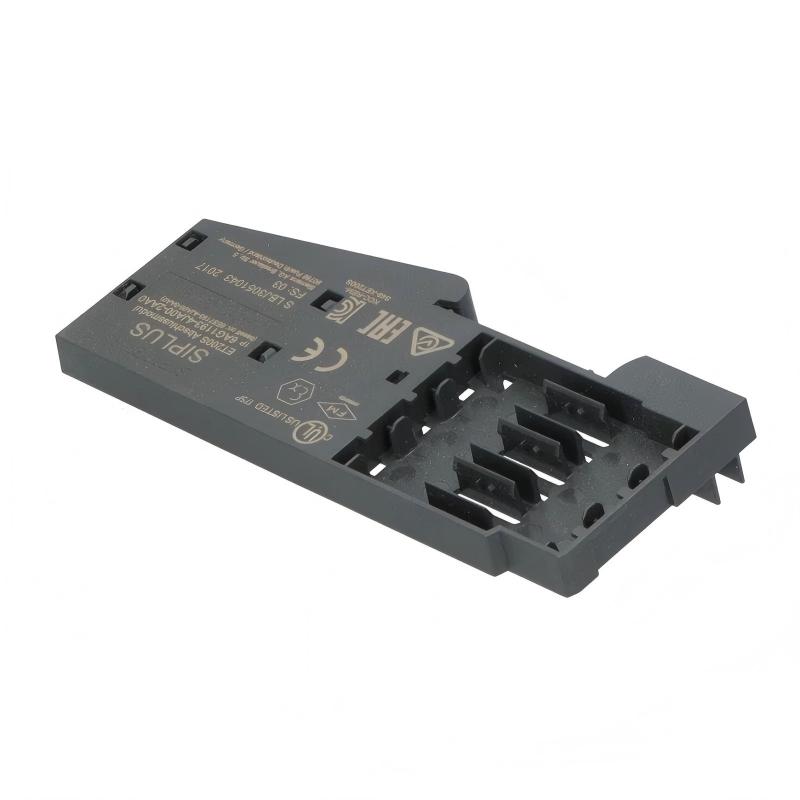

The Siemens 6AG1193-4JA00-2AA0 Terminal Module is a rugged SIPLUS ET 200SP Terminal Module designed for reliable field wiring and mechanical installation of I/O modules in distributed automation systems. Developed for demanding industrial environments, the module provides secure electrical connections between field devices and ET 200SP electronic modules while supporting fast installation, simplified maintenance, and long-term operational reliability.
As part of the SIPLUS ET 200SP platform, the 6AG1193-4JA00-2AA0 serves as the mechanical and electrical interface between the automation system and field wiring. The terminal module allows electronic modules to be installed or replaced without disconnecting field wiring, significantly reducing maintenance time and minimizing production downtime.
Manufactured for harsh industrial environments, the module features robust construction and supports operation under extended environmental conditions commonly encountered in manufacturing plants, energy facilities, transportation systems, water treatment plants, and process industries.
With compact dimensions of 30 × 106 × 7.5 mm and an approximate weight of 0.05 kg, the 6AG1193-4JA00-2AA0 occupies minimal cabinet space while providing reliable wiring support for distributed I/O installations.
Typical applications include factory automation, process control, machine building, water and wastewater treatment, chemical plants, pharmaceutical manufacturing, power generation, transportation infrastructure, and OEM industrial equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1193-4JA00-2AA0 |
| Product Series | SIPLUS ET 200SP |
| Product Type | Terminal Module |
| Primary Function | Electrical field wiring interface |
| Compatible Platform | Siemens ET 200SP Distributed I/O |
| Terminal Type | Push-in / Spring terminal connection |
| Wiring Function | Field device termination |
| Installation Method | DIN Rail Mount |
| Mechanical Function | Electronic module carrier |
| Module Replacement | Supports hot replacement of electronic modules without rewiring |
| Protection | Industrial-grade construction |
| Dimensions | 30 × 106 × 7.5 mm |
| Weight | 0.05 kg |
| Typical Application | Distributed industrial automation systems |
Function and Working Principle
The 6AG1193-4JA00-2AA0 provides the electrical interface between field wiring and ET 200SP electronic modules while acting as the mechanical mounting base for the installed module.
Typical Signal Connection Architecture
Industrial Sensors / Actuators
↓
Field Wiring
↓
6AG1193-4JA00-2AA0 Terminal Module
↓
ET 200SP Electronic Module
↓
Interface Module
↓
PLC / DCS Controller
The terminal module performs several essential functions during system operation:
- Provides secure field wiring connections
- Supports installation of ET 200SP electronic modules
- Separates field wiring from removable electronics
- Simplifies module replacement
- Maintains reliable electrical contact
- Supports organized cabinet wiring
- Reduces maintenance time
- Improves overall system reliability
Its modular design enables maintenance personnel to replace electronic modules without disturbing field wiring, reducing downtime during servicing.
Role in Industrial Control Systems
Within an ET 200SP distributed I/O station, the 6AG1193-4JA00-2AA0 functions as the permanent wiring interface connecting field devices to the automation system.
Typical automation architecture:
Industrial Sensors
↓
6AG1193-4JA00-2AA0 Terminal Module
↓
Digital / Analog I/O Module
↓
ET 200SP Interface Module
↓
SIMATIC PLC
↓
Industrial Equipment
The module contributes to reliable signal transmission and simplifies maintenance while supporting scalable distributed automation architectures.
Its primary responsibilities include:
- Mechanical support
- Electrical field termination
- Modular wiring management
- Fast maintenance
- Reliable signal transmission
- Cabinet organization
- System expansion
- Long-term operational stability
Industrial Applications
Manufacturing Automation
Common applications include:
- Assembly lines
- Packaging machinery
- Robotic workstations
- Conveyor systems
- Automated production equipment
Process Industries
Suitable for:
- Chemical plants
- Petrochemical facilities
- Pharmaceutical production
- Cement plants
- Food processing facilities
Water and Wastewater Treatment
Frequently installed in:
- Pumping stations
- Filtration systems
- Chemical dosing equipment
- Water treatment facilities
- Wastewater processing plants
Energy and Utilities
Widely used in:
- Power generation plants
- Electrical substations
- Renewable energy systems
- Utility control panels
- Industrial energy management systems
Transportation Infrastructure
Ideal for:
- Railway automation
- Tunnel control systems
- Airport automation
- Traffic management
- Infrastructure monitoring systems
OEM Machinery
Suitable for:
- Machine building
- Industrial skids
- Process equipment
- Modular automation systems
- Custom control panels
Installation and System Integration
Before installation, engineers should verify:
- ET 200SP system compatibility
- DIN rail installation
- Cabinet dimensions
- Wiring specifications
- Terminal assignment
- Grounding requirements
- Environmental conditions
- Connector integrity
- Module configuration
- Overall system layout
Recommended Installation Procedure
- Disconnect system power.
- Install the terminal module onto the DIN rail.
- Verify proper mechanical locking.
- Connect field wiring to the designated terminals.
- Check terminal tightening and conductor seating.
- Install the compatible ET 200SP electronic module.
- Verify module engagement.
- Restore system power.
- Confirm module recognition.
- Verify wiring continuity.
- Perform input/output testing.
- Check diagnostic indicators.
- Validate communication with the PLC.
- Complete commissioning.
- Record installation parameters.
Proper installation helps maximize long-term reliability and simplifies future maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Siemens ET 200SP Interface Module | Distributed I/O communication |
| 6AG1193-4JA00-2AA0 | Terminal module |
| Digital Input Modules | Signal acquisition |
| Digital Output Modules | Output switching |
| Analog Input Modules | Process measurement |
| Analog Output Modules | Analog process control |
| SIMATIC PLC | Central automation controller |
| HMI Panel | Operator interface |
| Industrial Ethernet Network | System communication |
| 24 V DC Power Supply | System power |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| 6AG1193-4JA00-2AA0 | Terminal Module | ET 200SP field wiring |
| 6AG1193-4CD30-2AA0 | Terminal Module | Compact ET 200SP installation |
| 6AG1193-4CE10-2AA0 | Terminal Module | Standard distributed I/O |
| 6AG1193-4CG30-2AA0 | Terminal Module | Extended wiring applications |
| 6AG1193-4CF50-7AA0 | Terminal Module | High-density ET 200SP systems |
Key Advantages
- Designed for Siemens SIPLUS ET 200SP distributed I/O systems
- Reliable field wiring interface
- Supports fast electronic module replacement
- Simplifies maintenance procedures
- Push-in terminal technology
- Compact DIN rail installation
- Rugged industrial construction
- Organized cabinet wiring
- High system reliability
- Easy integration with ET 200SP stations
- Suitable for continuous industrial operation
- Dimensions 30 × 106 × 7.5 mm
- Approximate weight 0.05 kg
Technical FAQs
What is the Siemens 6AG1193-4JA00-2AA0?
The 6AG1193-4JA00-2AA0 is a SIPLUS ET 200SP Terminal Module designed to provide field wiring connections and mechanical support for ET 200SP electronic modules.
What is its primary function?
Its primary function is to connect field wiring to ET 200SP electronic modules while allowing the electronic module to be replaced without disconnecting field wiring.
What are the physical dimensions?
The module measures 30 × 106 × 7.5 mm.
What is the approximate weight?
The module weighs approximately 0.05 kg.
Which automation platform is compatible?
It is designed for Siemens SIPLUS ET 200SP distributed I/O systems.
Which industries commonly use this module?
It is widely used in manufacturing, water treatment, power generation, transportation, chemical processing, pharmaceutical production, food processing, and OEM industrial machinery.
Does the module simplify maintenance?
Yes. The terminal module allows electronic modules to be removed and replaced while leaving field wiring intact, reducing maintenance time and minimizing production interruptions.
Is the module suitable for harsh industrial environments?
Yes. As part of the SIPLUS product family, it is designed for reliable operation in demanding industrial environments.
What components typically operate together with this module?
It commonly operates with ET 200SP interface modules, digital and analog I/O modules, SIMATIC PLCs, HMIs, Industrial Ethernet networks, and 24 V DC power supplies.
Why is a terminal module important in distributed I/O systems?
A terminal module provides a secure and organized wiring interface, simplifies maintenance, improves system reliability, and supports modular expansion of industrial automation systems.
Conclusion
The Siemens 6AG1193-4JA00-2AA0 Terminal Module is a dependable field wiring interface for SIPLUS ET 200SP distributed automation systems. Its compact design, robust construction, and modular architecture simplify installation, accelerate maintenance, and improve the long-term reliability of industrial control systems.
With dimensions of 30 × 106 × 7.5 mm and an approximate weight of 0.05 kg, the 6AG1193-4JA00-2AA0 is ideal for space-efficient control cabinets requiring reliable field wiring and rapid module replacement. When integrated with compatible ET 200SP interface modules, I/O modules, SIMATIC PLCs, HMIs, and Industrial Ethernet networks, it delivers dependable electrical connectivity and scalable automation performance across a wide range of industrial applications.
