Product Overview

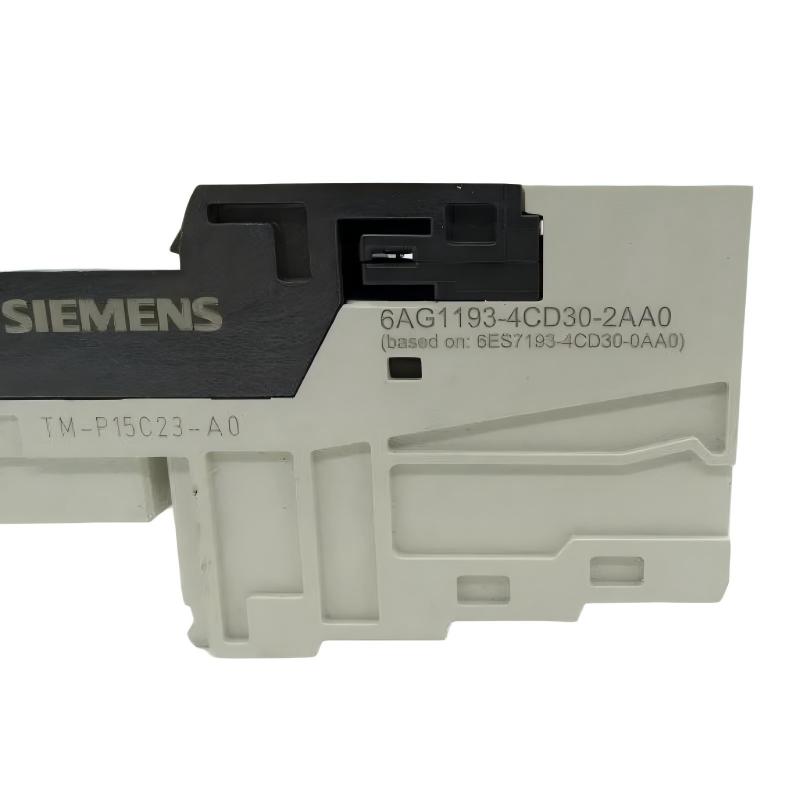

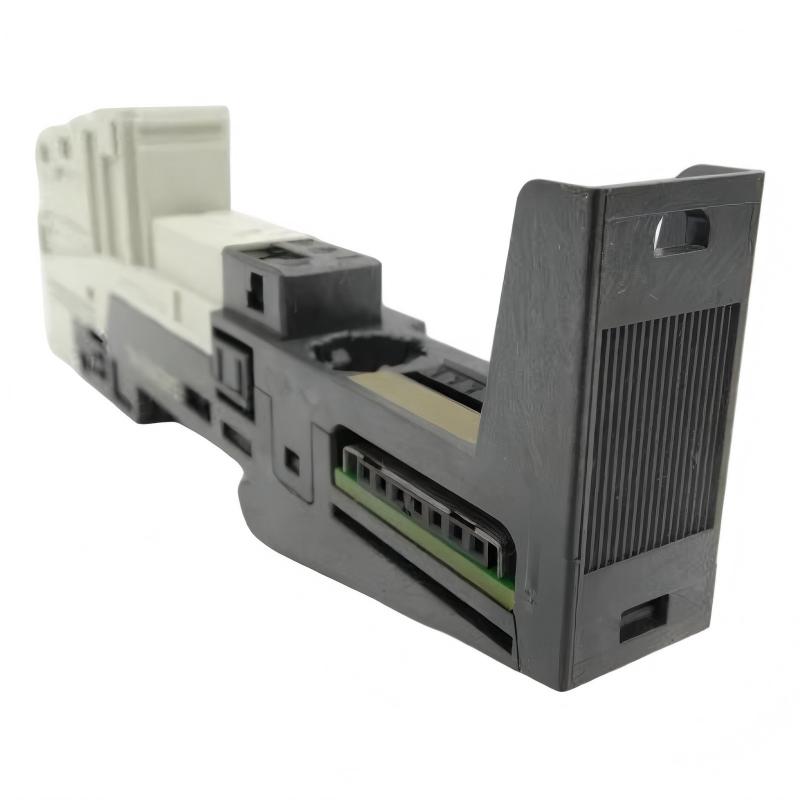

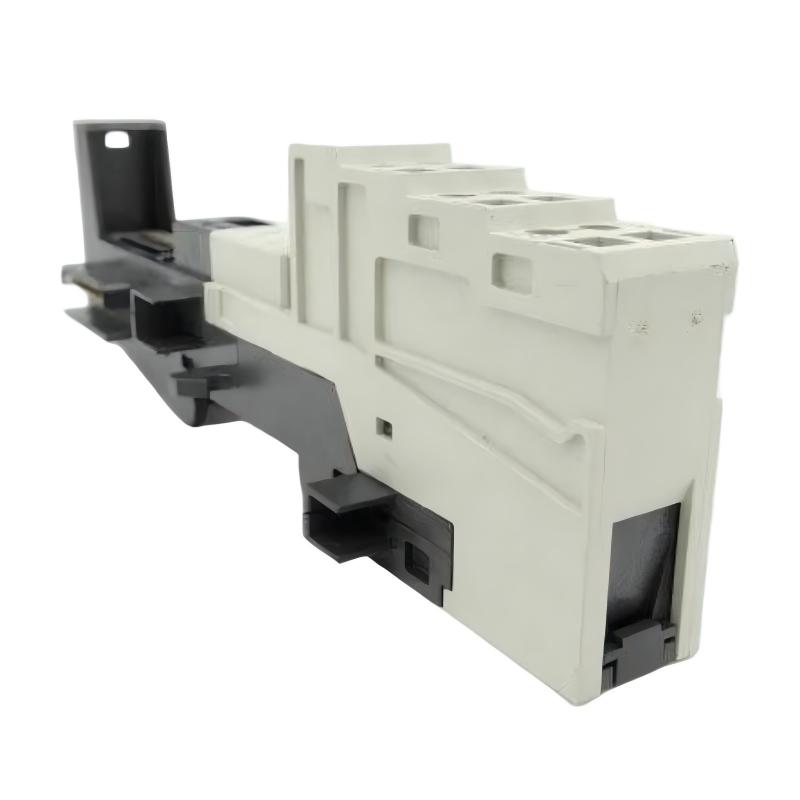

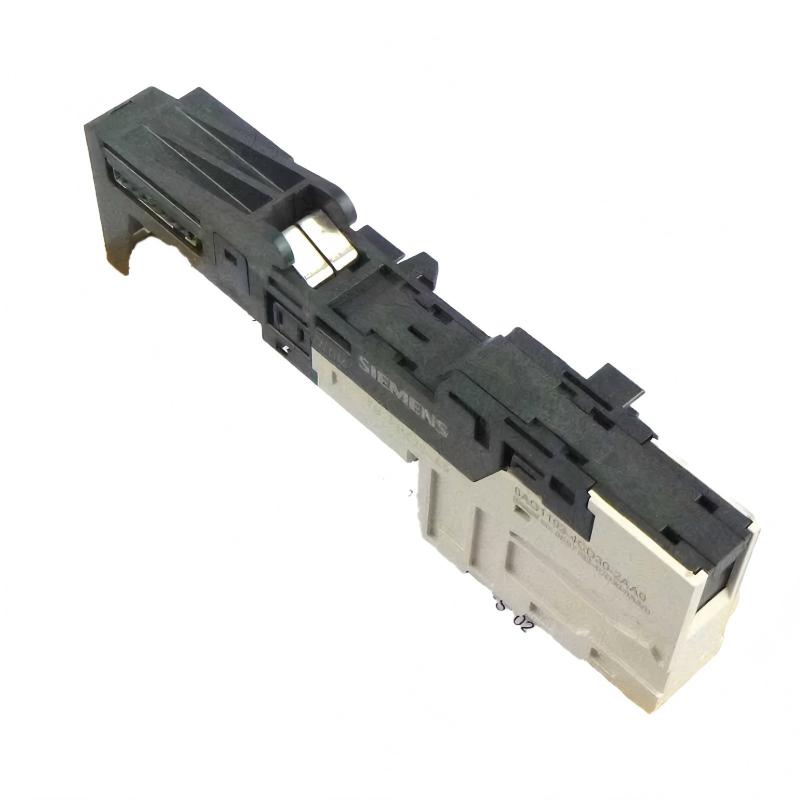

The Siemens 6AG1193-4CD30-2AA0 Terminal Module is a rugged SIPLUS ET 200S TM-P15C23-A0 Terminal Module engineered for the SIMATIC ET 200S distributed I/O platform. Designed specifically for power modules, it provides secure field wiring connections, reliable electrical interfaces, and efficient module installation while supporting long-term operation in harsh industrial environments. The SIPLUS version incorporates conformal coating and extended environmental resistance, making it suitable for applications exposed to vibration, humidity, dust, and corrosive atmospheres.
The 6AG1193-4CD30-2AA0 serves as the field wiring interface between external devices and compatible ET 200S power modules. It features spring-loaded (cage clamp) terminals with 2 × 3 terminal connections and terminal access to AUX1, simplifying installation while ensuring secure electrical contact and reducing maintenance requirements.
Designed for continuous industrial service, the terminal module supports modular system expansion, fast module replacement, and organized cabinet wiring. Its compact construction allows high-density installation without sacrificing accessibility for maintenance personnel.
With dimensions of 15 × 132 × 43 mm and an approximate weight of 0.065 kg, the 6AG1193-4CD30-2AA0 is ideal for compact control cabinets requiring dependable distributed I/O connectivity.
Typical applications include manufacturing automation, process control, chemical plants, oil and gas facilities, water treatment systems, pharmaceutical production, food and beverage processing, power generation, transportation infrastructure, and OEM machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1193-4CD30-2AA0 |
| Product Family | SIPLUS ET 200S |
| Product Type | Terminal Module |
| Designation | TM-P15C23-A0 |
| Primary Function | Field wiring interface for ET 200S power modules |
| Compatible System | SIMATIC ET 200S |
| Terminal Type | Spring-loaded (Cage Clamp) |
| Terminal Configuration | 2 × 3 terminal connections |
| AUX Connection | AUX1 with interrupted connection |
| Mounting Method | ET 200S Base Unit |
| Dimensions | 15 × 132 × 43 mm |
| Weight | 0.065 kg |
| Typical Application | Distributed I/O wiring and power module connection |
Function and Working Principle
The Siemens 6AG1193-4CD30-2AA0 provides the mechanical and electrical interface between field wiring and compatible ET 200S power modules.
Typical system architecture:
SIMATIC PLC
↓
ET 200S Interface Module
↓
6AG1193-4CD30-2AA0 Terminal Module
↓
Power Module
↓
Field Devices
↓
Industrial Process
During operation, the terminal module performs the following functions:
- Provides secure field wiring termination
- Supports power module installation
- Maintains reliable electrical connections
- Simplifies module replacement
- Organizes cabinet wiring
- Supports modular ET 200S architecture
- Reduces installation time
- Improves maintenance accessibility
- Enhances electrical reliability
- Supports long-term industrial operation
The 6AG1193-4CD30-2AA0 is a passive terminal module and does not perform signal processing, communication, or control functions.
Role in Industrial Control Systems
Within a SIMATIC ET 200S distributed I/O station, the 6AG1193-4CD30-2AA0 serves as the field wiring termination interface for compatible power modules.
Typical automation architecture:
SIMATIC PLC
↓
PROFINET / PROFIBUS Network
↓
ET 200S Interface Module
↓
6AG1193-4CD30-2AA0 Terminal Module
↓
Power Module
↓
Industrial Equipment
Its primary responsibilities include:
- Field wiring termination
- Mechanical module support
- Reliable electrical connection
- Simplified maintenance
- Modular system expansion
- Cabinet wiring organization
- Stable power module installation
- Long-term operational reliability
Industrial Applications
Manufacturing Automation
Typical applications include:
- Assembly lines
- Conveyor systems
- Packaging machinery
- Robotic production cells
- Automated production equipment
Process Industries
Suitable for:
- Chemical processing
- Petrochemical plants
- Pharmaceutical manufacturing
- Cement production
- Industrial utilities
Water and Wastewater Treatment
Common applications include:
- Pump control stations
- Water treatment plants
- Filtration systems
- Chemical dosing equipment
- Municipal infrastructure
Energy and Utilities
Frequently installed in:
- Power generation facilities
- Electrical substations
- Renewable energy systems
- Utility automation
- Industrial distribution systems
OEM Machinery
Widely used in:
- Machine-building
- Packaging equipment
- Material handling systems
- Automated production lines
- Industrial control panels
Installation and System Integration
Before installation, engineers should verify:
- ET 200S compatibility
- Power module configuration
- Wiring requirements
- Terminal assignments
- Cabinet dimensions
- Grounding provisions
- Connector integrity
- Environmental conditions
- Expansion requirements
- System documentation
Recommended Installation Procedure
- Disconnect system power.
- Verify ET 200S station configuration.
- Install the terminal module onto the base unit.
- Connect field wiring using the spring terminals.
- Verify AUX1 terminal assignments.
- Install the compatible power module.
- Check all wiring connections.
- Restore system power.
- Verify module recognition.
- Test field connections.
- Confirm system diagnostics.
- Complete commissioning.
System Integration Considerations
Proper installation improves long-term system reliability.
Wiring Quality
Ensure field wiring is securely terminated using the spring-loaded cage clamp terminals.
Cabinet Organization
Route field wiring neatly to improve accessibility and simplify future maintenance.
Mechanical Installation
Verify that the terminal module is fully seated before installing the associated power module.
Expansion Planning
Allow sufficient cabinet space for future ET 200S module additions.
Preventive Maintenance
Regular inspection of wiring, terminals, module seating, and cabinet cleanliness helps maximize service life.
Compatible System Components
| Component | Function |
|---|---|
| SIMATIC PLC | Central controller |
| ET 200S Interface Module | Distributed I/O communication |
| 6AG1193-4CD30-2AA0 | Terminal module |
| ET 200S Power Module | Load voltage distribution |
| Digital I/O Modules | Digital signal processing |
| Analog I/O Modules | Analog signal acquisition |
| ET 200S Base Unit | Module mounting |
| Industrial Power Supply | 24 V DC supply |
| Engineering Station | Configuration and diagnostics |
| HMI Panel | Operator interface |
Maintenance and Troubleshooting
Routine maintenance should include:
- Terminal inspection
- Wiring verification
- Connector inspection
- Module seating verification
- Cabinet cleaning
- Mechanical inspection
- Grounding verification
- Functional testing
- Visual inspection
- Preventive maintenance documentation
Wiring Fault
Check:
- Terminal connections
- Wire insertion
- Terminal integrity
- Wiring identification
- Power module installation
- System diagnostics
Module Installation Issue
Inspect:
- Base unit installation
- Module alignment
- Terminal seating
- Mechanical locking
- Connector condition
- Cabinet clearance
Maintenance Inspection
Verify:
- Terminal condition
- Spring clamp integrity
- Wiring security
- Mechanical stability
- Cabinet cleanliness
- Documentation accuracy
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| 6AG1193-4CD30-2AA0 | Terminal Module | ET 200S power module wiring |
| 6AG1193-4CD20-2AA0 | Terminal Module | ET 200S power module interface |
| 6AG1193-4CE10-2AA0 | Terminal Module | ET 200S modular wiring |
| 6AG1193-4CA50-2AA0 | Terminal Module | Electronic module connection |
| ET 200S Base Unit | Base Module | Distributed I/O installation |
Key Advantages
- Designed for Siemens SIPLUS ET 200S distributed I/O systems
- Compatible with ET 200S power modules
- Spring-loaded cage clamp terminals
- 2 × 3 terminal configuration
- Supports modular installation
- Simplifies field wiring
- Improves maintenance efficiency
- Compact dimensions of 15 × 132 × 43 mm
- Approximate weight of 0.065 kg
- Rugged industrial construction with conformal coating
- Suitable for harsh industrial environments
- Supports long-term reliable operation
Technical FAQs
What is the Siemens 6AG1193-4CD30-2AA0?
The 6AG1193-4CD30-2AA0 is a SIPLUS ET 200S TM-P15C23-A0 Terminal Module designed for use with compatible ET 200S power modules.
What is its primary function?
Its primary function is to provide secure field wiring termination and a reliable electrical interface for ET 200S power modules.
What terminal technology does it use?
It utilizes spring-loaded (cage clamp) terminals with 2 × 3 terminal connections.
What are the module dimensions?
The module measures 15 × 132 × 43 mm.
What is the approximate weight?
The module weighs approximately 0.065 kg.
Does the module process signals?
No. The 6AG1193-4CD30-2AA0 is a passive terminal module used for field wiring and module installation.
Which systems is it compatible with?
It is designed for compatible Siemens SIMATIC ET 200S distributed I/O systems.
Which industries commonly use this module?
It is widely used in manufacturing, chemical processing, oil and gas, power generation, pharmaceutical production, food and beverage processing, water treatment, and OEM automation equipment.
What should engineers verify before installation?
Engineers should verify ET 200S compatibility, wiring configuration, terminal assignments, module seating, grounding, and cabinet layout.
How can long-term reliability be maintained?
Routine inspection of wiring, spring terminals, module installation, cabinet cleanliness, and preventive maintenance procedures helps maximize operational reliability.
