Product Overview

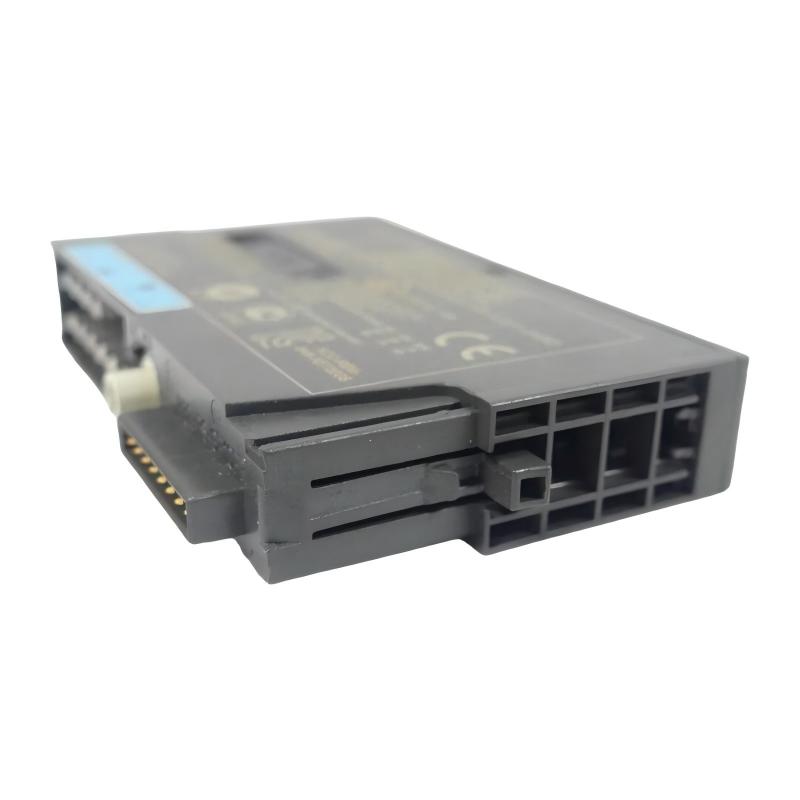

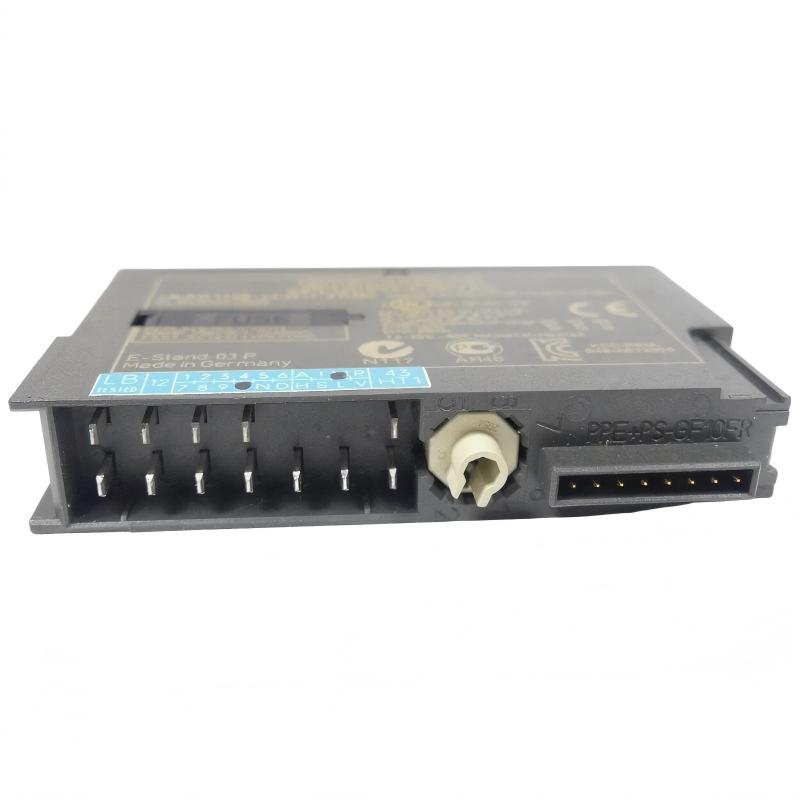

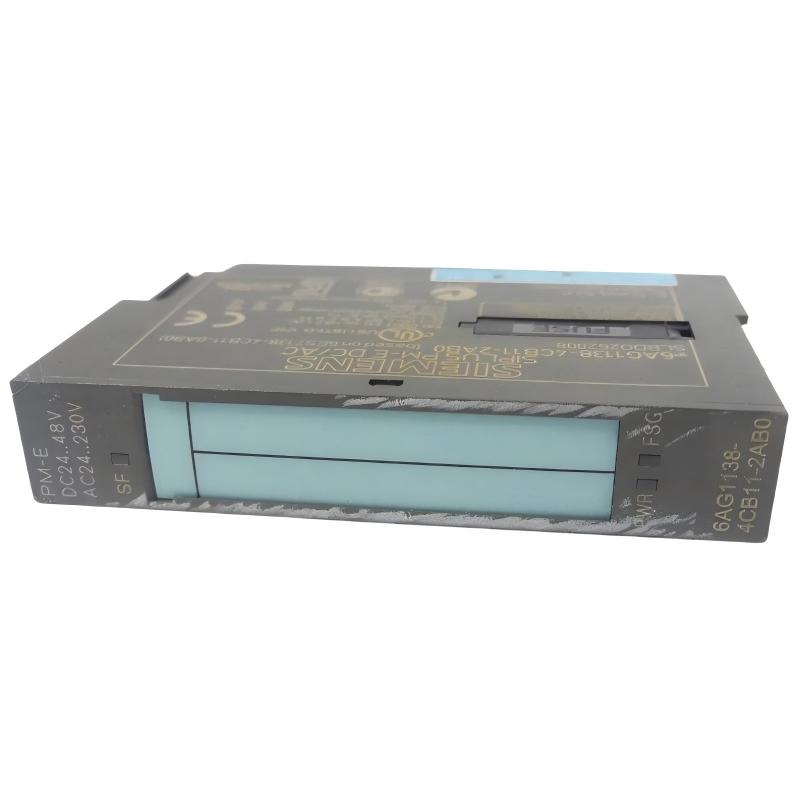

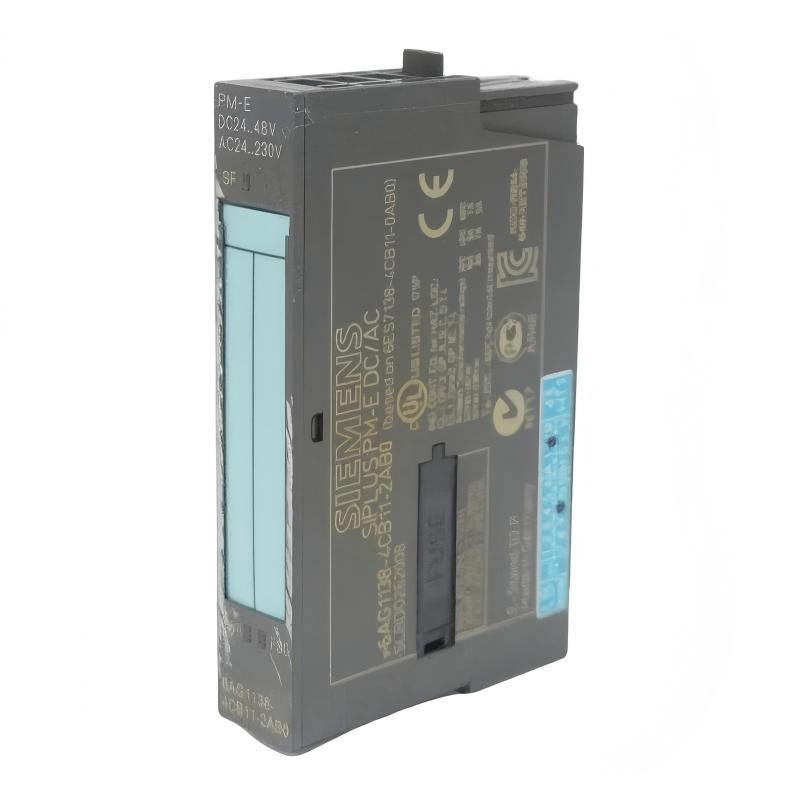

The Siemens 6AG1138-4CB11-2AB0 Power Module is a compact industrial power module designed for compatible SIPLUS ET 200S distributed I/O systems. It forms part of the modular power architecture used to supply and manage electrical power for electronic modules installed within a distributed automation station.
In a distributed PLC system, field I/O devices may be installed away from the central controller. Instead of routing every field connection back to a single cabinet, a distributed I/O station places signal modules closer to the equipment. The power module provides an important part of the electrical infrastructure required by this arrangement.
The 6AG1138-4CB11-2AB0 is not a PLC processor or communication controller. Its principal role is associated with power distribution within the compatible ET 200S station. By providing an organized power supply structure for downstream modules, it helps maintain dependable operation of the distributed I/O system.
As a SIPLUS product, this module is intended for industrial applications where equipment may encounter more demanding environmental conditions. This makes it particularly relevant to automation installations requiring robust modular hardware.
The module has specified dimensions of 15 × 81 × 52 mm and a weight of approximately 0.035 kg. Its compact form is useful for applications where control-panel space is limited.
Typical applications include factory automation, machine building, process control, utility systems, transportation infrastructure, and distributed industrial control installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIPLUS ET 200S |
| Model | 6AG1138-4CB11-2AB0 |
| Product Type | Power Module |
| Main Function | Distributed power management |
| System Architecture | Distributed I/O |
| Compatible Platform | ET 200S |
| Installation | Modular ET 200S Station |
| Application | Industrial Automation |
| Module Design | Compact modular construction |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.035 kg |
| Mounting Environment | Industrial Control Cabinet |
| System Integration | ET 200S Distributed I/O |
| Maintenance | Modular Replacement |
| Typical Application | I/O Station Power Distribution |
Function and Working Principle
The 6AG1138-4CB11-2AB0 works as part of the electrical power architecture of a compatible ET 200S station.
A simplified system arrangement is:
Industrial DC Power Supply → Power Module → ET 200S Electronic Modules → Field Devices
The module supports the distribution of electrical power to the appropriate section of the distributed I/O station. This allows the automation system to organize its electrical supply according to the requirements of the installed modules.
Its role can include:
- Supporting distributed module power
- Organizing station-level power distribution
- Supplying compatible downstream electronic modules
- Supporting modular I/O configurations
- Reducing unnecessary control-cabinet wiring
- Facilitating distributed field-level installations
- Supporting easier maintenance
- Providing a structured electrical architecture
The power module works together with the station’s other components rather than operating as an independent PLC controller.
Role in a Distributed Automation System
The importance of a power module becomes particularly clear in a distributed I/O architecture.
A conventional control structure may place the PLC, I/O, and field wiring in one central cabinet. A distributed system instead allows I/O stations to be installed closer to machines and process equipment.
A simplified architecture is:
Central PLC → ET 200S Interface → Power Module → I/O Modules → Sensors and Actuators
The central PLC executes the control program. The interface establishes communication with the remote station. The power module supports the electrical supply structure, while I/O modules acquire and generate field signals.
This architecture can provide several practical benefits:
- Shorter field wiring
- More flexible machine layouts
- Easier system expansion
- Reduced cabinet wiring complexity
- Improved modularity
- Easier maintenance
- Better separation of field-level functions
The 6AG1138-4CB11-2AB0 therefore serves as a supporting component rather than the central intelligence of the control system.
Industrial Applications
Factory Automation
The module can be incorporated into distributed automation systems used for:
- Assembly equipment
- Packaging lines
- Conveyor systems
- Automated inspection
- Production machinery
- Robotic work cells
Distributed I/O stations can be placed near machines, while the central PLC remains in the main control cabinet.
Machine Building
OEM machine manufacturers can use modular distributed I/O architectures to simplify machine wiring.
The power module can form part of a compact station installed close to:
- Motors
- Sensors
- Pneumatic equipment
- Valves
- Limit switches
- Machine actuators
Process Automation
Distributed I/O is useful in large industrial facilities where process instruments and control equipment are spread over substantial physical areas.
Potential applications include:
- Water treatment
- Chemical processing
- Food processing
- Pharmaceutical production
- Industrial utilities
- Manufacturing plants
Energy and Infrastructure
Distributed control stations are also suitable for pumping systems, transportation infrastructure, energy facilities, and other industrial installations.
Harsh Industrial Environments
The SIPLUS platform is intended for applications where environmental conditions may be more demanding than those encountered by standard automation hardware.
Installation and System Integration
Correct installation is important because the power module forms part of the electrical supply architecture of the ET 200S station.
Before installation, engineers should check:
- Exact module part number
- ET 200S compatibility
- Station configuration
- Power supply requirements
- Electrical load
- Wiring arrangement
- Module sequence
- Grounding
- Environmental conditions
- Cabinet ventilation
- Connector condition
Recommended Installation Procedure
- Isolate the relevant electrical power supply.
- Confirm the ET 200S station design.
- Verify the electrical requirements of connected modules.
- Install the 6AG1138-4CB11-2AB0 in the designated position.
- Check the mechanical connection.
- Connect the required power wiring.
- Verify terminal connections.
- Inspect the complete station assembly.
- Restore power.
- Check module operating status.
- Verify the connected I/O modules.
- Check PLC and station diagnostics.
- Test field inputs and outputs.
- Confirm stable system communication.
- Complete commissioning.
The exact wiring and electrical arrangement should be determined from the system design and the applicable Siemens installation documentation.
System Integration
The power module is normally only one component of a larger automation architecture.
A representative system can contain:
PLC Controller
↓
ET 200S Interface Module
↓
6AG1138-4CB11-2AB0 Power Module
↓
Digital / Analog I/O Modules
↓
Sensors, Actuators and Industrial Equipment
The system may also include:
- HMI panels
- SCADA systems
- Engineering workstations
- Industrial network components
- Motor starters
- Variable frequency drives
- Industrial sensors
- Pneumatic valves
- Control relays
- 24 V DC power supplies
This modular arrangement allows engineers to select only the I/O and supporting components required for the specific machine or process.
Compatible System Components
| Component | Function |
|---|---|
| ET 200S Interface Module | Connects distributed station to the controller |
| ET 200S Base Unit | Provides module installation and electrical integration |
| 6AG1138-4CB11-2AB0 | Power distribution |
| Digital Input Module | Acquires discrete field signals |
| Digital Output Module | Controls discrete field devices |
| Analog Input Module | Measures process variables |
| Analog Output Module | Generates analog control signals |
| Communication Module | Provides system communication |
| SIMATIC PLC | Executes automation logic |
| Industrial Power Supply | Provides DC power |
| HMI | Operator monitoring and control |
| Engineering Workstation | Configuration and diagnostics |
| Sensors | Monitor process conditions |
| Actuators | Perform physical control actions |
Recommended Alternative Models
| Model | Product Type | Main Function | Typical Application |
|---|---|---|---|
| 6AG1138-4CB11-2AB0 | Power Module | Distributed power management | ET 200S Automation |
| 6AG1138-4CA01-2AA0 | Power Module | Station power distribution | Distributed I/O |
| 6AG1138-4CA50-2AB0 | Power Module | Modular power management | Industrial Automation |
| 6AG1136-6PA00-2BC0 | Power Module | Power supply support | Distributed Control |
| 6AG1137-6BD00-2BA0 | Communication Module | Industrial communication | Distributed Networks |
| 6AG1137-6AA00-2BA0 | Communication Module | Automation communication | Factory Automation |
| 6AG1137-6AA01-7BA0 | Communication Module | Distributed communication | Process Control |
| 6AG1136-6DC00-2CA0 | Digital Output Module | Digital output control | Machine Automation |
Alternative selection should be based on the actual electrical characteristics and system architecture rather than physical dimensions alone. Engineers should verify the exact module generation, compatibility, voltage requirements, station configuration, and environmental conditions before substitution.
Key Advantages
- Designed for compatible Siemens SIPLUS ET 200S systems
- Supports distributed I/O power architecture
- Compact installation dimensions
- Lightweight construction
- Suitable for modular automation systems
- Supports organized station-level power distribution
- Helps simplify distributed field wiring
- Suitable for machine automation
- Applicable to process-control installations
- Supports scalable I/O architectures
- Designed for industrial applications
- Suitable for demanding operating environments
- Convenient modular replacement
- Efficient use of control-cabinet space
- Dimensions 15 × 81 × 52 mm
- Approximate weight 0.035 kg
Technical FAQs
What is the Siemens 6AG1138-4CB11-2AB0?
The 6AG1138-4CB11-2AB0 is a Siemens SIPLUS ET 200S Power Module used as part of a compatible distributed I/O station.
What is the main purpose of this module?
Its main purpose is to support the electrical power distribution architecture of the ET 200S station and its connected electronic modules.
Is the 6AG1138-4CB11-2AB0 a PLC CPU?
No. It is a power module. The central control logic is executed by a compatible SIMATIC PLC or controller.
What are its dimensions?
The specified dimensions are 15 × 81 × 52 mm.
What is its weight?
The specified weight is approximately 0.035 kg.
Which product family does it belong to?
The model belongs to the Siemens SIPLUS ET 200S product family.
What modules can be installed with this power module?
Depending on the station design, compatible digital I/O, analog I/O, interface, communication, and other ET 200S modules may be integrated into the same distributed system.
Why is distributed power management important?
Distributed power management allows the electrical supply of modular I/O stations to be organized according to the requirements of different sections of the automation system. This can simplify wiring and improve system modularity.
Where can this module be used?
Typical applications include factory automation, machine building, process control, infrastructure automation, water treatment, energy systems, and other industrial applications using compatible ET 200S architectures.
What should be checked before replacement?
The exact Siemens part number, ET 200S compatibility, electrical specifications, station configuration, wiring, connected modules, and environmental requirements should be verified before replacing the power module.
Conclusion
The Siemens 6AG1138-4CB11-2AB0 Power Module is a compact component designed to support power distribution within compatible SIPLUS ET 200S distributed automation systems. Rather than executing PLC logic or directly providing network control, its role is to form part of the electrical infrastructure that allows modular electronic and I/O components to operate reliably.
With dimensions of 15 × 81 × 52 mm and a specified weight of approximately 0.035 kg, the module provides a compact solution for distributed control installations where cabinet space and modularity are important considerations.
When integrated with compatible ET 200S interface modules, I/O modules, PLC controllers, communication equipment, and industrial power supplies, the 6AG1138-4CB11-2AB0 can contribute to a structured and maintainable automation architecture.
For replacement and modernization projects, engineers should always verify the complete system configuration and electrical requirements before selecting this or any alternative power module. Correct compatibility is essential for reliable operation of the overall distributed control system.
