Product Overview

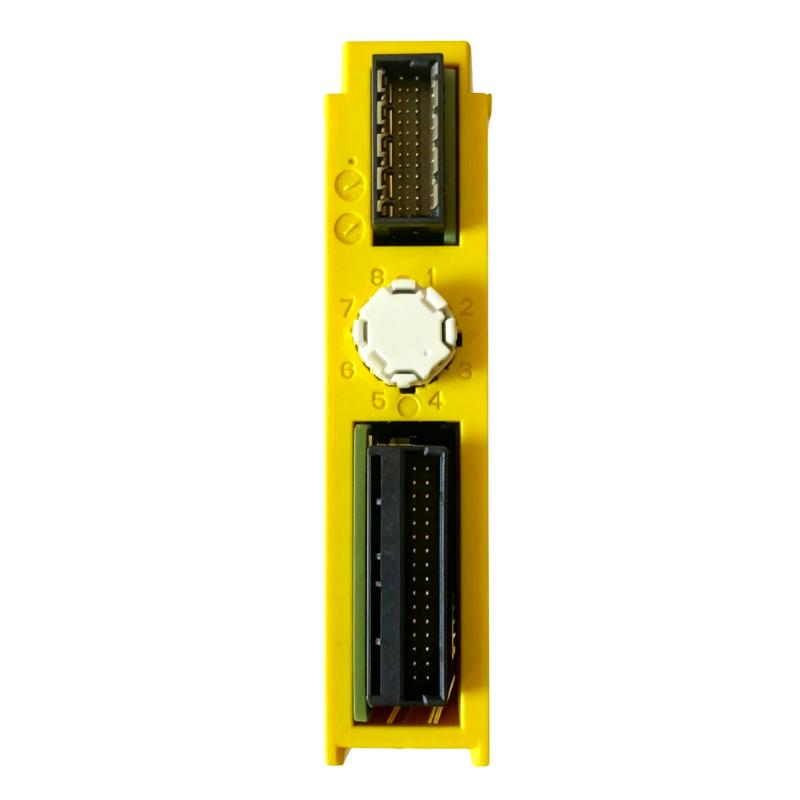

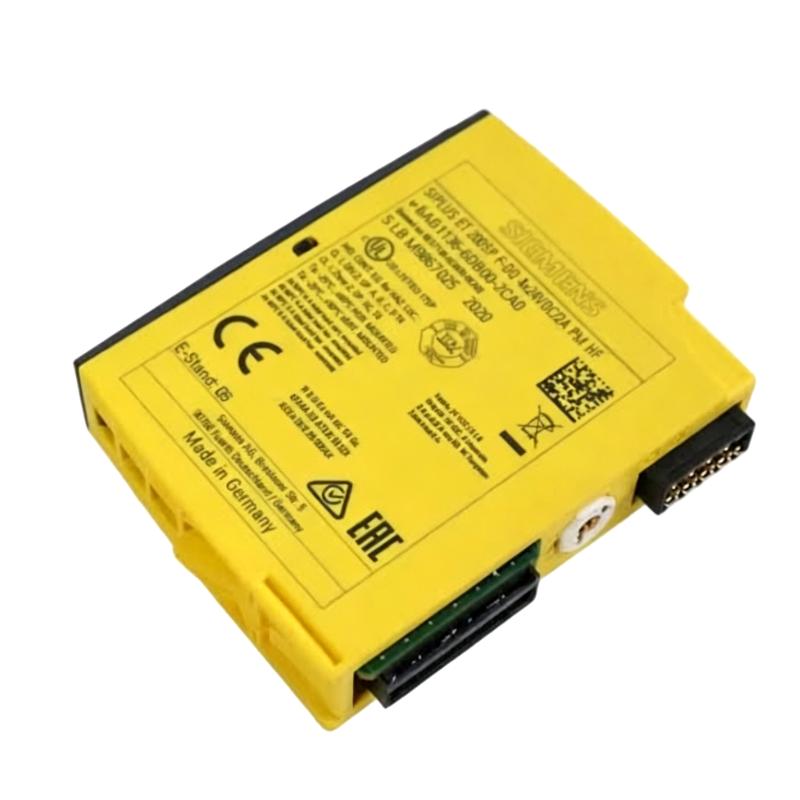

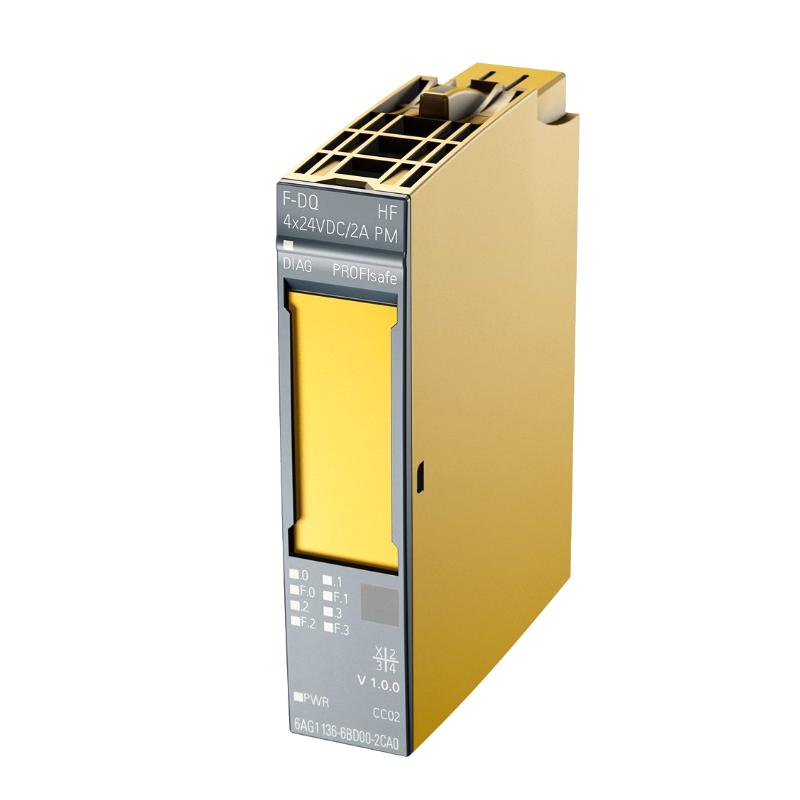

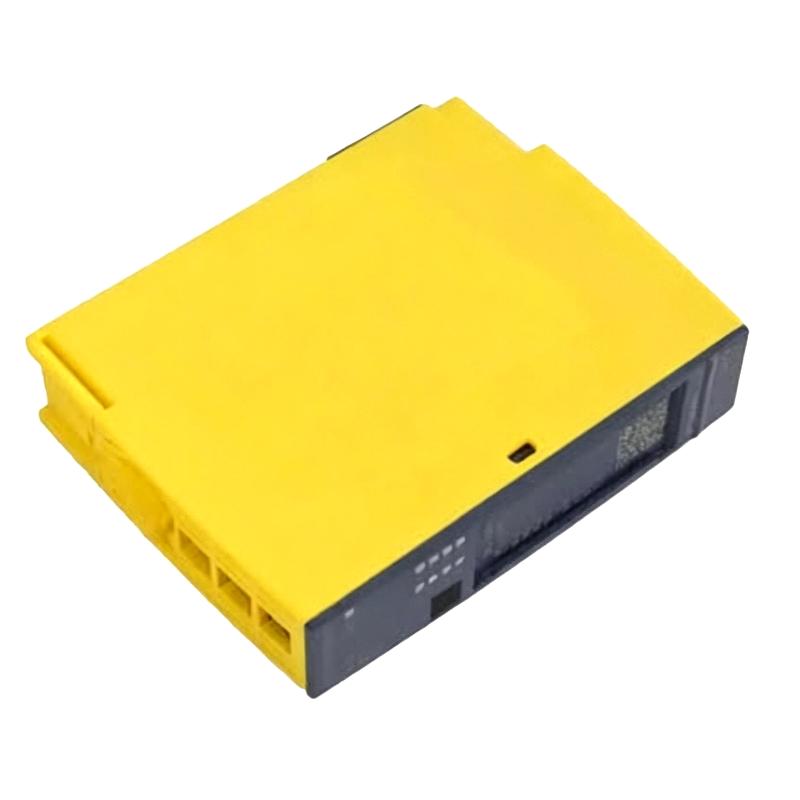

The Siemens 6AG1136-6DB00-2CA0 SIPLUS ET 200SP Fail-Safe Digital Output Module is a fail-safe digital output module for the SIPLUS ET 200SP distributed I/O platform. It is used on the output side of a safety automation system to transmit discrete control commands from the fail-safe controller to connected field devices.

The module is intended for applications where an output forms part of a defined safety function. Depending on the machine or process architecture, it can be used to control safety-related actuators, contactors, valves, shutdown circuits, or other devices that require a discrete safety-oriented command.

Its role is different from a conventional digital output module. The 6AG1136-6DB00-2CA0 must be considered together with the F-CPU, safety program, ET 200SP station, field wiring, connected actuator, and diagnostic system. The complete configuration determines how the system responds to normal conditions and detected faults.

Technical Specifications

Product Features

The 6AG1136-6DB00-2CA0 combines discrete output control with the fail-safe architecture of the SIPLUS ET 200SP platform.

Key characteristics include:

• Siemens SIPLUS ET 200SP fail-safe digital output module
• Model 6AG1136-6DB00-2CA0
• Intended for safety-related digital output functions
• Suitable for distributed safety I/O architectures
• Interfaces safety control logic with field actuators
• Supports safety-oriented output control
• Integrates into the modular ET 200SP station structure
• Suitable for machine and industrial process applications
• Supports diagnostic-oriented safety architectures
• Compact installation within distributed I/O stations
• Suitable for industrial environments requiring SIPLUS hardware

The connected actuator and complete safety circuit must be evaluated when determining whether the module is appropriate for a particular application.

Working Principle

The module receives output commands from the fail-safe control system and applies the corresponding digital output condition to the connected field circuit.

A simplified path is:

F-CPU → Safety Network → ET 200SP Station → Fail-Safe Digital Output Module → Field Actuator

The safety program determines the required output state according to the configured safety function. The command is transferred through the ET 200SP architecture to the output module, which controls the associated field-side output.

For example, a safety output can be used within a circuit that removes an enable signal from equipment or controls a device associated with a machine protection function.

The module also participates in the diagnostic behavior of the safety architecture. When a relevant fault is detected, the system can transition toward the predefined safe response according to the configured safety function.

Role in a Safety Automation Architecture

The 6AG1136-6DB00-2CA0 occupies the fail-safe digital output layer of a distributed safety control system.

A typical architecture can be represented as:

F-CPU → Industrial Network → ET 200SP Interface → F-DQ Module → Safety Actuator

Typical connected devices can include:

• Safety contactors
• Shutdown circuits
• Safety valves
• Actuator enable circuits
• Machine-control devices
• Safety-related switching equipment
• Other discrete devices incorporated into a safety function

The output module does not independently determine the machine’s safety strategy. The safety controller and application logic establish the required response, while the F-DQ module provides the field-side output interface.

This distinction is important during system engineering and troubleshooting because an unexpected output state may originate from the safety logic, communication path, field circuit, or configured fault response rather than the output electronics alone.

Industrial Applications

The module is suitable for industrial installations where discrete output commands need to form part of a distributed safety architecture.

The exact application depends on the required safety function and the characteristics of the connected field equipment.

Installation and Maintenance

Installation should be carried out according to the approved safety-system architecture and the configured ET 200SP station.

Recommended practices include:

• Confirm the complete 6AG1136-6DB00-2CA0 order number.
• Verify the required ET 200SP station configuration.
• Confirm compatibility with the associated F-CPU and safety architecture.
• Check the appropriate BaseUnit and interface arrangement.
• Install the module in the designated station position.
• Inspect the module and electrical interfaces before installation.
• Verify output wiring against the approved safety design.
• Confirm the characteristics of the connected actuator.
• Configure the module using the appropriate engineering environment.
• Check safety-related parameters and diagnostics.
• Verify the expected output state during commissioning.
• Test the associated safety function under controlled conditions.
• Check the system response to relevant fault conditions.
• Record diagnostic information after commissioning.

If an output does not behave as expected, troubleshooting should include the safety program, controller status, communication path, module diagnostics, BaseUnit, field wiring, actuator, and power supply.

Related Components

The 6AG1136-6DB00-2CA0 normally operates within a complete safety automation architecture.

The output module should be engineered together with the connected actuator and the complete safety circuit.

Recommended Related Models

Selection should be based on the required safety function, output characteristics, field actuator, controller architecture, and complete ET 200SP configuration.

Key Advantages

• Siemens SIPLUS ET 200SP fail-safe digital output module
• Model 6AG1136-6DB00-2CA0
• Suitable for safety-related digital output functions
• Integrates into distributed ET 200SP safety architectures
• Supports field-level safety actuator control
• Suitable for machine and process safety applications
• Supports safety-oriented diagnostics
• Compact modular installation
• Suitable for industrial environments requiring SIPLUS hardware

Technical FAQs

What is the function of the 6AG1136-6DB00-2CA0 in a safety system?

It provides the field-side digital output interface for a fail-safe control architecture. The module receives commands from the safety control system and controls the corresponding discrete output circuit according to the configured safety function.

What types of equipment can be controlled through a fail-safe digital output?

Depending on the engineered safety circuit, the output can interface with equipment such as safety contactors, shutdown circuits, valves, enable circuits, and other compatible discrete actuators. The electrical characteristics and safety requirements of the connected device must be verified before use.

Why can a fail-safe output remain inactive even when the PLC program appears to request an output?

The safety architecture can prevent or deactivate an output because of a detected fault, an unmet safety condition, a communication problem, an input condition, or the configured safety logic. Module diagnostics and the F-CPU safety diagnostics should therefore be checked together.

What should be tested after replacing the 6AG1136-6DB00-2CA0?

The hardware configuration, module diagnostics, field wiring, connected actuator, and safety logic should be verified. The complete safety function should then be tested to confirm that the output responds correctly during normal operation and transitions to the required safe condition under relevant fault scenarios.
