Product Overview

Precise analog output control is essential in industrial automation systems where PLC commands must be converted into continuously variable electrical signals for field devices. Applications such as valve positioning, speed references, pressure regulation, temperature control, and process adjustment require an output module capable of translating digital control values into reliable analog signals.

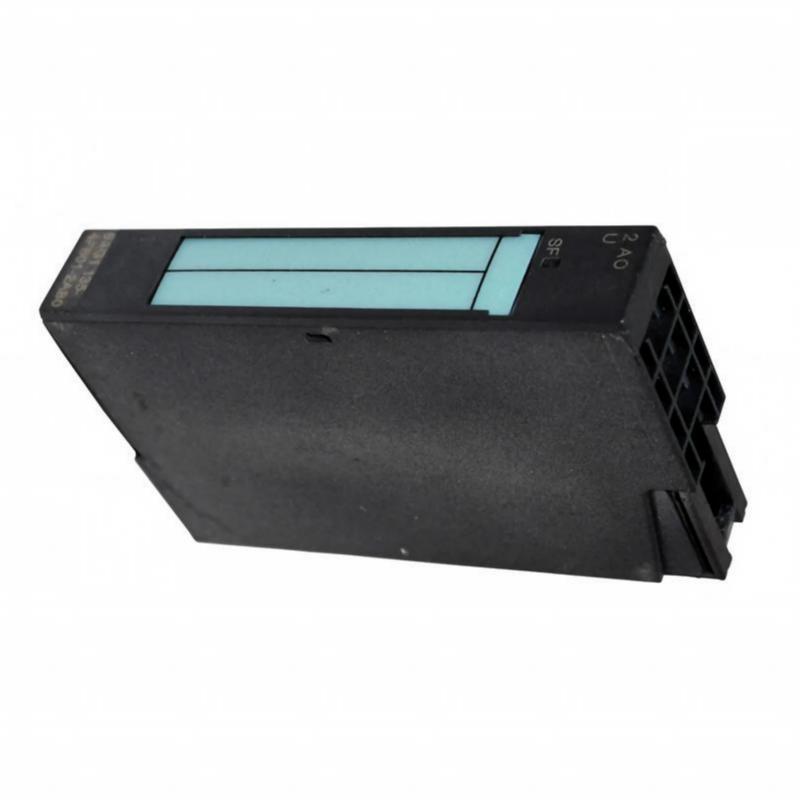

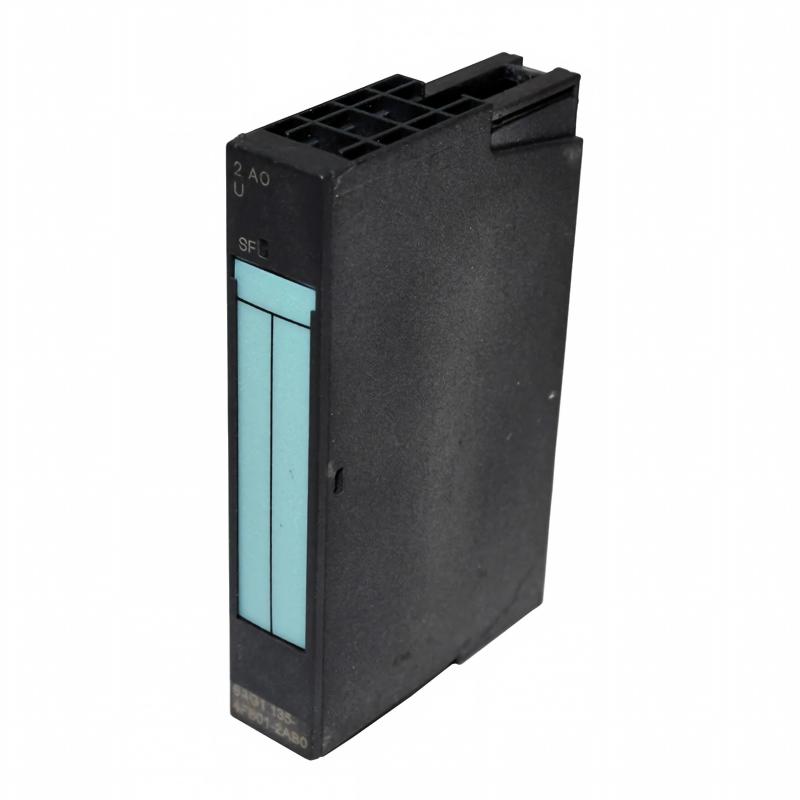

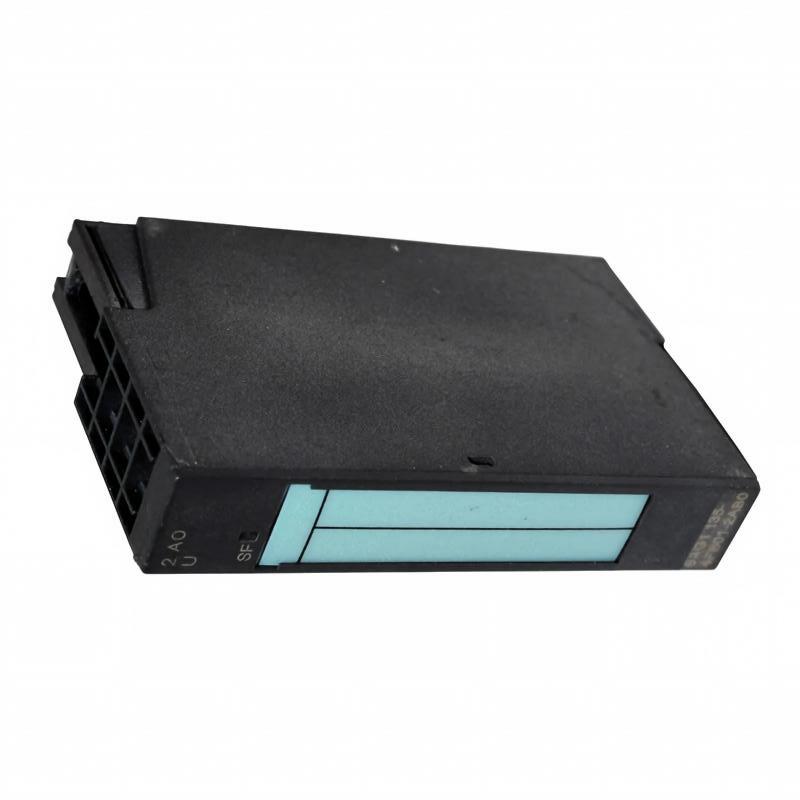

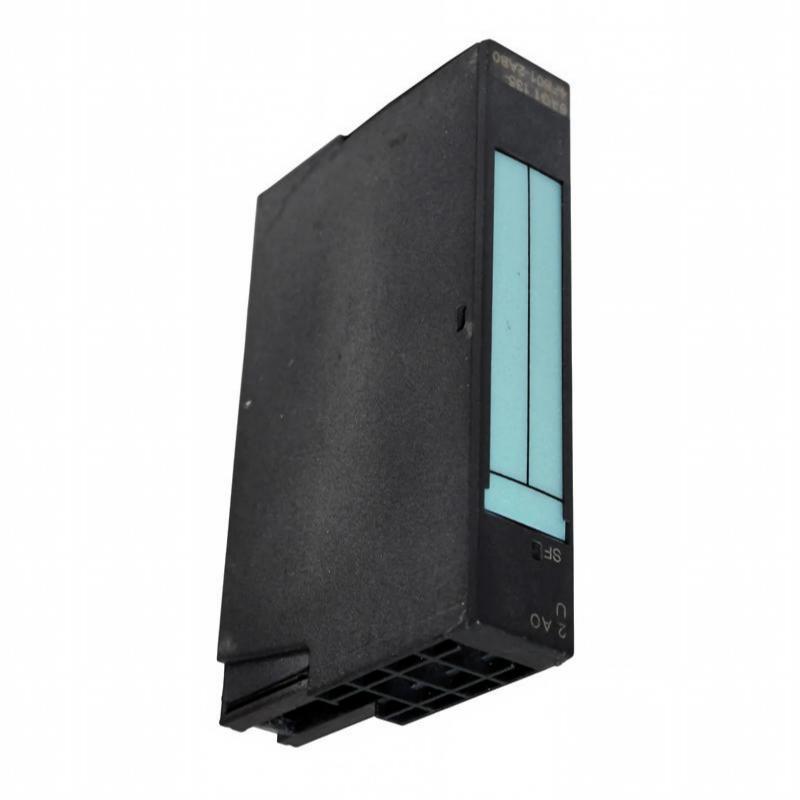

The Siemens 6AG1135-4FB01-2AB0 is a SIPLUS analog output module designed to provide analog control signals within Siemens industrial automation architectures. The module acts as an interface between the PLC control program and compatible field devices, allowing the controller to influence real-world processes through continuously adjustable output signals.

With compact dimensions of 15 × 81 × 52 mm and a weight of approximately 0.04 kg, the module can be installed in space-constrained automation cabinets. Its SIPLUS design makes it suitable for industrial applications where enhanced environmental resistance and reliable continuous operation are important.

Technical Specifications

Function and Working Principle

The main function of the Siemens 6AG1135-4FB01-2AB0 is to convert digital values generated by a PLC control program into analog electrical output signals.

Many industrial actuators require continuously variable signals rather than simple ON/OFF commands. For example, a control valve may require a proportional signal to determine its opening position, while a motor controller may require an analog speed reference.

The analog output module provides the electrical interface required for these applications.

Its main functions include:

• Analog output signal generation
• Digital-to-analog conversion
• Proportional actuator control
• Process setpoint transmission
• Voltage or current signal output, depending on configuration
• Channel monitoring
• Diagnostic functions
• PLC-controlled process adjustment
• Continuous control of compatible field devices

A simplified control path is:

PLC Program → Digital Output Value → 6AG1135-4FB01-2AB0 → Analog Output Signal → Field Actuator → Industrial Process

For example, the PLC may calculate a required valve position and send the corresponding digital value to the analog output module. The module converts this value into the configured analog output signal, which the valve positioner then uses to adjust the valve.

This enables the automation system to regulate industrial processes continuously rather than relying only on discrete switching.

Role in Industrial Control Systems

The 6AG1135-4FB01-2AB0 acts as an output interface between the Siemens control system and analog field equipment.

It can be used to control or provide setpoints to devices such as:

• Control valves
• Valve positioners
• Variable-speed drives
• Motor controllers
• Proportional actuators
• Heating controllers
• Pressure-control devices
• Flow-control equipment
• Process regulators
• Industrial instrumentation

A typical automation architecture may include:

• Siemens PLC CPU
• SIPLUS I/O modules
• Analog output modules
• Digital input/output modules
• HMI panels
• Sensors
• Control valves
• Variable frequency drives
• Industrial communication networks
• SCADA systems

For example, a temperature-control system can use a PLC to calculate the required heating level. The calculated value is transferred to the analog output module, which produces the corresponding analog control signal for a heating controller.

The module therefore provides an important link between PLC software and physical process-control equipment.

Industrial Applications

The Siemens 6AG1135-4FB01-2AB0 is suitable for industrial applications where continuously variable control signals are required.

Typical applications include:

• Process automation
• Chemical processing
• Oil and gas systems
• Water and wastewater treatment
• Power generation
• Manufacturing automation
• Pharmaceutical production
• Food and beverage processing
• HVAC systems
• Pump control
• Flow regulation
• Pressure regulation
• Temperature control
• Valve positioning
• Industrial machinery

In water-treatment plants, analog outputs can be used to control valve positions, pump speed references, or dosing equipment.

In chemical processing systems, analog outputs can provide control signals to valves, flow-control devices, and other proportional actuators.

In manufacturing machinery, analog outputs can be used for speed references, position commands, or other continuously variable control functions.

The module is therefore particularly useful when an automation system must translate calculated PLC values into physical process-control commands.

Installation and System Integration

Correct installation is important for ensuring stable analog output signals and reliable communication with connected field devices.

Recommended installation practices include:

• Install the module in the appropriate Siemens automation station.
• Verify the module position and hardware configuration.
• Connect field devices according to the required output signal type.
• Confirm the wiring polarity before energizing the system.
• Use suitable control and instrumentation cables.
• Use shielded cables where required by the application.
• Keep analog signal cables away from high-power wiring where practical.
• Configure the appropriate output range.
• Configure the correct engineering units in the PLC program.
• Verify output scaling.
• Check the output signal using suitable test equipment.
• Confirm the connected actuator responds correctly.
• Test minimum and maximum output values during commissioning.
• Verify diagnostic information before placing the system into automatic operation.

When connecting control valves or other proportional actuators, the electrical output range must match the input requirements of the connected device.

For variable-speed drives, the analog output configuration should correspond to the drive’s required speed-reference input.

Correct signal scaling is also important. A mismatch between PLC engineering units and the physical analog output range can cause an actuator to operate outside the intended process range.

Compatible System Components

The 6AG1135-4FB01-2AB0 can be combined with Siemens automation hardware and a wide range of compatible analog field devices.

Typical associated components include:

• Siemens PLC CPUs
• SIPLUS I/O modules
• Siemens signal modules
• Digital input/output modules
• Interface modules
• Remote I/O stations
• Siemens HMI panels
• Industrial Ethernet systems
• PROFINET-based automation networks
• Control valves
• Valve positioners
• Variable frequency drives
• Proportional actuators
• Heating controllers
• Pump-control equipment
• SCADA systems

A complete control loop may consist of an analog input module receiving a process measurement, a PLC CPU processing the value, and the 6AG1135-4FB01-2AB0 generating the corresponding analog command.

For example:

Pressure Transmitter → Analog Input → PLC CPU → Analog Output → Control Valve → Process

This arrangement allows the automation system to implement closed-loop process control.

Recommended Alternative Models

Depending on the required output signal, number of channels, environmental conditions, and automation architecture, the following Siemens modules may be considered:

The correct alternative should be selected according to output signal type, channel count, load requirements, resolution, PLC platform, isolation requirements, environmental conditions, and application architecture.

A standard S7-1500 or ET 200SP module should not automatically be considered a direct replacement for a SIPLUS module. System compatibility and environmental requirements should be checked before substitution.

Key Advantages

• Designed for Siemens industrial automation architectures
• SIPLUS product family
• Analog output signal generation
• Digital-to-analog signal conversion
• Suitable for proportional process control
• Suitable for control valves and actuators
• Suitable for variable-speed drive references
• Supports continuously variable process control
• Diagnostic monitoring
• Compact 15 × 81 × 52 mm dimensions
• Approximately 0.04 kg weight
• Space-efficient installation
• Suitable for PLC-based control systems
• Suitable for process automation
• Suitable for manufacturing applications
• Suitable for valve positioning
• Suitable for pressure, flow, and temperature control
• Designed for continuous industrial operation

Technical FAQs

What is the Siemens 6AG1135-4FB01-2AB0?

The Siemens 6AG1135-4FB01-2AB0 is a SIPLUS Analog Output Module designed to convert digital PLC control values into compatible analog output signals for industrial field devices.

What is the main function of this module?

Its main function is to provide continuously variable analog control signals to compatible actuators, controllers, drives, valves, and other industrial equipment.

What are the dimensions of the 6AG1135-4FB01-2AB0?

The specified dimensions are 15 × 81 × 52 mm.

How much does the 6AG1135-4FB01-2AB0 weigh?

The specified product weight is approximately 0.04 kg, equivalent to about 40 grams.

What is an analog output module used for?

An analog output module converts digital values from a PLC program into electrical signals that can control proportional field devices such as valves, drives, heating controllers, and actuators.

Can it control a valve?

Yes. When the module’s output signal is compatible with the valve positioner’s input requirements, it can be used to provide a proportional valve-control signal.

Can it provide a speed reference to a drive?

An analog output module can provide a compatible speed-reference signal to a variable frequency drive or motor controller when the electrical signal range and configuration are correctly matched.

What is the difference between an analog input and analog output module?

An analog input module receives continuously variable signals from field instruments and converts them into digital values for the PLC. An analog output module performs the opposite function by converting PLC digital values into analog signals for field actuators and controllers.

Is the 6AG1135-4FB01-2AB0 suitable for industrial applications?

Yes. It is part of the SIPLUS product family and is intended for industrial automation applications where reliable signal interfacing and enhanced environmental performance are required.

Conclusion

The Siemens 6AG1135-4FB01-2AB0 Analog Output Module is a compact SIPLUS component designed to provide analog control signals between Siemens automation systems and compatible industrial field devices. By converting digital PLC values into continuously variable electrical outputs, it enables proportional control of valves, drives, heating equipment, pumps, and other process actuators.

With dimensions of 15 × 81 × 52 mm and a specified weight of approximately 0.04 kg, the module provides a space-efficient solution for industrial control cabinets and automation stations. It can form part of a complete closed-loop control architecture together with analog input modules, Siemens PLC CPUs, sensors, HMI systems, drives, control valves, and SCADA systems.

For process automation and machine-control applications requiring reliable analog output signals, the 6AG1135-4FB01-2AB0 provides an important interface between PLC-based control logic and continuously adjustable field equipment.
