Product Overview

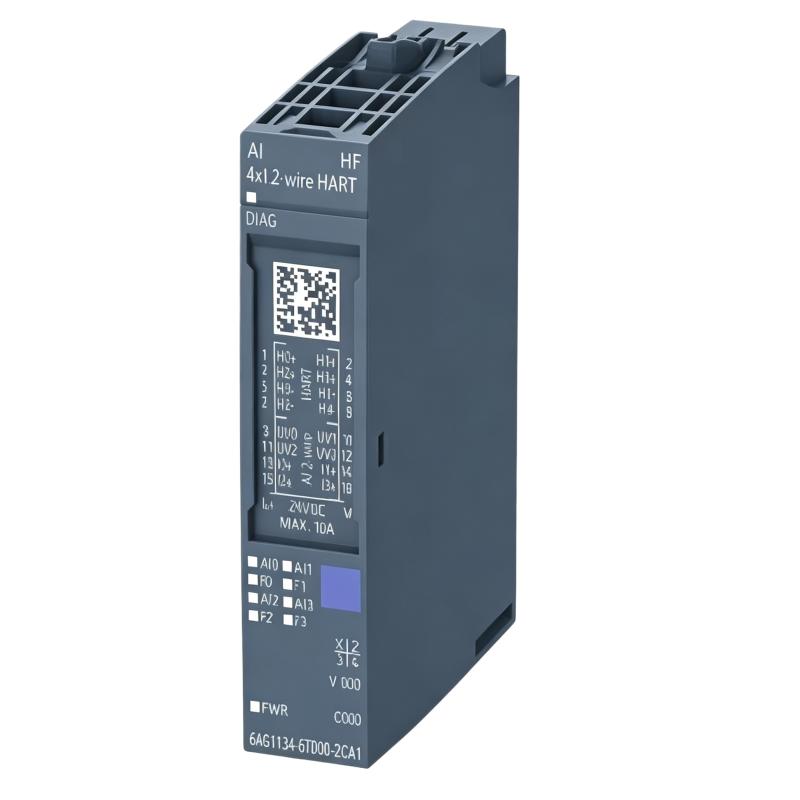

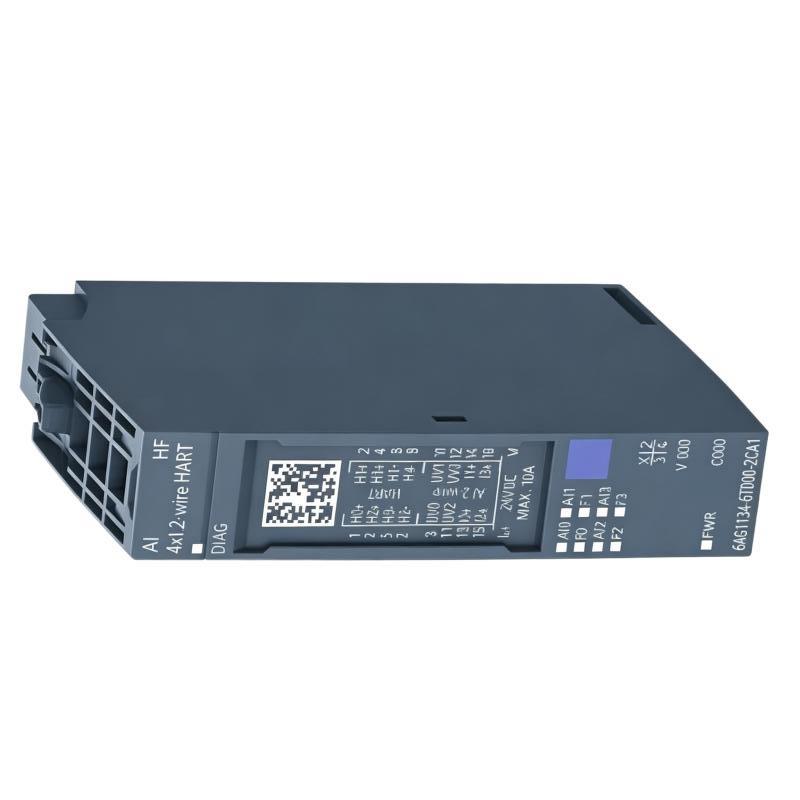

Accurate acquisition of industrial process signals is fundamental to modern automation and control systems. Temperature, pressure, resistance, and other continuously changing physical parameters must often be measured and converted into reliable digital values before a PLC can use them for monitoring and control. The Siemens 6AG1134-6TD00-2CA1 is a SIPLUS S7-1500 Analog Input Module designed for industrial signal acquisition and integration with Siemens automation systems.

The module provides an interface between field-level measurement devices and the PLC control system. It can acquire compatible analog measurement signals, process the incoming values, and make the resulting data available to the controller for logic processing, alarming, monitoring, and closed-loop control.

With compact dimensions of 15 × 73 × 58 mm and a weight of approximately 0.031 kg, the 6AG1134-6TD00-2CA1 is suitable for control cabinets where installation space is limited. Its SIPLUS design also makes it appropriate for industrial applications where enhanced environmental resistance is an important consideration.

Technical Specifications

Function and Working Principle

The Siemens 6AG1134-6TD00-2CA1 is used to acquire analog information from field instruments and convert the incoming signals into digital values that can be processed by the S7-1500 control system.

Industrial measurement devices can produce electrical signals corresponding to continuously changing physical parameters. An analog input module provides the electronic interface required to receive these signals and translate them into numerical process values.

The main functions of the module include:

• Analog signal acquisition
• Analog-to-digital conversion
• Process value measurement
• Multi-channel signal monitoring
• Measurement-range monitoring
• Diagnostic monitoring
• Detection of abnormal input conditions
• Transfer of process values to the PLC
• Support for automation and control programs
• Support for alarm and process-monitoring functions

A simplified signal path is:

Field Sensor → Analog Measurement Signal → 6AG1134-6TD00-2CA1 → Digital Process Value → S7-1500 CPU → Control Program

Once the field signal reaches the module, the input electronics process the signal and convert it into a digital representation. The PLC can then apply scaling, filtering, limit monitoring, calculations, alarms, or control algorithms to the measured value.

For temperature and other measurement applications, the actual sensor type and configured measurement range must correspond correctly to the input channel configuration.

Role in Industrial Control Systems

The 6AG1134-6TD00-2CA1 serves as a measurement interface within a Siemens S7-1500-based control architecture. Its purpose is to connect field instrumentation with the PLC’s digital processing environment.

A typical automation system may include:

• Siemens S7-1500 CPUs
• SIPLUS I/O modules
• Temperature sensors
• Process transmitters
• Analog measurement devices
• Industrial sensors
• HMI panels
• PROFINET communication networks
• Remote I/O stations
• SCADA systems
• Industrial control cabinets

For example, a process temperature sensor can provide a measurement signal to the analog input module. The module converts the measurement into a digital process value, which the PLC can then use to control heaters, cooling equipment, valves, pumps, or other process devices.

The module therefore forms an important connection between physical industrial processes and the software-based control logic running inside the PLC.

Industrial Applications

The Siemens 6AG1134-6TD00-2CA1 is suitable for applications where analog process measurements must be collected and processed by a Siemens automation system.

Typical applications include:

• Process automation
• Manufacturing automation
• Chemical processing
• Pharmaceutical production
• Food and beverage plants
• Water and wastewater treatment
• Power generation
• Oil and gas facilities
• Industrial HVAC
• Process machinery
• Production-line monitoring
• Temperature monitoring
• Industrial equipment monitoring
• Energy-management systems
• General factory automation

Temperature-related applications are particularly important in industrial processes where maintaining a defined operating temperature is necessary for product quality and equipment protection.

The module can also be incorporated into monitoring systems where measured values are displayed on an HMI or transferred to a higher-level SCADA system.

In automated machinery, analog measurement data can be used to trigger alarms or modify machine behavior according to changing process conditions.

Installation and System Integration

Proper installation is essential for obtaining accurate and stable measurements. Analog input signals can be affected by incorrect wiring, electrical interference, grounding issues, sensor configuration, or incorrect hardware parameters.

Recommended installation practices include:

• Install the module on the appropriate S7-1500 mounting rail.
• Confirm that the module is correctly positioned within the station.
• Verify the hardware configuration before commissioning.
• Connect sensors according to the applicable input configuration.
• Use appropriate instrumentation cables.
• Use shielded signal cables where required.
• Keep analog wiring separated from high-power conductors where practical.
• Verify signal polarity and wiring before energizing the system.
• Configure the correct measurement type.
• Configure the appropriate measurement range.
• Apply suitable scaling in the PLC program.
• Check channel diagnostic information.
• Compare PLC readings with an independent measurement when commissioning.
• Test each connected channel individually.
• Verify alarm and control responses before automatic operation.

For temperature measurement applications, the sensor type and wiring arrangement must be correctly matched to the configured input channel.

Incorrect sensor wiring can produce incorrect process values even when the module itself is operating normally.

After installation, the module should be properly configured within the Siemens engineering environment so that the S7-1500 CPU can recognize the hardware and process the input data correctly.

Compatible System Components

The 6AG1134-6TD00-2CA1 can be integrated into a broader Siemens S7-1500 automation architecture.

Typical associated components include:

• Siemens S7-1500 CPUs
• SIPLUS S7-1500 modules
• S7-1500 digital I/O modules
• S7-1500 analog modules
• S7-1500 interface modules
• Siemens ET 200 remote I/O systems
• Temperature sensors
• Analog transmitters
• Process instrumentation
• Siemens HMI panels
• PROFINET communication components
• Industrial Ethernet switches
• SCADA systems
• Industrial control cabinets

The analog input module acquires measurement information while the PLC CPU processes the values and executes the associated control logic.

Depending on the application, additional digital I/O, communication modules, interface modules, power supplies, and remote I/O stations can be combined with the analog input module to build a complete industrial control system.

Recommended Alternative Models

Depending on the required measurement type, number of channels, environmental conditions, and Siemens automation platform, the following modules may be considered:

Alternative selection should be based on the actual sensor type, signal range, number of required channels, measurement accuracy, isolation requirements, environmental conditions, and PLC architecture.

A module with similar dimensions or a similar product name should not automatically be considered a direct replacement. The complete electrical and system specifications should be checked before substitution.

Key Advantages

• Designed for Siemens S7-1500 automation architectures
• SIPLUS product family
• Analog process signal acquisition
• Compact module design
• Analog-to-digital signal conversion
• Suitable for compatible industrial measurement signals
• Suitable for temperature and process measurement applications
• Multi-channel measurement capability
• Diagnostic monitoring
• Supports PLC-based process control
• Compact 15 × 73 × 58 mm dimensions
• Approximately 0.031 kg weight
• Space-efficient control cabinet installation
• Suitable for industrial process monitoring
• Suitable for manufacturing automation
• Suitable for demanding industrial environments
• Supports integration with HMI and SCADA systems

Technical FAQs

What is the Siemens 6AG1134-6TD00-2CA1?

The Siemens 6AG1134-6TD00-2CA1 is a SIPLUS S7-1500 Analog Input Module designed to acquire compatible analog measurement signals and provide digital process values to a Siemens automation system.

What is the main function of the 6AG1134-6TD00-2CA1?

Its main function is to receive analog signals from field measurement devices, convert them into digital process values, and transfer the measurement data to the PLC for monitoring and control.

What are the dimensions of the 6AG1134-6TD00-2CA1?

The specified dimensions are 15 × 73 × 58 mm.

How much does the 6AG1134-6TD00-2CA1 weigh?

The specified weight is approximately 0.031 kg, equivalent to about 31 grams.

What type of signals can the module acquire?

The module is designed for compatible analog measurement signals. The exact sensor and signal configuration should be verified against the module’s applicable input specifications before installation.

Can it be used for temperature measurement?

Yes. When paired with a compatible temperature measurement device and correctly configured, an analog input module can be used to acquire temperature-related process values.

Which PLC system is associated with this module?

The 6AG1134-6TD00-2CA1 belongs to the SIPLUS S7-1500 product family and is designed for integration into compatible Siemens S7-1500 automation systems.

Where is this analog input module commonly used?

It can be used in process automation, manufacturing, chemical processing, pharmaceutical production, water treatment, power systems, HVAC, and industrial machinery.

Is the module suitable for demanding industrial environments?

The SIPLUS product family is intended for industrial applications requiring enhanced environmental performance. Actual operating conditions should still be checked against the applicable technical requirements before installation.

Conclusion

The Siemens 6AG1134-6TD00-2CA1 Analog Input Module is a compact SIPLUS S7-1500 component designed to provide reliable analog measurement acquisition within industrial automation systems. By receiving compatible signals from field instruments and converting them into digital process values, it allows Siemens PLC systems to monitor and control continuously changing industrial variables.

With dimensions of 15 × 73 × 58 mm and a specified weight of approximately 0.031 kg, the module offers a space-efficient solution for control cabinets and automation stations. It can be integrated with Siemens PLCs, sensors, transmitters, HMI systems, remote I/O, and SCADA architectures, making it suitable for process automation, manufacturing, temperature monitoring, equipment monitoring, and other industrial applications where accurate analog data acquisition is required.
