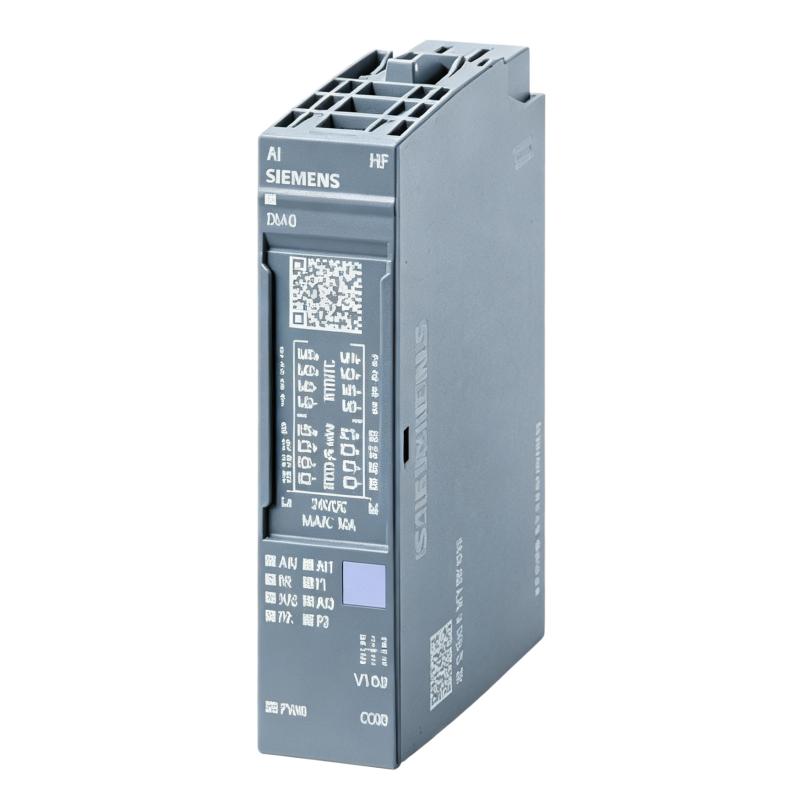

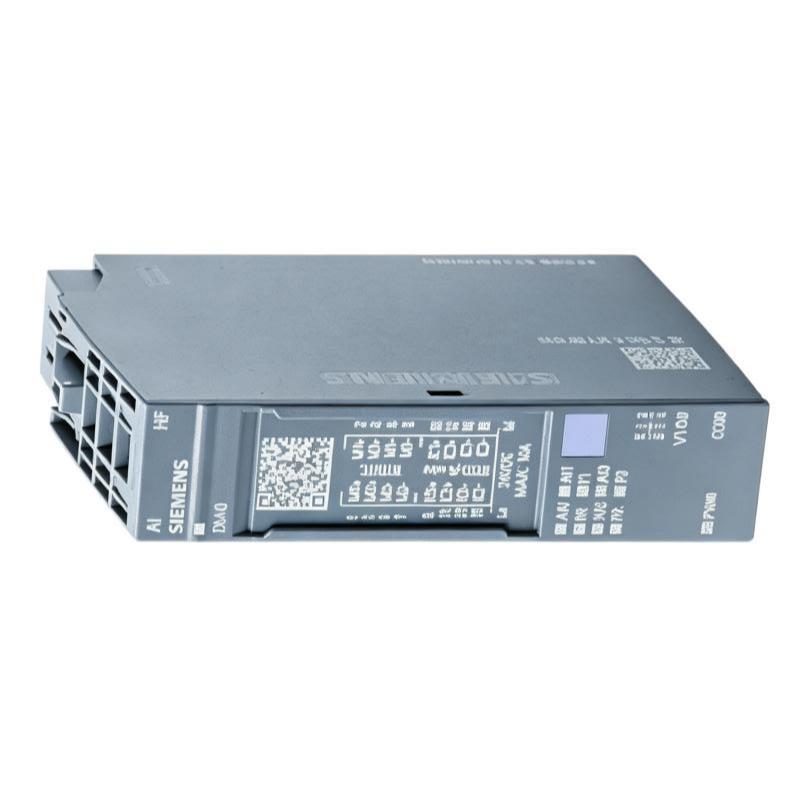

Siemens 6AG1134-6JD00-2CA1 Analog Input Module

Product Overview

In industrial automation systems, accurate analog signal acquisition is essential for monitoring process variables such as pressure, temperature, flow, level, and electrical measurements. The Siemens 6AG1134-6JD00-2CA1 is an SIPLUS S7-1500 Analog Input Module designed to acquire analog signals and transfer measured process values to the PLC control system for monitoring, regulation, and automated decision-making.

The module is designed for demanding industrial environments where reliable signal acquisition and continuous operation are required. With a compact size of 15 × 73 × 58 mm and a weight of approximately 0.03 kg, it can be integrated into Siemens S7-1500-based control cabinets without requiring significant installation space. As part of the SIPLUS product family, it is intended for applications where enhanced environmental resistance is important.

Technical Specifications

Function and Working Principle

The Siemens 6AG1134-6JD00-2CA1 converts analog process signals into digital values that can be processed by an S7-1500 PLC.

Industrial sensors and transmitters frequently produce continuously variable signals rather than simple ON/OFF states. For example, a pressure transmitter may output a 4–20 mA signal corresponding to a pressure range, while a temperature transmitter or voltage-based sensor may provide another analog representation of the measured process variable.

The analog input module receives these signals and converts them into digital process values that can be used by the PLC program.

The principal functions include:

• Acquisition of analog process signals
• Conversion of analog signals into digital values
• Measurement of process variables
• Signal monitoring
• Diagnostic monitoring
• Range monitoring
• Wire-break detection where supported by the configured input type
• Transfer of measured values to the PLC CPU
• Integration with Siemens S7-1500 control programs
• Support for automated process regulation

The basic signal path can be understood as:

Sensor → Analog Signal → 6AG1134-6JD00-2CA1 → Digital Process Value → S7-1500 CPU → Control Logic

Once the module receives an analog signal, its electronics convert the signal into a numerical value according to the configured measuring range. The S7-1500 CPU can then use this value for alarms, calculations, PID control, sequencing, data logging, or other automation functions.

Role in Industrial Control Systems

The 6AG1134-6JD00-2CA1 serves as the analog signal acquisition interface between field instruments and the Siemens S7-1500 PLC.

In a typical industrial automation system, it may be connected to:

• Pressure transmitters
• Temperature transmitters
• Flow sensors
• Level transmitters
• Position sensors
• Process analyzers
• Electrical measurement devices
• PLC CPUs
• Remote I/O systems
• HMI panels
• SCADA systems

For example, a pressure transmitter can send a 4–20 mA signal to the analog input module. The module converts the electrical signal into a digital value that the S7-1500 CPU can interpret. The PLC program can then compare the measured pressure against configured limits and automatically control a pump, valve, or other process device.

This makes the analog input module an important link between real-world process conditions and digital automation logic.

Industrial Applications

The Siemens 6AG1134-6JD00-2CA1 can be used in a variety of industrial automation and process-control applications where analog measurements must be acquired reliably.

Typical applications include:

• Water and wastewater treatment
• Chemical processing
• Oil and gas facilities
• Power generation
• Manufacturing automation
• Pharmaceutical production
• Food and beverage processing
• HVAC systems
• Building automation
• Process machinery
• Pumping stations
• Industrial energy-management systems
• Material-processing equipment
• Production-line monitoring

In a water-treatment plant, for example, analog input channels can be used to acquire pressure, flow, level, or other continuously varying process signals.

In manufacturing equipment, analog signals can represent position, pressure, temperature, force, or speed-related measurements.

In energy-management applications, analog measurement devices can provide electrical parameters that are subsequently processed by the PLC system.

Installation and System Integration

Proper installation and configuration are important for obtaining accurate analog measurements. Incorrect wiring, grounding, signal selection, or module configuration can result in inaccurate process values or diagnostic errors.

Recommended installation practices include:

• Install the module on the appropriate Siemens S7-1500 mounting rail.
• Ensure the module is securely positioned in the PLC station.
• Verify the module order and hardware configuration.
• Connect field transmitters according to the selected input type.
• Use suitable shielded signal cables for analog measurements where required.
• Keep analog signal wiring separated from high-power cables where practical.
• Verify signal polarity before energizing the system.
• Configure the correct analog input measuring range.
• Configure engineering units and scaling in the PLC program.
• Verify diagnostic settings.
• Check the sensor output before commissioning.
• Compare PLC values with the expected field measurement.
• Perform a complete I/O test before placing the system into automatic operation.

For current-loop applications, particular attention should be paid to the transmitter’s loop configuration and the wiring arrangement.

For voltage signals, cable length, electrical noise, grounding, and shielding can affect measurement quality.

The module should also be integrated into the S7-1500 hardware configuration so that the PLC recognizes the correct module and its configured channels.

Compatible System Components

The 6AG1134-6JD00-2CA1 is designed to operate as part of a Siemens S7-1500 automation system.

Typical compatible system components include:

• Siemens S7-1500 CPUs
• SIPLUS S7-1500 modules
• Standard S7-1500 I/O modules
• S7-1500 interface modules
• Siemens ET 200 remote I/O systems
• Siemens HMI panels
• Industrial Ethernet networks
• PROFINET communication systems
• Analog sensors
• 4–20 mA transmitters
• 0–10 V transmitters
• Process instruments
• SCADA systems

The module receives field-level analog information while the S7-1500 CPU processes the measured values and executes the control program.

Depending on the system architecture, additional digital I/O modules, communication modules, power supplies, interface modules, and remote I/O stations can be combined with the analog input module.

Recommended Alternative Models

Depending on the required signal type, channel count, environmental conditions, and S7-1500 system architecture, the following modules may be considered:

The correct alternative should be selected according to the PLC platform, input signal type, channel requirements, measurement accuracy, environmental conditions, isolation requirements, and communication architecture.

A standard S7-1500 analog input module should not automatically be considered a direct replacement for a SIPLUS module. Environmental requirements and system configuration must be evaluated before substitution.

Key Advantages

• Designed for Siemens S7-1500 automation systems
• SIPLUS industrial product design
• Analog process signal acquisition
• Supports voltage and current measurement configurations
• Suitable for 4–20 mA process transmitters
• Suitable for compatible voltage-based sensors
• Digital conversion of analog process values
• Diagnostic functions for process signal monitoring
• Compact 15 × 73 × 58 mm dimensions
• Approximately 0.03 kg weight
• Space-efficient PLC installation
• Suitable for industrial process-control applications
• Supports integration with Siemens PLC control programs
• Suitable for demanding industrial environments
• Can be used for pressure, temperature, flow, level, and other analog measurements

Technical FAQs

What is the Siemens 6AG1134-6JD00-2CA1?

The Siemens 6AG1134-6JD00-2CA1 is a SIPLUS S7-1500 Analog Input Module designed to acquire analog process signals and transfer the resulting digital values to an S7-1500 PLC.

What is the main function of the 6AG1134-6JD00-2CA1?

Its main function is to acquire analog signals from field instruments, convert them into digital process values, and make those values available to the PLC control program.

What are the dimensions of the 6AG1134-6JD00-2CA1?

The specified dimensions are 15 × 73 × 58 mm.

How much does the 6AG1134-6JD00-2CA1 weigh?

The specified product weight is approximately 0.03 kg, or 30 grams.

What signals can the analog input module receive?

Depending on the configured input type, the module can be used with compatible current and voltage analog signals, including common industrial signal formats such as 4–20 mA and 0–10 V.

Which PLC system is compatible with this module?

The module belongs to the SIPLUS S7-1500 family and is intended for integration into compatible Siemens S7-1500 automation systems.

Can the module be used with 4–20 mA transmitters?

Yes. Compatible 4–20 mA transmitters can be connected when the corresponding input configuration and wiring arrangement are correctly selected.

What industrial variables can it measure?

Depending on the connected transmitter and configured signal range, the module can acquire measurements representing variables such as pressure, temperature, flow, level, position, and other continuously varying process conditions.

Is the 6AG1134-6JD00-2CA1 suitable for harsh industrial environments?

The SIPLUS product family is intended for applications requiring enhanced environmental resistance compared with standard industrial automation components. The actual installation environment should nevertheless be checked against the applicable environmental specifications.

Conclusion

The Siemens 6AG1134-6JD00-2CA1 Analog Input Module is a compact SIPLUS S7-1500 component designed to connect analog field instruments with Siemens PLC control systems. By converting compatible current and voltage signals into digital process values, it enables automation controllers to monitor real-world variables such as pressure, temperature, flow, level, and position.

With dimensions of 15 × 73 × 58 mm and a weight of approximately 0.03 kg, the module occupies very little cabinet space while providing an important interface between field instrumentation and the PLC. Its integration into S7-1500 systems makes it suitable for process automation, manufacturing, water treatment, energy systems, and other industrial applications where reliable analog signal acquisition is required.
