Product Overview

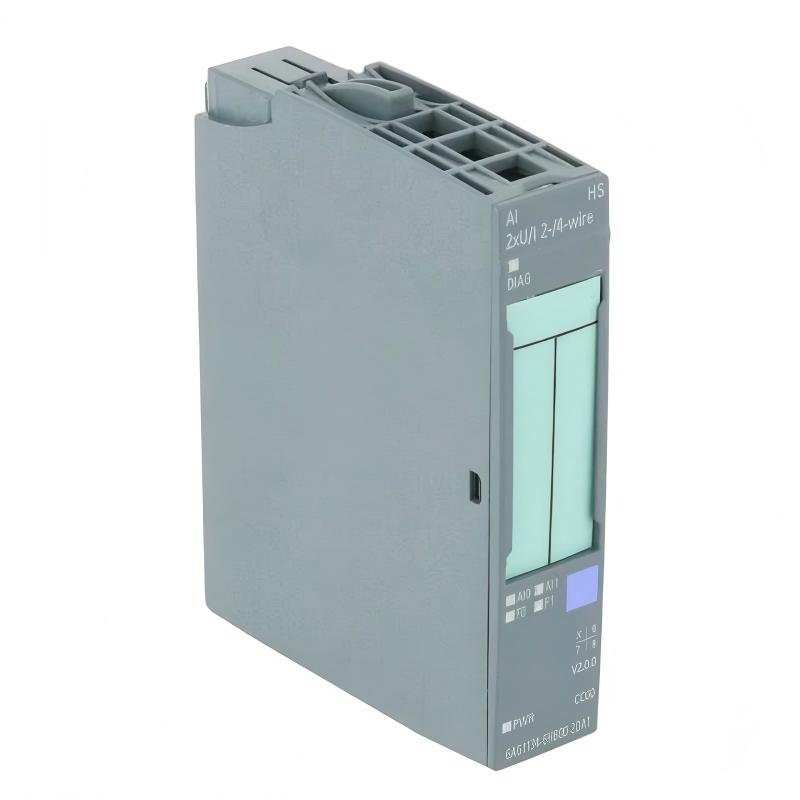

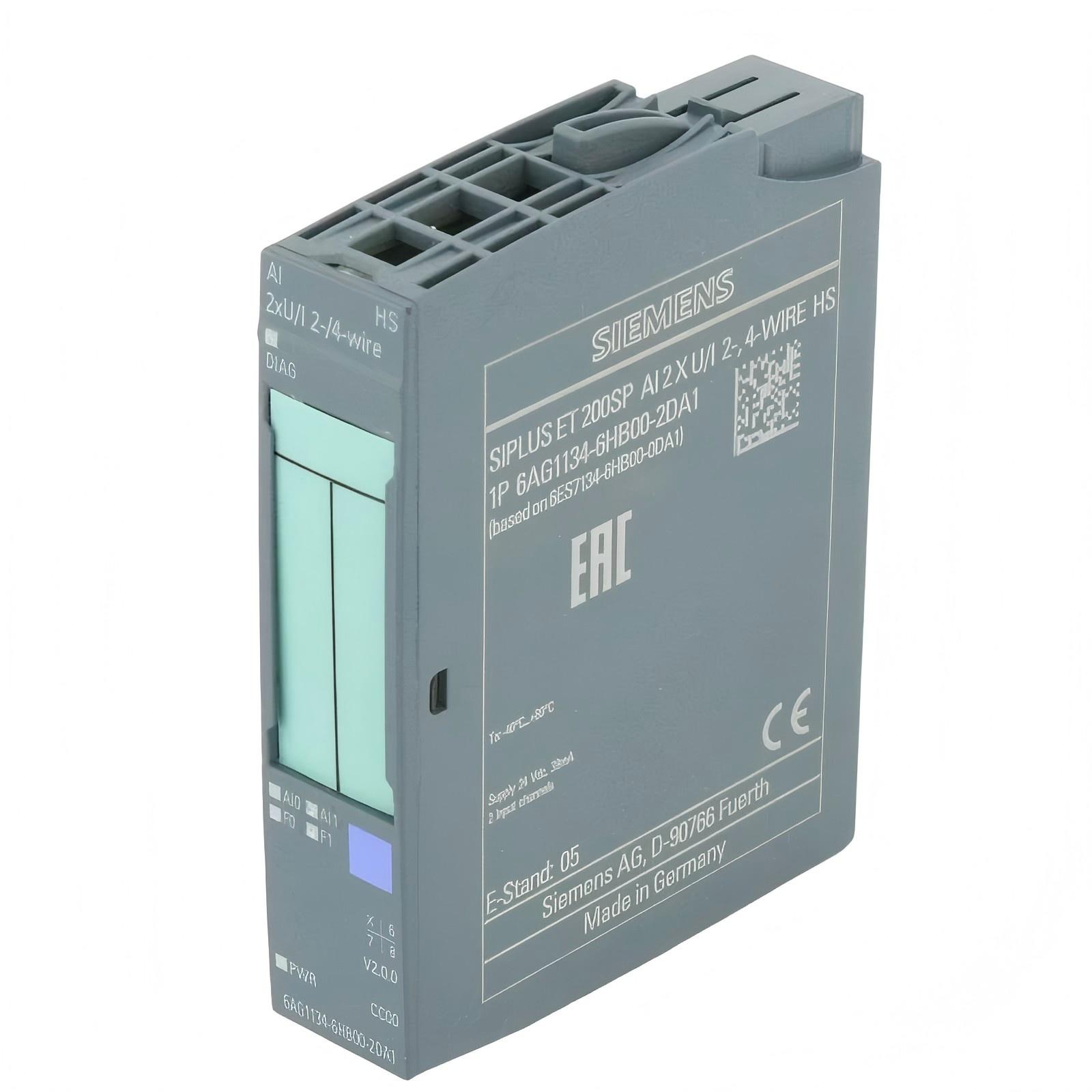

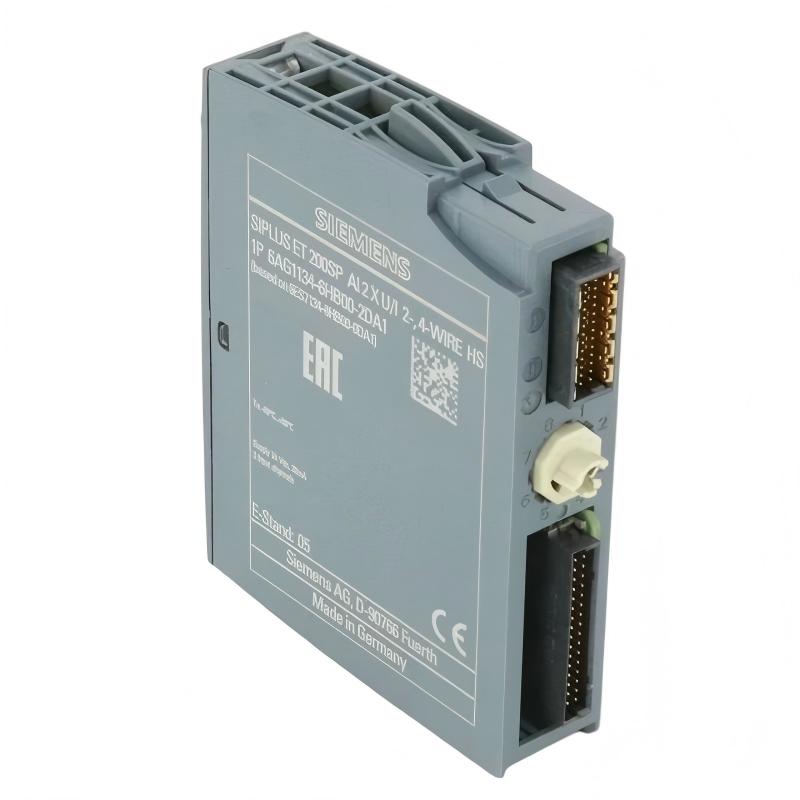

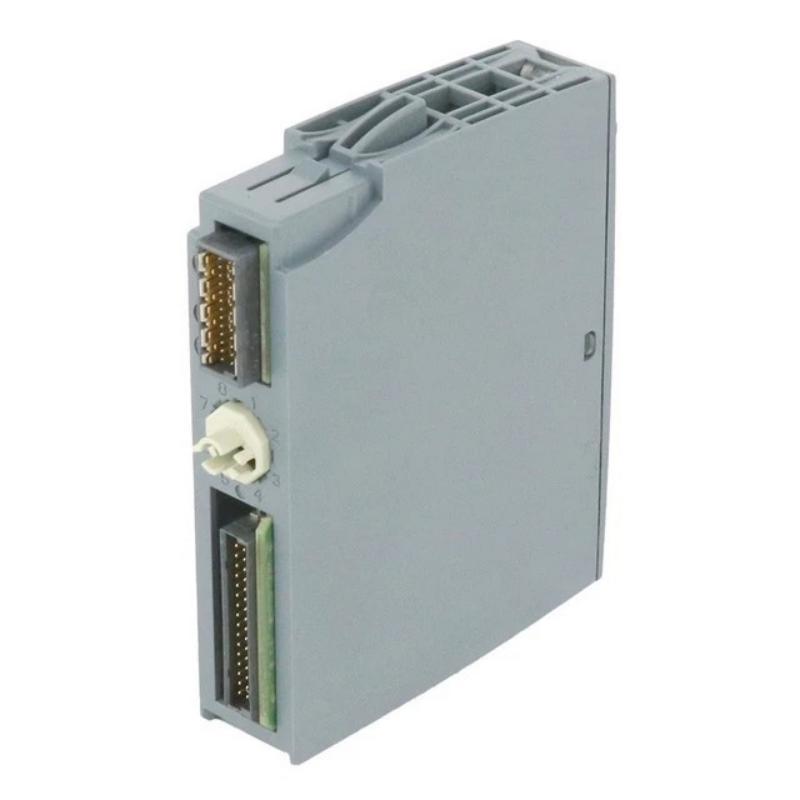

The Siemens 6AG1134-6HB00-2DA1 Analog Input Module is a high-speed industrial analog input module designed for the SIPLUS ET 200SP distributed I/O platform. Based on the ET 200SP High Speed analog input architecture, the module provides reliable acquisition of voltage and current signals from industrial field devices while offering enhanced environmental protection through conformal coating. It is designed to operate in demanding industrial environments and supports high-speed signal processing for precision automation applications.
This module acquires analog signals from transmitters and sensors, converts them into high-resolution digital values, and transmits the data to the PLC CPU through the ET 200SP backplane. It is suitable for high-speed process monitoring, closed-loop control, data acquisition, machine automation, and distributed industrial control systems.
With compact dimensions of 15 × 73 × 58 mm and a weight of 0.032 kg, the module is ideal for high-density control cabinets where installation space is limited.
Typical applications include:
- Process automation
- Factory automation
- Water treatment
- Power generation
- Oil & Gas
- Pharmaceutical production
- Food & Beverage
- Mining
- Building automation
- Machine control
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Series | SIPLUS ET 200SP |
| Model | 6AG1134-6HB00-2DA1 |
| Product Type | Analog Input Module |
| Function | High-Speed Analog Signal Acquisition |
| Installation Platform | ET 200SP Distributed I/O |
| Signal Direction | Analog Input |
| Communication | ET 200SP Backplane Bus |
| Mounting | DIN Rail |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.032 kg |
| Typical Application | Industrial Automation |
Technical Specifications
| Technical Item | Description |
|---|---|
| Brand | Siemens |
| Product Family | SIPLUS ET 200SP |
| Model Number | 6AG1134-6HB00-2DA1 |
| Module Type | High-Speed Analog Input Module |
| Signal Types | Voltage / Current |
| Analog Channels | 2 Differential Analog Inputs |
| Resolution | 16-bit |
| Communication | Backplane Bus |
| Supply Voltage | 24 VDC |
| Mounting Method | DIN Rail |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.032 kg |
| Environmental Protection | Conformal Coating |
| Maintenance | Periodic Preventive Inspection |
Module Function
The Siemens 6AG1134-6HB00-2DA1 continuously receives analog signals from industrial field devices and converts them into digital process values that can be processed by the PLC.
Typical field devices include:
- Pressure transmitters
- Temperature transmitters
- Flow transmitters
- Level transmitters
- Position sensors
- Humidity sensors
- Industrial analyzers
- Current and voltage transmitters
The converted values are used for monitoring, control, alarming, and data logging.
Working Principle
The signal flow is illustrated below:
Industrial Sensor
↓
Analog Voltage / Current Signal
↓
6AG1134-6HB00-2DA1
↓
High-Speed A/D Conversion
↓
ET 200SP Backplane
↓
SIMATIC PLC
↓
HMI / SCADA
↓
Industrial Process Control
The module continuously samples and updates analog process values for fast and reliable automation control.
Main Features
High-Speed Analog Acquisition
The module is designed for high-speed sampling of industrial analog signals, making it suitable for applications requiring rapid response and precise measurements.
High Resolution
The module provides 16-bit analog resolution, supporting accurate acquisition of voltage and current process signals.
Compact Design
Dimensions:
15 × 73 × 58 mm
Weight:
0.032 kg
Its compact housing allows high-density installation in ET 200SP stations.
Industrial Reliability
The conformal-coated electronics provide additional protection against condensation, humidity, corrosive gases, and industrial contamination, improving long-term reliability in harsh environments.
Typical Industrial Applications
The module is suitable for:
- Chemical processing
- Water & wastewater treatment
- Oil & gas production
- Energy generation
- Pharmaceutical manufacturing
- Food processing
- Factory automation
- Mining
- Steel production
- Building management systems
Typical Process Variables
Typical measured signals include:
- Temperature
- Pressure
- Flow
- Tank level
- Humidity
- Position
- Process voltage
- Process current
Installation Guide
Step 1 — Verify Module Information
Confirm:
Model: Siemens 6AG1134-6HB00-2DA1
Verify against:
- PLC hardware configuration
- Electrical drawings
- Spare parts documentation
- Project files
Step 2 — Inspect the Module
Inspect for:
- Housing damage
- Bent connector contacts
- Moisture
- Corrosion
- Dust contamination
Replace damaged equipment before installation.
Step 3 — Prepare the Installation Area
Verify:
- DIN rail condition
- ET 200SP BaseUnit compatibility
- Cabinet ventilation
- Installation clearance
- Ambient conditions
Step 4 — Install the Module
Mount the module onto the ET 200SP BaseUnit.
Confirm:
- Secure locking
- Proper alignment
- Stable installation
- No excessive mechanical force
Step 5 — Disconnect Power
Before wiring:
- Isolate power
- Verify zero voltage
- Follow lockout/tagout procedures
Step 6 — Connect Field Wiring
Connect transmitters according to the approved wiring diagram.
Verify:
- Signal polarity
- Terminal identification
- Cable routing
- Shield termination
- Tight electrical connections
Keep analog signal wiring separate from power cables.
Step 7 — Grounding
Verify grounding of:
- PLC cabinet
- Power supply
- ET 200SP station
- Cable shields
- Field devices
Proper grounding minimizes electrical interference.
Step 8 — PLC Configuration
Configure:
- Module type
- Slot location
- Signal type
- Channel parameters
- Scaling
- Diagnostics
Hardware configuration must match the installed module.
Step 9 — Initial Power-Up
After energizing the system verify:
- LED indicators
- PLC diagnostics
- Communication
- Input channel status
Step 10 — Functional Testing
Apply known analog signals and verify:
- Measurement accuracy
- Stable readings
- Scaling
- Alarm response
PLC Integration
Typical architecture:
Field Instruments
↓
6AG1134-6HB00-2DA1
↓
ET 200SP Station
↓
SIMATIC PLC
↓
HMI
↓
SCADA / DCS
↓
Industrial Process
Commissioning Procedure
Mechanical Inspection
Verify:
- Module locking
- DIN rail installation
- BaseUnit installation
Electrical Inspection
Inspect:
- Wiring
- Shielding
- Grounding
- Power supply
Communication Verification
Confirm:
- PLC recognizes module
- No diagnostic alarms
- Stable communication
Channel Testing
Verify every analog channel for:
- Signal accuracy
- Stability
- Engineering units
- Alarm operation
Troubleshooting Guide
Module Not Recognized
Possible causes:
- Incorrect installation
- Hardware configuration mismatch
- BaseUnit fault
- Communication failure
- Module failure
PLC Hardware Diagnostic Alarm
Inspect:
- Hardware configuration
- Module installation
- Supply voltage
- Communication
- Firmware compatibility
No Analog Signal
Possible causes:
- Broken wiring
- Incorrect signal configuration
- Sensor failure
- Loose terminals
- Open circuit
Unstable Readings
Possible causes:
- Electrical noise
- Poor grounding
- Shielding faults
- Loose wiring
- Faulty transmitter
Incorrect Measurement Values
Verify:
- Sensor calibration
- Scaling configuration
- Wiring polarity
- Engineering units
- PLC parameters
Channel Failure
Inspect:
- Channel wiring
- Sensor output
- Connector condition
- PLC diagnostics
Communication Failure
Possible causes:
- ET 200SP backplane fault
- BaseUnit problem
- PLC communication issue
- Module malfunction
Fault LED Illuminated
Review:
- Diagnostic buffer
- Wiring
- Power supply
- Hardware configuration
- Module condition
Sensor Failure
Typical symptoms:
- Constant value
- Zero reading
- Maximum reading
- Intermittent fluctuations
Always verify the field instrument before replacing the module.
Preventive Maintenance
Electrical Inspection
Inspect regularly:
- Wiring
- Connectors
- Grounding
- Shielding
- Power supply
Mechanical Inspection
Inspect:
- Housing
- DIN rail
- BaseUnit
- Mounting clips
Environmental Inspection
Check:
- Cabinet temperature
- Ventilation
- Dust
- Moisture
- Condensation
Functional Testing
Verify periodically:
- Channel accuracy
- Communication stability
- Diagnostic status
- Signal integrity
Replacement Guidelines
Before replacing the module, verify:
| Inspection Item | Verification |
|---|---|
| Model Number | Confirmed |
| Hardware Configuration | Verified |
| Slot Position | Verified |
| Wiring | Verified |
| Grounding | Verified |
| Sensor Compatibility | Verified |
| Communication | Verified |
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMATIC PLC | Central Controller |
| ET 200SP BaseUnit | Module Carrier |
| Industrial Power Supply | System Power |
| Analog Sensors | Process Measurement |
| HMI Panel | Operator Interface |
| SCADA System | Process Monitoring |
| Industrial Ethernet Switch | Network Communication |
| Shielded Signal Cable | Analog Signal Transmission |
Key Advantages
- Compact 15 × 73 × 58 mm design
- Lightweight 0.032 kg construction
- 16-bit high-resolution analog acquisition
- High-speed signal processing
- Conformal coating for harsh industrial environments
- Reliable ET 200SP backplane communication
- Easy installation and replacement
- Suitable for demanding industrial automation applications
Frequently Asked Questions
What is the Siemens 6AG1134-6HB00-2DA1?
It is a SIPLUS ET 200SP High-Speed Analog Input Module designed for acquiring industrial voltage and current signals in distributed automation systems.
What are its dimensions?
15 × 73 × 58 mm
What is its weight?
0.032 kg
How many analog input channels does it provide?
It provides 2 differential analog input channels with 16-bit resolution.
Where is the module installed?
It is installed on an ET 200SP BaseUnit mounted on a DIN rail.
Why is the PLC not detecting the module?
Possible causes include configuration mismatch, communication faults, improper installation, or module failure.
Why are analog readings unstable?
Common causes include poor grounding, electrical interference, shielding problems, loose wiring, or faulty field devices.
How should preventive maintenance be performed?
Inspect wiring, grounding, cabinet ventilation, communication status, diagnostics, and signal accuracy on a routine maintenance schedule.
Installation Checklist
| Inspection Item | Status |
|---|---|
| Correct Module Verified | ✓ |
| Physical Inspection Completed | ✓ |
| DIN Rail Installed | ✓ |
| BaseUnit Installed | ✓ |
| Wiring Verified | ✓ |
| Grounding Verified | ✓ |
| PLC Configuration Completed | ✓ |
| Communication Verified | ✓ |
| Functional Testing Completed | ✓ |
| Maintenance Record Updated | ✓ |
Conclusion
The Siemens 6AG1134-6HB00-2DA1 Analog Input Module is a compact, high-speed analog acquisition solution for the SIPLUS ET 200SP distributed I/O platform. Featuring 2 differential analog inputs, 16-bit resolution, conformal-coated electronics, and dimensions of 15 × 73 × 58 mm with a weight of 0.032 kg, it delivers reliable performance for demanding industrial automation applications.
Proper installation, accurate PLC configuration, correct wiring, effective grounding, and regular preventive maintenance are essential for achieving maximum performance and long-term reliability. When integrated into a Siemens SIMATIC automation system, the 6AG1134-6HB00-2DA1 provides stable, high-precision analog signal acquisition that supports efficient process control and dependable plant operation.
