Product Overview

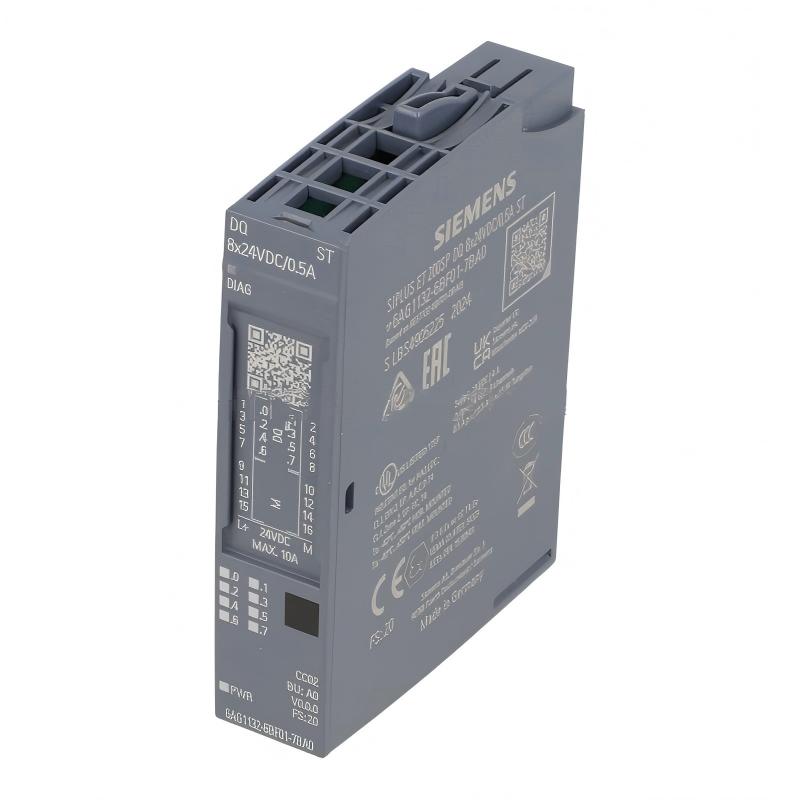

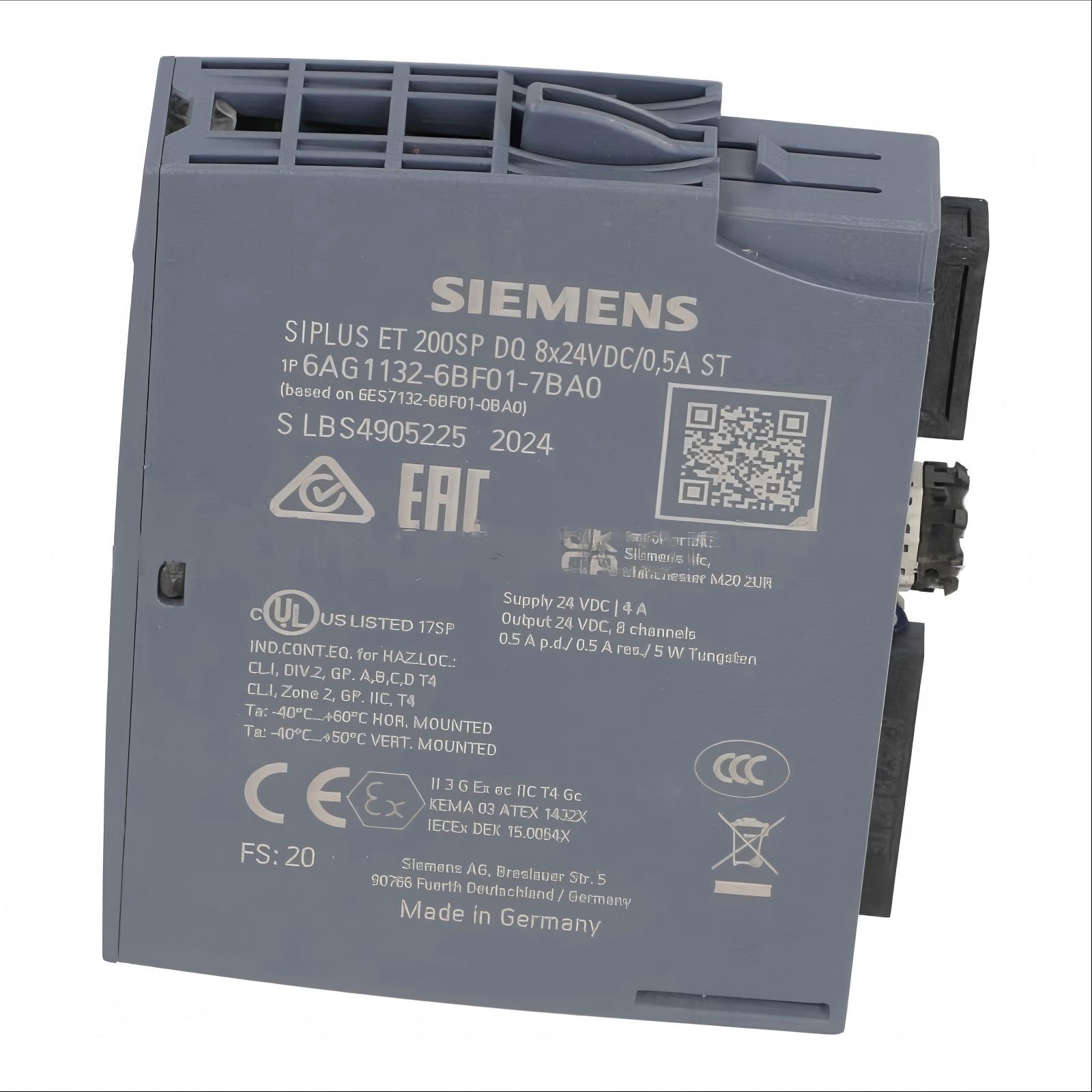

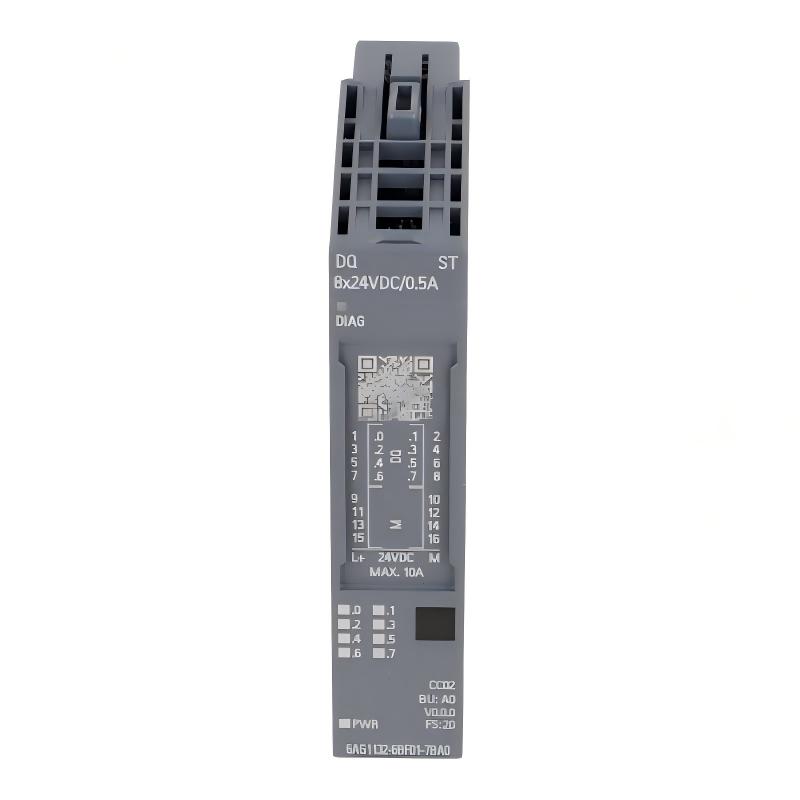

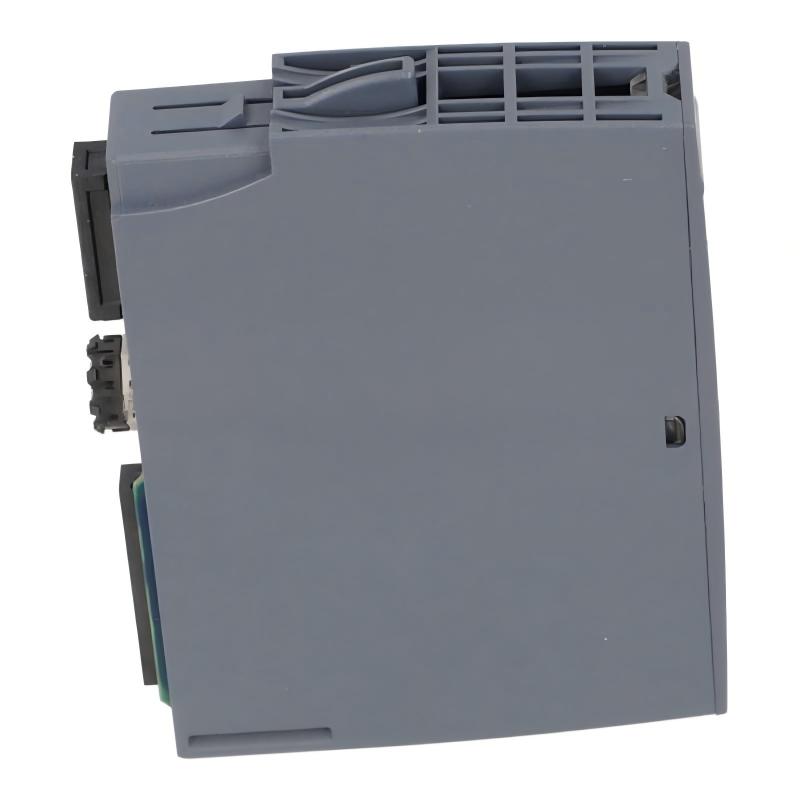

The Siemens 6AG1132-6BF01-7BA0 is a SIPLUS ET 200SP digital output module designed for reliable switching of 24 V DC field devices in industrial automation and control systems.
This module belongs to the SIPLUS ET 200SP family and is based on the standard 6ES7132-6BF01-0BA0 digital output module. The SIPLUS version adds a conformal coating, making the module suitable for industrial environments where increased environmental resistance is required.
The module provides 8 digital outputs, with each output capable of switching up to 0.5 A for suitable resistive loads. The outputs use a PNP, current-sourcing configuration, allowing the module to supply the positive switching voltage to connected field devices.
The 6AG1132-6BF01-7BA0 is designed for use with ET 200SP BaseUnit type A0 and provides channel-level diagnostics and short-circuit protection.
Its compact design makes it suitable for high-density control cabinets where multiple digital I/O channels need to be installed within limited panel space.
The module measures only 15 × 73 × 58 mm and has a net weight of approximately 0.036 kg, making it a lightweight I/O component for distributed automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIPLUS ET 200SP |
| Model | 6AG1132-6BF01-7BA0 |
| Product Type | Digital Output Module |
| Module Designation | DQ 8x24VDC/0.5A Standard |
| Base Model | 6ES7132-6BF01-0BA0 |
| Number of Digital Outputs | 8 |
| Output Voltage | 24 V DC |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2–28.8 V DC |
| Output Type | Source Output / PNP |
| Output Current | 0.5 A per channel |
| Output Current Type | Current-Sourcing |
| Output Protection | Short-Circuit Protection |
| Outputs Parameterizable | Yes |
| Lamp Load | Up to 5 W |
| Output Load Resistance | Approximately 48 Ω to 12 kΩ |
| Inductive Shutdown Voltage Limitation | Yes |
| Channel Diagnostics | Yes |
| Reverse Polarity Protection | Yes |
| Power Consumption | Max. approximately 35 mA without load |
| Typical Power Loss | Approximately 1 W |
| BaseUnit | BU Type A0 |
| Color Code | CC02 |
| Conformal Coating | Yes |
| Environmental Temperature Range | -40 to +70 °C |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.036 kg / 36 g |
| Installation | ET 200SP distributed I/O station |
| Application | Industrial automation and control |
Function and Working Principle
The primary function of the 6AG1132-6BF01-7BA0 is to convert digital commands generated by the automation controller into physical 24 V DC output signals.
A typical signal path can be represented as:
PLC / CPU
↓
ET 200SP Interface
↓
6AG1132-6BF01-7BA0 Digital Output Module
↓
24 V DC Field Device
↓
Actuator / Contactor / Relay / Solenoid
When the PLC sends an output command, the corresponding channel on the module switches its 24 V DC output.
Because the module uses PNP source outputs, the output channel supplies the positive voltage to the connected load when the output is activated.
Typical devices controlled by the module include:
- Contactors
- Relays
- Solenoid valves
- Indicator lamps
- Small actuators
- Motor-control signals
- Pneumatic valves
- Hydraulic control valves
- Alarm devices
- Interposing relays
The module therefore provides the electrical interface between the PLC control program and physical field equipment.
What Is the Siemens 6AG1132-6BF01-7BA0 Used For?
The 6AG1132-6BF01-7BA0 is used to control discrete 24 V DC devices in industrial automation systems.
It is especially suitable for applications requiring multiple digital output channels within a compact distributed I/O station.
Typical applications include:
- Factory automation
- Machine control
- Process automation
- Packaging machinery
- Conveyor systems
- Production lines
- Material handling
- Industrial robotics
- Water treatment
- Building automation
- Manufacturing equipment
- Energy systems
- Industrial instrumentation
For example, a PLC may determine that a pneumatic valve needs to open. The control program activates one output channel on the 6AG1132-6BF01-7BA0, and the module then provides the required 24 V DC switching signal to the valve’s control circuit.
Role in Industrial Control Systems
The 6AG1132-6BF01-7BA0 serves as a digital output interface within the Siemens ET 200SP distributed I/O architecture.
A typical control architecture can be arranged as:
PLC / Controller
↓
PROFINET / Industrial Network
↓
ET 200SP Interface Module
↓
ET 200SP BaseUnit
↓
6AG1132-6BF01-7BA0
↓
Field Actuators
This architecture allows the digital output module to be installed close to the field equipment rather than requiring every signal cable to return to a central PLC cabinet.
This can provide several practical benefits:
- Reduced field wiring
- Shorter signal paths
- Modular system design
- Higher I/O density
- Easier cabinet organization
- Flexible machine configuration
- Simplified maintenance
The module’s compact 15 mm width is particularly useful in applications where cabinet space is limited.
Digital Output Configuration
The module provides 8 digital output channels.
| Output Characteristic | Specification |
|---|---|
| Number of Outputs | 8 |
| Output Voltage | 24 V DC |
| Output Type | PNP / Source |
| Maximum Resistive Load | 0.5 A per channel |
| Short-Circuit Protection | Yes |
| Parameterization | Yes |
| Channel Diagnostics | Yes |
| Lamp Load | Up to 5 W |
| Digital Input Control | Possible |
| Inductive Load Protection | Integrated voltage limitation |
Each output can be independently controlled by the PLC program.
This makes the module suitable for machines where several actuators or control devices must be operated independently.
PNP Source Output Operation
The 6AG1132-6BF01-7BA0 uses PNP current-sourcing outputs.
In a typical PNP configuration:
+24 V DC
↓
Digital Output Module
↓
Field Device
↓
0 V DC
When the output is activated, the module provides the positive switching voltage to the field device.
This configuration is widely used in Siemens industrial automation systems.
The output design is particularly suitable for controlling:
- DC relays
- Contactors
- Solenoid valves
- Indicator lamps
- Digital actuator inputs
- Interposing relays
The connected load must remain within the applicable output-current and electrical specifications.
Channel Diagnostics and Protection
One of the useful characteristics of the 6AG1132-6BF01-7BA0 is its diagnostic capability.
The module supports channel diagnostics, allowing the automation system to identify certain output-related conditions.
The outputs also provide short-circuit protection.
This is important when controlling field devices because industrial wiring can occasionally experience:
- Short circuits
- Wiring faults
- Incorrect connections
- Damaged field cables
- Faulty actuators
Protection functions can help prevent a field-side electrical problem from immediately damaging the output electronics.
The module also provides limitation of the inductive shutdown voltage, which is useful when switching inductive loads such as relays and solenoid valves.
SIPLUS Environmental Design
The 6AG1132-6BF01-7BA0 is a SIPLUS product rather than a standard ET 200SP module.
It is based on the standard 6ES7132-6BF01-0BA0 and incorporates a conformal coating.
This additional construction is intended for applications requiring greater resistance to challenging industrial environmental conditions.
The specified operating temperature range extends from approximately:
-40 °C to +70 °C
This makes the module appropriate for applications where standard automation components may require additional environmental protection.
Potential application environments include:
- Outdoor industrial equipment
- Transportation-related systems
- Energy installations
- Harsh production environments
- Industrial machinery
- Equipment exposed to temperature variation
The exact suitability of the complete system should always be evaluated based on humidity, condensation, vibration, chemical exposure and other environmental conditions.
Installation and System Integration
The 6AG1132-6BF01-7BA0 is installed as part of an ET 200SP distributed I/O station.
It is designed for use with BU Type A0 BaseUnits.
The module itself is very compact:
15 × 73 × 58 mm
This narrow form factor allows several modules to be installed side-by-side in a limited amount of cabinet space.
Typical Installation Structure
A simplified ET 200SP station can contain:
Interface Module
↓
BaseUnit
↓
Digital Input Module
↓
Digital Output Module
↓
Analog Module
↓
Additional I/O Modules
The exact station configuration depends on the required number and type of I/O channels.
Compatible System Components
The 6AG1132-6BF01-7BA0 normally works together with several ET 200SP components.
| Component | Function |
|---|---|
| Siemens ET 200SP Interface Module | Network communication with PLC |
| BU Type A0 BaseUnit | Electrical and mechanical module connection |
| ET 200SP CPU | Local control processing |
| 24 V DC Power Supply | Supplies system and field power |
| PROFINET Network | Industrial Ethernet communication |
| Digital Input Modules | Field signal acquisition |
| Digital Output Modules | Field actuator control |
| Analog Input Modules | Analog signal measurement |
| Analog Output Modules | Analog actuator control |
| Terminal Components | Field wiring |
| PLC Controller | Central automation control |
| HMI | Operator interface |
| Contactors | Motor switching |
| Relays | Signal isolation and switching |
| Solenoid Valves | Pneumatic or hydraulic control |
The BU Type A0 BaseUnit is particularly important because the module is designed to operate with this BaseUnit configuration.
Industrial Applications
Factory Automation
The module can be used to control individual machine actuators.
Typical devices include:
- Pneumatic valves
- Relays
- Contactors
- Warning lamps
- Small actuators
Conveyor Systems
A conveyor-control system may use the digital outputs to control:
- Motor contactors
- Solenoid gates
- Pneumatic cylinders
- Warning indicators
- Diverter mechanisms
Packaging Machinery
Packaging machines commonly require numerous discrete actuator signals.
The 8-channel output structure can be used for:
- Valve control
- Cylinder control
- Conveyor control
- Alarm signals
- Machine status indicators
Process Automation
The module can also be used in process-control applications where 24 V DC discrete actuators must be switched.
Examples include:
- Valve solenoids
- Pump control signals
- Alarm devices
- Interposing relays
- Process equipment interlocks
Installation and Commissioning
A typical commissioning procedure includes:
- Verify the module part number.
- Confirm that the system uses a compatible ET 200SP architecture.
- Install the appropriate BU Type A0 BaseUnit.
- Mount the module correctly.
- Connect the 24 V DC supply.
- Connect the field devices.
- Verify output wiring polarity.
- Confirm the load current for each channel.
- Configure the module in the PLC engineering software.
- Assign the correct output addresses.
- Check the hardware configuration.
- Download the configuration.
- Verify module diagnostics.
- Test each output channel individually.
- Check connected actuators.
- Verify the PLC control sequence.
- Test the system under normal operating conditions.
Before energizing the outputs, all field wiring should be checked for correct polarity and short circuits.
Maintenance and Troubleshooting
Although the 6AG1132-6BF01-7BA0 is designed for industrial operation, systematic maintenance is recommended.
Maintenance personnel should periodically inspect:
- BaseUnit connections
- Field wiring
- 24 V DC supply
- Output loads
- Terminal connections
- Cabinet temperature
- Module status
- Diagnostic information
- Communication status
Because the module uses removable modular installation within the ET 200SP system, troubleshooting can often be performed by checking the individual module, BaseUnit and field circuit separately.
Common Fault Conditions
| Symptom | Possible Cause |
|---|---|
| Output does not activate | PLC logic or addressing problem |
| No output voltage | Missing field supply |
| One channel remains inactive | Wiring or channel fault |
| Output immediately turns off | Short circuit or overload |
| Multiple outputs unavailable | Power-supply or BaseUnit issue |
| Actuator does not operate | Incorrect field wiring |
| Relay does not energize | Insufficient output voltage or faulty relay |
| Solenoid does not operate | Wiring or actuator problem |
| Diagnostic alarm appears | Channel or system fault |
| Module not recognized | Configuration or station problem |
| Intermittent output | Loose connection or unstable supply |
| Output device overheats | Excessive load current |
| Communication-related fault | ET 200SP network or interface issue |
When troubleshooting, the first step should normally be to determine whether the problem originates from the PLC program, I/O configuration, module, BaseUnit, power supply, field wiring, or actuator.
Recommended Alternative Models
| Model | Product Type | Key Feature | Typical Application |
|---|---|---|---|
| 6ES7132-6BF01-0BA0 | ET 200SP Digital Output Module | Standard 8 × 24 V DC / 0.5 A output | General automation |
| 6AG1132-6BF01-7BA0 | SIPLUS Digital Output Module | 8 × 24 V DC / 0.5 A, conformal coating | Harsh industrial environments |
| 6ES7132-6BH01-0BA0 | ET 200SP Digital Output Module | Higher-current digital outputs | General industrial control |
| 6ES7132-6BH01-2BA0 | ET 200SP Digital Output Module | 16-channel output configuration | High-density I/O |
| 6ES7132-6BF00-0BA0 | ET 200SP Digital Output Module | Compact digital output solution | Standard machine control |
| 6AG1132 Series | SIPLUS Digital Output | Enhanced environmental resistance | Harsh environments |
| ET 200SP DQ Modules | Digital Output Modules | Modular output selection | Distributed automation |
| ET 200SP F-DQ Modules | Fail-Safe Digital Output | Safety-oriented output control | Safety applications |
| ET 200SP Analog Output Modules | Analog Output | Analog process signals | Process automation |
| ET 200SP Relay Output Modules | Relay Output | Relay-based switching | Mixed industrial loads |
For a standard environment, the related 6ES7132-6BF01-0BA0 is the closest base-model reference because the 6AG1132-6BF01-7BA0 is based on this module design.
For applications involving temperature extremes or demanding environmental conditions, the SIPLUS version is more appropriate to evaluate.
Key Advantages
- Siemens SIPLUS ET 200SP technology
- 8 digital output channels
- 24 V DC output voltage
- 0.5 A per output channel
- PNP source-output design
- Current-sourcing outputs
- Short-circuit protection
- Parameterizable digital outputs
- Channel diagnostics
- Inductive shutdown-voltage limitation
- Reverse-polarity protection
- Compatible with BU Type A0
- Compact 15 mm module width
- Conformal coating
- Wide operating-temperature capability
- Suitable for distributed I/O systems
- Supports high-density cabinet installations
- Suitable for industrial automation
- Suitable for machine control
- Suitable for process automation
- Suitable for actuator control
- Dimensions 15 × 73 × 58 mm
- Net weight approximately 0.036 kg / 36 g
Technical FAQs
What is the Siemens 6AG1132-6BF01-7BA0?
The 6AG1132-6BF01-7BA0 is a Siemens SIPLUS ET 200SP digital output module with eight 24 V DC digital outputs.
How many outputs does the module have?
The module provides 8 digital output channels.
What is the output voltage?
The rated output voltage is 24 V DC.
What is the maximum output current?
Each output can handle up to approximately 0.5 A for suitable resistive loads.
Is the output PNP or NPN?
The 6AG1132-6BF01-7BA0 uses PNP source outputs, meaning the output supplies positive voltage to the connected load when activated.
Does the module have short-circuit protection?
Yes. The digital outputs incorporate short-circuit protection.
What BaseUnit does the module use?
The module is designed for use with an ET 200SP BU Type A0 BaseUnit.
What is the difference between 6AG1132-6BF01-7BA0 and 6ES7132-6BF01-0BA0?
The 6AG1132-6BF01-7BA0 is the SIPLUS version based on the 6ES7132-6BF01-0BA0 design. It adds conformal coating and enhanced environmental capability, making it suitable for more demanding industrial conditions.
What are the dimensions of the 6AG1132-6BF01-7BA0?
The module measures 15 × 73 × 58 mm.
How much does the module weigh?
Its net weight is approximately 0.036 kg, or about 36 grams.
What temperature range is supported?
The SIPLUS version is designed for an extended operating temperature range of approximately -40 °C to +70 °C, depending on the applicable installation and operating conditions.
What devices can it control?
Typical loads include relays, contactors, solenoid valves, indicator lamps and other compatible 24 V DC actuators.
Can it be used with a Siemens PLC?
Yes. The module is intended for use within Siemens ET 200SP distributed I/O architectures and can be integrated into PLC-based automation systems.
Is the 6AG1132-6BF01-7BA0 suitable for harsh environments?
It is specifically designed as a SIPLUS version with conformal coating and an extended temperature capability, making it suitable for applications where enhanced environmental resistance is required.
Conclusion
The Siemens 6AG1132-6BF01-7BA0 Digital Output Module is a compact SIPLUS ET 200SP DQ module designed for reliable 24 V DC actuator control in industrial automation systems.
With 8 PNP source outputs, a maximum output current of 0.5 A per channel, short-circuit protection, channel diagnostics and compatibility with BU Type A0, it provides a practical interface between PLC control logic and physical field devices.
The module is particularly suitable for controlling relays, contactors, solenoid valves, indicator lamps and other 24 V DC industrial actuators.
Its SIPLUS construction, including conformal coating and an extended operating-temperature capability, makes it suitable for applications where additional environmental resistance is important.
With compact dimensions of 15 × 73 × 58 mm and a net weight of approximately 0.036 kg, the 6AG1132-6BF01-7BA0 is well suited to high-density ET 200SP installations where cabinet space and modularity are important.
For engineers, system integrators and maintenance teams, the key specifications to verify before installation are the 8-channel output configuration, 24 V DC supply, 0.5 A channel rating, PNP output type, BU Type A0 compatibility, field-load requirements and environmental conditions.
