Product Overview

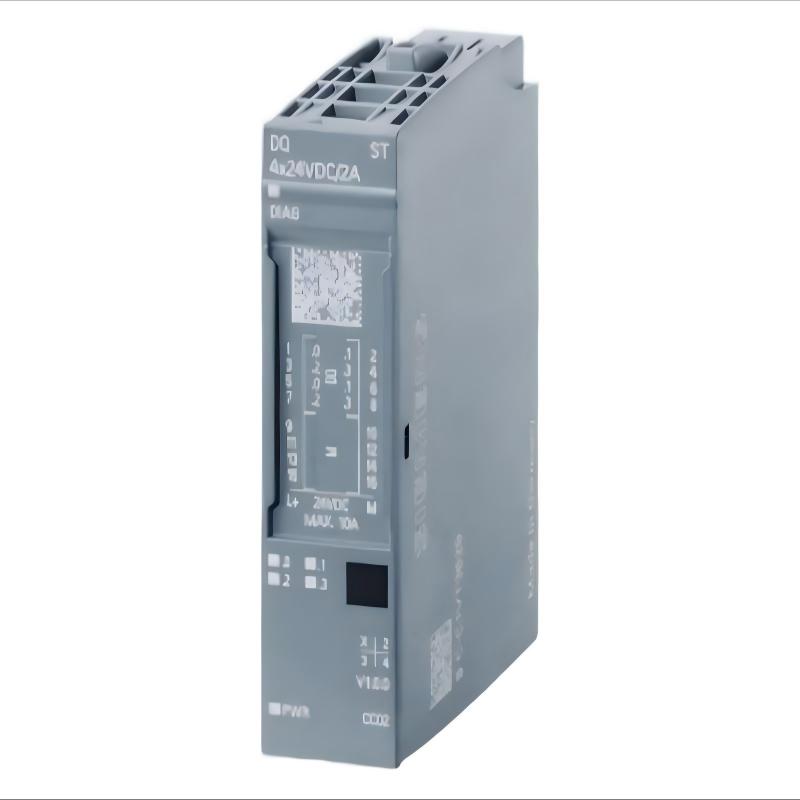

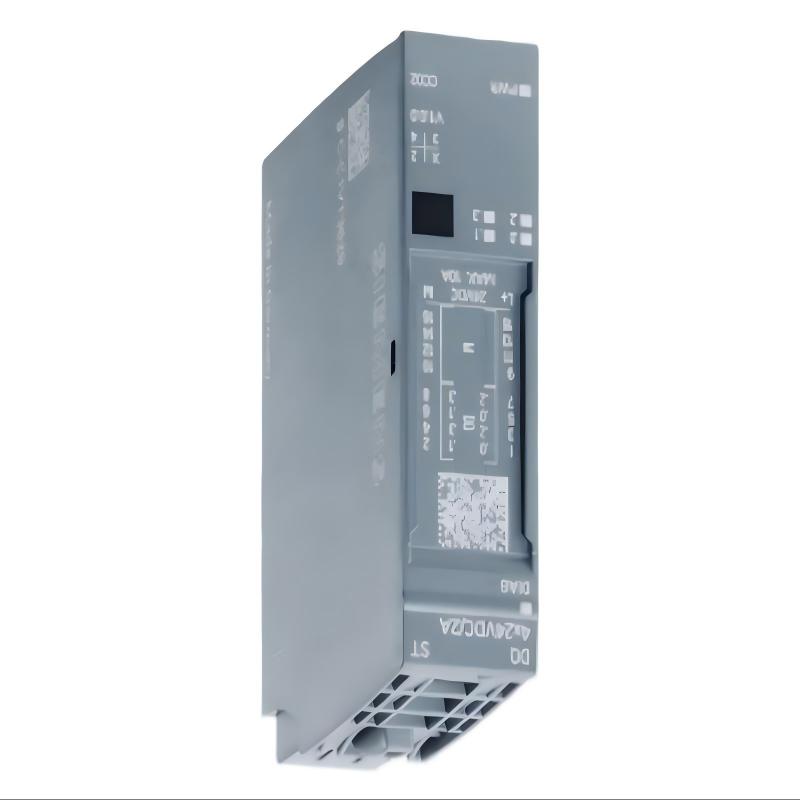

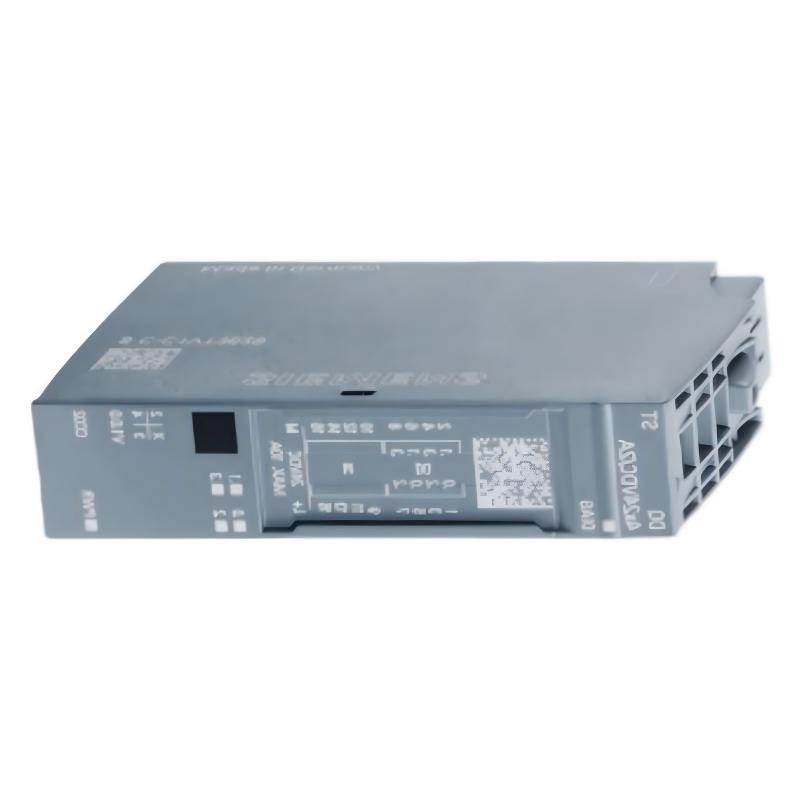

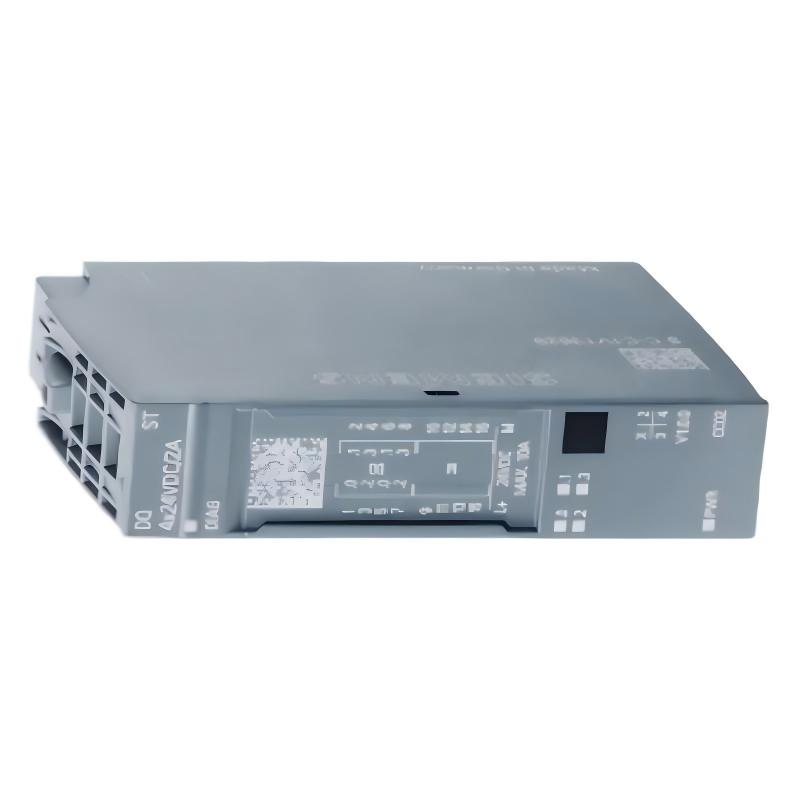

The Siemens 6AG1132-6BD20-7CA0 is a SIPLUS ET 200SP high-feature digital output module designed for industrial automation systems that require reliable and fast switching of 24 V DC field devices. The module provides four digital transistor outputs and is based on the Siemens 6ES7132-6BD20-0CA0 ET 200SP digital output module.

As part of the SIPLUS product range, the 6AG1132-6BD20-7CA0 is designed for demanding industrial environments. The module uses conformal coating to provide additional protection for the electronic assembly and is specified for an extended operating temperature range of approximately -40 °C to +70 °C.

The module provides four 24 V DC digital outputs, with a rated output current of up to 2 A per channel. Its transistor output design makes it suitable for fast and repetitive switching applications where PLC logic needs to control compatible DC actuators.

Typical applications include machine automation, conveyor systems, packaging equipment, material handling, process equipment, valves, contactors, relays, signal devices, and other industrial actuators requiring 24 V DC digital control.

The 6AG1132-6BD20-7CA0 is designed for use with an appropriate ET 200SP BaseUnit type A0. Its compact form factor is particularly useful in distributed I/O systems where installation space is limited.

The supplied physical dimensions are approximately 15 × 73 × 58 mm, while the module weight is approximately 0.03 kg, or 30 grams.

Technical Specifications

What Is the Siemens 6AG1132-6BD20-7CA0?

The Siemens 6AG1132-6BD20-7CA0 is a four-channel digital output module belonging to the SIPLUS ET 200SP family.

Its primary purpose is to provide a physical digital output interface between a PLC or automation controller and 24 V DC field devices. The module receives output commands from the controller and switches the corresponding transistor output channels according to the programmed control logic.

Unlike relay output modules, the 6AG1132-6BD20-7CA0 uses semiconductor transistor outputs. This makes the module suitable for applications requiring fast switching and frequent output operation.

The four outputs are designed for 24 V DC applications and provide up to 2 A per channel under the applicable operating conditions.

The PNP output configuration means that the output switches the positive supply potential toward the connected load. This is a common arrangement in modern 24 V DC industrial control systems.

The module also provides several diagnostic functions, including channel-level short-circuit and wire-break diagnostics. These functions can help maintenance personnel identify field wiring or load-related problems more efficiently.

Function and Working Principle

The basic control path can be represented as:

PLC Program → PLC CPU → Industrial Network / ET 200SP Interface → 6AG1132-6BD20-7CA0 → 24 V DC Field Device

The PLC program first determines the required state of each output. For example, a machine program may determine that a pneumatic valve, contactor, relay, or indicator needs to be activated.

The CPU sends the corresponding digital output information to the ET 200SP station.

The 6AG1132-6BD20-7CA0 receives the command and switches the corresponding transistor output.

Because the module uses PNP switching, an activated output supplies the positive 24 V DC potential to the connected load. The load then completes the electrical circuit through the appropriate return connection.

When the PLC removes the output command, the transistor output switches off and the field device returns to its inactive state.

This switching process can occur repeatedly during normal machine operation. The semiconductor output architecture is especially suitable for applications requiring rapid or frequent switching.

The module also monitors important electrical conditions. Depending on the configured system and connected load, diagnostics can identify conditions such as supply problems, short circuits, wire breaks, or channel faults.

Role in Industrial Control Systems

The 6AG1132-6BD20-7CA0 normally operates as part of a Siemens ET 200SP distributed I/O station.

A typical system may include:

• Siemens PLC CPU
• PROFINET communication interface
• ET 200SP interface module
• ET 200SP BaseUnit type A0
• 6AG1132-6BD20-7CA0 digital output module
• Digital input modules
• Analog input modules
• Analog output modules
• Power modules
• 24 V DC power supply
• Contactors
• Solenoid valves
• Interposing relays
• Signal lamps
• Motor starters
• Industrial sensors and actuators

The PLC provides the control intelligence while the ET 200SP station provides distributed access to field signals.

The 6AG1132-6BD20-7CA0 acts as the output interface within this architecture. It allows the PLC to control field devices without requiring every actuator to be wired directly to the central controller.

This distributed approach can significantly simplify large machine installations because I/O stations can be positioned close to the equipment they control.

Industrial Applications

Machine Automation

The module can be used in automated machinery where multiple 24 V DC actuators must be controlled according to PLC logic.

Typical devices include solenoid valves, contactors, relays, indicator lamps, pneumatic actuators, and machine-control components.

Conveyor Systems

Conveyor equipment often requires multiple digital outputs for motor starters, pneumatic diverters, brakes, warning lamps, and auxiliary mechanisms.

The four-channel output structure provides a compact solution for distributed conveyor control.

Packaging Machinery

Packaging machines commonly contain numerous discrete actuators that operate repeatedly during production cycles.

The transistor output design is suitable for frequent switching of compatible 24 V DC devices used in packaging operations.

Material Handling

Automated warehouses, conveyor lines, sorting equipment, and material-handling machines can use digital outputs for diverters, pneumatic valves, indicators, and control relays.

The compact ET 200SP design is useful where I/O needs to be distributed throughout a machine or production area.

Process Automation

Process systems can use digital outputs to operate compatible valves, auxiliary equipment, pumps, alarms, and interlocking devices.

The diagnostic capabilities can be particularly useful in installations where maintenance personnel need to quickly identify field-level problems.

Production Lines

Production lines may contain multiple independent machine sections. Distributed ET 200SP I/O stations can place digital outputs close to each production section.

The 6AG1132-6BD20-7CA0 can then provide local control of compatible 24 V DC field devices.

Installation and System Integration

Correct installation is essential for reliable operation of the 6AG1132-6BD20-7CA0. Before installation, engineers should verify the module order number, BaseUnit type, supply voltage, field-load requirements, communication configuration, and environmental conditions.

BaseUnit Compatibility

The module is designed for use with an ET 200SP BU type A0 BaseUnit.

The correct BaseUnit should be selected according to the wiring arrangement and system design. The module should not be installed into an incompatible BaseUnit simply because the physical dimensions appear similar.

Mechanical Installation

The module measures approximately 15 × 73 × 58 mm.

Its 15 mm width allows high-density installation in ET 200SP stations. Adequate space should still be provided for field wiring, inspection, ventilation, and maintenance.

24 V DC Power Supply

The module uses a nominal 24 V DC supply, with a permitted range of approximately 19.2 to 28.8 V DC.

The power supply should be stable and appropriately sized for the complete I/O station and connected loads.

Output Wiring

Because the module uses PNP transistor outputs, field wiring must follow the correct sourcing-output arrangement.

The polarity of the 24 V DC circuit should be checked before energization. Incorrect wiring can prevent the connected actuator from operating correctly or can result in a fault condition.

Short-Circuit and Wire-Break Protection

The module provides short-circuit protection and channel-level diagnostic functions.

These functions can help protect the output electronics and assist technicians in identifying field wiring problems.

Inductive Loads

Inductive devices such as solenoid valves, contactor coils, and relays can generate voltage transients when switched off.

Appropriate suppression components should be selected according to the load and electrical design. This can help reduce electrical stress and improve system reliability.

Software Configuration

The module should be configured using the appropriate Siemens engineering environment.

The configured hardware must correspond to the actual installed module. Output addresses should also be checked against the physical wiring to prevent incorrect field-device operation.

Commissioning

During commissioning, technicians should first verify the 24 V DC supply and communication status.

The module should then be checked for diagnostic conditions. Each output should be tested individually to confirm that the correct field device responds to the corresponding PLC command.

After individual output testing, the complete machine sequence can be tested under controlled operating conditions.

Compatible System Components

Recommended Alternative Models

When selecting an alternative to the 6AG1132-6BD20-7CA0, engineers should compare the number of channels, output type, output current, switching technology, diagnostic functions, BaseUnit compatibility, environmental specification, and communication architecture.

A module with the same physical dimensions should not automatically be treated as a direct replacement. Siemens ET 200SP digital output modules can have different output technologies and electrical characteristics.

Key Advantages

• Siemens SIPLUS ET 200SP digital output module
• Four digital transistor output channels
• 24 V DC output architecture
• Up to 2 A rated output current per channel
• PNP / P-switching output configuration
• High-feature digital output design
• Short-circuit protection
• Channel-level diagnostic functions
• Wire-break detection
• Supply voltage monitoring
• Diagnostic alarm support
• Green channel status indication
• Suitable for BU type A0 BaseUnit
• Conformal-coated SIPLUS construction
• Extended operating temperature range of approximately -40…+70 °C
• Compact 15 mm module width
• Approximately 15 × 73 × 58 mm dimensions
• Approximately 0.03 kg / 30 g weight
• Suitable for distributed industrial automation
• Suitable for machine and process control
• Suitable for high-density I/O installations

Technical FAQs

What is the Siemens 6AG1132-6BD20-7CA0?

The 6AG1132-6BD20-7CA0 is a SIPLUS ET 200SP digital output module with four 24 V DC transistor outputs designed for industrial automation and distributed I/O applications.

How many digital outputs does the module provide?

The module provides 4 digital outputs.

What type of output does the 6AG1132-6BD20-7CA0 use?

It uses transistor outputs with a PNP or P-switching configuration.

What is the output voltage?

The module is designed for a nominal 24 V DC output system. The permitted supply voltage range is approximately 19.2 to 28.8 V DC.

What is the maximum output current?

The rated output current is 2 A per channel under the applicable operating conditions.

Does the module have short-circuit protection?

Yes. The digital outputs provide short-circuit protection.

Does the module support diagnostics?

Yes. The module supports channel diagnostics, including supply-voltage monitoring, wire-break detection, short-circuit detection, and group fault information.

What BaseUnit is compatible with this module?

The 6AG1132-6BD20-7CA0 is designed for use with an ET 200SP BU type A0 BaseUnit.

What is the operating temperature range?

The SIPLUS version is specified for approximately -40 °C to +70 °C, subject to the applicable installation and derating conditions.

What are the dimensions of the module?

The module measures approximately 15 × 73 × 58 mm.

How much does the 6AG1132-6BD20-7CA0 weigh?

The module weighs approximately 0.03 kg, or about 30 grams.

What is the standard module on which this SIPLUS version is based?

The 6AG1132-6BD20-7CA0 is based on the Siemens 6ES7132-6BD20-0CA0 ET 200SP digital output module.

Can this module directly control a motor?

The digital outputs should normally control an appropriate contactor, motor starter, relay, or other compatible interface rather than directly switching the main power circuit of an industrial motor.

What applications are suitable for this module?

Typical applications include machine automation, conveyors, packaging equipment, material handling, process automation, production lines, valve control, contactor control, and other 24 V DC industrial control applications.

Why is the SIPLUS version useful in demanding environments?

The module uses conformal coating and is designed for a wider operating temperature range than many standard automation modules. These characteristics make it suitable for industrial environments with more demanding environmental conditions.

Is the 6AG1132-6BD20-7CA0 a relay output module?

No. The module uses transistor digital outputs. This distinction is important when selecting a replacement because transistor and relay output modules have different switching characteristics and electrical application requirements.

Conclusion

The Siemens 6AG1132-6BD20-7CA0 Digital Output Module is a high-feature SIPLUS ET 200SP component designed for reliable 24 V DC digital output control in industrial automation systems.

With four transistor outputs, a rated output current of up to 2 A per channel, short-circuit protection, wire-break detection, and channel diagnostics, the module provides a practical interface between a PLC control program and compatible field actuators.

The SIPLUS design adds conformal coating and an extended operating temperature range of approximately -40…+70 °C, making the module suitable for demanding industrial applications where environmental conditions may be more challenging.

Its compact dimensions of approximately 15 × 73 × 58 mm and low weight of approximately 0.03 kg make it suitable for high-density ET 200SP installations.

For automation engineers, system integrators, and maintenance teams, the 6AG1132-6BD20-7CA0 can provide reliable digital control for valves, contactors, relays, indicators, motor-control circuits, and other compatible 24 V DC devices.

When replacing or expanding an existing system, the complete Siemens order number should be verified carefully. In particular, the output technology, number of channels, 24 V DC rating, 2 A output capability, BaseUnit compatibility, and SIPLUS environmental requirements should all match the intended application.
