Product Overview

The Siemens 6AG1132-4HB12-2AB0 is a SIPLUS ET 200S digital output module designed for industrial automation systems that require reliable relay-based switching of external field devices. This compact module provides two digital relay outputs and is designed for controlling compatible electrical loads in PLC and distributed I/O applications.

The module is based on the Siemens ET 200S architecture and is intended for industrial environments where compact installation, flexible relay switching, and reliable field-level control are required. Compared with transistor output modules, relay outputs provide greater flexibility when switching different types of AC and DC loads within the specified electrical limits.

The 6AG1132-4HB12-2AB0 is particularly useful for applications involving contactors, solenoid valves, signal lamps, relays, motor-control circuits, and other discrete electrical loads. It provides two relay output channels and supports load voltages from 24 to 48 V DC and from 24 to 230 V AC, with a maximum switching current of 5 A under the specified conditions.

This module is also designed as a SIPLUS industrial version with an extended operating temperature range of approximately -25 °C to +60 °C. Its conformal-coated construction makes it appropriate for demanding industrial environments where improved resistance to environmental influences is required.

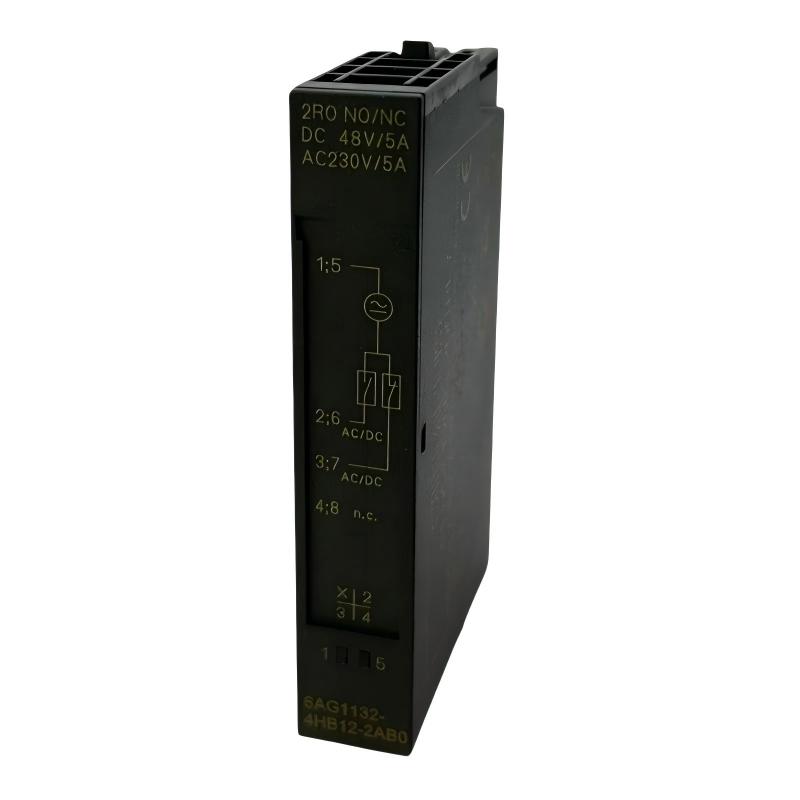

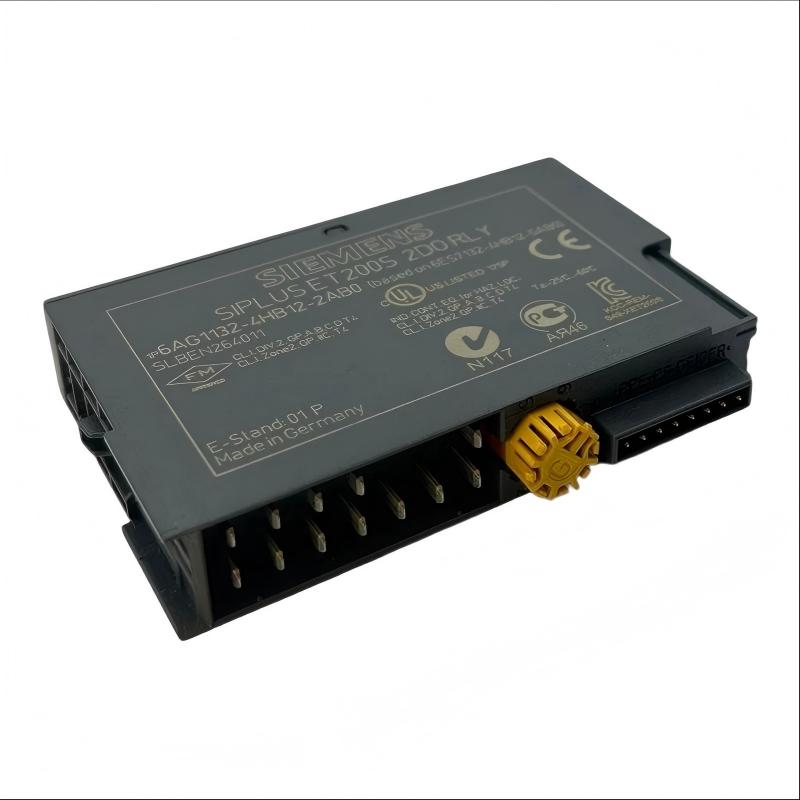

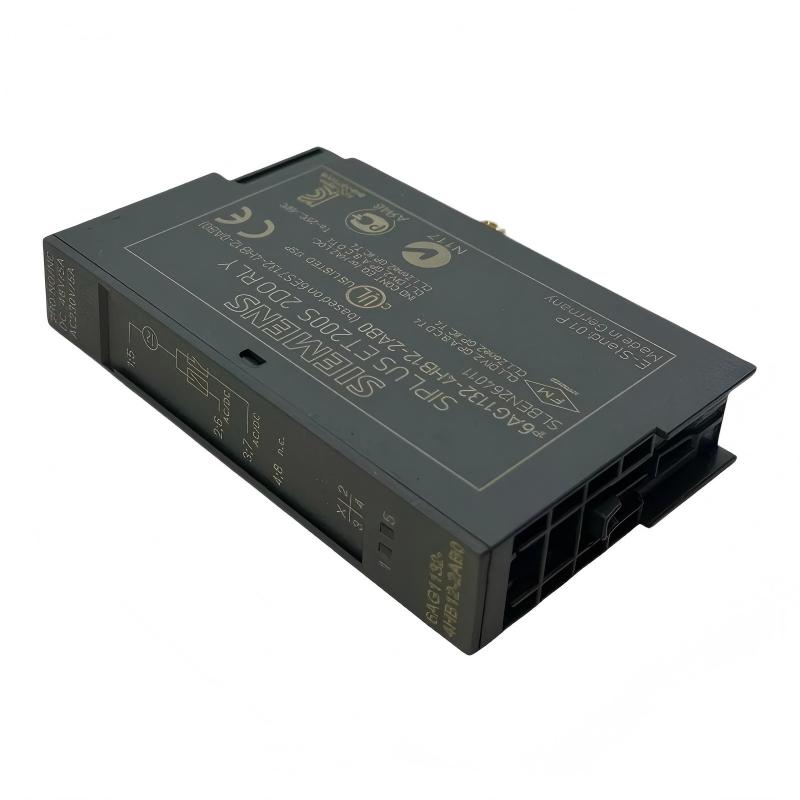

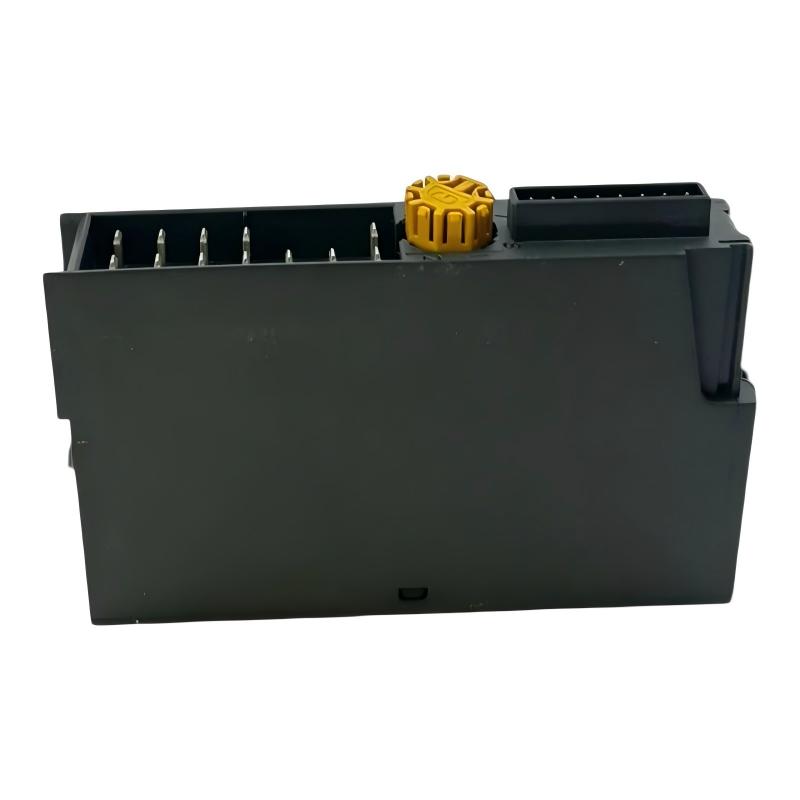

The module has a compact width of only 15 mm. Its overall dimensions are approximately 15 × 81 × 52 mm, with a supplied product weight of approximately 0.05 kg.

Technical Specifications

What Is the Siemens 6AG1132-4HB12-2AB0?

The Siemens 6AG1132-4HB12-2AB0 is a two-channel relay digital output module belonging to the SIPLUS ET 200S family.

Its primary purpose is to provide a switching interface between a PLC or distributed control system and external electrical equipment. The PLC determines when an output needs to be activated, while the relay contacts inside the output module perform the required switching operation.

The module provides two digital relay outputs. Each output can be used for a suitable external load within the specified voltage and current limits.

One of the important characteristics of this module is its ability to switch both DC and AC loads. The specified load range covers 24…48 V DC and 24…230 V AC, with a maximum switching current of 5 A.

This makes the module different from many transistor-based digital output modules that are primarily designed for DC switching. Relay outputs can provide greater flexibility when the field equipment operates on AC voltage or when electrical isolation between the PLC output circuit and the external load is required.

The 6AG1132-4HB12-2AB0 is therefore commonly considered when a compact ET 200S installation needs a small number of flexible relay outputs.

Function and Working Principle

The basic operating structure can be represented as:

PLC / Controller → ET 200S Interface → 6AG1132-4HB12-2AB0 → Relay Contact → Field Device

The PLC program determines the required state of each digital output. When the control logic activates an output, the corresponding relay in the module changes state.

The relay contact then switches the connected external circuit.

For example, a PLC may determine that a motor starter needs to be energized. The appropriate digital output is activated, causing the relay contact to close. The external control circuit can then energize the contactor coil, allowing the motor starter to operate.

The same principle can be used with solenoid valves, signal lamps, auxiliary relays, alarms, and other compatible discrete devices.

Because the output is relay-based, the field circuit can have characteristics different from the internal PLC electronics, provided the load remains within the specified electrical limits.

The module also provides a green status indication for the digital output, allowing technicians to identify the switching state during commissioning and troubleshooting.

Role in Industrial Control Systems

The 6AG1132-4HB12-2AB0 normally operates as part of a larger Siemens distributed I/O system rather than as a standalone controller.

A typical control architecture may include:

• PLC or industrial controller
• ET 200S interface module
• Power module
• 6AG1132-4HB12-2AB0 digital output module
• Digital input modules
• Analog input modules
• Analog output modules
• Industrial communication network
• Contactors
• Motor starters
• Solenoid valves
• Interposing relays
• Alarm devices
• Indicator lamps

The controller processes input signals and executes the automation program. When an output command is generated, the command is transferred to the distributed I/O system.

The 6AG1132-4HB12-2AB0 then provides the physical relay switching required to operate the external device.

This architecture makes it possible to locate I/O equipment closer to the machinery or process equipment, reducing unnecessary field wiring and making the overall control system easier to organize.

Industrial Applications

Machine Automation

The module can be used in industrial machines requiring a small number of relay-based control outputs.

Typical loads include contactors, valves, lamps, alarms, and auxiliary control circuits.

Motor Control

The 6AG1132-4HB12-2AB0 can be used to control the coil of a suitable motor contactor or starter rather than switching the motor’s main power directly.

This arrangement allows the PLC to control motors while keeping the high-power motor circuit separated from the low-level control system.

Solenoid Valve Control

Industrial pneumatic and hydraulic systems frequently use solenoid valves that require discrete electrical control.

A relay output can provide the switching interface between the PLC system and a compatible valve circuit.

Process Automation

Process-control systems can use digital outputs for pumps, valves, alarms, auxiliary equipment, and interlocking circuits.

The AC and DC switching capability of the relay outputs provides flexibility for different field-device arrangements.

Packaging Equipment

Packaging machines often contain numerous discrete actuators. The module can be used for controlling compatible pneumatic valves, contactors, indicators, and auxiliary mechanisms.

Material Handling

Conveyors and material-handling machines can use relay outputs for motor-control circuits, diverters, warning lights, brakes, and other discrete mechanisms.

Industrial Utility Systems

Utility systems such as pumps, ventilation equipment, compressors, and auxiliary machinery may also require discrete relay switching.

The 6AG1132-4HB12-2AB0 can provide a compact interface for compatible control circuits.

Installation and System Integration

Proper installation is important for reliable operation of the 6AG1132-4HB12-2AB0. Before installation, engineers should verify the complete system architecture, field-load characteristics, wiring requirements, power supply, environmental conditions, and ET 200S configuration.

System Compatibility

The 6AG1132-4HB12-2AB0 is based on the 6ES7132-4HB12-0AB0 module and belongs to the SIPLUS ET 200S family.

The complete hardware configuration should be checked before replacement or expansion. The correct interface, power module, terminal arrangement, and communication architecture must be used.

Mechanical Installation

The module has a width of only 15 mm, with overall dimensions of approximately 15 × 81 × 52 mm.

The mounting structure should provide adequate mechanical support while maintaining sufficient space for wiring and maintenance.

Power Supply

The module receives its internal supply through the ET 200S system architecture. The specified load voltage is supplied through the appropriate power-module arrangement.

Before energization, verify that the power module and field supply configuration match the intended application.

Relay Output Wiring

Each output should be wired according to the correct terminal assignment and electrical load requirements.

Because the outputs are relay-based, both AC and DC loads can be considered within the specified limits. However, the exact load current, switching frequency, inrush current, and load type must be evaluated before connecting the device.

Inductive Loads

Contactors, solenoid valves, and other inductive loads can generate voltage transients when switched off.

Suitable suppression components should be considered according to the load type and control-circuit design. This can help reduce electrical stress and improve relay contact life.

Environmental Conditions

The SIPLUS version is designed for an extended industrial temperature range of approximately -25…+60 °C.

Even with enhanced environmental characteristics, the complete cabinet environment should still be evaluated for humidity, contamination, vibration, chemical exposure, and thermal conditions.

Commissioning

During commissioning, technicians should verify module recognition, output addressing, relay operation, field wiring, load response, and PLC logic.

Each output should preferably be tested individually before automatic machine operation begins.

If an output does not operate correctly, check the PLC program, output address, module status, field power supply, terminal wiring, load condition, and relay contact condition.

Compatible System Components

Recommended Alternative Models

When selecting an alternative to the 6AG1132-4HB12-2AB0, the most important consideration is not simply the number of outputs. Engineers should compare the output technology, relay contact rating, AC/DC voltage range, environmental specification, mounting width, system compatibility, and wiring arrangement.

The following models can be considered depending on the application. They are not automatically direct plug-in replacements, and complete system compatibility should be verified before substitution.

Key Advantages

• Siemens SIPLUS ET 200S digital output module
• Two relay-based digital output channels
• Supports both AC and DC load switching
• 24…48 V DC load-voltage range
• 24…230 V AC load-voltage range
• Maximum switching current of 5 A
• Compact 15 mm module width
• Approximately 15 × 81 × 52 mm dimensions
• Approximately 0.05 kg weight
• Extended industrial temperature range
• Approximately -25…+60 °C operating temperature
• Conformal-coated SIPLUS construction
• Suitable for distributed I/O systems
• Suitable for motor-control circuits
• Suitable for solenoid valve applications
• Suitable for contactor control
• Suitable for alarm and indication circuits
• Green digital output status indication
• Supports substitute-value behavior
• Suitable for compact control cabinets

Technical FAQs

What is the Siemens 6AG1132-4HB12-2AB0?

The 6AG1132-4HB12-2AB0 is a Siemens SIPLUS ET 200S digital output module with two relay outputs for industrial automation and distributed I/O applications.

How many outputs does the 6AG1132-4HB12-2AB0 have?

The module provides 2 digital relay outputs.

What type of output does this module use?

The 6AG1132-4HB12-2AB0 uses relay outputs, allowing it to switch compatible AC and DC loads within its specified electrical ratings.

What voltage can the outputs switch?

The specified load range is 24…48 V DC and 24…230 V AC.

What is the maximum output current?

The specified switching current is up to 5 A, subject to the applicable load and operating conditions.

What is the operating temperature range?

The SIPLUS 6AG1132-4HB12-2AB0 is specified for approximately -25…+60 °C.

What is the size of the module?

The module measures approximately 15 × 81 × 52 mm.

How much does the 6AG1132-4HB12-2AB0 weigh?

The module weighs approximately 0.05 kg, or about 50 grams.

What is the base Siemens module for the 6AG1132-4HB12-2AB0?

The SIPLUS module is based on the standard 6ES7132-4HB12-0AB0 ET 200S digital output module.

Can the module switch AC loads?

Yes. The relay outputs are specified for AC load switching up to 230 V AC within the applicable current and load limitations.

Can the module switch DC loads?

Yes. The specified DC load range is 24…48 V DC, with a maximum switching current of 5 A under the applicable conditions.

Can the module control a motor directly?

The module should normally be used to control an appropriate contactor, motor starter, relay, or other interface device rather than switching the main motor power directly.

What are the common applications?

Typical applications include machine automation, motor-control circuits, solenoid valves, conveyors, packaging equipment, process equipment, alarms, indicators, and industrial utility systems.

What should be checked before replacing this module?

Engineers should check the complete order number, output type, number of channels, relay rating, AC/DC voltage range, load current, ET 200S compatibility, environmental conditions, terminal configuration, and system hardware configuration.

Conclusion

The Siemens 6AG1132-4HB12-2AB0 Digital Output Module is a compact SIPLUS ET 200S component designed for reliable relay-based digital control in industrial automation systems.

With two relay outputs, support for 24…48 V DC and 24…230 V AC loads, and a switching capability of up to 5 A, the module provides greater field-load flexibility than many conventional transistor output modules.

Its compact 15 × 81 × 52 mm form factor and approximately 0.05 kg weight make it suitable for compact distributed I/O installations. The SIPLUS design and approximately -25…+60 °C operating range also make it appropriate for demanding industrial environments.

The module can be used to control contactors, motor starters, solenoid valves, relays, indicators, alarms, and other compatible field devices. When integrated with an ET 200S interface, power module, PLC controller, and properly selected field components, it can provide a practical and organized digital output solution.

For replacement projects, the complete Siemens part number 6AG1132-4HB12-2AB0 should always be checked. Although the related 6ES7132-4HB12-0AB0 standard ET 200S module provides an important reference point, environmental specifications and application requirements should be evaluated before selecting an alternative.
