Product Overview

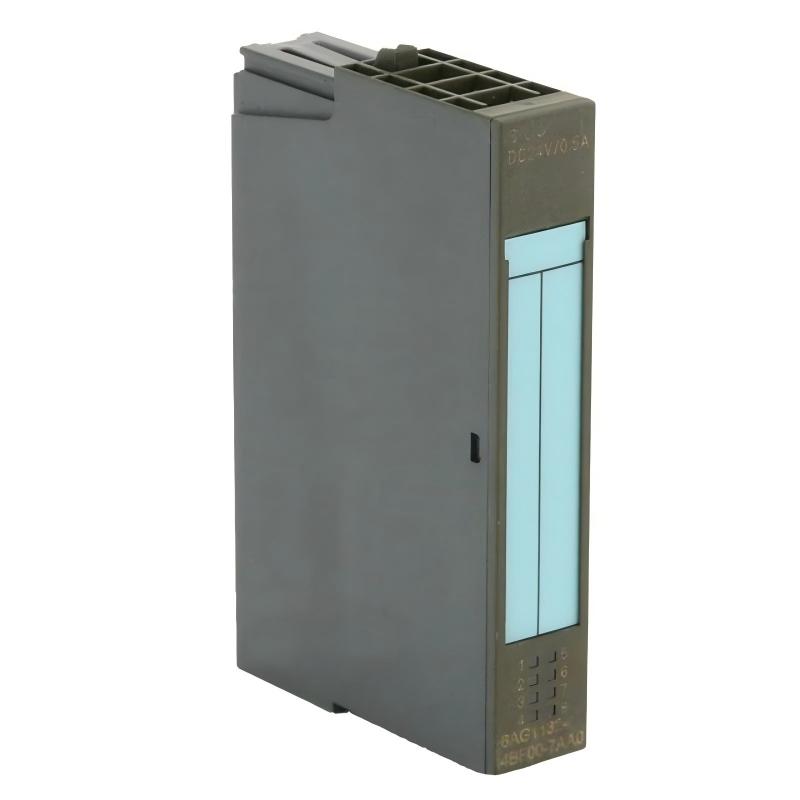

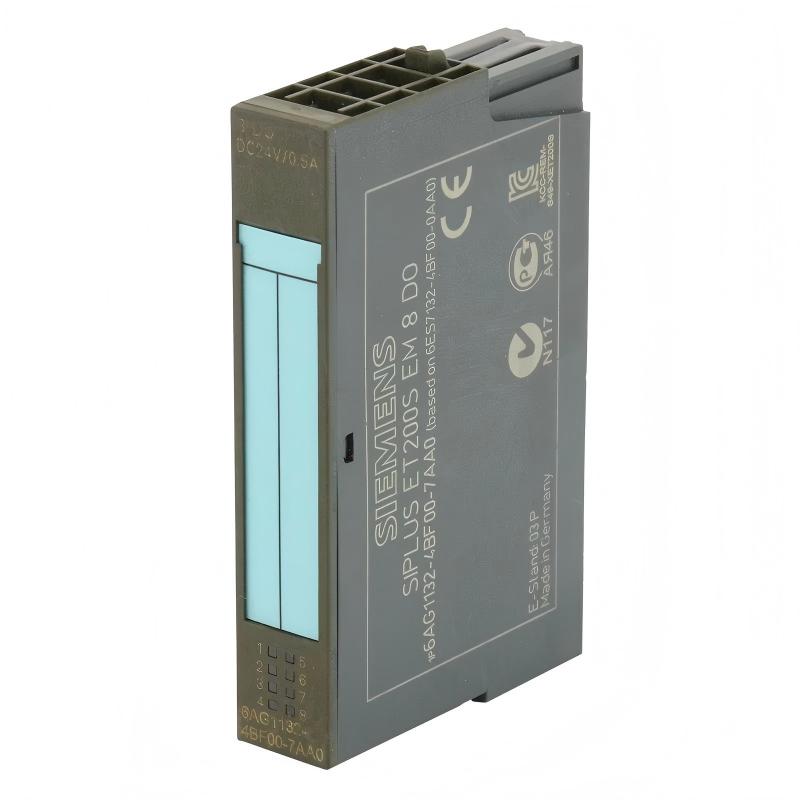

The Siemens 6AG1132-4BF00-7AA0 is a SIPLUS ET 200S digital output module designed for distributed industrial automation, machine control, and process control applications. It provides 8 digital transistor outputs for switching compatible 24 V DC field devices and is based on the standard 6ES7132-4BF00-0AA0 ET 200S electronic module.
This module is commonly identified as the SIPLUS ET 200S EM 8 DQ. Each output is rated at 0.5 A, giving the module a practical solution for controlling multiple low-power DC actuators within a compact distributed I/O station.
The 6AG1132-4BF00-7AA0 is particularly useful where a large number of digital output signals must be installed in a limited cabinet space. With a module width of only 15 mm, eight output channels can be installed in a very compact ET 200S configuration.
As part of the SIPLUS product family, the module includes conformal coating and an extended environmental specification. The specified operating temperature range is -25 °C to +70 °C, making the module suitable for demanding industrial environments where temperature, humidity, dust, salt spray, or chemically active conditions may need to be considered.

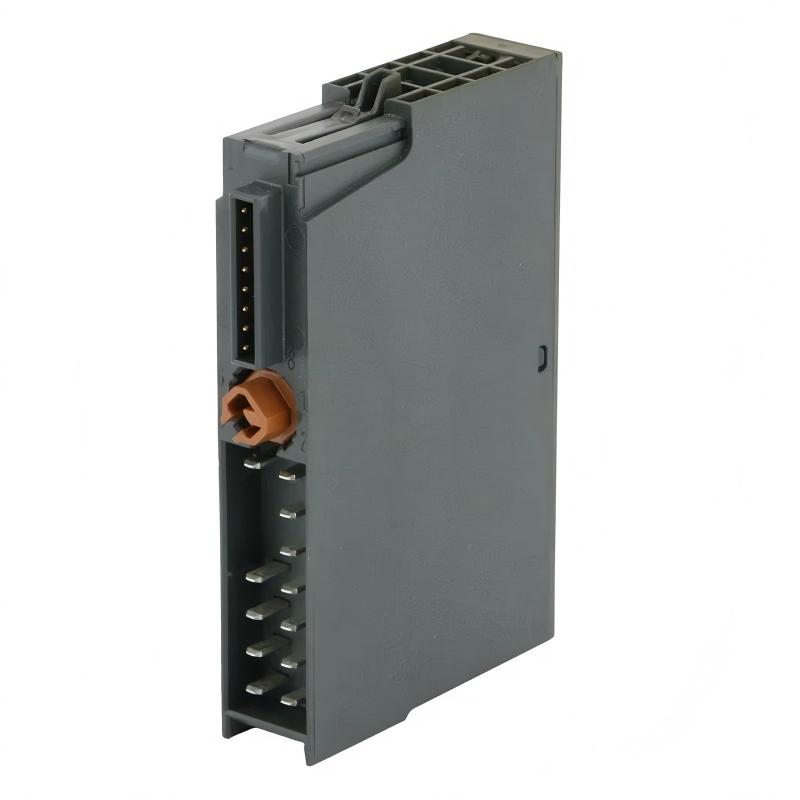

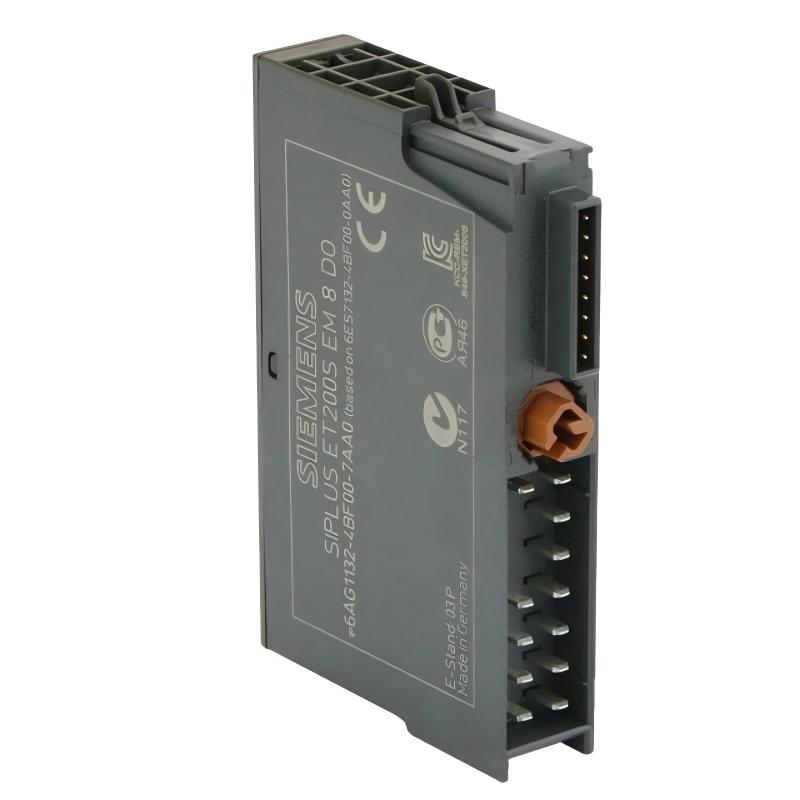

The electronic module measures approximately 15 × 81 × 52 mm and weighs approximately 0.04 kg. Its combination of eight outputs, compact dimensions, and enhanced environmental resistance makes it suitable for distributed control systems requiring high digital output density.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1132-4BF00-7AA0 |
| Product Family | SIPLUS ET 200S |
| Product Type | Digital Output Module |
| Module Designation | SIPLUS ET 200S EM 8 DQ |
| Base Model | 6ES7132-4BF00-0AA0 |
| Number of Digital Outputs | 8 |
| Output Type | Transistor |
| Rated Load Voltage | 24 V DC |
| Rated Output Current | 0.5 A per channel |
| Permissible Output Current | 7 mA to 600 mA per channel |
| Maximum Total Output Current | 4 A per module |
| Output Voltage at Signal “1” | Minimum L+ (-1.0 V) |
| Residual Current at Signal “0” | Maximum 0.3 mA |
| Short-Circuit Protection | Yes |
| Short-Circuit Response Threshold | Approximately 1.5 A typical |
| Load Resistance Range | 48 to 3400 Ω |
| Maximum Lamp Load | 5 W |
| Output Delay 0 to 1 | Maximum 300 µs |
| Output Delay 1 to 0 | Maximum 600 µs |
| Switching Frequency – Resistive Load | Maximum 100 Hz |
| Switching Frequency – Inductive Load | Maximum 2 Hz |
| Switching Frequency – Lamp Load | Maximum 10 Hz |
| Channel Isolation | Outputs are not galvanically isolated from each other |
| Backplane Isolation | Digital outputs isolated from the backplane bus |
| Isolation Test Voltage | 500 V DC |
| Diagnostics | No dedicated diagnostic function |
| Status Indicator | Green LED for digital output status |
| Shielded Cable Length | Maximum 1000 m |
| Unshielded Cable Length | Maximum 600 m |
| Conformal Coating | Yes |
| Operating Temperature | -25 °C to +70 °C |
| Maximum Installation Altitude | Up to 5000 m above sea level with specified derating |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg / approximately 40 g |
| Protection Rating | IP20 |
| Application | Distributed industrial automation and ET 200S I/O systems |
Function and Working Principle
The primary function of the 6AG1132-4BF00-7AA0 is to provide eight digitally controlled transistor outputs within a Siemens ET 200S distributed I/O station.
The module receives output commands from the PLC through the ET 200S interface system. When an output is activated by the control program, the corresponding transistor switches the connected 24 V DC load.
The basic signal path can be represented as:
PLC → ET 200S Interface → 6AG1132-4BF00-7AA0 → Digital Output → Field Device
The eight channels can independently control compatible field devices such as solenoid valves, relay coils, signal lamps, contactors, and other low-power DC actuators.
Each output has a rated current of 0.5 A, while the total output current of the module is limited to approximately 4 A. The load characteristics and switching frequency must be considered when designing the application.
The transistor output architecture allows relatively fast switching compared with mechanical relay outputs. For resistive loads, the specified maximum switching frequency is 100 Hz, while inductive and lamp loads have different limits.
Short-circuit protection is provided at the output stage. Individual green LEDs provide a visual indication of the digital output state, which can be useful during commissioning and maintenance.
Role in Industrial Control Systems
The 6AG1132-4BF00-7AA0 functions as the physical interface between PLC logic and digital field actuators.
Instead of bringing every field signal back to a central PLC cabinet, an ET 200S station can be installed near the machine or process equipment. The PLC communicates with the distributed station, while the digital output module performs the local switching functions.
This distributed architecture can reduce field wiring, simplify cabinet layouts, and provide a flexible way to expand machine-level I/O.
The eight digital outputs can be used for:
- Solenoid valves
- Relay coils
- Contactors
- Signal lamps
- Machine indicators
- Small DC actuators
- Control valves
- Auxiliary control circuits
Because eight output channels are available in a 15 mm wide electronic module, the product is particularly useful where cabinet space and I/O density are important design considerations.
Industrial Applications
Factory Automation
The module can control discrete devices on production lines, assembly systems, packaging equipment, conveyors, material-handling machines, and automated manufacturing equipment.
Machine Control
Machine control systems often require multiple digital outputs for pneumatic valves, relays, indicators, interlocks, and auxiliary functions. Eight 0.5 A transistor outputs provide a compact solution for these requirements.
Process Automation
Digital outputs can be used for operating compatible valves, auxiliary relays, alarms, indicators, and other discrete process devices.
Distributed I/O Systems
The 6AG1132-4BF00-7AA0 is designed for Siemens ET 200S distributed I/O installations. It can be combined with digital input modules, analog I/O modules, power modules, and other ET 200S electronic modules according to the required station architecture.
Harsh Industrial Environments
The SIPLUS design incorporates conformal coating and enhanced environmental specifications. The module is specified for operation from -25 °C to +70 °C and includes resistance classifications covering demanding industrial environmental conditions.
Installation and System Integration
Correct integration of the 6AG1132-4BF00-7AA0 requires attention to the ET 200S station configuration, field wiring, load current, and environmental conditions.
1. Verify the ET 200S Station
Before installation, verify the interface module, terminal modules, power modules, and other electronic modules that form the ET 200S station.
2. Confirm the Complete Part Number
Verify that the required module is:
Siemens 6AG1132-4BF00-7AA0
This is important because Siemens offers multiple ET 200S digital output modules with similar dimensions but different channel counts, current ratings, and environmental specifications.
3. Install the Electronic Module
Install the electronic module into the appropriate ET 200S terminal configuration and make sure that the module is properly seated.
4. Connect the 24 V DC Loads
Connect the eight output channels to the required field devices. Each channel must remain within its specified current range, and the total module output current should not exceed approximately 4 A.
5. Configure the PLC
Configure the ET 200S station in the applicable Siemens engineering environment and assign the eight output channels to the required control functions.
6. Commission and Test
During commissioning, test each output separately. Verify the green output LED, measure the field-side signal where appropriate, and confirm that each connected actuator responds correctly.
Compatible System Components
The 6AG1132-4BF00-7AA0 normally operates as part of a complete ET 200S distributed I/O station.
| Component | Typical Function |
|---|---|
| SIMATIC ET 200S Interface Module | Connects the distributed I/O station to the PLC or industrial network |
| ET 200S Terminal Module | Provides electrical connections for the electronic module |
| ET 200S Power Module | Provides and distributes load voltage |
| SIMATIC PLC | Executes the automation program and generates output commands |
| ET 200S Digital Input Modules | Collect discrete signals from field sensors |
| ET 200S Analog Modules | Handle analog measurement and control signals |
| Additional Digital Output Modules | Provide additional field-level output channels |
| 24 V DC Power Supply | Supplies the required control and load voltage |
Recommended Alternative Models
The following models can be considered when designing or maintaining Siemens distributed I/O systems. They are related products rather than universal drop-in replacements, so channel count, output current, environmental requirements, terminal configuration, and PLC compatibility should always be checked before substitution.
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 6AG1132-4BF00-7AA0 | SIPLUS ET 200S EM 8 DQ | 8 transistor outputs, 24 V DC / 0.5 A | High-density distributed digital output applications |
| 6ES7132-4BF00-0AA0 | ET 200S EM 8 DO | Standard version with 8 × 24 V DC / 0.5 A outputs | Conventional industrial environments |
| 6AG1132-4BD02-7AA0 | SIPLUS ET 200S EM 4DO | 4 transistor outputs, 0.5 A per channel | Lower channel-count output systems |
| 6AG1132-4BD32-2AA0 | SIPLUS ET 200S EM 4DO | 4 high-current transistor outputs | Applications requiring higher current per channel |
| 6AG1132-4BB31-7AB0 | SIPLUS ET 200S Digital Output | High-performance digital output configuration | Applications requiring higher output capability |
| 6AG1132-4HB12-2AB0 | SIPLUS ET 200S Relay Output | Relay-based switching | Applications requiring relay contacts |
Key Advantages
- Provides 8 digital transistor outputs
- Supports 24 V DC field loads
- Rated output current of 0.5 A per channel
- Maximum total output current of approximately 4 A
- Compact 15 × 81 × 52 mm dimensions
- Low electronic module weight of approximately 0.04 kg
- Short-circuit protection
- Green LED status indication for digital outputs
- Digital outputs isolated from the backplane bus
- Conformal-coated SIPLUS design
- Operating temperature range of -25 °C to +70 °C
- Suitable for demanding industrial environmental conditions
- High I/O density within a 15 mm module width
- Designed for Siemens ET 200S distributed I/O systems
Technical FAQs
What is the Siemens 6AG1132-4BF00-7AA0?
The 6AG1132-4BF00-7AA0 is a Siemens SIPLUS ET 200S EM 8 DQ digital output module with eight 24 V DC transistor outputs rated at 0.5 A per channel.
How many outputs does the 6AG1132-4BF00-7AA0 have?
The module provides 8 digital outputs.
What is the output current of the module?
Each digital output has a rated current of 0.5 A. The total current of all outputs is limited to approximately 4 A per module.
What is the operating voltage?
The module is designed for compatible 24 V DC field loads.
What are the dimensions of 6AG1132-4BF00-7AA0?
The electronic module measures approximately 15 × 81 × 52 mm.
How much does the Siemens 6AG1132-4BF00-7AA0 weigh?
The electronic module weighs approximately 0.04 kg, or about 40 grams.
What is the difference between 6AG1132-4BF00-7AA0 and 6ES7132-4BF00-0AA0?
The 6AG1132-4BF00-7AA0 is the SIPLUS version based on the 6ES7132-4BF00-0AA0 design. The SIPLUS model incorporates conformal coating and an enhanced environmental specification, including an operating temperature range of -25 °C to +70 °C.
Can the module control solenoid valves?
Yes. Compatible 24 V DC solenoid valves can be controlled provided that their current, inductive characteristics, and switching frequency remain within the specified limits of the digital output channels.
Is the 6AG1132-4BF00-7AA0 suitable for harsh industrial environments?
The SIPLUS design is specifically intended for demanding industrial environmental conditions. It includes conformal coating and environmental resistance classifications for conditions involving humidity, chemically active substances, and mechanically active substances.
Is the module still available as a current standard product?
The standard base module 6ES7132-4BF00-0AA0 is identified as a spare-part/cancelled product in Siemens catalog information, while the SIPLUS 6AG1132-4BF00-7AA0 is also associated with lifecycle limitations. For replacement planning, the exact station configuration and current Siemens successor strategy should therefore be checked rather than assuming a direct replacement.
Conclusion
The Siemens 6AG1132-4BF00-7AA0 SIPLUS ET 200S Digital Output Module is an eight-channel transistor output module designed for distributed industrial automation applications. Based on the 6ES7132-4BF00-0AA0, it provides eight 24 V DC digital outputs with a rated current of 0.5 A per channel and a maximum total output current of approximately 4 A.
With compact dimensions of 15 × 81 × 52 mm and an approximate weight of 0.04 kg, the module provides high digital output density while requiring very little installation space. Its conformal-coated SIPLUS construction and -25 °C to +70 °C operating temperature specification make it suitable for demanding industrial environments.
For automation engineers, system integrators, maintenance departments, and industrial spare-parts buyers, the most important selection factors are the complete 6AG1132-4BF00-7AA0 order number, eight-channel output configuration, 24 V DC load requirements, 0.5 A channel rating, total current limitation, ET 200S station architecture, and environmental conditions.
When these requirements match the application, the Siemens 6AG1132-4BF00-7AA0 provides a compact and practical solution for controlling multiple discrete field devices within a SIPLUS ET 200S distributed control system.
