Product Overview

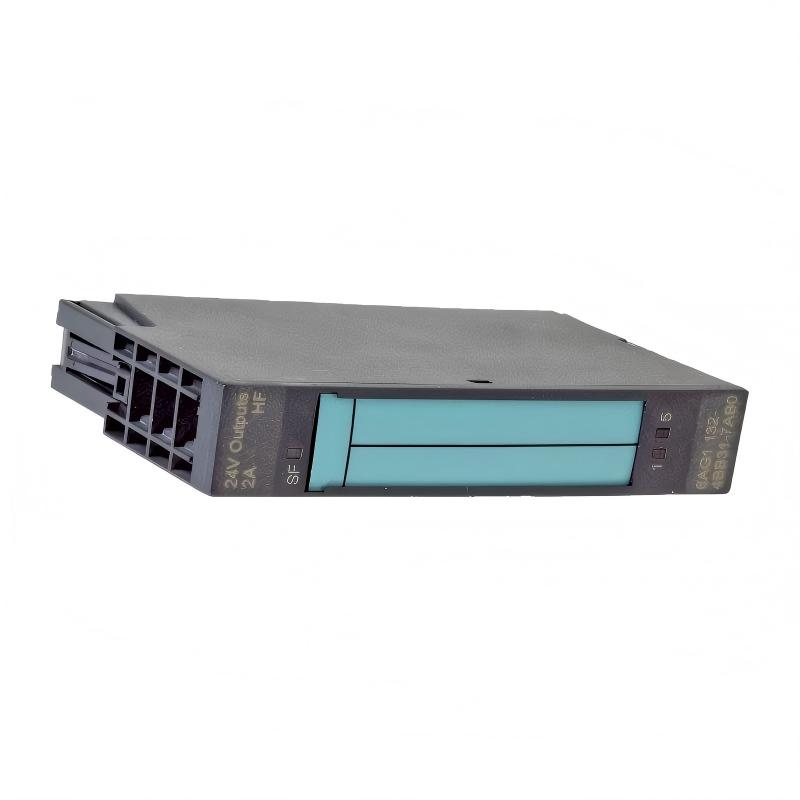

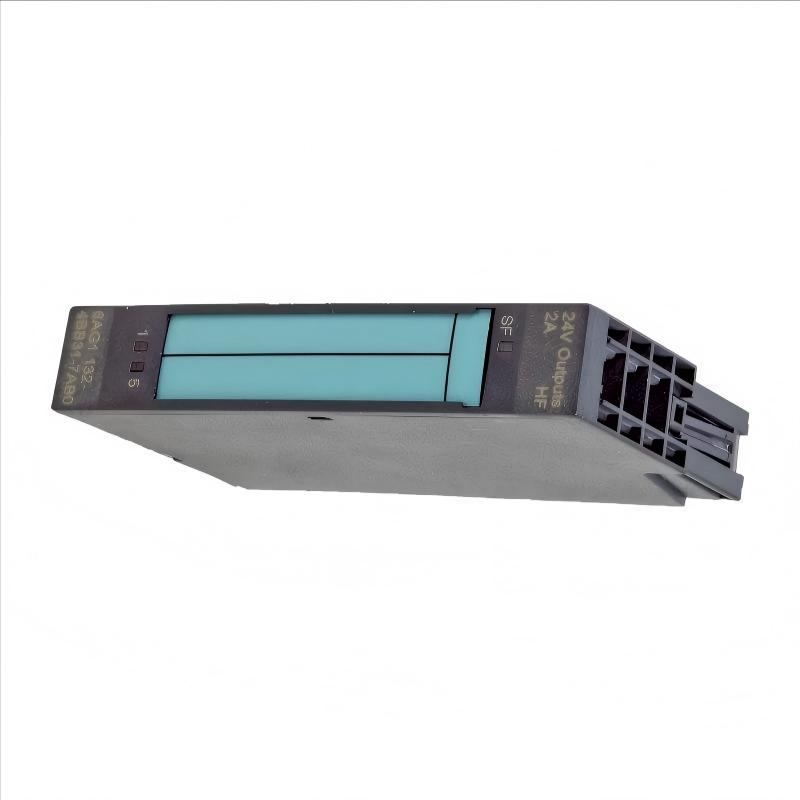

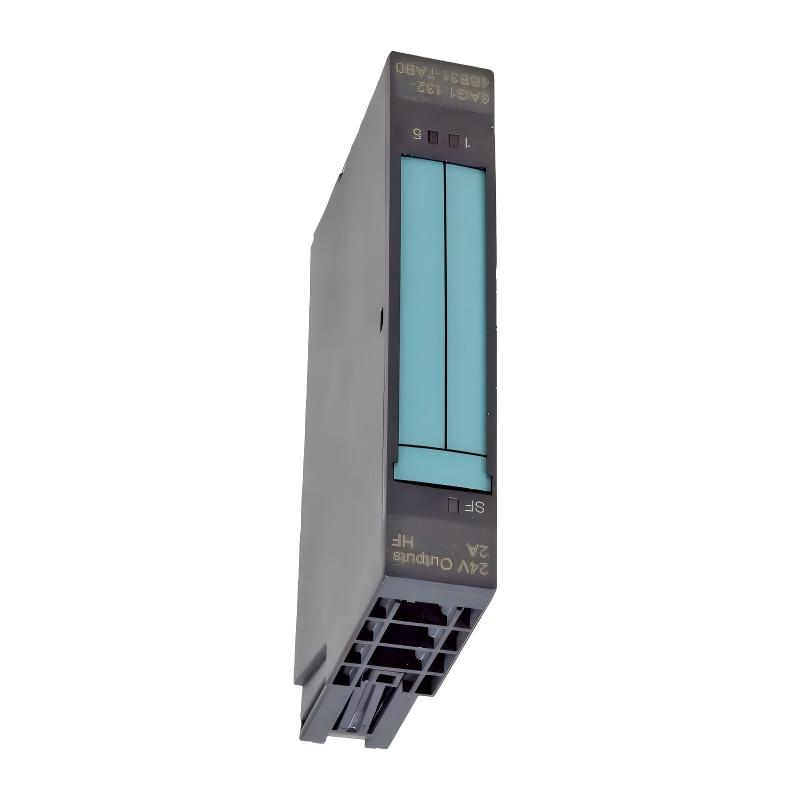

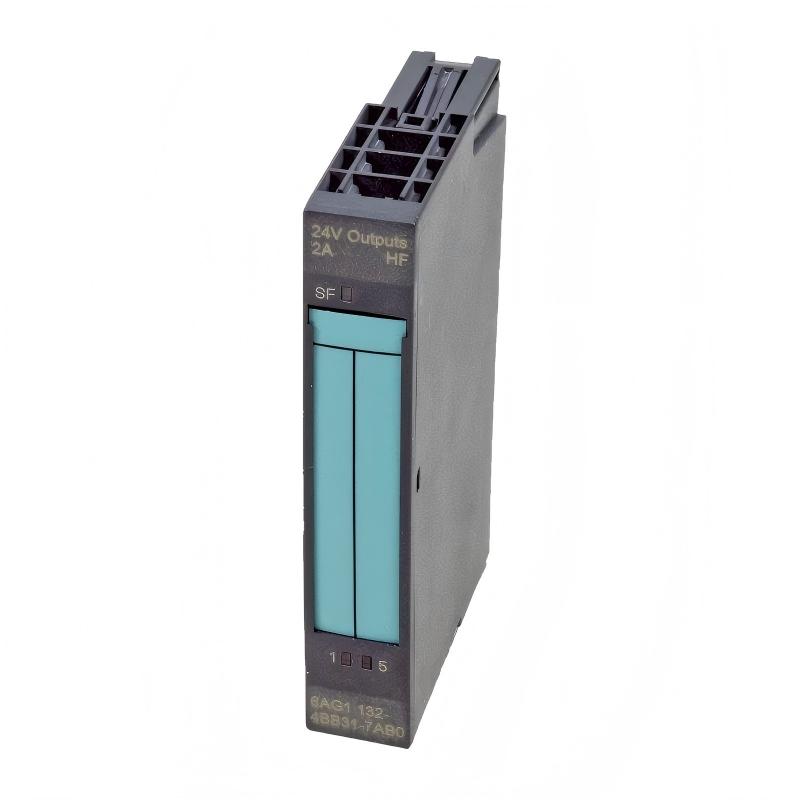

The Siemens 6AG1132-4BB31-7AB0 is a SIPLUS ET 200S high-performance digital output module designed for distributed industrial automation applications. This module belongs to the SIPLUS ET 200S product family and is based on the standard 6ES7132-4BB31-0AB0 module design, with enhanced environmental protection for demanding industrial applications.
The module provides 2 digital transistor outputs and is designed for 24 V DC load applications. Each output supports a rated current of up to 2 A, making the module suitable for controlling actuators, solenoids, contactors, relays, valves, and other compatible industrial loads.
As part of the SIPLUS product range, the 6AG1132-4BB31-7AB0 is intended for applications where industrial equipment may be exposed to challenging environmental conditions. Its operating temperature range extends from approximately -25 °C to +70 °C, providing additional flexibility compared with standard ET 200S modules.
With dimensions of 15 × 81 × 52 mm and a listed weight of approximately 0.04 kg, the module provides a compact solution for distributed I/O installations where cabinet space and installation density are important considerations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1132-4BB31-7AB0 |
| Product Family | SIPLUS ET 200S |
| Product Type | Digital Output Module |
| Module Designation | SIPLUS ET 200S EM 2DO HF |
| Base Module | Based on 6ES7132-4BB31-0AB0 |
| Digital Outputs | 2 |
| Output Type | Transistor |
| Rated Load Voltage | 24 V DC |
| Supply Voltage Range | 20.4 to 28.8 V DC |
| Rated Output Current | 2 A per channel |
| Maximum Output Current | 2.4 A per channel |
| Minimum Output Current | 7 mA per channel |
| Short-Circuit Protection | Yes |
| Wire-Break Diagnosis | Yes, channel by channel |
| Short-Circuit Diagnosis | Yes, channel by channel |
| Power Loss | Approximately 1.4 W |
| Output Delay 0 to 1 | Maximum 100 µs |
| Output Delay 1 to 0 | Maximum 400 µs |
| Maximum Switching Frequency | 100 Hz with resistive load |
| Total Output Current | Maximum 4 A per module |
| Operating Temperature | -25 °C to +70 °C |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg / approximately 40 g |
| Protection Rating | IP20 |
| Diagnostics LED | Red group fault and green digital output status indicators |
| Application | Distributed industrial automation and ET 200S I/O systems |
Function and Working Principle
The primary function of the Siemens 6AG1132-4BB31-7AB0 is to provide two digitally controlled transistor outputs for a distributed automation system.
The module receives output commands from the PLC or ET 200S interface system and switches the connected 24 V DC loads according to the control program. This allows the PLC to operate external actuators and electrical devices in a controlled and repeatable manner.
The general signal path can be represented as:
PLC / ET 200S Interface → Digital Output Module → 24 V DC Load → Actuator
When the PLC activates an output, the corresponding transistor output switches the connected load. Depending on the application, the load may be a valve, relay, contactor, solenoid, indicator, or another compatible DC actuator.
The module provides two independent digital outputs. Each output has a rated current of 2 A, while the maximum output current can reach approximately 2.4 A under the specified operating conditions.
The module also incorporates diagnostic functions. Short-circuit and wire-break diagnostics can be monitored channel by channel, helping maintenance personnel identify output-side problems more quickly.
Role in Industrial Control Systems
The 6AG1132-4BB31-7AB0 serves as the output interface between the PLC control program and physical actuators in a distributed I/O architecture.
Instead of routing every field signal back to a central PLC cabinet, distributed I/O systems allow I/O modules to be positioned closer to machines and process equipment. This can simplify wiring and reduce the amount of long-distance field cabling.
The digital output module can therefore be used to control:
- Solenoid valves
- Contactors
- Interposing relays
- DC actuators
- Signal lamps
- Industrial indicators
- Control relays
- Other compatible 24 V DC loads
Because the module provides transistor outputs rather than relay contacts, it is particularly suitable for applications requiring fast electronic switching and frequent output operation within the specified load and switching limits.
Industrial Applications
Factory Automation
The module can be used in manufacturing systems for controlling valves, contactors, indicators, and other electrically operated equipment. Its compact design allows multiple I/O modules to be installed in limited cabinet space.
Machine Automation
Machine builders can use the 6AG1132-4BB31-7AB0 to provide digital output signals for actuators and machine-control devices. The two-channel configuration is suitable for applications requiring a small number of high-current digital outputs.
Process Control
In process automation, digital outputs are frequently required to operate valves, relays, pumps, and auxiliary equipment. The 2 A output capability makes this module suitable for a variety of compatible 24 V DC loads.
Distributed I/O Systems
The module is designed for integration into the Siemens ET 200S distributed I/O architecture. It can be installed together with other digital and analog I/O modules to create a customized field-level control station.
Harsh Industrial Environments
The SIPLUS design makes the 6AG1132-4BB31-7AB0 suitable for applications requiring greater environmental resistance than a conventional standard module. The specified operating temperature range of -25 °C to +70 °C allows the module to be used in a wider range of industrial conditions.
Installation and System Integration
Correct installation is important for reliable operation of a digital output module. Before installing the 6AG1132-4BB31-7AB0, the complete ET 200S station configuration should be checked.
1. Verify the ET 200S Configuration
Confirm the interface module, terminal arrangement, power module, and other I/O modules used in the ET 200S station.
2. Check the Product Number
Verify the complete Siemens order number:
6AG1132-4BB31-7AB0
This is important because several ET 200S digital output modules have similar physical dimensions but different output ratings and environmental specifications.
3. Install the Module
The module should be correctly positioned within the ET 200S station and mechanically secured. The compact 15 mm width allows high-density installation when the system configuration permits it.
4. Connect the Field Loads
Connect the two digital outputs to the appropriate 24 V DC loads according to the electrical design. The connected load must remain within the specified current and switching limits of the module.
5. Configure the PLC Hardware
The module should be correctly represented in the PLC hardware configuration. Parameters for diagnostics and the response to CPU or master STOP conditions should be configured according to the application.
6. Test the Outputs
After installation, test each output individually. Verify that the connected actuator responds correctly and check the module diagnostic indicators for fault conditions.
Compatible System Components
The 6AG1132-4BB31-7AB0 is designed to operate as part of an ET 200S distributed I/O station. It normally works together with an interface module, power modules, terminal modules, and other electronic modules.
| Component | Typical Function |
|---|---|
| SIMATIC ET 200S Interface Module | Connects the distributed I/O station to the PLC or industrial network |
| ET 200S Terminal Module | Provides electrical connection between the field wiring and electronic module |
| ET 200S Power Module | Provides load and module power distribution |
| SIMATIC PLC | Executes the automation program and controls the outputs |
| Digital Input Modules | Receive discrete signals from sensors and switches |
| Digital Output Modules | Control additional discrete field devices |
| Analog I/O Modules | Provide measurement and analog control functions |
| 24 V DC Power Supply | Provides power for compatible control and field circuits |
Recommended Alternative Models
The following Siemens modules are related to the 6AG1132-4BB31-7AB0 and may be considered when designing or modifying an ET 200S or SIPLUS distributed I/O system. They are not all direct replacements, so the output count, current rating, environmental specification, and system configuration should be checked before selection.
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 6AG1132-4BB31-7AB0 | SIPLUS ET 200S 2DO HF | 2 transistor outputs, 2 A per channel | High-demand distributed output applications |
| 6ES7132-4BB31-0AB0 | ET 200S 2DO HF | Standard ET 200S version | Conventional industrial environments |
| 6AG1132-4BB01-2AB0 | SIPLUS ET 200S 2DO HF | Compact two-channel digital output | Applications with lower output current requirements |
| 6AG1132-4BD32-2AA0 | SIPLUS ET 200S 4DO | Four digital outputs | Applications requiring more output channels |
| 6AG1132-4BF00-7AA0 | SIPLUS ET 200S 8 DO | Eight digital outputs | Higher-density distributed output systems |
| 6AG1132-6BD20-7BA0 | SIPLUS ET 200SP DQ | Modern distributed I/O architecture | ET 200SP-based automation systems |
Key Advantages
- Provides two high-performance digital transistor outputs
- Supports up to 2 A rated output current per channel
- Designed for 24 V DC load applications
- Compact 15 × 81 × 52 mm dimensions
- Low approximate weight of 0.04 kg
- Short-circuit protection
- Channel-level wire-break diagnostics
- Channel-level short-circuit diagnostics
- Fast output switching capability
- Operating temperature range of approximately -25 °C to +70 °C
- Suitable for Siemens SIPLUS ET 200S distributed I/O systems
- Useful for demanding industrial automation environments
Technical FAQs
What is the Siemens 6AG1132-4BB31-7AB0?
The 6AG1132-4BB31-7AB0 is a Siemens SIPLUS ET 200S EM 2DO HF digital output module with two transistor outputs. It is based on the 6ES7132-4BB31-0AB0 design.
How many outputs does 6AG1132-4BB31-7AB0 have?
The module has 2 digital outputs.
What type of outputs does this module use?
The module uses transistor digital outputs designed for 24 V DC loads.
What is the output current of 6AG1132-4BB31-7AB0?
The rated output current is 2 A per channel, with a specified permissible maximum of approximately 2.4 A per channel under applicable conditions.
What are the dimensions of the Siemens 6AG1132-4BB31-7AB0?
The module measures approximately 15 × 81 × 52 mm.
How much does 6AG1132-4BB31-7AB0 weigh?
The listed product weight is approximately 0.04 kg, equivalent to approximately 40 grams.
What is the operating temperature range?
The specified operating temperature range is approximately -25 °C to +70 °C, which is one of the important characteristics of this SIPLUS version.
Does 6AG1132-4BB31-7AB0 have short-circuit protection?
Yes. The digital outputs provide short-circuit protection, and the module can provide channel-level short-circuit diagnostics.
Does the module provide wire-break diagnostics?
Yes. Wire-break diagnostics can be provided channel by channel, allowing the control system to identify certain field wiring problems.
What is the difference between 6AG1132-4BB31-7AB0 and 6ES7132-4BB31-0AB0?
The 6AG1132-4BB31-7AB0 is the SIPLUS version based on the 6ES7132-4BB31-0AB0 design. The SIPLUS version is intended for more demanding environmental conditions and provides an extended specified operating temperature range.
Conclusion
The Siemens 6AG1132-4BB31-7AB0 SIPLUS ET 200S Digital Output Module is a compact two-channel transistor output module designed for distributed industrial automation systems. Based on the ET 200S 2DO HF architecture, it provides two 24 V DC digital outputs with a rated current of up to 2 A per channel.
With dimensions of 15 × 81 × 52 mm and a weight of approximately 0.04 kg, the module is suitable for high-density distributed I/O installations. Short-circuit protection, wire-break diagnostics, fast switching performance, and the extended operating temperature range of approximately -25 °C to +70 °C make it suitable for demanding industrial applications.
For maintenance engineers, system integrators, and automation spare-parts buyers, the most important selection criteria are the complete 6AG1132-4BB31-7AB0 order number, the ET 200S station configuration, the required output current, the connected 24 V DC loads, and the environmental conditions. When these requirements match, the module provides a reliable solution for controlling discrete field devices in Siemens SIPLUS ET 200S automation systems.
