Product Overview

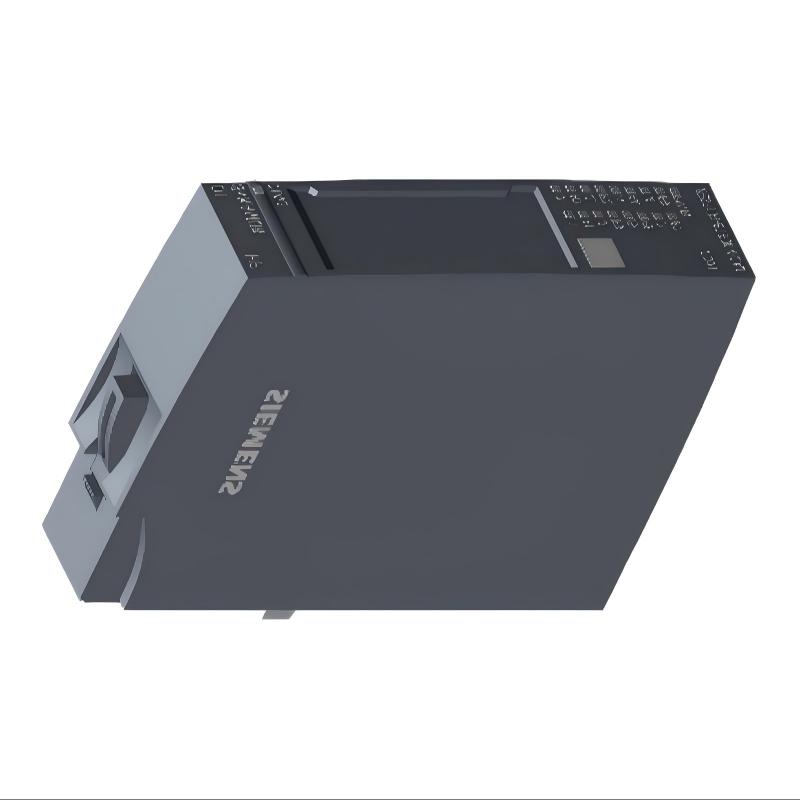

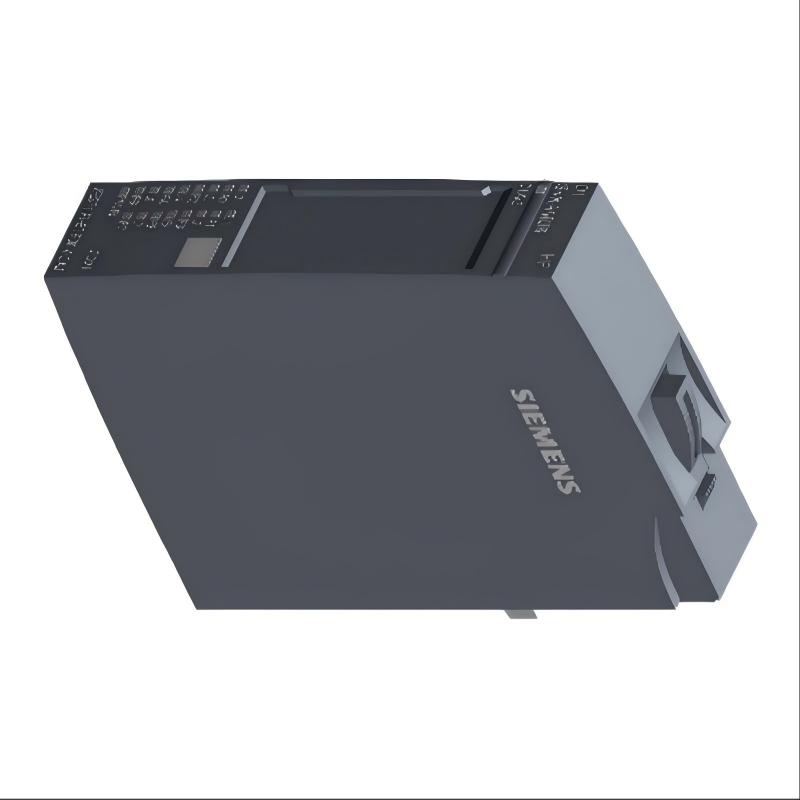

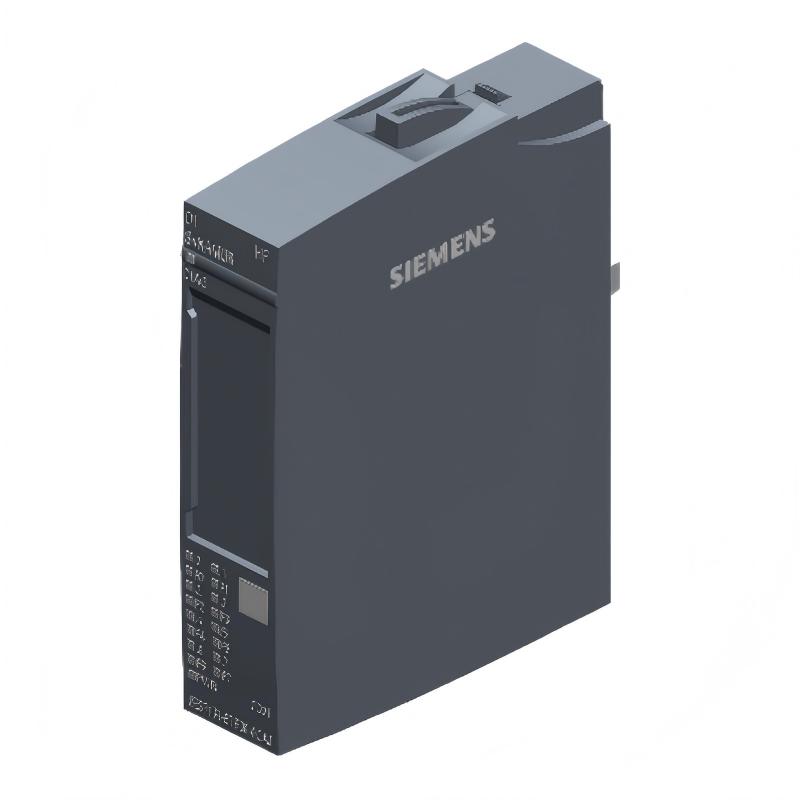

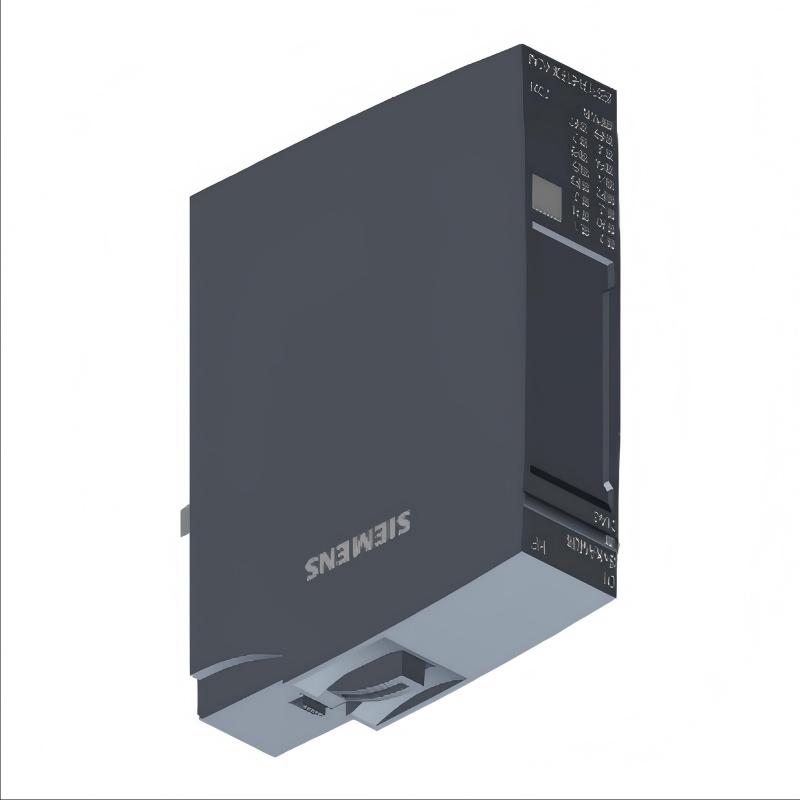

The Siemens 6AG1131-6TF00-7CA0 is a SIPLUS ET 200SP DI 8xNAMUR High Feature digital input module designed for industrial automation and process monitoring applications. It provides eight digital input channels for NAMUR sensors and compatible switching contacts, allowing industrial control systems to reliably detect field device states.
This module is based on the standard 6ES7131-6TF00-0CA0 and adds the environmental protection characteristics of the SIPLUS product family. It features conformal coating and is designed for operation in demanding industrial environments.
With a compact 15 × 73 × 58 mm form factor and an approximate module weight of 0.032 kg, the 6AG1131-6TF00-7CA0 is suitable for space-efficient distributed I/O installations.
The module also provides channel diagnostics, making it useful for applications where detecting wire breaks, short circuits, and individual channel faults is important.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIPLUS ET 200SP |
| Model | 6AG1131-6TF00-7CA0 |
| Product Type | Digital Input Module |
| Module Designation | DI 8xNAMUR HF |
| Number of Inputs | 8 |
| Input Type | NAMUR Digital Input |
| Rated Supply Voltage | 24 V DC |
| Permitted Supply Voltage | 19.2…28.8 V DC |
| BaseUnit | BU Type A0 |
| Color Code | CC01 |
| Channel Diagnostics | Yes |
| Wire-Break Detection | Yes, channel by channel |
| Short-Circuit Detection | Yes, channel by channel |
| Hardware Interrupts | Parameterizable |
| I&M Data | I&M0 to I&M3 |
| Conformal Coating | Yes |
| Operating Temperature | -40…+70 °C SIPLUS specification |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Dimensions | 15 × 73 × 58 mm |
| Weight | Approx. 0.032 kg |
| Installation | ET 200SP distributed I/O |
| Application | NAMUR sensor and industrial monitoring |
| Standard Base Model | 6ES7131-6TF00-0CA0 |
Function and Working Principle
The primary function of the 6AG1131-6TF00-7CA0 is to acquire digital signals from NAMUR sensors and compatible contacts and transfer the detected states to the PLC through the ET 200SP distributed I/O system.
The basic signal path is:
NAMUR Sensor → 6AG1131-6TF00-7CA0 → ET 200SP Station → PLC
NAMUR technology is commonly used in industrial instrumentation and process applications where reliable detection of sensor states is required.
The module monitors the electrical characteristics of the connected field circuit and determines the corresponding switching condition. The controller can then use the information for machine sequencing, equipment monitoring, alarms, interlocking, and process control.
The module supports eight digital input channels, allowing several sensors or switching devices to be monitored through a single compact I/O module.
Channel Diagnostics
One of the most important features of the 6AG1131-6TF00-7CA0 is its High Feature channel diagnostics.
The module can provide channel-level diagnostic information for conditions such as:
- Wire break
- Short circuit
- Input channel faults
- Supply voltage problems
- Module diagnostic conditions
This is particularly useful in industrial systems where a simple ON/OFF signal is not sufficient and maintenance personnel need additional information about the condition of the field wiring.
Channel diagnostics can reduce troubleshooting time because engineers can identify the affected input rather than inspecting every sensor and cable individually.
Role in Industrial Control Systems
The Siemens 6AG1131-6TF00-7CA0 acts as an interface between NAMUR field devices and the PLC control system.
A typical architecture is:
Field Sensors → ET 200SP Digital Inputs → Industrial Network → PLC → HMI / SCADA
The module allows multiple field signals to be collected close to the equipment and transmitted through the distributed I/O system.
Typical information monitored by the module can include:
- Sensor switching states
- Equipment position
- Machine limit conditions
- Process device status
- Valve or actuator feedback
- Rotational or proximity detection
- Alarm and interlock conditions
The distributed architecture helps reduce field wiring and provides a flexible method of expanding industrial automation systems.
SIPLUS Environmental Protection
The 6AG1131-6TF00-7CA0 belongs to Siemens SIPLUS rather than the standard ET 200SP product range.
Its conformal-coated construction provides additional protection for electronic components in demanding environments.
The SIPLUS version is specified for an extended temperature range of approximately -40…+70 °C, with defined startup restrictions at lower temperatures.
This makes it suitable for applications where environmental conditions may exceed those normally encountered by standard automation electronics.
Potential application environments include:
- Outdoor industrial equipment
- Process plants
- Chemical facilities
- Heavy machinery
- Energy infrastructure
- Industrial production lines
- Areas with increased contamination or humidity
The actual environmental suitability should always be evaluated according to the installation conditions.
Industrial Applications
The Siemens 6AG1131-6TF00-7CA0 can be used in a variety of industrial monitoring applications.
Process Automation
NAMUR sensors are commonly used in process-related applications, making this module suitable for monitoring discrete process conditions.
Machinery Monitoring
The eight input channels can collect signals from switches and sensors used to determine machine operating conditions.
Chemical and Petrochemical Systems
The SIPLUS environmental design is useful in demanding industrial environments where additional electronic protection is required.
Energy and Utility Equipment
The module can monitor equipment status and switching conditions in selected energy and utility applications.
Factory Automation
Industrial machines can use the module to acquire multiple discrete sensor signals through a compact ET 200SP station.
Equipment Diagnostics
Channel-level diagnostics make the module useful where maintenance teams need detailed information about field wiring and sensor conditions.
Installation and System Integration
The 6AG1131-6TF00-7CA0 is designed for use with the Siemens ET 200SP distributed I/O platform and requires a compatible BU Type A0 BaseUnit.
Typical installation steps include:
- Install the appropriate ET 200SP BaseUnit.
- Mount the 6AG1131-6TF00-7CA0 onto the BaseUnit.
- Connect the NAMUR sensors or compatible field contacts.
- Connect the ET 200SP station to the control network.
- Configure the module in the PLC engineering software.
- Test each input channel.
- Verify channel diagnostics during commissioning.
Correct sensor wiring is particularly important because NAMUR applications rely on defined electrical characteristics for proper signal detection and fault monitoring.
Compatible System Components
The 6AG1131-6TF00-7CA0 normally operates together with other ET 200SP and Siemens automation components.
| Component | Function |
|---|---|
| ET 200SP BU Type A0 | BaseUnit and field connection |
| ET 200SP Interface Module | Network connection |
| SIMATIC PLC | Processes input information |
| NAMUR Sensors | Provide field signals |
| Switching Contacts | Provide digital status signals |
| ET 200SP Digital Output Modules | Control field equipment |
| ET 200SP Analog Modules | Acquire or generate analog signals |
| PROFINET Network | Industrial communication |
| HMI / SCADA | Monitoring and operator control |
Together, these components form a distributed control and monitoring architecture.
Recommended Alternative Models
The best replacement depends on whether the application requires NAMUR inputs, standard 24 V DC inputs, high-speed operation, or additional environmental protection.
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 6AG1131-6TF00-7CA0 | SIPLUS Digital Input | 8 × NAMUR HF | Harsh-environment NAMUR applications |
| 6ES7131-6TF00-0CA0 | ET 200SP Digital Input | 8 × NAMUR HF | Standard NAMUR input applications |
| 6AG1131-6BF00-7CA0 | SIPLUS Digital Input | 8 × 24 V DC HF | High-speed DC input |
| 6AG1131-6BF01-7BA0 | SIPLUS Digital Input | 8 × 24 V DC ST | Standard DC input |
| 6AG1131-6BH01-7BA0 | SIPLUS Digital Input | 16 × 24 V DC | High-density digital input |
The 6ES7131-6TF00-0CA0 is the closest standard product comparison because the 6AG1131-6TF00-7CA0 is based on this module. However, the SIPLUS version provides enhanced environmental characteristics and should be selected when those conditions are important.
Key Advantages
- Eight NAMUR digital input channels
- High Feature input functionality
- Compact 15 × 73 × 58 mm design
- Approximately 0.032 kg module weight
- Compatible with BU Type A0
- Channel-level diagnostics
- Wire-break detection
- Short-circuit detection
- Conformal-coated SIPLUS electronics
- Extended industrial temperature capability
- Suitable for distributed ET 200SP automation systems
- Supports I&M0 to I&M3 data
Technical FAQs
What is Siemens 6AG1131-6TF00-7CA0?
It is a SIPLUS ET 200SP DI 8xNAMUR HF digital input module designed for NAMUR sensors and compatible digital field signals.
How many inputs does the module have?
The module provides eight digital input channels.
What type of sensors does it support?
It is designed primarily for NAMUR sensors and compatible switching contacts.
What is the supply voltage?
The module uses a nominal 24 V DC supply, with an operating range of approximately 19.2 to 28.8 V DC.
What are the dimensions?
The module measures approximately 15 × 73 × 58 mm.
How much does it weigh?
The module weight is approximately 0.032 kg, or 32 grams.
Which BaseUnit is required?
The module is designed for use with a BU Type A0 BaseUnit.
Does it support channel diagnostics?
Yes. The module provides channel-level diagnostic capabilities, including wire-break and short-circuit detection.
What is the difference between 6AG1131-6TF00-7CA0 and 6ES7131-6TF00-0CA0?
The 6AG1131-6TF00-7CA0 is the SIPLUS version based on the standard 6ES7131-6TF00-0CA0 design. The SIPLUS version adds enhanced environmental protection characteristics.
Is it suitable for harsh industrial environments?
Yes. Its SIPLUS design, conformal coating, and extended temperature specification make it suitable for selected demanding industrial applications.
Conclusion
The Siemens 6AG1131-6TF00-7CA0 SIPLUS ET 200SP DI 8xNAMUR HF Digital Input Module is a compact eight-channel digital input solution designed primarily for NAMUR sensor applications.
With its 15 × 73 × 58 mm dimensions, approximately 0.032 kg weight, 24 V DC supply, BU Type A0 compatibility, channel diagnostics, wire-break detection, and short-circuit monitoring, the module provides a reliable interface between field sensors and Siemens distributed control systems.
Its SIPLUS conformal-coated construction and extended environmental capabilities make it particularly valuable for industrial installations where standard automation modules may not provide sufficient environmental protection.
For system integration or replacement, engineers should verify the sensor type, BaseUnit, input configuration, environmental requirements, and complete ET 200SP system architecture before selecting the module.
