Product Overview

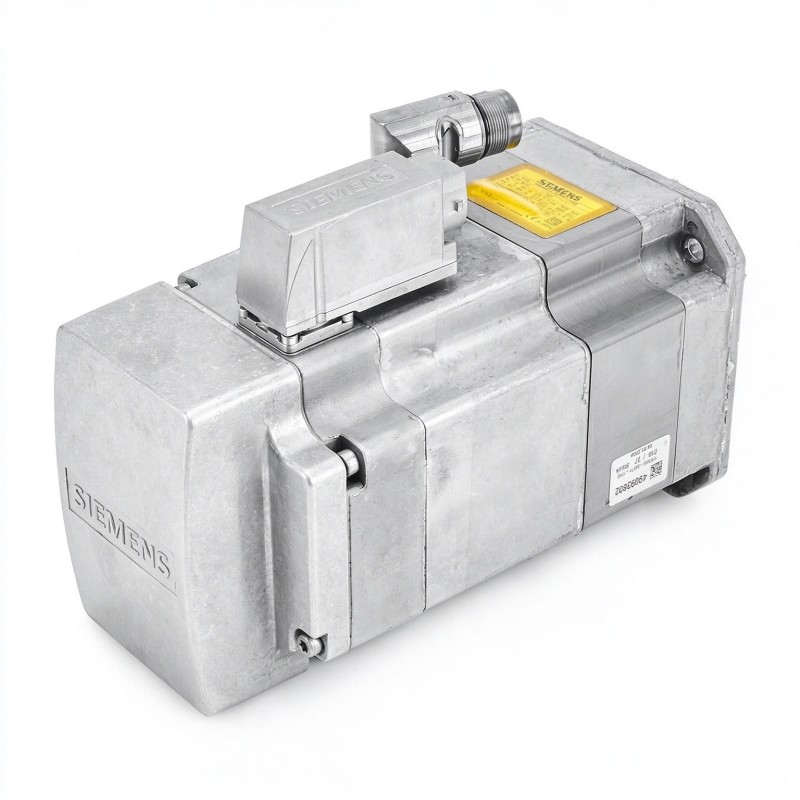

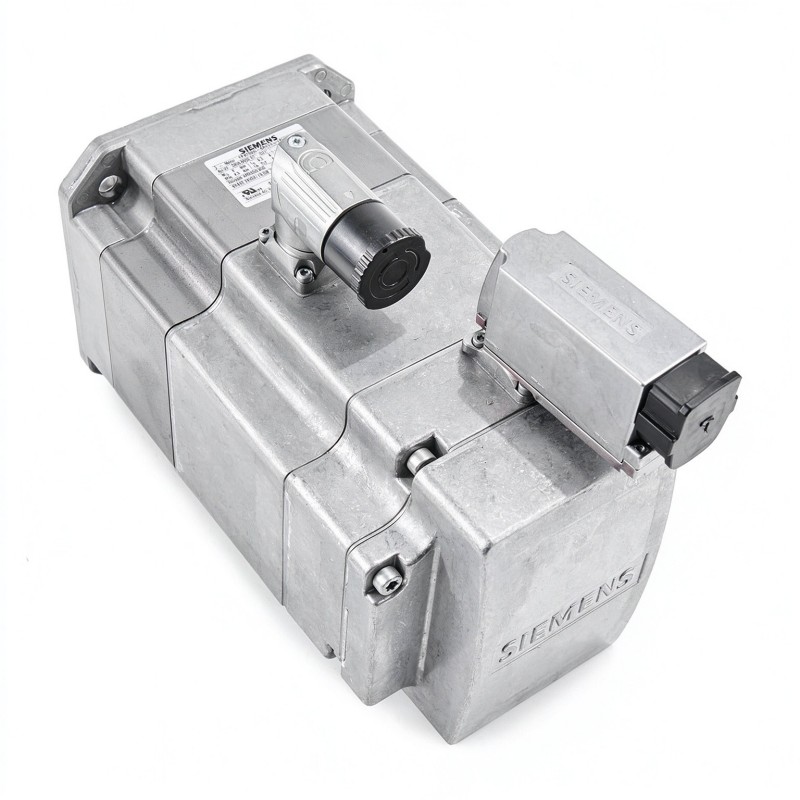

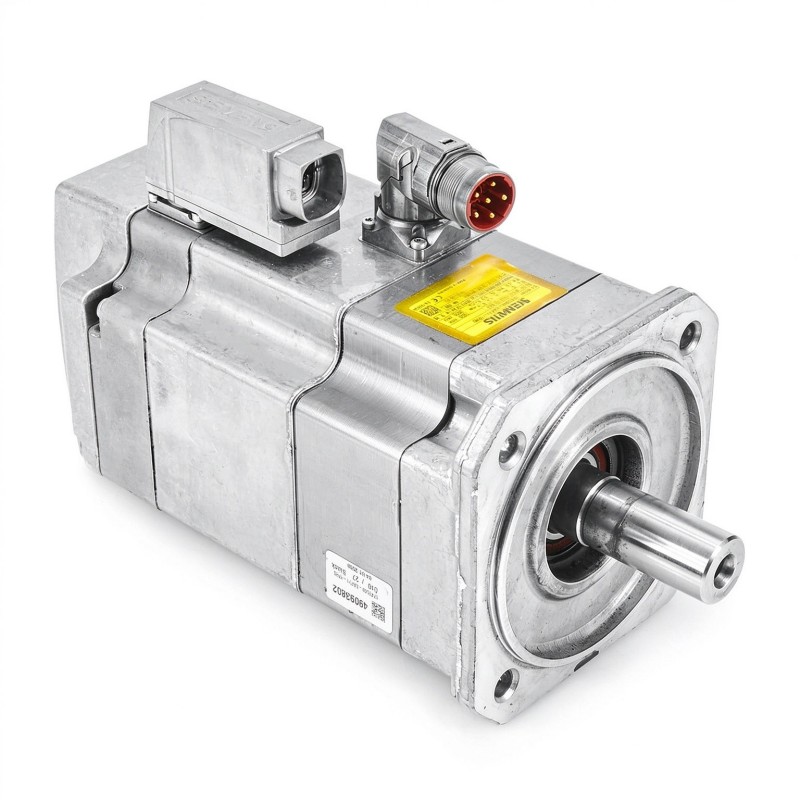

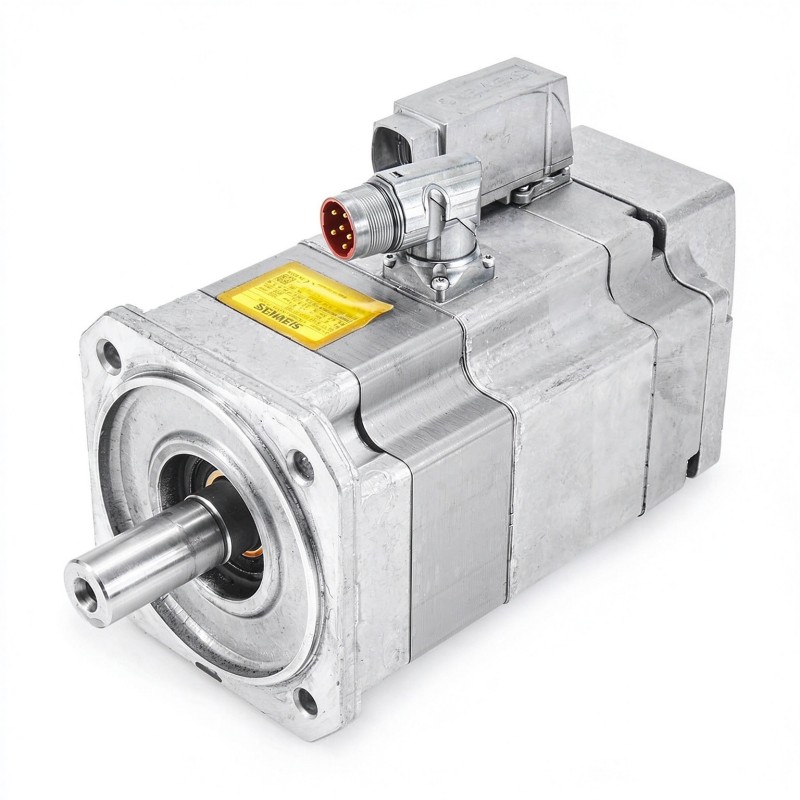

The Siemens 1FK7060-5AF71-1DH5 SIMOTICS S Synchronous Servo Motor is a permanent-magnet synchronous servo motor in the SIMOTICS S-1FK7 Compact family. It has a rated torque of 6.0 Nm at a 100 K temperature rise, an optimum operating speed of 3,000 rpm and an optimum operating power of 1.48 kW. Its naturally cooled construction suits industrial machinery requiring controlled rotary movement without a separate motor-cooling circuit.
This variant combines an incremental encoder with 2,048 pulses per revolution and a DRIVE-CLiQ interface. The feedback system supplies rotor-motion information to compatible Siemens drive equipment for closed-loop speed and position control. Its plain shaft accommodates compatible couplings, while the integrated holding brake helps secure a stationary axis when the drive is no longer commanding motion, subject to the brake’s rated holding capacity and the machine’s safety requirements.
The motor uses an IM B5 mounting arrangement, with IM V1 and IM V3 mounting positions also specified. Its power and signal connectors can be rotated through 270°, which helps when routing cables in compact machine enclosures. The protection rating is IP65, with IP67 protection at the drive-end flange. These distinctions matter when assessing exposure to dust, moisture and cleaning conditions around the installed motor.
For maintenance engineers replacing an existing servo motor, the main checks are the complete order number, DRIVE-CLiQ compatibility, encoder configuration, plain-shaft coupling and holding-brake requirements. A motor with the same frame size but a different feedback interface or brake arrangement may not be a direct replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Order Number | 1FK7060-5AF71-1DH5 |
| Product Family | SIMOTICS S-1FK7 Compact |
| Product Type | Permanent-Magnet Synchronous Servo Motor |
| Rated Torque (100 K) | 6.0 Nm |
| Optimum Operating Speed | 3,000 rpm |
| Optimum Operating Power | 1.48 kW |
| Maximum Torque | 18.0 Nm |
| Maximum Mechanical Speed | 7,200 rpm |
| Cooling Method | Natural cooling |
| Mounting Design | IM B5 (IM V1, IM V3) |
| Shaft Design | Plain shaft |
| Shaft Tolerance | N |
| Encoder Type | Incremental encoder |
| Encoder Resolution | 2,048 pulses per revolution |
| Encoder Interface | DRIVE-CLiQ |
| Holding Brake | Integrated holding brake |
| Degree of Protection | IP65; IP67 at the drive-end flange |
| Housing Finish | RAL 7016 |
| Connector Arrangement | Power and signal connectors rotatable by 270° |
| Shaft Height | 63 mm |
| Weight | 8.302 kg |
Product Features
- Permanent-magnet synchronous motor: Produces controlled rotary torque through a compatible servo drive.
- 6.0 Nm rated torque: Supports motion axes whose continuous torque requirements fall within the motor’s operating limits.
- Incremental encoder feedback: Supplies rotor-motion information for closed-loop regulation.
- DRIVE-CLiQ interface: Connects the motor’s feedback arrangement to compatible Siemens drive equipment.
- Plain shaft: Accommodates suitable couplings without a feather-key connection.
- Integrated holding brake: Helps hold the motor shaft when stationary, within the brake’s specified capacity.
- Natural cooling: Uses the specified cooling arrangement without a separate motor-cooling circuit.
- Rotatable connectors: Allows power and signal connector orientation to be adjusted through 270°.
- Industrial protection: Provides IP65 protection, with IP67 protection at the drive-end flange.
- RAL 7016 finish: Identifies the specified housing finish for this configuration.
Working Principle
The 1FK7060-5AF71-1DH5 converts electrical energy into mechanical rotation through the interaction between the stator’s magnetic field and the rotor’s permanent magnets. A compatible servo drive controls the current supplied to the motor windings according to the required torque, speed or position.
During operation, the incremental encoder generates feedback signals as the rotor turns. The DRIVE-CLiQ interface allows compatible Siemens drive equipment to communicate with the motor’s feedback arrangement. The drive uses the feedback information to regulate motor current and respond to changes in the commanded motion.
Consider an automated packaging line in which a servo axis moves a feed roller through repeated production cycles. The controller commands the required movement, the drive regulates acceleration and speed, and the encoder supplies feedback for motion control. The resulting positioning performance depends on the complete drive configuration, mechanical transmission, load inertia and motion profile.
Because the encoder is incremental, the system may need to establish a reference position after startup or power loss. The appropriate homing procedure depends on the controller, machine reference sensors and application requirements.
The integrated holding brake serves a different purpose from the motor’s electromagnetic torque production. It helps prevent shaft movement when the motor is stationary, but it should not automatically be treated as a dynamic stopping device. Applications involving suspended loads or safety-critical holding require a brake assessment based on load, stopping requirements and the machine’s safety design.
Role in a SIMOTICS S Servo Control Architecture
The 1FK7060-5AF71-1DH5 acts as the rotary actuator in a closed-loop servo system. The controller issues motion commands, the servo drive regulates motor current, and the encoder returns feedback used to control the axis response. The holding brake supports stationary load retention when operated according to its specified requirements.
Motion Controller → Compatible Siemens Servo Drive → 1FK7060-5AF71-1DH5 → Mechanical Coupling → Machine Axis
| System Component | Function | Relationship to the Motor |
|---|---|---|
| 1FK7060-5AF71-1DH5 | Converts electrical energy into rotary motion | Executes the commanded movement |
| Compatible Siemens Servo Drive | Regulates motor current, speed and torque | Powers the motor and processes feedback |
| Incremental Encoder | Generates rotor-motion feedback | Supplies position-change information for closed-loop control |
| DRIVE-CLiQ Connection | Carries supported motor and drive communication | Connects the feedback arrangement to compatible drive equipment |
| Motor Power Cable | Supplies electrical power | Connects the drive output to the motor |
| Motion Controller / PLC | Executes machine sequences and motion commands | Coordinates the servo axis |
| Mechanical Coupling | Transfers torque to the driven mechanism | Connects the plain shaft to the machine transmission |
| Integrated Holding Brake | Holds the shaft when stationary | Helps prevent unwanted movement within its rated capacity |
| Machine Reference Sensor, Where Required | Establishes a reference position | Supports homing when required by the application |
| Gearbox, Where Required | Adjusts output speed and torque | Matches the motor to the mechanical load |
Industrial Applications
| Application | Typical Equipment | Role of the Motor |
|---|---|---|
| Packaging Machinery | Feed rollers, indexing stations and transfer mechanisms | Controls repeated movement during production cycles |
| Automated Assembly | Positioning stations and handling mechanisms | Executes programmed rotary movements |
| Manufacturing Equipment | Servo-controlled machine axes | Provides torque and feedback for closed-loop motion |
| Material Handling | Transfer and positioning systems | Drives compatible mechanisms requiring controlled rotary movement |
| Machine Tools | Automated feed and adjustment axes | Regulates movement through a compatible servo drive |
| Special-Purpose Machinery | Customized servo-driven equipment | Combines incremental feedback with an integrated holding brake |
| Production-Line Automation | Coordinated motion axes | Operates as part of a controller-and-drive system |
| Industrial Processing | Servo-driven feed mechanisms | Controls movement according to the process sequence |
Installation and Maintenance
- Verify the motor reference: Confirm that 1FK7060-5AF71-1DH5 matches the required torque, encoder, shaft and holding-brake configuration.
- Check drive compatibility: Ensure that the selected servo drive supports the motor’s incremental encoder and DRIVE-CLiQ arrangement.
- Confirm the mounting arrangement: Check that the machine interface supports the specified IM B5, IM V1 or IM V3 installation.
- Isolate the equipment: Follow the applicable electrical isolation procedure and secure the driven mechanism before installation or maintenance.
- Inspect the shaft interface: Check the plain shaft and mating coupling for damage, wear or incorrect fit.
- Check mechanical alignment: Verify coupling alignment and ensure that the shaft is not subjected to excessive radial or axial loading.
- Connect the motor power supply: Use the correct power cable and connector arrangement for the motor and drive.
- Inspect the feedback connection: Check the DRIVE-CLiQ cable, connectors and drive configuration before commissioning.
- Configure the motor parameters: Confirm the motor identification and feedback settings in the drive before enabling the axis.
- Check the holding brake: Verify the brake connection, release operation and holding function according to the equipment’s service requirements. Do not use the holding brake as a substitute for an appropriate safety-rated stopping system.
- Perform controlled commissioning: Test rotation direction, encoder response, speed regulation, positioning behavior and brake operation before returning the machine to production.
- Record maintenance findings: Document the motor reference, drive settings, feedback configuration and any abnormal noise, vibration or temperature observations.
Compatible System Components
| Component | Function | Compatibility Consideration |
|---|---|---|
| Compatible Siemens Servo Drive | Supplies regulated power and controls motor movement | Must support the motor’s electrical characteristics and feedback interface |
| Motor Power Cable | Carries power from the drive to the motor | Match the motor connector and drive connection requirements |
| DRIVE-CLiQ Cable | Carries compatible communication and feedback data | Confirm compatibility with the motor and selected drive |
| Motion Controller / PLC | Generates motion commands and sequences | Configure according to the drive and machine-control architecture |
| Mechanical Coupling | Transfers torque to the machine | Must match the plain shaft and mechanical load |
| Integrated Holding Brake Connection | Controls brake release where supported | Verify the brake supply and control requirements |
| Machine Reference Sensor, Where Required | Establishes a known reference position | Select according to the axis homing strategy |
| Gearbox, Where Required | Adjusts output speed and torque | Select according to the load and motion profile |
| Mounting Hardware | Secures the motor to the machine | Must match the mounting flange and installation arrangement |
| SINAMICS Servo Drive System | Provides motor power and closed-loop control | Verify the exact drive configuration and DRIVE-CLiQ compatibility |
Recommended Related Models
| Model / Product | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 1FK7060-5AF71-1DG5 | SIMOTICS S Synchronous Servo Motor | Related configuration with incremental encoder feedback and a plain shaft, without an integrated holding brake | Consider when the application does not require a motor-mounted holding brake; verify the exact connector and protection configuration |
| Siemens 1FK7060-5AF71-1AG0 | SIMOTICS S Synchronous Servo Motor | Related incremental-feedback motor with a plain shaft and a different feedback connection configuration | Compare the encoder interface and complete order number before substitution |
| Siemens 1FK7060-5AF71-1AH0 | SIMOTICS S Synchronous Servo Motor | Related motor configuration with incremental feedback and an integrated holding brake | Verify the feedback interface, connector arrangement and protection requirements |
| Siemens 1FK7060-5AF71-1FB3 | SIMOTICS S Synchronous Servo Motor | Related motor with absolute encoder feedback, a keyed shaft and a holding brake | Consider only if absolute feedback and the keyed shaft match the application |
| Siemens SINAMICS S120 | Servo Drive System | Drive family used in compatible Siemens motion-control architectures | Verify motor sizing, feedback support and the required DRIVE-CLiQ configuration |
Key Advantages
- Delivers 6.0 Nm rated torque at a 100 K temperature rise.
- Supports closed-loop control through incremental encoder feedback.
- Uses a DRIVE-CLiQ interface for compatible Siemens drive systems.
- Includes an integrated holding brake for stationary load retention within its rated capacity.
- Uses a plain shaft for compatible coupling arrangements.
- Provides IP65 protection and IP67 protection at the drive-end flange.
Technical FAQs
What distinguishes the 1FK7060-5AF71-1DH5 from the 1DG5 variant?
The 1DH5 configuration includes an integrated holding brake, whereas the 1DG5 configuration does not. Both use incremental encoder feedback and a DRIVE-CLiQ interface. The brake requirement should be evaluated alongside the mechanical load and the machine’s safety design.
Does the motor provide absolute position feedback after a power interruption?
No. This configuration uses incremental encoder feedback rather than an absolute encoder. If the application needs a known axis position after startup, the controller may need to execute a homing or referencing procedure.
What should be checked when connecting this motor to a SINAMICS drive?
Confirm the complete motor order number, electrical ratings, DRIVE-CLiQ connection, encoder configuration and brake-control requirements. The selected drive and its configured hardware must support the specific motor variant.
Can the integrated holding brake stop a moving load during an emergency?
The holding brake is primarily intended to hold the shaft when stationary, within its rated capacity. Whether it is suitable for a particular stopping or safety function depends on the brake specifications and the machine’s safety design; it should not be assumed to replace a dedicated dynamic stopping system.
