Product Overview

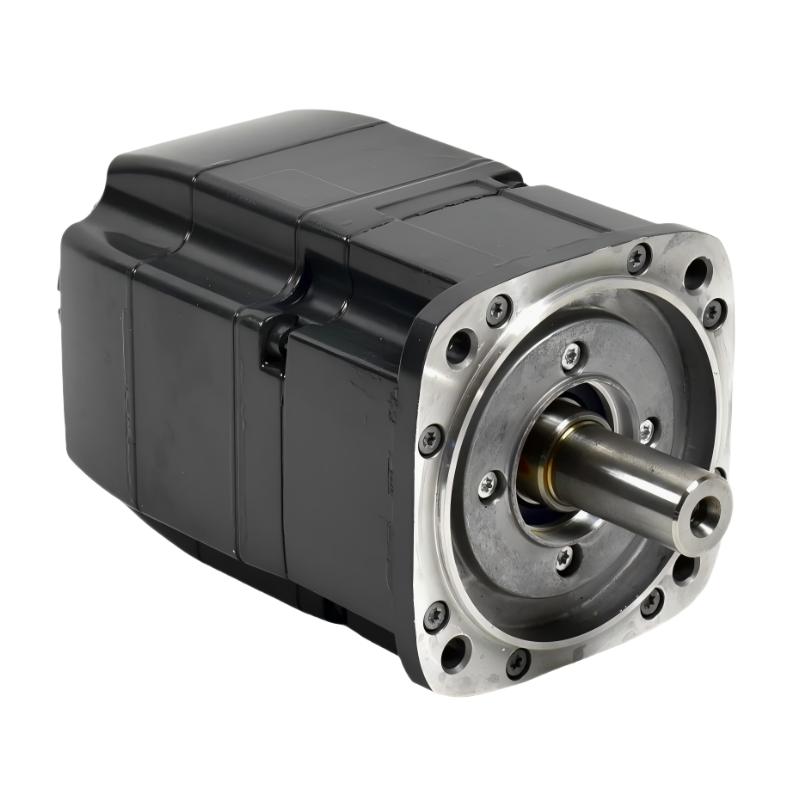

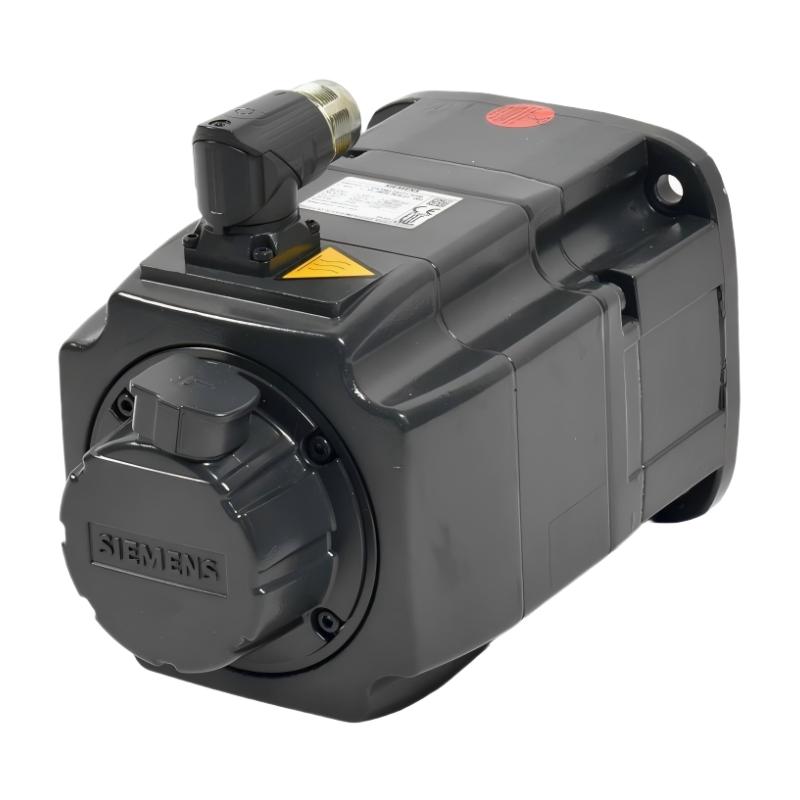

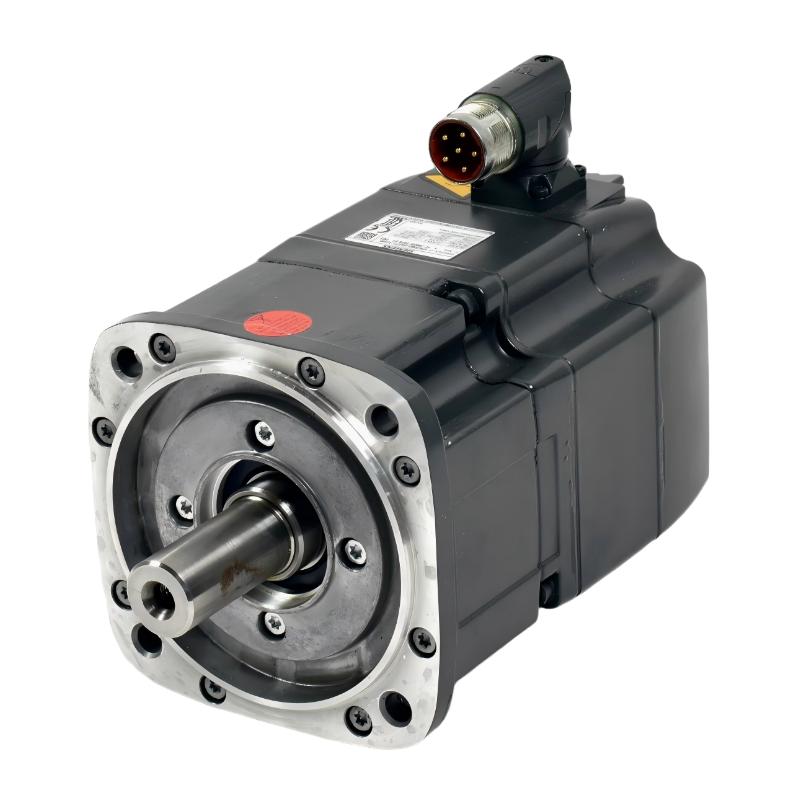

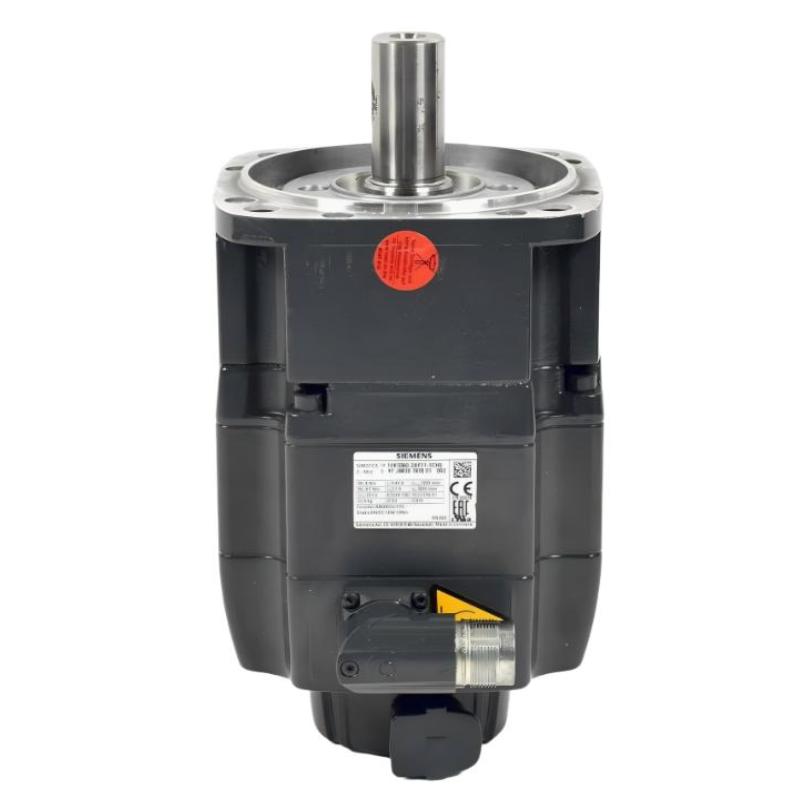

The Siemens 1FK7060-2AF71-1CH0 is a SIMOTICS S-1FK7 compact permanent-magnet synchronous motor for industrial servo-drive applications. It combines controlled rotary motion with absolute position feedback and an integrated holding brake, making it suitable for machine axes that require repeatable positioning and a means of holding the shaft when the motor is not actively driving the load.
The motor operates at a rated speed of 3,000 rpm and delivers a rated torque of 4.7 Nm at a 100 K temperature rise. Its absolute encoder uses a 24-bit single-turn and 12-bit multiturn arrangement with a DRIVE-CLiQ interface. This feedback configuration supports integration with compatible SINAMICS drive systems that use the corresponding encoder interface.
The naturally cooled motor uses an IM B5 flange mounting arrangement and a smooth shaft. Applications can include automated assembly, packaging equipment, machine-feed mechanisms and positioning axes. The selected drive, brake control, encoder connection and mechanical coupling must match the complete motor configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 1FK7060-2AF71-1CH0 |
| Product Family | SIMOTICS S-1FK7 |
| Product Type | Synchronous Motor |
| Motor Design | Compact permanent-magnet synchronous motor |
| Rated Power at Optimum Operating Point | Approximately 1.5 kW |
| Rated Speed | 3,000 rpm |
| Rated Torque at 100 K Temperature Rise | 4.7 Nm |
| Rated Current at 100 K Temperature Rise | 3.7 A |
| Static Torque at 100 K Temperature Rise | 6.0 Nm |
| Static Torque at 60 K Temperature Rise | 5.0 Nm |
| Maximum Mechanical Speed | 7,200 rpm |
| Maximum Inverter Speed | 6,700 rpm |
| Maximum Torque | 18.0 Nm |
| Number of Poles | 8 |
| Cooling Method | Natural cooling |
| Mounting Arrangement | IM B5 (IM V1, IM V3) |
| Shaft Type | Plain shaft, tolerance N |
| Feedback System | Absolute encoder AM24DQI |
| Encoder Resolution | 24-bit single-turn + 12-bit multiturn |
| Encoder Interface | DRIVE-CLiQ |
| Holding Brake | Integrated permanent-magnet brake |
| Holding Torque | 13.0 Nm |
| Brake Supply Voltage | 24 V DC ±10% |
| Brake Coil Current | 0.8 A |
| Temperature Monitoring | Pt1000 temperature sensor |
| Degree of Protection | IP64 |
| Electrical Connectors | Rotatable power and signal connectors |
| Shaft Height | 63 mm |
| Weight | 7.4 kg |
Product Features
- Permanent-magnet synchronous technology: Supports controlled torque and speed in servo-controlled machinery.
- Absolute encoder feedback: Uses an AM24DQI encoder with 24-bit single-turn and 12-bit multiturn data.
- DRIVE-CLiQ interface: Supports communication with compatible Siemens drive systems using this encoder interface.
- Integrated holding brake: Provides shaft-holding capability when correctly controlled and used within its rated limits.
- Rated torque of 4.7 Nm: Provides a defined continuous operating reference for motor and drive sizing.
- Natural cooling: Uses natural heat dissipation without an integrated forced-ventilation unit.
- Smooth shaft configuration: Supports compatible coupling and transmission arrangements.
- Rotatable connectors: Helps accommodate power and signal cable-routing requirements.
- Pt1000 temperature monitoring: Supplies winding-temperature information to compatible monitoring and protection functions.
- IP64 protection: Provides protection against dust ingress and water splashing under the specified conditions.
Working Principle
The 1FK7060-2AF71-1CH0 produces rotary torque through the interaction between the stator’s electromagnetic field and the rotor’s permanent magnets. A compatible servo drive supplies controlled three-phase current to regulate torque and speed according to commands from the motion controller.
The AM24DQI absolute encoder measures rotor position and communicates position information through the DRIVE-CLiQ interface. Its single-turn and multiturn data support the drive’s feedback functions, subject to the encoder configuration and drive capabilities. The controller and drive use the configured feedback to manage positioning and motion sequences.
The integrated permanent-magnet brake provides a separate shaft-holding function. It must be released and engaged according to the motor and drive operating requirements. It should not be treated as a routine dynamic stopping device unless the applicable specifications explicitly permit that duty.
The Pt1000 temperature sensor supplies temperature information for compatible monitoring functions. Correct motor identification, feedback setup, brake control and drive parameterization are important for commissioning and maintaining the complete servo axis.
Role in a SINAMICS Servo Control Architecture
The 1FK7060-2AF71-1CH0 acts as the rotary actuator in a closed-loop servo axis. The motion controller generates commands, the SINAMICS drive regulates motor power, and the DRIVE-CLiQ encoder supplies absolute position feedback. The integrated holding brake adds a separate means of retaining the shaft when required by the machine sequence.
| System Component | Function | Relationship to the Motor |
|---|---|---|
| Siemens SINAMICS S120 Drive | Regulates motor current, torque and speed | Supplies controlled motor power and supports DRIVE-CLiQ feedback |
| Motion Controller or PLC | Executes motion sequences | Sends positioning and speed commands to the drive |
| 1FK7060-2AF71-1CH0 | Converts electrical energy into rotary motion | Drives the connected mechanical axis |
| DRIVE-CLiQ Cable | Transfers encoder communication | Connects the absolute encoder to a compatible drive interface |
| Motor Power Cable | Supplies electrical power | Connects the drive output to the motor |
| Holding-Brake Control Circuit | Controls brake release and engagement | Operates the integrated permanent-magnet brake |
| Mechanical Coupling | Transfers torque | Connects the smooth shaft to the driven mechanism |
| Gearbox, Where Required | Adapts speed and output torque | Matches motor motion to the mechanical load |
| Pt1000 Monitoring Circuit | Monitors temperature | Provides temperature information to compatible monitoring equipment |
| HMI Panel | Displays operating states and alarms | Presents information processed by the controller |
Industrial Applications
| Application | Motion Requirement | Role of the Motor |
|---|---|---|
| Automated Assembly | Repeatable positioning between programmed locations | Drives compatible assembly mechanisms |
| Packaging Machinery | Synchronized movement and controlled stopping | Provides rotary actuation for machine sequences |
| Machine Tool Feed Axes | Regulated feed movement and position control | Drives a compatible feed mechanism |
| Pick-and-Place Equipment | Controlled acceleration, deceleration and positioning | Operates a suitable rotary axis |
| Indexing Machinery | Repeated motion followed by a holding period | Combines servo motion with an integrated holding brake |
| Material Handling Equipment | Controlled movement of machine components | Drives mechanisms requiring regulated speed and position |
| Automated Inspection Systems | Repeatable positioning of parts or fixtures | Supports controlled movement during inspection cycles |
| Industrial Production Lines | Coordinated movement of machine assemblies | Acts as a servo actuator when load and duty requirements match its ratings |
Installation and Maintenance
- Verify the complete order number: Confirm that 1FK7060-2AF71-1CH0 matches the required encoder, shaft and holding-brake configuration.
- Check drive compatibility: Ensure that the selected SINAMICS drive supports the motor ratings and DRIVE-CLiQ encoder interface.
- Isolate electrical power: Follow the applicable lockout and electrical safety procedures before installation or servicing.
- Inspect the mounting interface: Check the flange, mounting surface and fasteners for damage, contamination or alignment problems.
- Check the shaft coupling: Select a coupling compatible with the smooth shaft and the application’s torque and alignment requirements.
- Connect the motor power cable: Verify the connector assignment and cable compatibility against the applicable wiring information.
- Connect the DRIVE-CLiQ interface: Use a compatible cable and check the connection at both the encoder and drive.
- Verify the holding-brake circuit: Confirm brake supply, wiring and control sequence before operating the axis.
- Configure the motor and encoder: Enter the correct motor identification and verify that the absolute encoder is recognized by the drive.
- Configure operating limits: Set speed, current, torque and acceleration limits according to the mechanical load and duty cycle.
- Perform a controlled commissioning test: Verify encoder feedback, rotation direction, brake release and engagement, and drive diagnostics before normal production.
- Monitor operating conditions: Investigate unusual noise, vibration, temperature changes, encoder alarms or brake-related faults and document maintenance findings.
Related Components
| Component | Function | Relationship to the Motor |
|---|---|---|
| Siemens SINAMICS S120 Drive | Provides controlled motor power and feedback processing | Must support the motor’s ratings and DRIVE-CLiQ interface |
| Siemens SIMOTION Motion Controller | Executes coordinated motion tasks | Can command compatible servo axes |
| SIMATIC S7-1500T CPU | Provides PLC and technology functions | Can coordinate suitable motion-control applications |
| DRIVE-CLiQ Cable | Transfers encoder communication | Connects the AM24DQI encoder to the drive |
| Motor Power Cable | Transfers electrical power | Connects the drive output to the motor |
| Holding-Brake Control Circuit | Controls brake operation | Releases and engages the integrated brake |
| Mechanical Shaft Coupling | Transfers torque | Connects the smooth shaft to the machine transmission |
| Precision Gearbox | Adapts speed and torque | Used when the application requires a transmission ratio |
| Pt1000 Temperature Monitoring | Measures motor temperature | Supports compatible monitoring and protection functions |
| Machine HMI | Displays operating values and alarms | Supports operator supervision |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 1FK7060-2AF71-1CH0 | SIMOTICS S Synchronous Motor | Main product | Absolute encoder AM24DQI, smooth shaft and integrated holding brake |
| Siemens 1FK7060-2AF71-1CH1 | SIMOTICS S Synchronous Motor | Related encoder configuration | Compare the full encoder and protection configuration before substitution |
| Siemens 1FK7060-2AF71-1CG0 | SIMOTICS S Synchronous Motor | Related 1FK7 variant | Verify the encoder, shaft and brake configuration before replacement |
| Siemens 1FK7060-2AF71-1RG0 | SIMOTICS S Synchronous Motor | Related order-code variant | Confirm feedback interface and mechanical configuration |
| Siemens 1FK7060-2AF71-1RG1 | SIMOTICS S Synchronous Motor | Related order-code variant | Check encoder and brake requirements before selection |
| Siemens 1FK7083-2AF71-1CH0 | SIMOTICS S Synchronous Motor | Related 1FK7 motor family | Compare torque, speed, mounting and drive requirements for the application |
Key Advantages
- Combines servo motion with absolute position feedback through DRIVE-CLiQ.
- Includes an integrated permanent-magnet holding brake.
- Supports a rated torque of 4.7 Nm at a 100 K temperature rise.
- Uses natural cooling and an IM B5 flange-mounted arrangement.
- Provides Pt1000 temperature monitoring and rotatable power and signal connectors.
Technical FAQs
What encoder is installed in the 1FK7060-2AF71-1CH0?
This model uses an AM24DQI absolute encoder with 24-bit single-turn and 12-bit multiturn data, connected through DRIVE-CLiQ. The drive and cable arrangement must support this specific interface.
What is the purpose of the integrated holding brake?
The permanent-magnet brake holds the shaft when engaged, helping retain the axis in the required stationary condition. Its rated holding torque is 13.0 Nm. Brake selection and operation must account for the actual load and the applicable operating instructions.
Can this motor be replaced by the 1FK7060-2AF71-1CG0?
Do not assume direct interchangeability from the shared motor family and frame alone. Compare the complete order numbers, encoder interface, brake configuration, shaft arrangement and drive compatibility before replacement.
What should be checked if the drive reports an encoder communication fault?
Check the DRIVE-CLiQ cable and connectors, verify that the drive configuration matches the AM24DQI encoder, and inspect the drive’s diagnostic messages. Confirm the motor identification and feedback setup before returning the axis to service.
