Product Overview

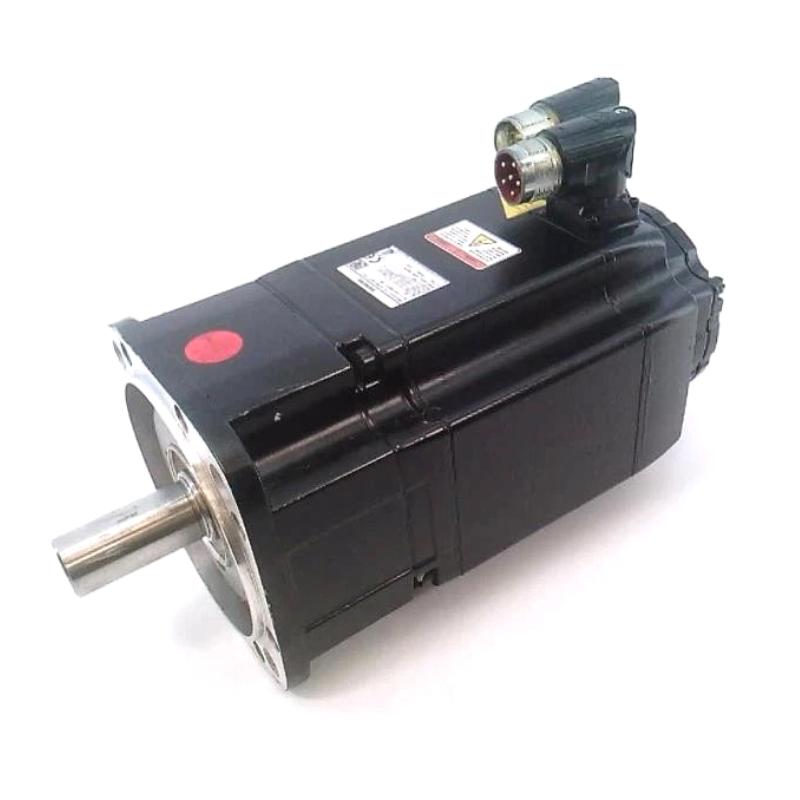

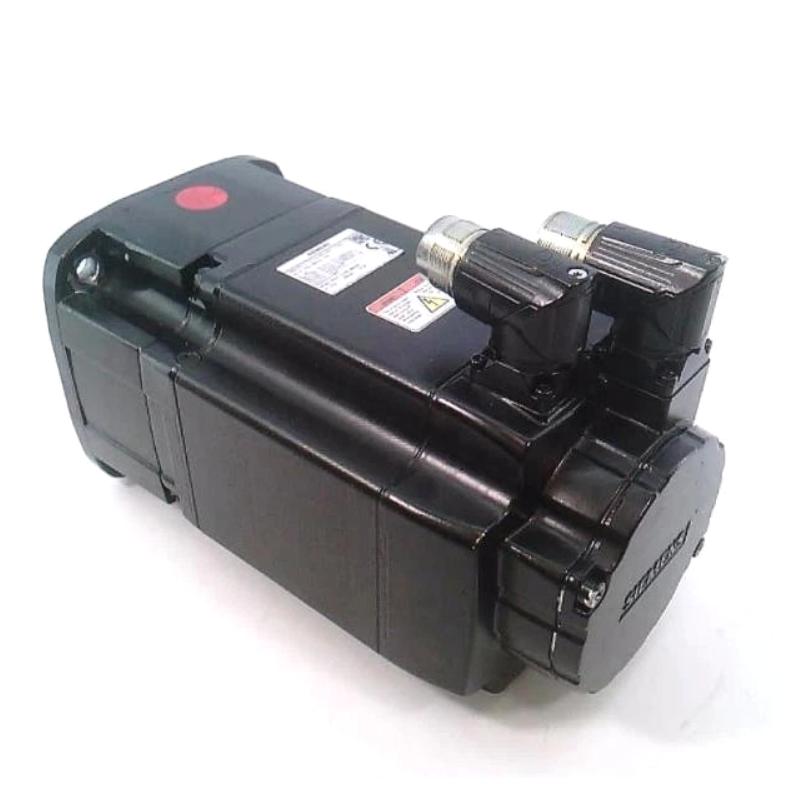

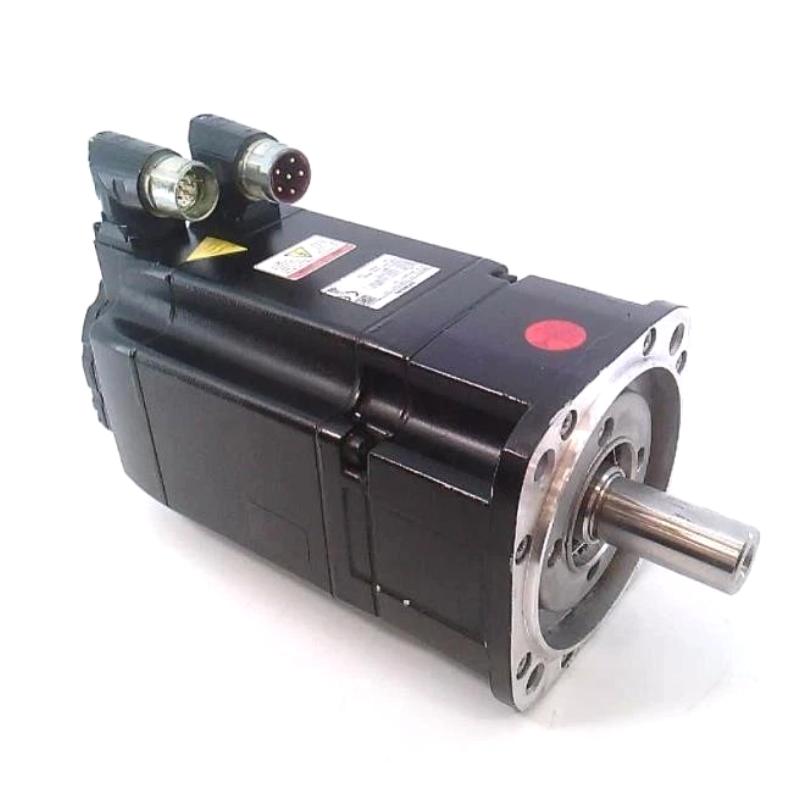

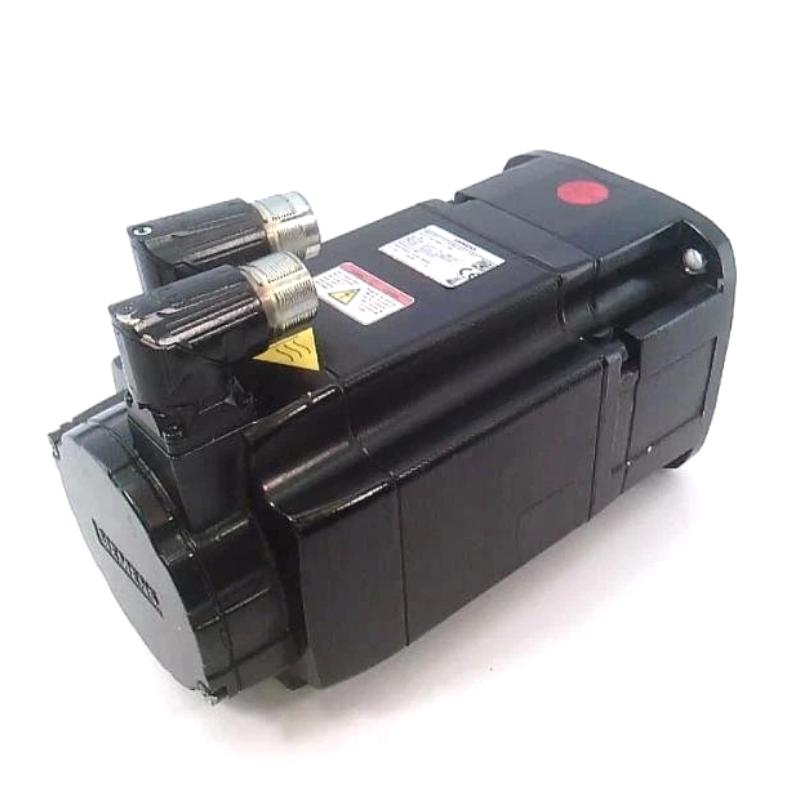

The Siemens 1FK7060-2AF71-1CG0 belongs to the SIMOTICS S-1FK7 compact synchronous motor family used in industrial servo-drive systems. It converts controlled electrical power into rotary motion for machine axes that require regulated speed, torque and repeatable movement. Its motor ratings make it suitable for applications requiring more torque than smaller 1FK7 frame variants.
The motor’s rated speed is 3,000 rpm, with a rated torque of 4.7 Nm at a 100 K temperature rise. Its naturally cooled construction and IM B5 flange mounting support integration into compatible machine assemblies without requiring an integrated forced-ventilation unit. The motor can be used in feed mechanisms, packaging equipment, automated assembly machinery and other servo-controlled systems when its performance matches the axis requirements.
When selecting a replacement or configuring a new installation, the complete order number matters. The drive must match the motor’s electrical ratings and the specified encoder, shaft and connection configuration. The mechanical coupling, duty cycle and load inertia also need to be considered to achieve the required motion response.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Order Number | 1FK7060-2AF71-1CG0 |
| Product Family | SIMOTICS S-1FK7 |
| Product Type | Synchronous Motor |
| Motor Design | Compact permanent-magnet synchronous motor |
| Rated Power at Optimum Operating Point | 1.48 kW |
| Rated Speed | 3,000 rpm |
| Rated Torque at 100 K Temperature Rise | 4.7 Nm |
| Rated Current at 100 K Temperature Rise | 3.7 A |
| Static Torque at 100 K Temperature Rise | 6.0 Nm |
| Static Torque at 60 K Temperature Rise | 5.0 Nm |
| Maximum Mechanical Speed | 7,200 rpm |
| Maximum Inverter Speed | 6,700 rpm |
| Maximum Torque | 18.0 Nm |
| Number of Poles | 8 |
| Cooling Method | Natural cooling |
| Mounting Arrangement | IM B5 (IM V1, IM V3) |
| Motor Feedback Configuration | As specified by the complete order number |
| Shaft Height | 63 mm |
| Weight | 7.101 kg |
Product Features
- Permanent-magnet synchronous technology: Supports controlled torque and speed in servo-driven machinery.
- Rated torque of 4.7 Nm: Provides a defined continuous operating rating for motor and drive selection under the specified temperature-rise condition.
- Rated speed of 3,000 rpm: Supports industrial positioning and feed applications requiring controlled rotary motion.
- Compact motor construction: Fits compatible machine assemblies that use the 1FK7 motor family.
- Natural cooling: Dissipates heat without an integrated forced-ventilation unit.
- IM B5 mounting arrangement: Supports flange-mounted installation in compatible mechanical assemblies.
- Servo-drive integration: Operates as part of a configured drive system that matches the motor’s electrical and feedback requirements.
- Defined speed limits: Provides mechanical and inverter speed ratings that can be considered when setting drive parameters.
- Industrial positioning capability: Supports controlled motion where motor torque, load inertia and cycle requirements remain within the specified operating limits.
Working Principle
The 1FK7060-2AF71-1CG0 uses permanent magnets in the rotor and electrically energized stator windings to generate rotary torque. A compatible servo drive supplies controlled three-phase current to the motor, regulating torque and speed in response to commands from the machine controller.
During a positioning cycle, the controller sends a motion command to the drive. The drive regulates motor output according to the configured motor data and feedback arrangement, allowing the axis to accelerate, maintain a commanded speed and decelerate as required. The selected feedback configuration must correspond to the exact motor order number and supported drive interface.
The motor’s rated and maximum operating values serve different purposes. Rated torque and speed are relevant to continuous application sizing, while maximum torque and speed limits apply under their specified operating conditions. The load inertia, acceleration profile, cycle frequency and cooling conditions should be evaluated together rather than using maximum torque as a continuous operating target.
Role in a SIMOTICS S-1FK7 Servo Control Architecture
The 1FK7060-2AF71-1CG0 acts as the electromechanical actuator in a servo-controlled machine axis. The controller generates motion commands, the servo drive regulates motor current, and the configured feedback system supports the drive’s motion-control functions.
| System Component | Function | Relationship to the Motor |
|---|---|---|
| Siemens SINAMICS Servo Drive | Regulates motor current, torque and speed | Supplies controlled electrical power to the motor |
| Motion Controller or PLC | Executes motion sequences and machine logic | Sends commands to the servo drive |
| 1FK7060-2AF71-1CG0 | Converts electrical energy into rotary motion | Drives the connected mechanical axis |
| Motor Power Cable | Transfers electrical power | Connects the drive output to the motor |
| Encoder or Feedback Cable | Carries feedback signals | Connects the motor feedback system to a compatible drive interface |
| Mechanical Coupling | Transfers torque to the machine | Connects the motor shaft to the driven mechanism |
| Gearbox, Where Required | Adapts speed and output torque | Matches motor motion to the mechanical load |
| Machine HMI | Displays operating data and alarms | Presents information processed by the controller |
| Electrical Protection Devices | Provide circuit protection and isolation | Support the complete motor-drive installation |
| Machine Frame | Supports the motor and transmission | Maintains the required mechanical mounting arrangement |
Industrial Applications
| Application | Motion Requirement | Role of the Motor |
|---|---|---|
| Machine Tool Feed Axes | Controlled feed motion during machining | Drives a compatible feed mechanism through the servo system |
| Packaging Machinery | Repeatable movement and synchronized operating cycles | Supplies rotary motion for machine mechanisms |
| Automated Assembly | Controlled movement between programmed positions | Drives compatible positioning and assembly equipment |
| Material Handling Systems | Regulated movement of machine components | Provides rotary actuation for a suitable axis |
| Pick-and-Place Equipment | Controlled acceleration, deceleration and positioning | Drives a mechanism following programmed motion profiles |
| Indexing Machinery | Repeated movement according to a machine sequence | Supplies rotary motion through a compatible transmission |
| Automated Inspection Systems | Repeatable positioning of fixtures or components | Supports controlled movement during inspection operations |
| Industrial Production Lines | Coordinated movement of machine assemblies | Acts as a servo actuator when its ratings match the load and duty cycle |
Installation and Maintenance
- Verify the complete order number: Confirm that 1FK7060-2AF71-1CG0 matches the required motor configuration before installation or replacement.
- Check servo-drive compatibility: Ensure that the drive supports the motor’s electrical ratings and specified feedback interface.
- Isolate electrical power: Follow the applicable lockout and electrical safety procedures before installation, wiring or maintenance.
- Inspect the mounting interface: Check the flange, mounting surface and fasteners for damage, contamination or irregularities.
- Check shaft and coupling compatibility: Confirm that the mechanical connection matches the motor shaft configuration and the driven equipment.
- Verify motor power wiring: Check the connector, phase connections and cable assignments against the applicable wiring information.
- Connect the feedback system: Use the correct feedback cable and confirm that the drive is configured for the motor’s specified feedback type.
- Confirm mechanical alignment: Align the motor and driven mechanism to limit excessive radial or axial loading on the shaft and bearings.
- Enter the correct motor data: Use the applicable motor parameters for drive commissioning and verify the configured order number.
- Set motion limits: Configure speed, current, torque and acceleration limits according to the machine load and operating cycle.
- Perform a controlled commissioning test: Verify rotation direction, feedback operation, drive response and diagnostic status before normal production.
- Monitor operating conditions: Investigate unusual noise, vibration, temperature changes or recurring drive alarms, and document maintenance findings.
Related Components
| Component | Function | Relationship to the Motor |
|---|---|---|
| Siemens SINAMICS Servo Drive | Supplies controlled motor power | Must match the motor’s ratings and feedback requirements |
| Siemens SIMOTION Motion Controller | Executes coordinated motion tasks | Can command compatible servo axes |
| SIMATIC S7-1500T CPU | Provides PLC and technology functions | Can coordinate suitable motion-control applications |
| Motor Power Cable | Transfers electrical power | Connects the drive to the motor |
| Encoder or Feedback Cable | Carries feedback signals | Supports the configured closed-loop control arrangement |
| Mechanical Shaft Coupling | Transfers torque | Connects the motor to the driven mechanism |
| Precision Gearbox | Adapts speed and torque | Used when the application requires a transmission ratio |
| Machine HMI | Displays machine status and alarms | Supports operator monitoring |
| Electrical Protection Devices | Provide isolation and circuit protection | Form part of the complete servo-axis electrical design |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Siemens 1FK7060-2AF71-1CG0 | SIMOTICS S Synchronous Motor | Main product | Match the complete order number to the required motor configuration |
| Siemens 1FK7060-2AF71-1RG1 | SIMOTICS S Synchronous Motor | Related 1FK7 variant | Verify encoder interface, shaft configuration and protection rating before substitution |
| Siemens 1FK7060-2AF71-1CH1 | SIMOTICS S Synchronous Motor | Related 1FK7 variant | Check the encoder configuration and integrated holding-brake arrangement |
| Siemens 1FK7060-2AF71-1QB1 | SIMOTICS S Synchronous Motor | Related 1FK7 variant | Confirm the single-turn encoder, shaft and holding-brake requirements |
| Siemens 1FK7060-2AF71-1RG0 | SIMOTICS S Synchronous Motor | Related order-code variant | Compare the complete feedback and mechanical configuration before selecting |
| Siemens 1FK7083-2AF71-1CG0 | SIMOTICS S Synchronous Motor | Related 1FK7 motor family | Consider only after checking the higher torque requirements and mechanical interface |
Key Advantages
- Supports servo-controlled rotary motion for industrial machine axes.
- Offers a rated torque of 4.7 Nm at a 100 K temperature rise.
- Supports a rated speed of 3,000 rpm and defined maximum speed limits.
- Uses natural cooling and an IM B5 mounting arrangement.
- Can be integrated into a compatible SINAMICS-based motion-control system.
Technical FAQs
What are the rated torque and speed of the 1FK7060-2AF71-1CG0?
The motor has a rated torque of 4.7 Nm at a 100 K temperature rise and a rated speed of 3,000 rpm. Application sizing should also account for load inertia, acceleration, duty cycle and the drive’s operating limits.
How should the maximum mechanical speed be interpreted when configuring the drive?
The maximum mechanical speed is specified as 7,200 rpm, while the maximum inverter speed is 6,700 rpm. The actual operating limit must respect the applicable motor and drive restrictions; the lower relevant limit should be used for the configured system.
Can this motor be substituted directly for another 1FK7060 motor?
Not based on the shared frame designation alone. The full order numbers must be compared for feedback interface, shaft configuration, holding brake, connectors and protection requirements before a replacement is selected.
What factors should be evaluated if the motor overheats during repetitive positioning?
Check the actual RMS torque, acceleration and deceleration profile, cycle frequency, load inertia, drive current settings and surrounding cooling conditions. Operation near peak torque for extended periods can create thermal loading that differs substantially from the rated operating point.
